32K424-600S5

Description
RF Connectors / Coaxial Connectors PANEL JACK
CategoryThe connector    The connector
File Size218KB,2 Pages
ManufacturerRosenberger
Websitehttps://www.rosenberger.com/
Environmental Compliance
Download Datasheet Parametric View All

32K424-600S5 Online Shopping

Suppliers Part Number Price MOQ In stock
32K424-600S5 - - View Buy Now

32K424-600S5 Overview

RF Connectors / Coaxial Connectors PANEL JACK

32K424-600S5 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
package instructionROHS COMPLIANT
Reach Compliance Codecompliant
Other featuresCAPTIVE CENTER CONTACT, VSWR MAX AT 10 GHZ
subject depth0.311 inch
Body/casing typeJACK
Characteristic impedance50 Ω
Connector typeRF SMA CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderFEMALE
Contact materialNOT SPECIFIED
Contact resistance3 mΩ
Contact styleCOAX
Coupling typeTHREADED
DIN complianceNO
Durability500 Cycles
Filter functionNO
IEC complianceNO
Insertion loss0.17 dB
Insulation resistance5000000000 Ω
insulator materialPOLYTETRAFLUORO ETHYLENE
MIL complianceNO
Plug informationMULTIPLE MATING PARTS AVAILABLE
Installation methodSTRAIGHT
Installation typeSTRIPLINE
Number of ports1
Maximum operating frequency18 GHz
Maximum operating temperature165 °C
Minimum operating temperature-65 °C
OptionsGENERAL PURPOSE
Panel mountingYES
reliabilityCOMMERCIAL
Total number of contacts1
voltage standing wave ratio1.3
Base Number Matches1

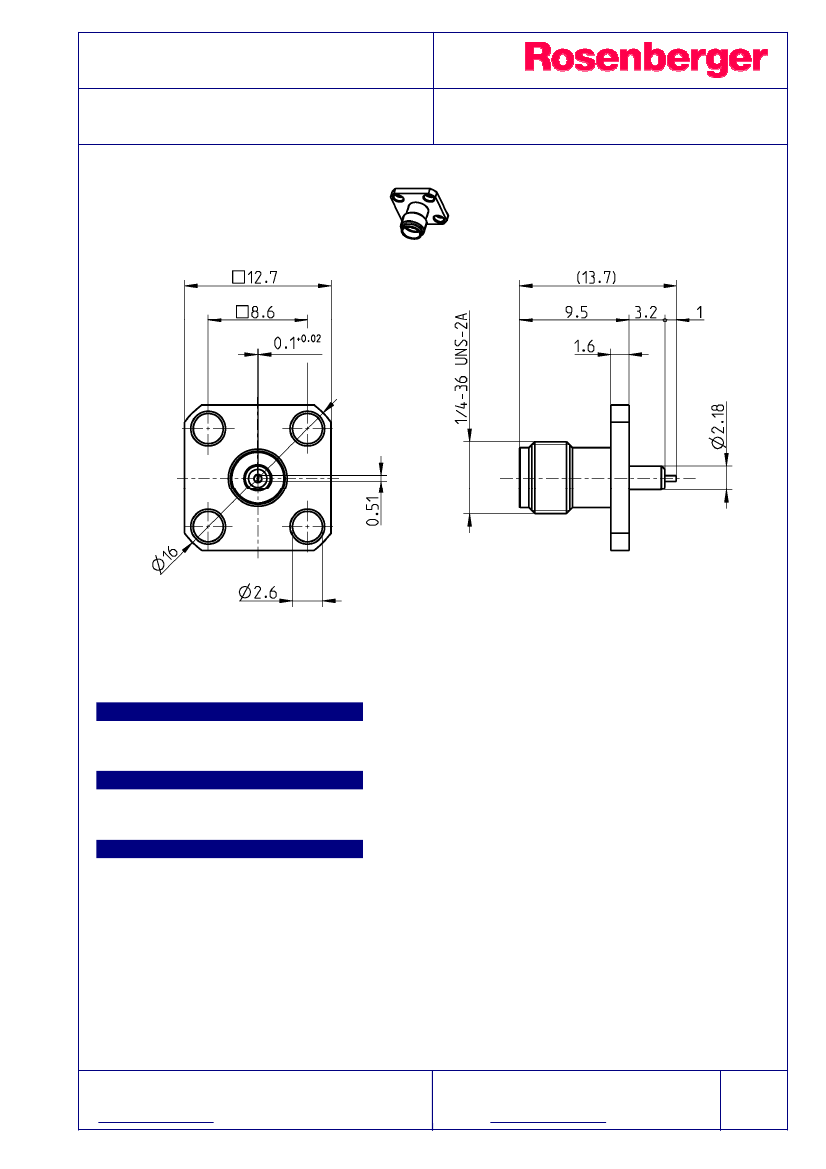

TECHNICAL DATA SHEET
SMA
PANEL JACK
STRIPLINE
32K424-600S5
All dimensions are in mm; tolerances according to ISO 2768 m-H
Interface
According to
IEC 60169-15; EN 122110; MIL-STD-348
Documents
Panel piercing
B 55g
Material and plating
Connector parts
Center contact
Outer contact
Dielectric
Material
CuBe
Stainless steel
PTFE
Plating
AuroDur®, gold plated
Passivated
RF_35/12.04/3.0
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
email: info@rosenberger.de
Page
1/2
