PA4318.473NLT datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> PA4318.473NLT

Preview

PA4318.473NLT: DescriptionFixed Inductors PA4318 6.1x6.1mm 47uH 0.86A 300mOhms; CategoryPassive components; File Size241KB，3 Pages; ManufacturerPulse; Environmental Compliance

Download Datasheet Parametric View All

PA4318.473NLT Overview

Fixed Inductors PA4318 6.1x6.1mm 47uH 0.86A 300mOhms

PA4318.473NLT Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Pulse
Product Category	Fixed Inductors
RoHS	Details
Termination Style	SMD/SMT
Shielding	Shielded
Inductance	47 uH
Tolerance	20 %
Maximum DC Current	860 mA
Maximum DC Resistance	300 mOhms
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Test Frequency	100 kHz
Termination	-
Mounting Style	PCB Mount
Package / Case	6.1 mm x 6.1 mm x 3.2 mm
Length	6.1 mm
Width	6.1 mm
Height	3.2 mm
Packaging	Cut Tape
Packaging	MouseReel
Packaging	Reel
Product	Fixed Inductors
Self Resonant Frequency	-
Factory Pack Quantity	2000

Preview

Download Datasheet

View All

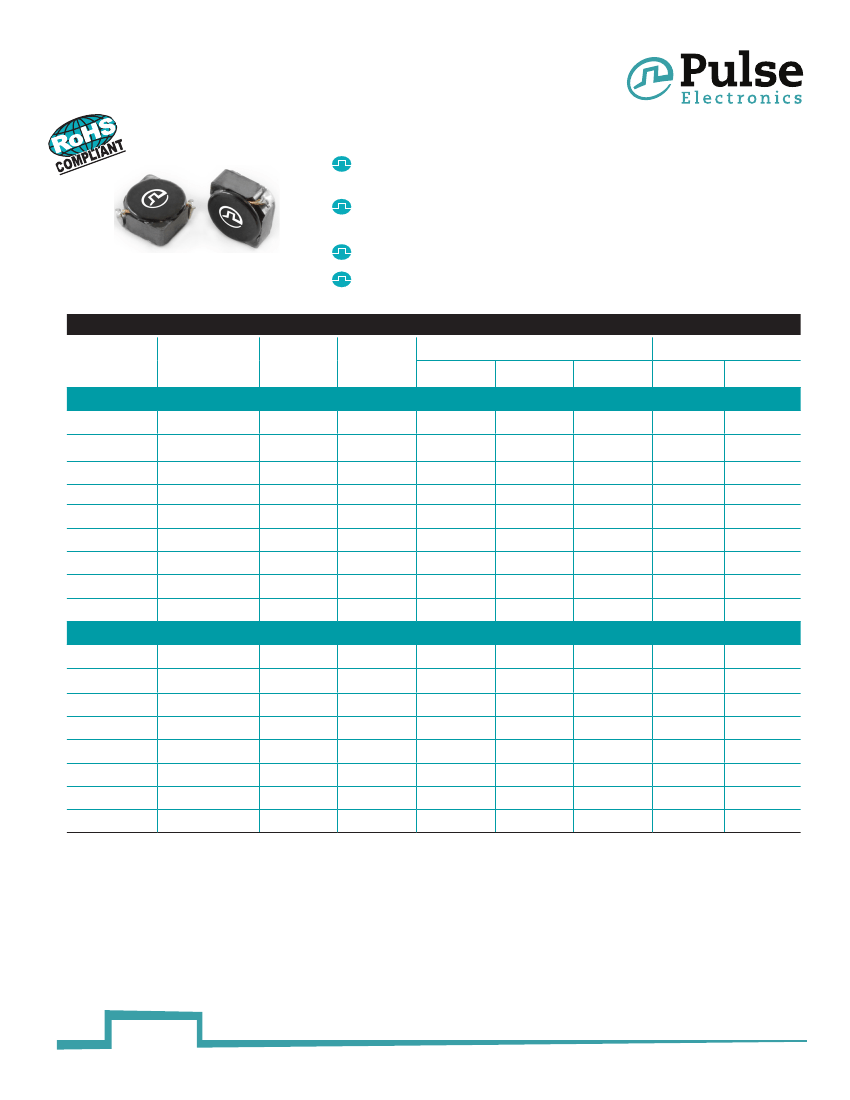

Pulse Jack

Shielded Drum Core Inductor

PA4322,PA4318,PA4319 Series

Electronics

Height:

PA4322 (3.1mm Max), PA4318 (3.2mm Max),

PA4319 (4.1mm Max)

Footprint:

PA4322 (5.1x5.1mm Max), PA4318 (6.1x6.1mm Max),

PA4319 (7.3x7.3mm Max)

Current Rating:

up to 3.98A

Inductance Range:

2.2uH to 680uH

Electrical Specifications @ 25°C

—

Operating Temperature -40°C to 125°C

PART NUMBER

INDUCTANCE

100 KHz, 100 mV

(uH±20%)

2.2

4.7

10

22

47

68

100

220

390

4.7

6.8

10

15

22

47

68

100

RATED

CURRENT (A)

2.08

1.32

0.98

0.64

0.46

0.38

0.30

0.21

0.15

2.60

2.12

1.64

1.42

1.12

0.86

0.63

0.54

DCR

(mOHMS MAX)

20

38

70

145

270

368

580

1100

1800

43

52

70

106

158

300

410

660

SATURATION CURRENT (TYPICAL) A

10% DROP

1.76

1.08

0.85

0.54

0.38

0.31

0.26

0.18

0.12

2.18

1.80

1.36

1.16

0.97

0.72

0.55

0.45

20% DROP

2.08

1.32

0.98

0.64

0.46

0.38

0.30

0.21

0.15

2.60

2.12

1.64

1.42

1.12

0.86

0.63

0.54

30% DROP

2.30

1.42

1.13

0.70

0.51

0.42

0.33

0.23

0.16

2.84

2.30

1.84

1.56

1.22

0.93

0.69

0.59

HEATING CURRENT

20°C Rise

2.00

1.40

1.00

0.87

0.70

0.60

0.45

0.39

0.25

2.30

1.90

1.75

1.45

1.00

0.75

0.55

0.45

40°C Rise

3.30

2.50

1.90

1.30

0.95

0.75

0.69

0.40

0.35

3.10

2.40

2.30

1.90

1.50

0.95

0.80

0.65

PA4322NL S

ERIES

PA4322.222NLT

PA4322.472NLT

PA4322.103NLT

PA4322.223NLT

PA4322.473NLT

PA4322.683NLT

PA4322.104NLT

PA4322.224NLT

PA4322.394NLT

PA4318NL S

ERIES

PA4318.472NLT

PA4318.682NLT

PA4318.103NLT

PA4318.153NLT

PA4318.223NLT

PA4318.473NLT

PA4318.683NLT

PA4318.104NLT

1

pulseelectronics.com

P784.A (09/16)
