M20-8763342R: DescriptionBoard Connector, 66 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal, LEAD FREE; CategoryThe connector; File Size3MB，1 Pages; ManufacturerHarwin; Websitehttp://www.harwin.com/

Download Datasheet Parametric View All

M20-8763342R Overview

Board Connector, 66 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal, LEAD FREE

M20-8763342R Parametric

Parameter Name	Attribute value
Maker	Harwin
package instruction	LEAD FREE
Reach Compliance Code	unknown
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	TIN
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	M20-87
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SURFACE MOUNT
Total number of contacts	66
Base Number Matches	1

Preview

Download Datasheet

View All

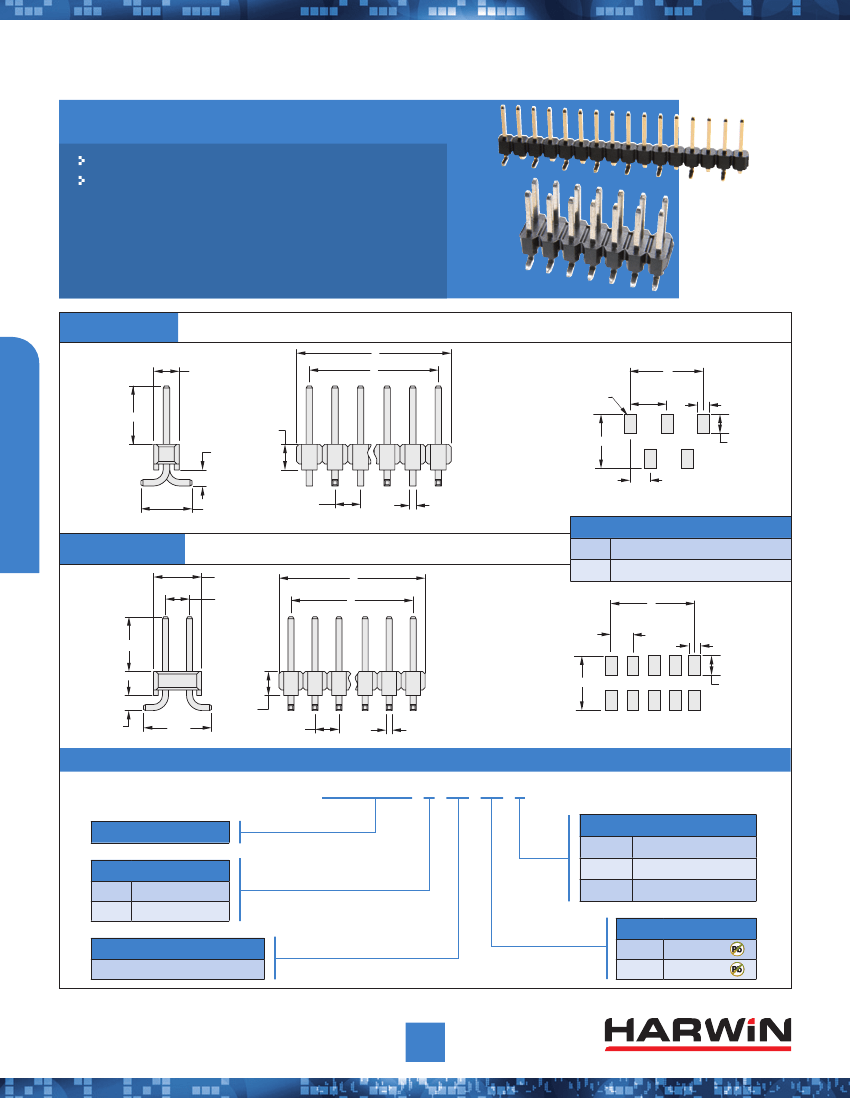

M20 Connectors

Male Vertical Surface Mount

For alternative pin lengths, see pin header variants on page 152.

Suitable for use with female connectors and jumper sockets

shown on pages 140 to 145.

SINGLE ROW

A

2.50

B

2.54mm (.100") PITCH

No. 1 position

5.80

2.54

5.50

1.59

5.08

1.27

2.20

2.54

5.08

2.54

0.64

square

Recommended PC Board Pattern

CalCulation

DOUBLE ROW

5.00

2.54

A

B

a

B

2.54 x No. of contacts per row

2.54 x (No. of contacts per row - 1)

B

2.54

5.80

1.00

8.20

2.54

1.59

7.20

2.54

0.64

square

3.15

Recommended PC Board Pattern

HOW TO ORDER

M20 - 87 X XX XX X

series CoDe

tail sPaCinG

6

7

Double Row

Single Row

PaCKaGinG

Blank

P

r

Loose

Pick & Place Cap, Tube

Tape & Reeled

Finish

no. oF ContaCts Per roW

02 to 40

All dimensions in mm.

42

46

Gold + Tin

Tin

www.harwin.com

150

Recommended Resources

Ground drain amplifier circuit connections

Double touch point digital code lock circuit

High-speed gain programmable amplifier circuit

555 darkroom timer circuit (3)

Use clamp ammeter to determine leakage ground fault point

Pulse position modulation circuit composed of 555 time base circuit
