14KESD17CTR datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> 14KESD17CTR

14KESD17CTR: DescriptionTrans Voltage Suppressor Diode, 4000W, 17V V(RWM), Bidirectional, 1 Element, Silicon, DO-204AL, HERMETIC SEALED, GLASS, DO-41, 2 PIN; CategoryDiscrete semiconductor diode; File Size184KB，4 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com

Download Datasheet Parametric View All

14KESD17CTR Overview

Trans Voltage Suppressor Diode, 4000W, 17V V(RWM), Bidirectional, 1 Element, Silicon, DO-204AL, HERMETIC SEALED, GLASS, DO-41, 2 PIN

14KESD17CTR Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	DO-41
package instruction	HERMETIC SEALED, GLASS, DO-41, 2 PIN
Contacts	2
Reach Compliance Code	unknow
ECCN code	EAR99
Minimum breakdown voltage	18.9 V
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE
JEDEC-95 code	DO-204AL
JESD-30 code	O-LALF-W2
JESD-609 code	e0
Maximum non-repetitive peak reverse power dissipation	4000 W
Number of components	1
Number of terminals	2
Package body material	GLASS
Package shape	ROUND
Package form	LONG FORM
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
polarity	BIDIRECTIONAL
Maximum power dissipation	1.5 W
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	17 V
surface mount	NO
technology	AVALANCHE
Terminal surface	TIN LEAD
Terminal form	WIRE
Terminal location	AXIAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

Preview

Download Datasheet

View All

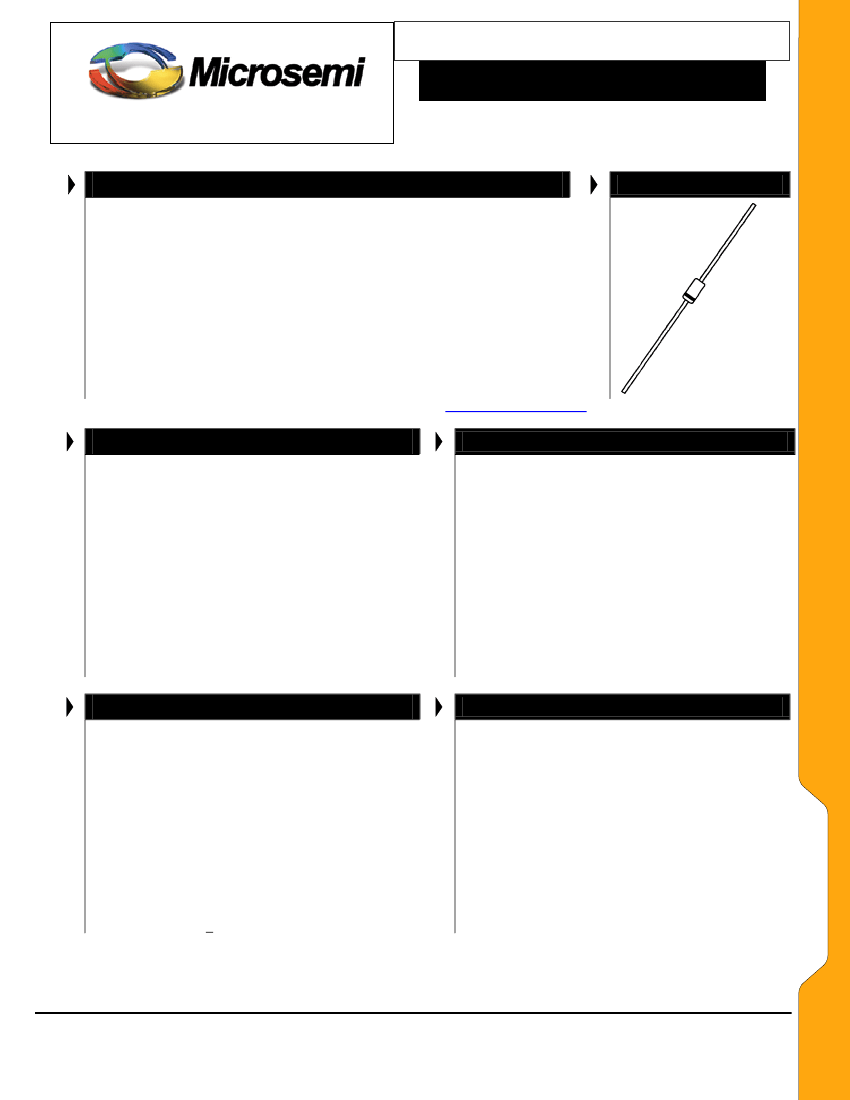

14KESD5.0 thru 14KESD170CA

AXIAL-LEAD TVS

SCOTTSDALE DIVISION

DESCRIPTION

These small axial-leaded TVS devices feature the ability to clamp

dangerous high voltage, short-term transients such as produced by directed

or radiated electrostatic discharge phenomena before entering sensitive

component regions of a circuit design. They are small economical transient

voltage suppressors targeted primarily for short-term transients below a few

microseconds while still achieving significant peak-pulse-power capability

as illustrated in Figure #1.

APPEARANCE

WWW .

Microsemi

DO-41

(DO-204AL)

IMPORTANT:

For the most current data, consult

MICROSEMI’s

website:

http://www.microsemi.com

FEATURES

•

Excellent protection in clamping direct ESD level

transients in excess of 40,000 V per MIL-STD-750,

Method 1020 (approx. 150 ns exponential wave)

Absorbs ESD level transients* of 14,000 Watts per

MIL-STD-750, Method 1020 (approximately 150 ns

exponential wave, or one microsecond transients

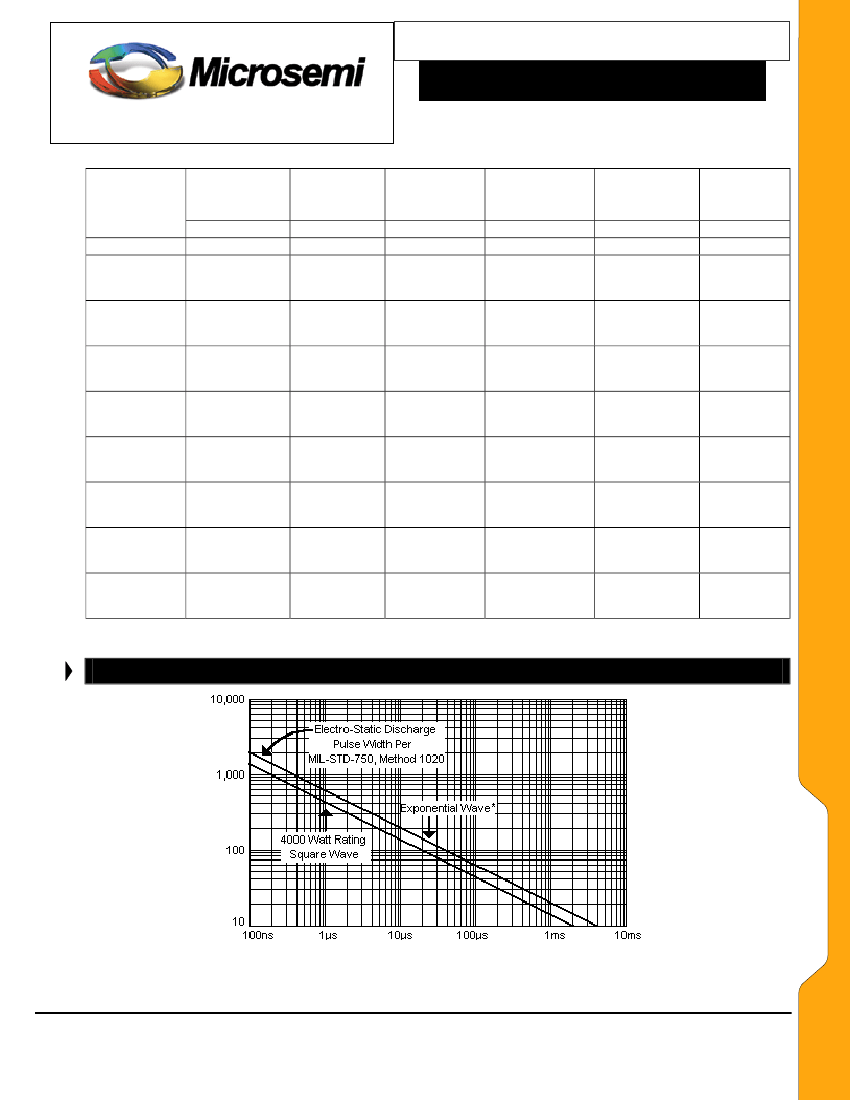

up to 4000 watts. See Figure #1 and #2 for overall

transient Peak Pulse Power.

Clamps Transients in less than 100 picoseconds

Working Stand-off Voltage range of 5V to 170V

Hermetic DO-41 Package. Also available in surface

mount DO-213AB MELF package (see separate

data sheet)

•

APPLICATIONS / BENEFITS

Protects Sensitive circuits from short duration fast

rise time transients such as Electrostatic Discharge

(ESD) or Electrical Fast Transients (EFT)

Minimal capacitance (See Figure #3)

Flexible axial-lead mounting terminals

Bidirectional features available by adding a “C” or

“CA” suffix

•

MAXIMUM RATINGS

•

4000 Watts for One Microsecond Square Wave or

14,000 watts per ESD Wave form of MIL-STD-750,

method 1020.

See Surge Rating curve in Figures #1 and 2.

Operating and storage temperature –65

C to 175

THERMAL RESISTANCE: Less than 83

C/Watt

junction to lead at 0.375 inches from body.

DC power dissipation 1500 mW at T

= 75

C at 3/8

inch (10 mm) lead length from body.

Derate at 22.8 W/

C above 25

C for P

(1µs) and

at 15 mW/

C above 75

C for dc power.

Forward Surge Current 500 amps for 1µs at T

25 C (rise time > 100 ns).

•

MECHANICAL AND PACKAGING

CASE: Hermetically sealed axial-lead glass DO-41

(DO-204AL) package

TERMINALS: Leads, tin-lead plated solderable per

MIL-STD-750, method 2026

POLARITY: Banded end is cathode

WEIGHT: 0.378 grams (typical)

MARKING: Part number

TAPE & REEL option: Standard per EIA-296 (add

“TR” suffix to part number)

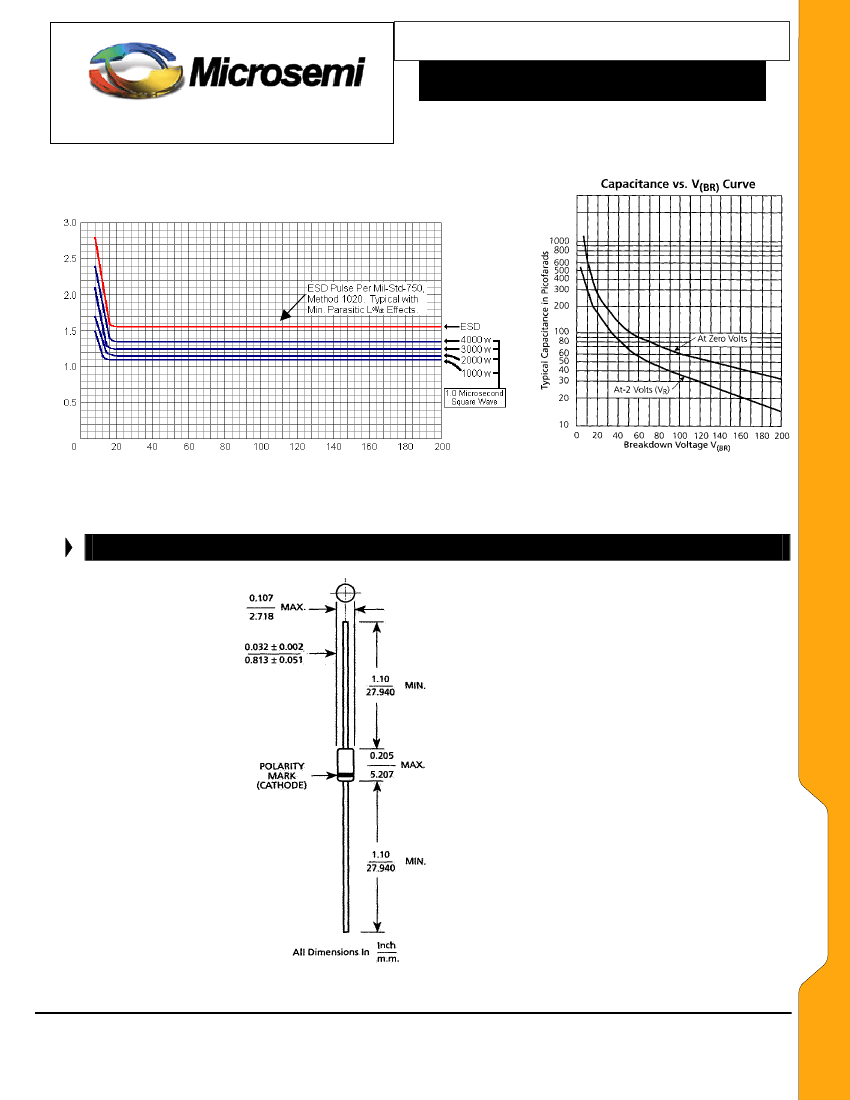

See package dimension on last page

•

14KESD5.0 – 14KESD170CA



2002

10-03-2003 REV A

Microsemi

Scottsdale Division

8700 E. Thomas Rd. PO Box 1390, Scottsdale, AZ 85252 USA, (480) 941-6300, Fax: (480) 947-1503

Page 1
