42815-0144 (Cut Strip)

Description
Headers & Wire Housings MFSR Term F 14-16 STRIP OF 100
CategoryThe connector
File Size45KB,1 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric Compare View All

42815-0144 (Cut Strip) Overview

Headers & Wire Housings MFSR Term F 14-16 STRIP OF 100

42815-0144 (Cut Strip) Parametric

Parameter NameAttribute value
Product AttributeAttribute Value
ManufacturerMolex
Product CategoryHeaders & Wire Housings
RoHSDetails
PackagingCut Tape
Factory Pack Quantity100
Unit Weight0.048713 oz

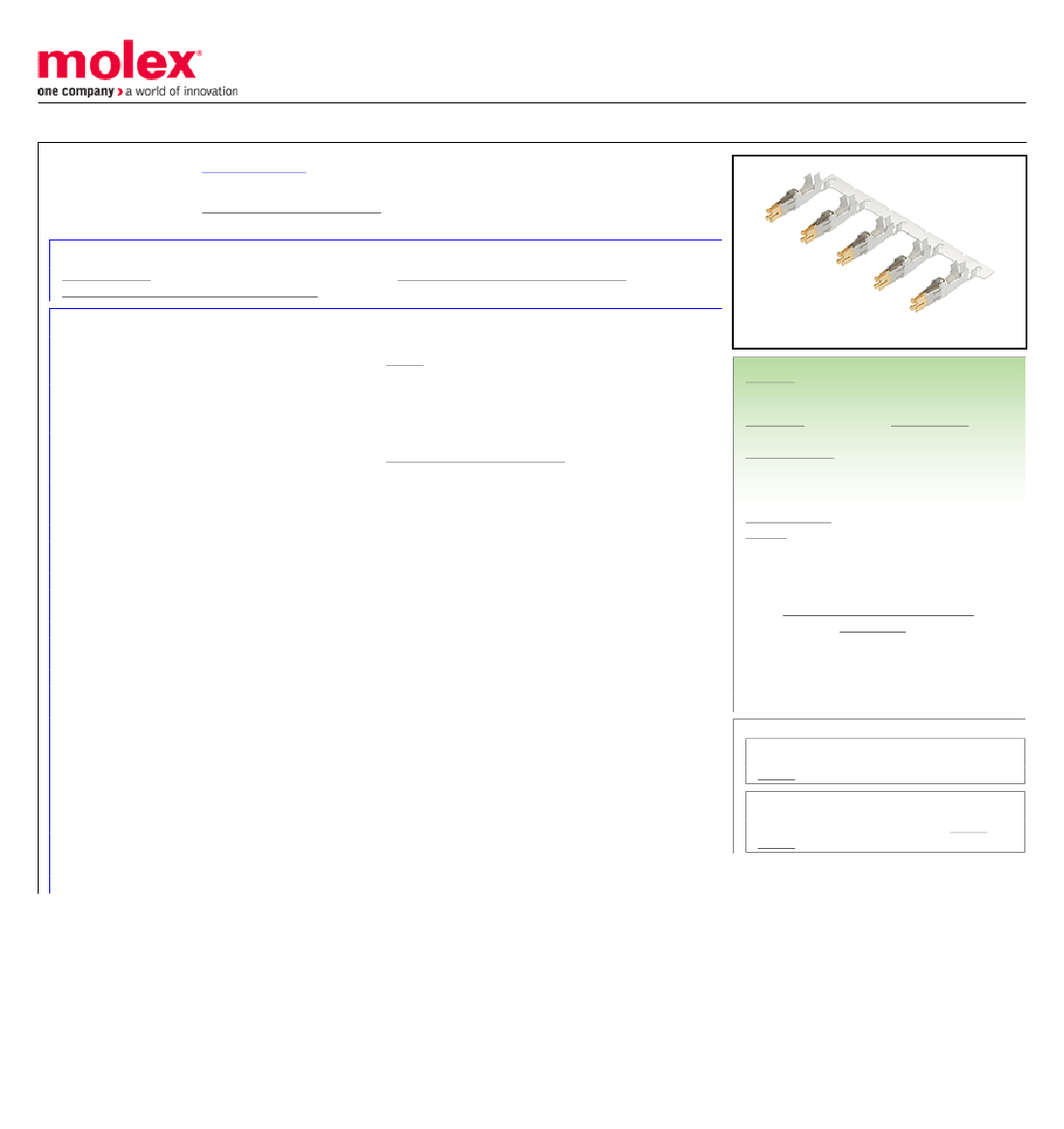

This document was generated on 02/27/2018
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
0428150144
Active
Mini-Fit Sr. Power Connectors
Mini-Fit Sr. Crimp Terminal, Female, 14-16 AWG, Silver (Ag)
Documents:
Drawing (PDF)
Product Specification PS-42815-001 (PDF)
General
Product Family
Series
Application
Comments
RoHS Certificate of Compliance (PDF)
Crimp Quality Equipment
Overview
Product Name
UPC
Physical
Gender
Material - Metal
Material - Plating Mating
Material - Plating Termination
Net Weight
Packaging Type
Plating min - Mating
Plating min - Termination
Termination Interface: Style
Wire Insulation Diameter
Wire Size AWG
Wire Size mm²
Electrical
Current - Maximum per Contact
Solder Process Data
Lead-freeProcess Capability
Material Info
Reference - Drawing Numbers
Product Specification
Sales Drawing
Crimp Terminals
42815
Power
High Current/Low Force<br>See Product Specification
for maximum current rating by circuit size and
application.
Yes
Mini-Fit Sr. Power Connectors
Mini-Fit Sr.
889056241779
Female
High Performance Alloy (HPA)
Silver over Nickel
Tin over Nickel
1.381/g
Reel
2.540µm
2.540µm
Crimp or Compression
4.57mm max.
14, 16
N/A
50.0A
N/A
Series image - Reference only
EU ELV
Not Relevant
EU RoHS
China RoHS
Compliant
REACH SVHC
Not Contained Per
-ED/01/2018 (15
January 2018)
Halogen-Free
Status
Low-Halogen
Need more information on product
environmental compliance?
Email productcompliance@molex.com
Please visit the Contact Us section for any
non-product compliance questions.
China ROHS
ELV
RoHS Phthalates
Green Image
Not Relevant
Not Contained
Search Parts in this Series
42815 Series
Use With
Mini-Fit Sr. Receptacle Housing 42816 ,
43914
PS-42815-001
SD-42815-020
This document was generated on 02/27/2018
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

42815-0144 (Cut Strip) Related Products

42815-0144 (Cut Strip) 42815-0144 (Mouser Reel) 42815-0144 (Loose Piece)
Description Headers & Wire Housings MFSR Term F 14-16 STRIP OF 100 Header and wire housing MFSR Term F 14-16 REEL OF 250 Header and wire housing MFSR Term F 14-16 LOOSE PIECE
Product Category Headers & Wire Housings Headers and wire housings Headers and wire housings
Maker - Molex Molex
series - 42815 42815
Encapsulation - Reel Bulk
Factory packaging quantity - 250 2500
unit weight - 1.381 g 1.381 g
