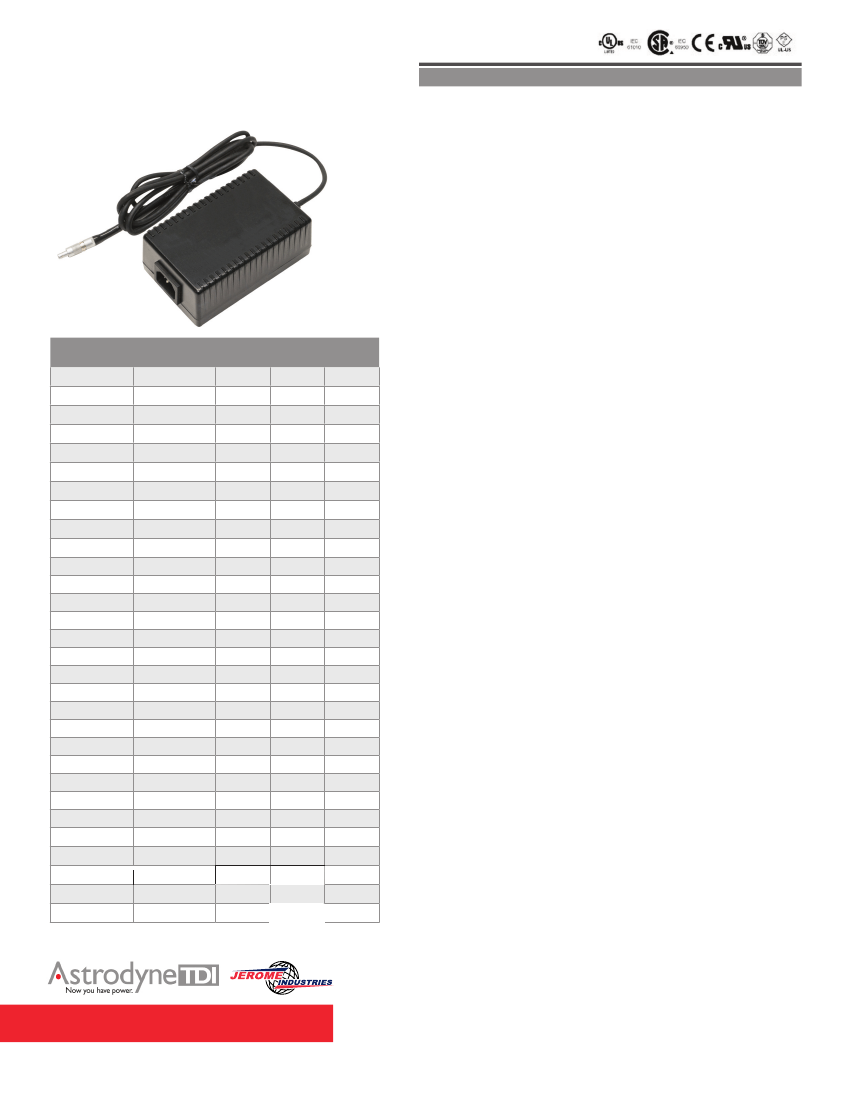

WSL 500 SERIES, 60 WATTS
L-CASE
HIGH EFFICIENCY, COMPACT DESIGN SWITCHMODE TECHNOLOGY
CF Version in UL File 3
rd
Edition
UL, cUL, TUV Certified CE marked for European Compliance CEC /
DOE EISA 2007 Compliant
Standard Specifications
MODEL NUMBER
CF LOW LEAKAGE
(Y = YES)
VDC
AMPS
WATTS
WSL533
WSL539
WSL545
WSL550
WSL555
WSL560
WSL565
WSL570
WSL575
WSL580
WSL590
WSL510
WSL511
WSL512
WSL513
WSL514
WSL515
WSL516
WSL518
WSL520
WSL522
WSL524
WSL526
WSL528
WSL530
WSL532
WSL536
WSL540
WSL544
WSL548
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
3.3
3.9
4.5
5
5.5
6
6.5
7
7.5
8
9
10
11
12
13
14
15
16
18
20
22
24
26
28
30
32
36
40
44
48
10
10
10
10
9.4
8.6
8
7.4
6.9
6.5
6
5.5
5
5
4.6
4.3
4
3.75
3.3
3
2.7
2.5
2.3
2.15
2
1.85
1.65
1.5
1.25
1.25
33
39
45
50
52
52
52
52
52
54
55
55
60
60
60
60
60
60
60
60
60
60
60
60
60
60
60
60
60
60
• Universal Input Voltage: 90-264Vac 47-63Hz class I or II
• 85% min avg efficiency
• Output Voltage Tolerance: +/-2.5% Typical, +/-5% Max, from
Full Load to No Load.
• Operating Temperature: 0 - 40°C
• Maximum Output Ripple:
• 3.3 - 6V: 50mVp-p
• 6.1 - 24V: 100mVp-p
• 24.1 - 36V: 150mVp-p
• 36.1 - 48V: 200mVp-p
• Designed for Continuous Duty
• Hold-Up Time : 25mS Minimum @ 120 Vin
• Short Circuit and Over Load Protection
• SELV Output
• MTBF Calculated > 100,000 Hours @ 40°C
• 2 Hour Minimum Loaded Burn-in at 40°C Ambient for
standard output cord configurations
• Leakage current compliant to IEC60601-1 Category B and BF
• 5 Year Warranty
Available Features
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Nonstandard Output Voltage Setting / 0.1V Increment
Improved Output Accuracy and/or Ripple
Expanded Operating Temperatures
Power On/Off Switch
400 Hz Input Rating
DC Input Rating
Additional Noise and/or Surge Protection
LED Power On Indicator
Fixed-in-place Input Cord
Output Cord Sets and Connector Configurations
Case Colors, Markings & Logos
Output Voltage up to 80VDC
16 Hour Burn-in
Output leakage compliant to IEC60601-1 Category CF
*Add a suffix, “M” for Medical or leave it blank for non-medical.
All specifications are typical at nominal input, full load, and 25°C unless
otherwise noted
© Copyright 2015, Astrodyne, Inc
This document is believed to be correct at time of publication and Astrodyne, Inc
accepts no responsibility for consequences from printing errors or inaccuracies.
Specifications are subject to change without notice
www.AstrodyneTDI.com
PH: 908-353-5700 | FAX: 908-353-1021
WSL 500 SERIES, 60 WATTS
L CASE ENCLOSURE
HIGH EFFICIENCY, COMPACT DESIGN SWITCHMODE TECHNOLOGY

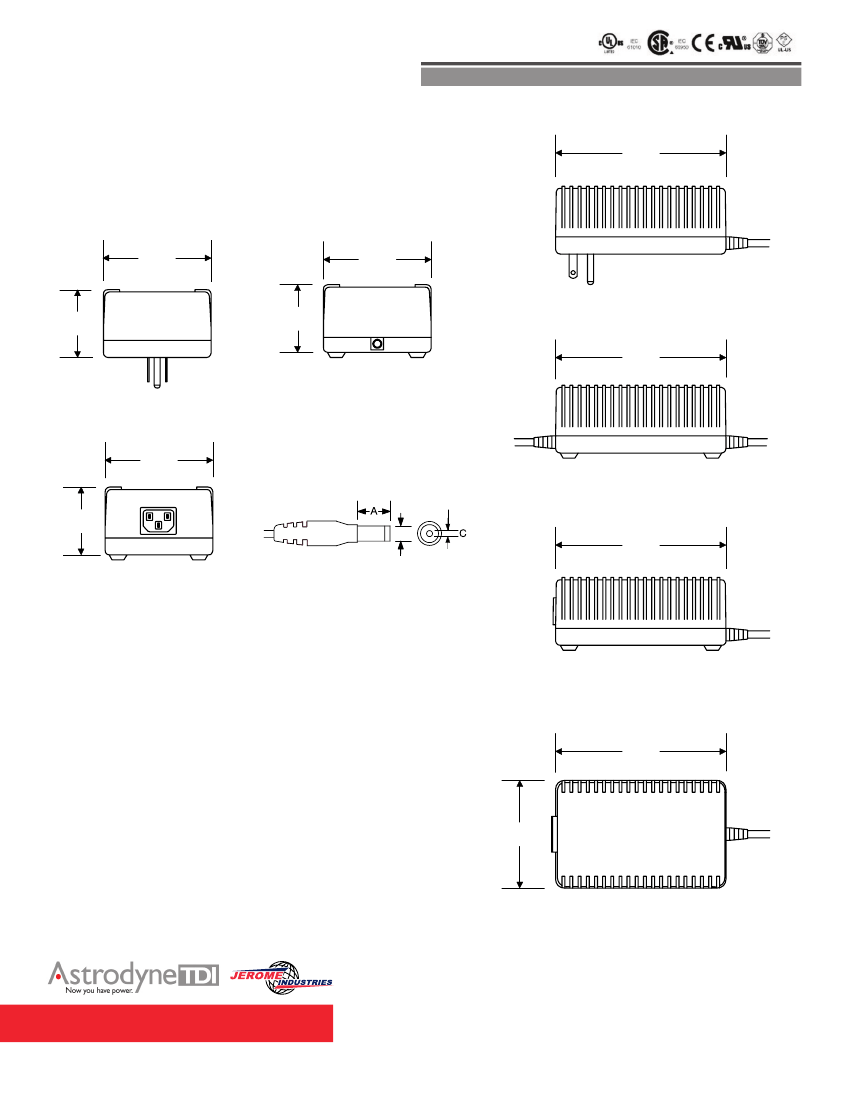

4.75
3.00
1.89
1.89
3.00
ALSO AVAILABLE WITH INTERNATIONAL
PLUG-IN CONFIGURATION
4.75
A. WALL PLUG-IN OPTION
B. INPUT CORD OPTION
3.00
1.89
C. IEC 320 OPTION
VARIOUS INPUT AND OUTPUT CORD
OPTIONS AVAILABLE
4.75
Regulatory Compliance
Designed for use with medical, information technology, and gen-
eral purpose equipment to the following standards: All models are
approved to:
•
•
•
•
•
UL 60601-1 / 60950-1
CSA 22.2 601-1 / 60950-1
TUV EN 60601-1 / 60950-1
CE LVD directive
*cUL Mark
IEC 320 OPTION
USED FOR MOST
INTERNATIONAL APPLICATIONS
4.75
EMC: All models meet European EMC directive and FCC requirements.
Meets all EMC requirements from EN60601-1-2.
Emissions: Level B requirements of FCC CFR 47 part 15 and CISPR11
(EN55011) and CISPR22 (EN55022), EN61000-6-3 (light industrial)
and line harmonic emissions EN61000-3-2.
Immunity: CISPR24 (EN55024), EN61326 and EN61000-3-2.
Certification records are available upon project request.
3.00
TOP SURFACE MARKING
AREA = 4.41 X 2.09
© Copyright 2015, Astrodyne, Inc
This document is believed to be correct at time of publication and Astrodyne, Inc
accepts no responsibility for consequences from printing errors or inaccuracies.
Specifications are subject to change without notice
www.AstrodyneTDI.com
PH: 908-353-5700 | FAX: 908-353-1021
