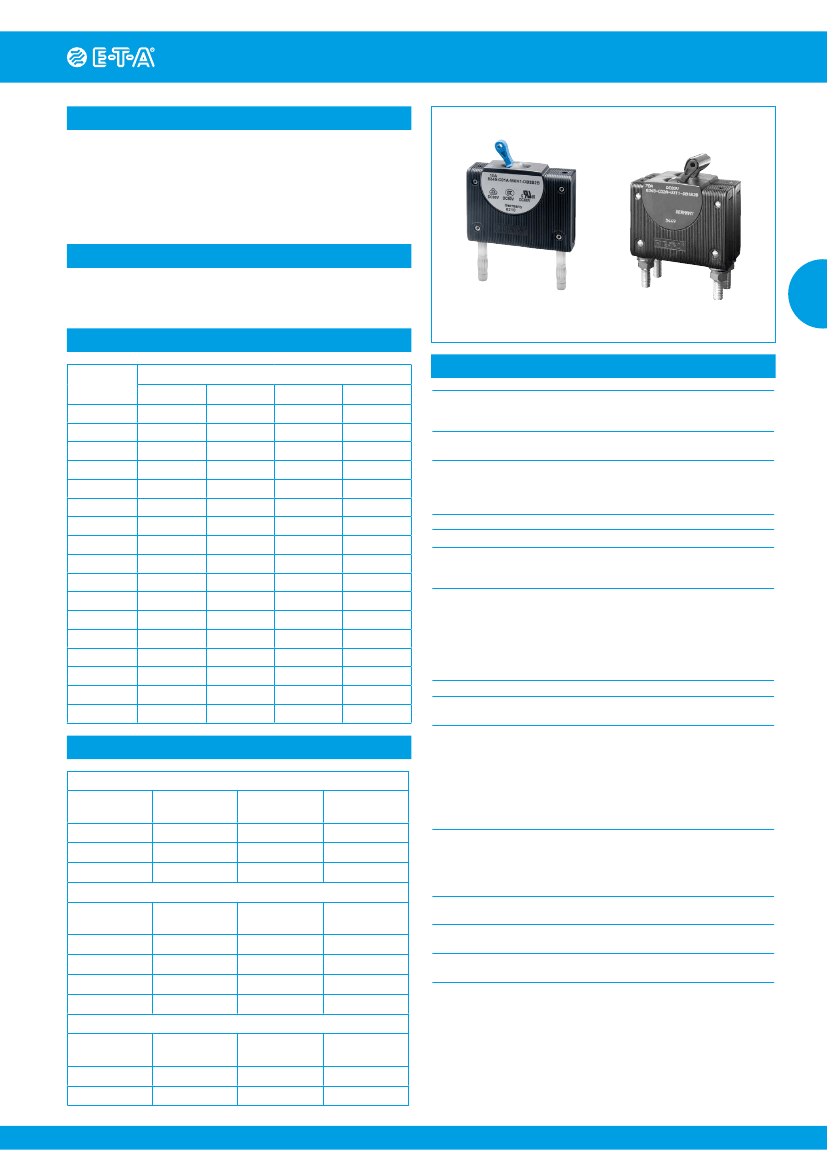

Magnetic and Hydraulic-Magnetic Circuit Breaker 8345-...
Description
Single or multipole hydraulic-magnetic circuit breakers with trip-free-
mechanism and toggle actuation. A choice of switching characteristics
ensures suitability for a wide range of applications. Industry standard
dimensions and panel mounting. Auxiliary contacts optional. Low
temperature sensitivity at rated load.
Approved to CBE standard EN 60934 (IEC 60934) S-type HM CBE.
Typical applications
In the business fields Communication and Transport: power supplies,
switchgear, instrumentation and process control engineering.
1-pole
Standard current ratings and typical internal resistance values
Current
rating (A)
0,05
0,1
1
2
3
5
10
15
20
25
30
40
50
60
80
100
125
Trip curves and internal resistance (Ω) per pole
F1
---
---
0,578
0,144
0,0644
0,0250
0,00901
0,00597
0,00468
0,00410
0,00385
0,00371
0,00358
---
---
---
---
---
---
0,347
0,0959
0,0477
0,0192
0,00714
0,00483
0,00410
0,00385
0,00371
0,00371
0,00358
---
---
---
---
F2
K1, M1, T1
531
129
1,10
0,295
0,121
0,0437
0,0147
0,00794
0,00597
0,00456
0,00458
0,00373
0,00335
0,00333
0,00325
0,00316
0,00314
K2, M2, T2
542
127
1,08
0,291
0,118
0,0449
0,0133
0,00794
0,00597
0,00456
0,00458
0,00373
0,00335
0,00333
0,00325
0,00316
0,00314
8345
1
2-pole
Technical data
Voltage rating
3 AC 415 V; AC 277/480 V;
AC 120/240 V; AC 240 V; DC 80 V
(higher DC voltages to special order)
0.02...125 A single and multipole
higher ratings upon request
AC 240 V 6 A
DC 28 V 3 A
DC 65 V 1 A
DC 80 V 0.5 A
10,000 operations at 1 x I
N
-40...+85 °C (-40...+185 °F)
2.5 kV/2
reinforced insulation in operating area
test
test
test
test
test
voltage
voltage
voltage
voltage
voltage
AC
AC
AC
AC
AC
3,000
1,500
1,500
3,000
1,500
V
V
V
V
V
Current rating range
Auxiliary circuit
Typical life
Ambient temperature
Insulation co-ordination
(IEC 60664)
Dielectric strength
operating area
Line to Load
pole to pole
(2- and 3-pole)
main to auxiliary circuit
switching to trip circuit
(version -X)
Insulation resistance
Degree of protection
(IEC 60529)
Vibration
mounting attitude
toggle down:
other mounting attitudes:
with curves F1, F2:
> 100 MΩ (DC 500 V)
operating area IP40
terminal area IP00
10 g (57-2000 Hz) ± 0,76 mm (10-57 Hz)
at 0.9 x I
N
10 g at 1 x I
N
10 g at 0.8 x I
N
in all mounting attitudes
(57-2000 Hz) ± 0.76 mm (10-57 Hz)
to IEC 60068-2-6, test Fc
10 frequency cycles/axis
100 g (11 ms) at 1 x I
N
,
100 g (11 ms) at 0.8 x I
N
,
100 g (11 ms) at 0.8 x I
N
to IEC 60068-2-27, test Ea
96 hours at 5 % salt mist,
to IEC 60068-2-11, test Ka
240 hours at 95 % RH,
to IEC 60068-2-78, test Cab
approx. 90 - 120 g per pole
depending on version
Interrupting capacity
to EN 60934, CCC, UL 489, UL 1077
IEC 60934 / CCC (3-pole) – test series E:
voltage
DC 80 V
AC 240/415 V
AC 240 V
voltage
DC 80 V
AC 120 V
AC 120/240 V
AC 240 V
voltage
DC 80 V
AC 277/480 V
number of
poles
1+2
1–4
1
number of
poles
1+2
1
1 (2)
1
UL 1077:
number of
poles
1+2
1–4
I
N
max. (A)
0.02...125
0.02...70
I
cn
(A)
10 000
5 000
I
N
max. (A)
0.02...125
0.016...80
0.016...20
I
N
max. (A)
0.5...125
0.5...80
0.5...80
0.5...20
I
cn
(A)
10 000
6 x I
N
5 000
I
cn
(A)
10 000
5 000
5 000
5 000
Shock
directions 1, 2, 3, 4, 5:
direction 6:
with curves F1, F2:
Corrosion
Humidity
Mass
UL 489 – test sequence Z:
1801
www.e-t-a.de
1
Magnetic and Hydraulic-Magnetic Circuit Breaker 8345-...
Ordering information for EN 60934 and UL 1077
Type No.
8345
Mounting
B
flange mounting, with rectangular aperture with mounting nut 6-32UNC
C
flange mounting, with rectangular aperture with mounting nut M3
F
flange mounting, with round aperture with mounting nut M3
Configuration
0
without barrier
1
with small barrier
2
with large barrier (requested for multipole AC applications)
Number of poles
1
single pole protected
2
two pole protected
3
three pole protected
4
four pole protected
Actuator configuration
A
all poles with standard toggle
B
reduced number of standard toggles
Z
without actuator
Terminal design
P
blade terminals ≤ 35 A
R
round connectors 6 mm
U
stud terminals M6 ≤ 125 A
V
stud terminals 1/4-20UNC-3A ≤ 125 A
W
laminated round terminals ≤ 125 A
Terminal hardware
0
without
3
with washer and nut
Characteristic curve *
)
Characteristic curve, instantaneous:
F1
DC (limited to ratings of 1 A to 50 A)
F2
AC 60/50 Hz (limited to ratings of 1 A to 50 A)
Short delay:
K1
DC
K2
AC
Medium delay:
M1
DC
M2
AC 60/50 Hz
Long delay:
T1
DC
T2
AC 60/50 Hz
Version
D
standard
Colour configuration
B1
black actuator
Marking
front plate
actuator base
Ordering information for auxiliary contact module
Type number
X8345
Module
S
auxiliary contact module
Auxiliary contacts
01
in all poles
02
in pole 1 only
Auxiliary contact version
K
auxiliary contacts (symmetrical terminals)
Auxiliary contact function
W1
1 changeover
Terminal design
02
microswitch with blade terminals
DIN 46244-A2.8-0.5
M
mounted to base unit
X8345 -
S 01 K W1 02 M
ordering example
1
Approvals
Authority
VDE
Standard
IEC / EN
60934
UL 1077
C22.2 No
235
UL 489
C22.2
No 5
GB
17701
Rated voltage
AC 240/415 V
AC 240 V
DC 80 V
AC 277/480 V
AC 277 V
DC 80 V
AC 120/240 V
AC 240 V
AC 120 V
DC 80 V
AC 240/415 V
AC 240 V
DC 80 V
DC 110 V
Current ratings
0.016 A…80 A
0.016 A…80 A
0.02 A…125 A
0.02 A…70 A
0.02 A…70 A
0.02 A…125 A
0.05 A…80 A (2 pole)
0.05 A…20 A (1 pole)
0.05 A…80 A (1 pole)
0.05 A…125 A (1+2 pole)
0.02 A…80 A (3 pole)
0.02 A…80 A (1 + 2 pole)
0.02 A…125 A (1 + 2 pole)
0.05 A…125 A (1 + 2 pole)
UL
UL
CQC
B1
without
ON-OFF
B2
I
N
ON-OFF
Rated voltage
B
AC or ≤ 80 V DC
Current ratings
0.02...125 A
higher current ratings
upon request
8345 - C 0 1 A - U 3 M1 - D B1 B1 B - 60 A
ordering example
Remote trip coil available to special order.
*
)
Other characteristic curves upon request
(e.g. pulse delayed, for high
inrush currents or capacitive loads)
Note:
Move actuator of multipole devices slowly and smoothly into
ON position to ensure reliable latch-on behaviour of all poles.
2
www.e-t-a.de
1801
Magnetic and Hydraulic-Magnetic Circuit Breaker 8345-...
Ordering information for UL 489
Type No.
8345
Mounting
B
flange mounting, with rectangular aperture with mounting nut 6-32UNC
C
flange mounting, with rectangular aperture with mounting nut M3
F
flange mounting, with round aperture with mounting nut M3
Configuration
0
without barrier for DC
1
with small barrier for DC (optional)
2
with large barrier for AC
Number of poles
1
single pole protected
2
two pole protected
Actuator configuration
A
all poles with standard toggle
B
reduced number of standard toggles
Z
without actuator
Terminal design
P
blade terminals ≤ 35 A
R
round connectors 6 mm
U
stud terminals M6 ≤ 125 A
V
stud terminals 1/4-20UNC-3A ≤ 125 A
W
laminated round terminals ≤ 125 A
Terminal hardware
0
without
3
with washer and nut
Characteristic curve *
)
Characteristic curve, instantaneous:
F1
DC (limited to ratings of 1 A to 50 A)
F2
AC 60/50 Hz (limited to ratings of 1 A to 50 A)
Short delay:
K1
DC
K2
AC
Medium delay:
M1
DC
M2
AC
60/50 Hz
Long delay:
T1
DC
T2
AC
60/50 Hz
Version
D
standard
Colour configuration
B1
black actuator
Marking
front plate
actuator base
Ordering information for auxiliary contact module
Type number
X8345
Module
S
auxiliary contact module
Auxiliary contacts
01
in all poles
02
in pole 1 only
Auxiliary contact version
K
auxiliary contacts (symmetrical terminals)
Auxiliary contact function
W1
1 changeover
Terminal design
02
microswitch with blade terminals
DIN 46244-A2.8-0.5
M
mounted to base unit
X8345 -
S 01 K W1 02 M
ordering example
1
B1
without
ON-OFF
B2
I
N
ON-OFF
Rated voltage
B
AC or ≤ 80 V DC
Current ratings
0.05...125 A for DC
0.05...20 A for AC
higher current ratings
upon request
Approvals (optional)
V
UL 489
8345 - C 0 1 A - U 3 M1 - D B1 B1 B - 60 A - .
ordering example
Remote trip coil available to special order.
*
)
Other characteristic curves upon request
(e.g. pulse delayed, for high
inrush currents or capacitive loads)
1801
www.e-t-a.de
3
Magnetic and Hydraulic-Magnetic Circuit Breaker 8345-...

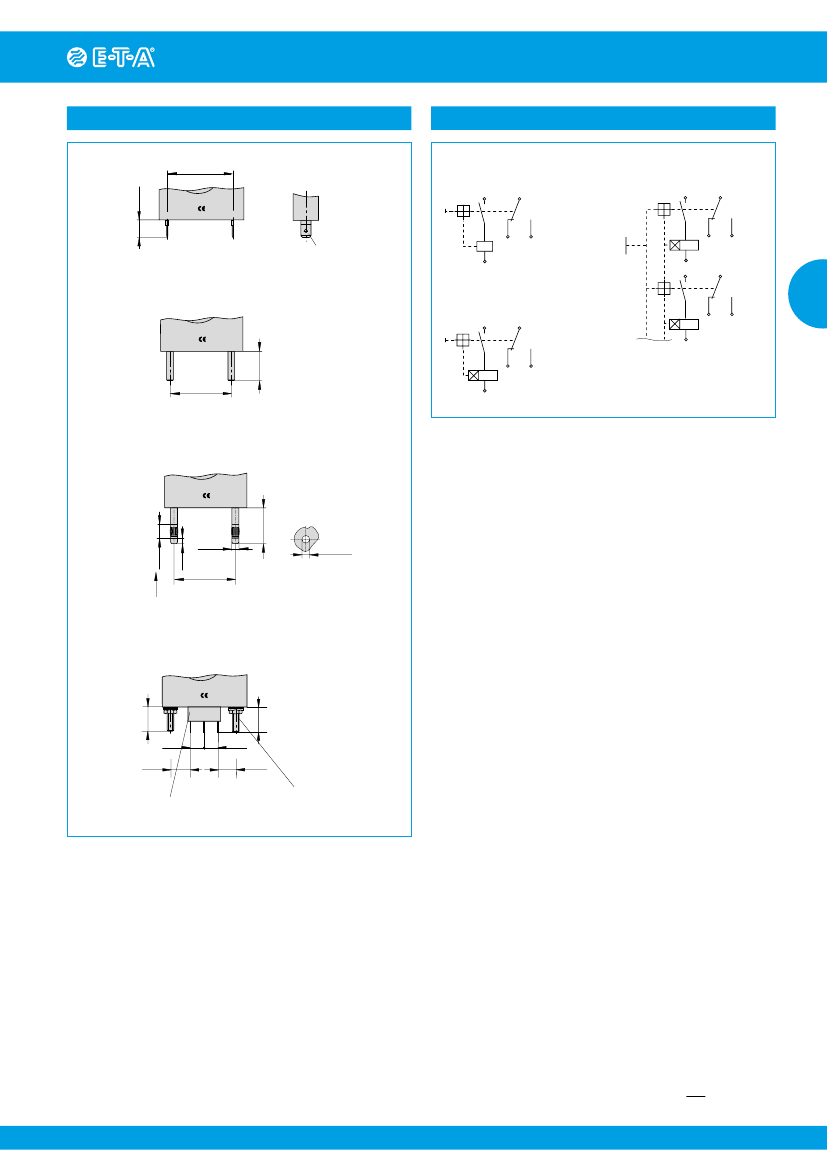

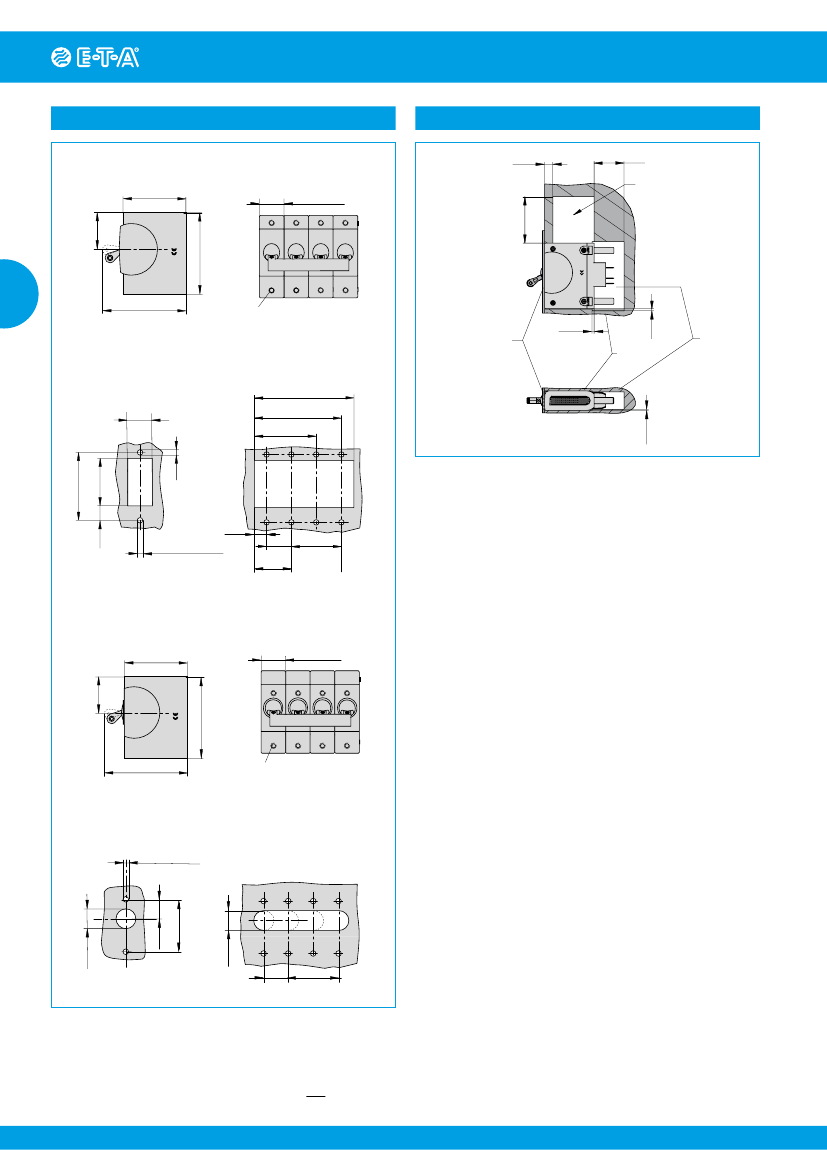

Dimensions
Mounting version B/C
Flange mounting rectangular aperture
48
1.89
28.6
1.13
LINE
Installation drawing
8
.315
29
1.14
blow out space
(can be reduced on request)
45
1.77
OFF
number of poles 1 to 4
pole
1
2
3
19.1
±0.1
.752
±.004
4
63.5
2.50
ON
OFF
OFF
OFF
OFF
1
68
2.68
LOAD
mounting thread M3 or 6-32
all dimensions referred to the top edge
mounting depth 4.2 mm/.165 in.
max. insertion depth 5.5 mm
max. tightening torque 0.33 Nm
operating area
(reinforced insulation)
2
.079
2
.079
mounting
area
terminal
area
Cut-out dimensions:
1-pole
19.2
.756
multipole
76.5
3.01
66.9
2.63
47.8
1.88
52.4
2.06
36.8
1.45
9.6
3.5
±0.1
(M3)
.378
+0.1
4
-0.15
(6-32UNC)
.138
±.004
(M3)
+.004
.157
-.006
(6-32UNC)
11
.433
ø4
.157
19.1
.752
28.7
1.13
n x 19.1
n x .752
Mounting version F
Flange mounting round aperture
pole
48
1.89
28.6
1.13
LINE
number of poles 1 to 4
1
2
3
4
19.1
±0.1
.752
±.004
OFF
LOAD
68
2.68
63.5
2.50
ON
OFF
OFF
OFF
OFF
Cut-out dimensions:
1-pole
3.5
±0.1
(M3)
+0.1
4
-0.15
(6-32UNC)
.138
±.004
(M3)
+.004
.157
-.006
(6-32UNC)
mounting thread M3 or 6-32
all dimensions referred to the top edge
mounting depth 4.2 mm/.165 in.
max. insertion depth 5.5 mm
max. tightening torque 0.33 Nm
4-pole
ø15.4
.606
15.45
.608
44.75
1.76
ø15.4
.606
max. panel thickness: 3 mm
19.1
.752
n x 19.1
n x .752
This is a metric design and millimeter dimensions take precedence ( mm )
inch
4
www.e-t-a.de
1
.039
1801
Magnetic and Hydraulic-Magnetic Circuit Breaker 8345-...
Terminal design / Dimensions
P - with blade terminals
49.2
1.94
9.5
.374
Internal connection diagrams
1-pole
protected magnetically
line 1
11(C)
unit 1
multipole
line 1
11(C)
LOAD
LINE
blade terminal A6.3-0.8
(QC .250) DIN 46244
I > 12(NC) 14(NO)
2 (load)
unit 2
I > 12(NC) 14(NO)
line 1
2 (load)
11(C)
R - round connectors
D = 6 mm
1-pole protected
hydraulic-magnetically
line 1
11(C)
1
I > 12(NC) 14(NO)
2 (load)
LOAD
LINE
unit 3
19.2
.756
I > 12(NC) 14(NO)
2 (load)
unit 4
...
...
plug-in hole
6.3
+0.1
.248
+.004
49.2
1.94
W - laminated round terminals
LOAD
LINE
12.2
.480
5
.197
ø6.3
ø.248
49.2
1.94
cylindrical terminal area
U/V stud terminals
with auxiliary contacts
LOAD
LINE
17
NC NO C
NC NO C
7.5
.295
17.5
.689
auxiliary contact
module (change over)
7.5
.295
16.6
.653
tightening torque:
10-32 UNF. M5 max. 2 Nm
1/4-20 UNC. M6 max. 3 Nm
17
.669
27.6
1.09
This is a metric design and millimeter dimensions take precedence ( mm )
inch
1801
www.e-t-a.de
5
京公网安备 11010802033920号
EEWORLD
