TECHNICAL DATA SHEET
SMB
RIGHT ANGLE JACK
59K214-271L5

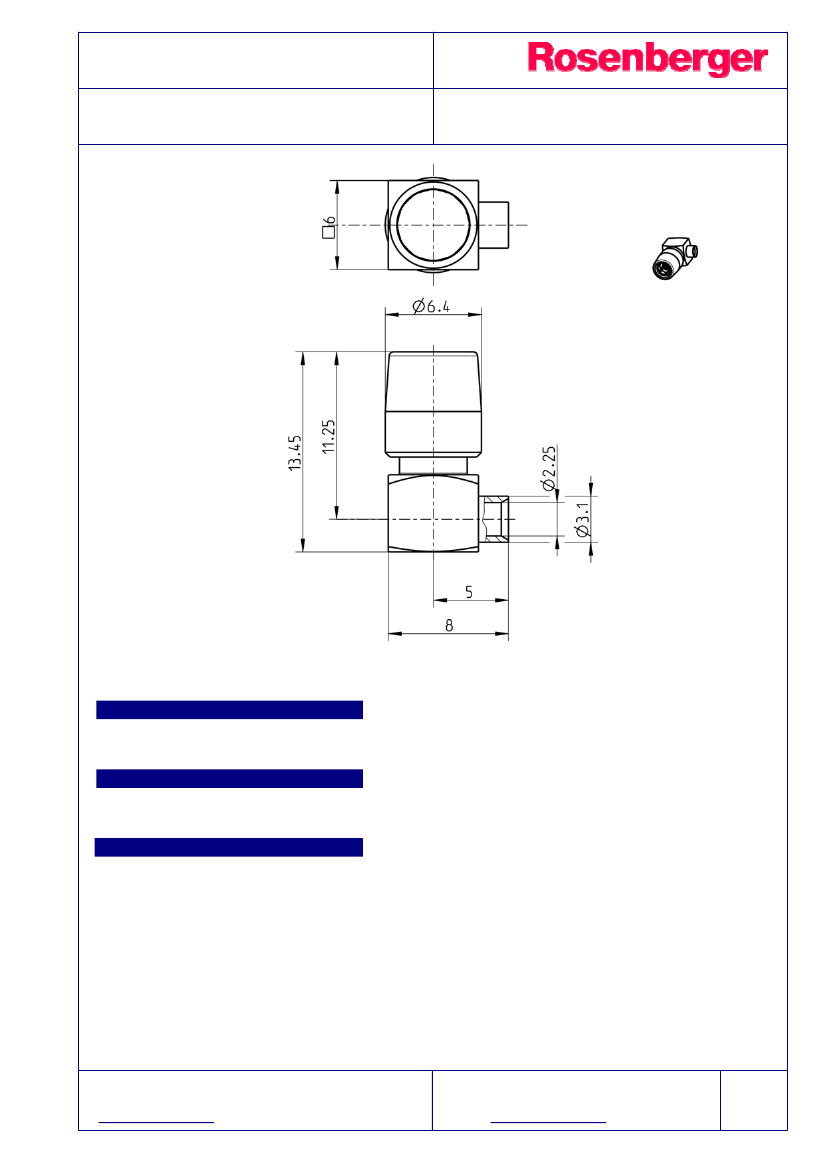

All dimensions are in mm; tolerances according to ISO 2768 m-H
Interface
According to
IEC 60169-10, CECC 22130, US MIL-C-39012
Documents
Assembly instruction
59 K8
Material and plating
Connector parts
Center contact
Outer contact
Body
Dielectric
Material
Beryllium copper
Beryllium copper
Brass
PTFE
Plating
AuroDur
AuroDur
AuroDur
RF_35/11.05/3.1
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
Fax: +49 8684 18-499
email: info@rosenberger.de
Page
1/2
TECHNICAL DATA SHEET
SMB
Electrical data
Impedance
Frequency
Return loss
Insertion loss
Insulation resistance
Center contact resistance
Outer contact resistance
Test voltage
Working voltage
Contact current
RF-leakage
- Limitations are possible due to the used cable type -
RIGHT ANGLE JACK
59K214-271L5
50
DC to 4 GHz
25 dB, DC to 1 GHz
17 dB, 1 to 4 GHz
0.1 x
f(GHz)
dB
1x10
3
M
5 m
2.5 m
750 V rms, 50 Hz, at sea level
250 V rms, 50 Hz, at sea level
1.5 A DC typ.
55 dB up to 1 GHz
Mechanical data
Mating cycles
Center contact captivation: axial
Engagement force
Disengagement force
8
500
10 N
63 N
N min. to 63 N max.
Environmental data
Temperature range
Thermal shock
Vibration
Corrosion
Moisture resistance
RoHS
-55°C to +155°C
MIL-STD-202, Meth.
MIL-STD-202, Meth.
MIL-STD-202, Meth.
MIL-STD-202, Meth.
compliant
107, Cond. B
204, Cond. B
101, Cond. B
106
Tooling
N/A
Suitable cables
UT 85, RG 405
Weight
Weight
2.4 g/pce
While the information has been carefully compiled to the best of our knowledge, nothing is intended as representation or warranty on
our part and no statement herein shall be construed as recommendation to infringe existing patents. In the effort to improve our
products, we reserve the right to make changes judged to be necessary.
RF_35/11.05/3.1
Draft
A. König
Date
14/12/06
Approved
Sa. Krautenbacher
Date
20.03.14
Rev.
c00
Engineering change number
14-0352
Name
T. Krojer
Date
20.03.14
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
Fax: +49 8684 18-499
email: info@rosenberger.de
Page
2/2
