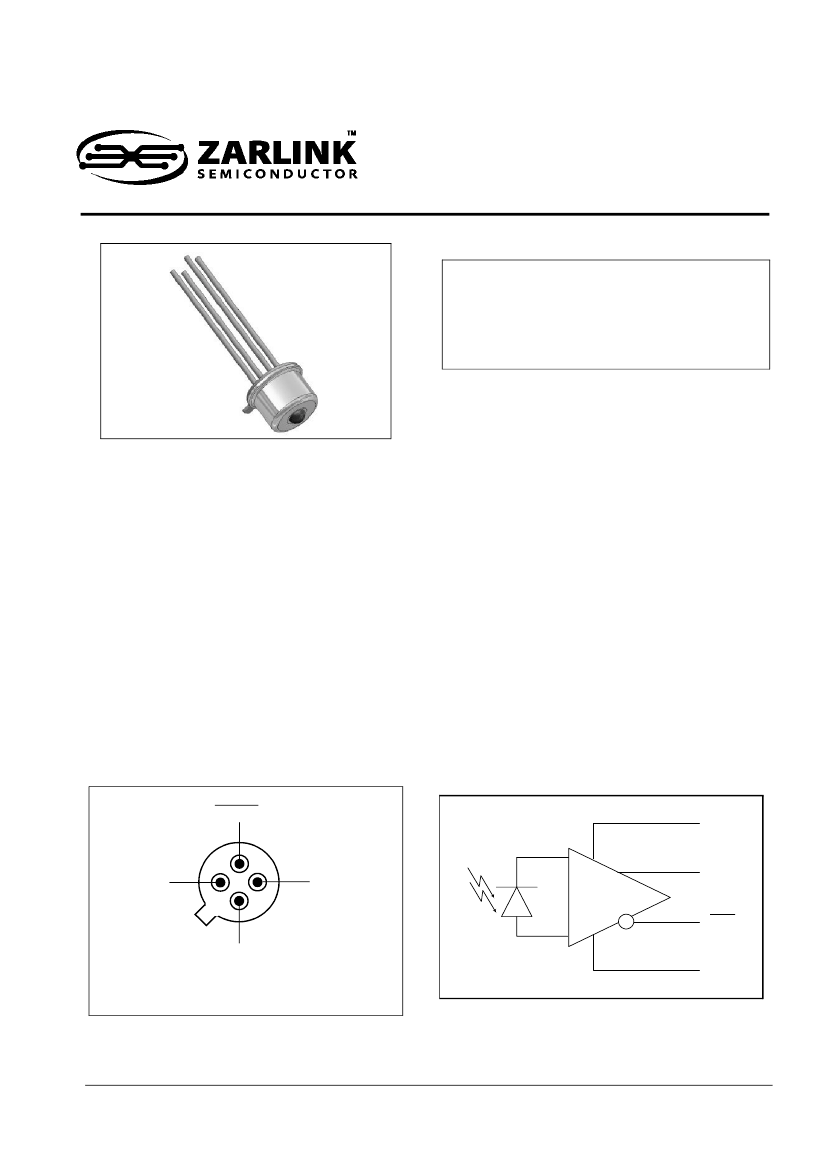

ZL60012
1310 nm, 1550 nm 270 Mbps PIN
Preamplifier for SDI Digital Television
Data Sheet
December 2003
Ordering Information
ZL60012TBD
TO-46 with lens
-40°C to +85°C
Description
This optical receiver is designed for SDI (Serial Digital
Interface) digital television transmission systems
where optical fiber replaces coaxial cable, to increase
transmission distance. It is designed in conjunction
with the ANSI/SMPTE 259 M standard and is capable
of handling DC-unbalanced (pathological) signals.
The receiver operates at 3.3 V and contains an InGaAs
PIN photodiode and a transimpedance amplifier with
AGC (Automatic Gain Control), assembled in a TO-46
package. Its double-lens optical system is designed for
use with single-mode fiber as well as multi-mode fiber
with a core diameter up to 62.5
µm.
Reliability
assurance is based on Telecordia GR-468-CORE.
Features
•
•
•
•
•
•
•
•
Data rate up to 270 Mbps
1310 nm, 1550 nm PIN
TIA with AGC
Handles DC-unbalanced signals
Wide dynamic range
TO-46 assembly
3.3 V power supply
SMF and MMF
Applications
ANSI/SMPTE 259M
Data Out
V
CC
Data Out
Vcc
Data
Data
Case
V
EE
Bottom View
GND
Figure 2 - Functional Schematic
Figure 1 - Pin Diagram
1
Zarlink Semiconductor Inc.
Zarlink, ZL and the Zarlink Semiconductor logo are trademarks of Zarlink Semiconductor Inc.
Copyright 2003, Zarlink Semiconductor Inc. All Rights Reserved.
ZL60012
Optical and Electrical Characteristics
Parameter
Responsivity, differential
Output Voltage differential
amplitude
Data rate
Optical Saturation Level (average)
Noise-Equivalent Power
Dynamic Range
Sensitivity (BER10
-9
)
Sensitivity (BER10
-9
)
Output Resistance (single-ended)
Power Dissipation
Power Supply Current
S
OMA
S
R
O
P
D
I
DD
20
35
36
Symbol
R
∆V
O
f
R
P
sat
NEP
0
-45
32
1.2
-32
44
2.5
-29
57
180
50
Min.
10
Typ.
30
130
270
Max.
50
Unit
kV/W
mV,
p-p
Mbps
dBm
dBm
dB
µW
dBm
Ω
mW
mA
Data Sheet
Test condition
λ
= 1310 nm
R
L
= 100Ω, Note 1
R
L
= 100
Ω
Note 2
R
L
= 100
Ω
λ
= 1310 nm,
ER =
∞
Note 5
λ
= 1310 nm
λ
= 1310 nm,
Note 3 and 4
λ
= 1310 nm,
ER =
∞
Note 5
Test conditions:
25°C Case Temperature/3.3 V Supply Voltage. Fiber: Single-mode to multi-mode 62.5/125
µm
Note
Note
Note
Note
Note
1:
2:
3:
4:
5:
Pf = 2
µW
Peak-Peak power at 10 MHz/50% duty cycle.
Pf = 500
µW
Peak-Peak power at 10 MHz/50% duty cycle.
Measured using DC-unbalanced patterns with 5% and 95% duty cycles, respectively at 270 Mbps.
An OMA value has been quoted as this is more meaningful for DC unbalanced signals.
Measured with a DC balanced signal with a 2
23
-1 PRBS at 270 Mbps.
Absolute Maximum Ratings
Parameter
Supply Voltage
Storage Temperature
Symbol
V
CC
T
stg
Min.
-0.5
-55
Max.
5.5
125
Unit
V
°C
Recommended Operating Conditions
Parameter
Supply Voltage
Output Differential Load
Operating Temperature
Symbol
V
CC
R
L
T
op
-40
Min.
3
100
85
Typ.
Max
5.5
Unit
V
Ω
°C
2
Zarlink Semiconductor Inc.
ZL60012

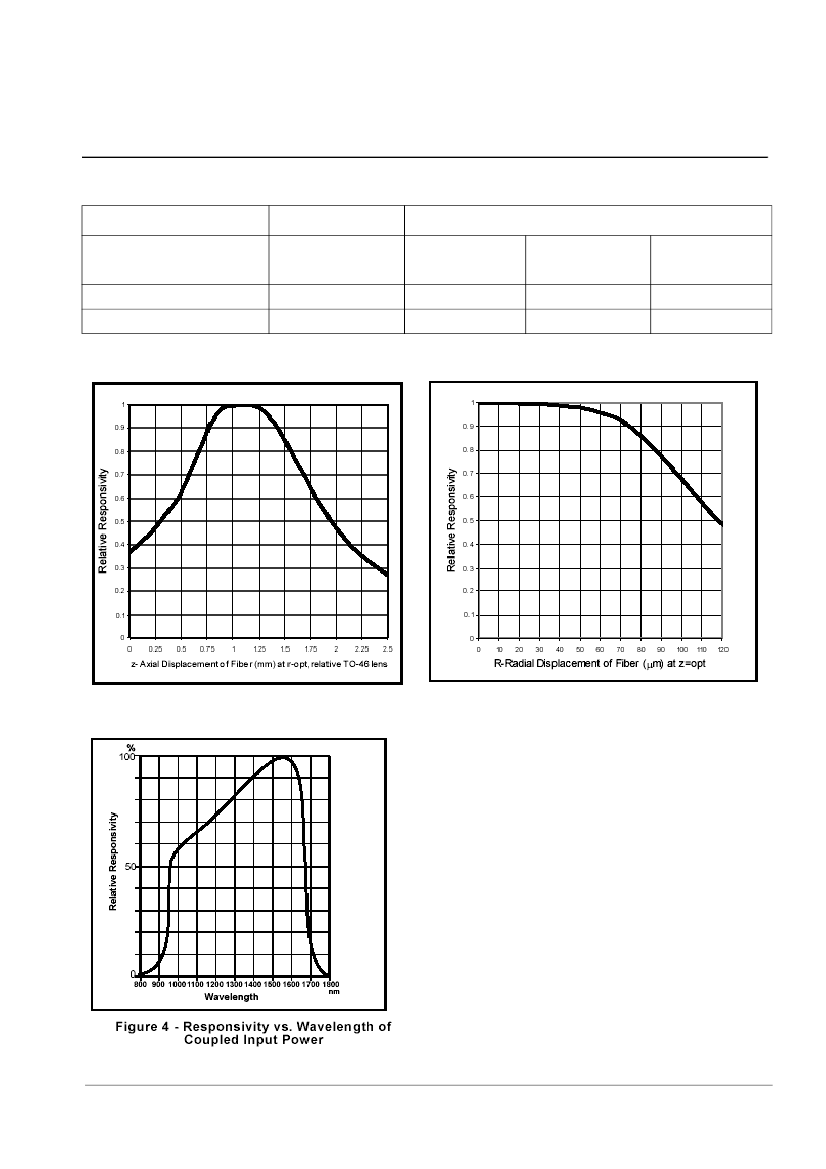

Typical Responsivity
Data Sheet
Fiber Core/Cladding Diameter Numerical Aperture
Wavelength
Differential responsitivity
Differential responsitivity
1310 nm
1550 nm
10/125
NA = 0.11
30 kV/W
36 kV/W
50/125
NA = 0.20
30 kV/W
36 kV/W
62.5/125
NA = 0.275
30 kV/W
36 kV/W
Figure 3 - Typical Responsivity vs Axial
Displacement for a Multi-mode Fiber
Figure 5 - Typical Responsivity vs Radial
Displacement for a Multi-mode Fiber
3
Zarlink Semiconductor Inc.
ZL60012
Application Guidelines
ESD Handling
Data Sheet
The receiver is sensitive to electrostatic discharges. When handling the device, precaution for ESD sensitive
devices should be taken. These precautions include use of ESD protected work area with wrist straps, controlled
work benches, floors etc.
Power Supply Filter
Power Supply decoupling capacitors are recommended for optimal performance of the receiver. A filter is
recommended to minimise power supply noise. See Figure 6.
L
Host
V
CC
PIN /
Preamp
10µ H
C
0.1µ F
C
10nF
Figure 6 - Recommended Power Supply Filter
4
Zarlink Semiconductor Inc.

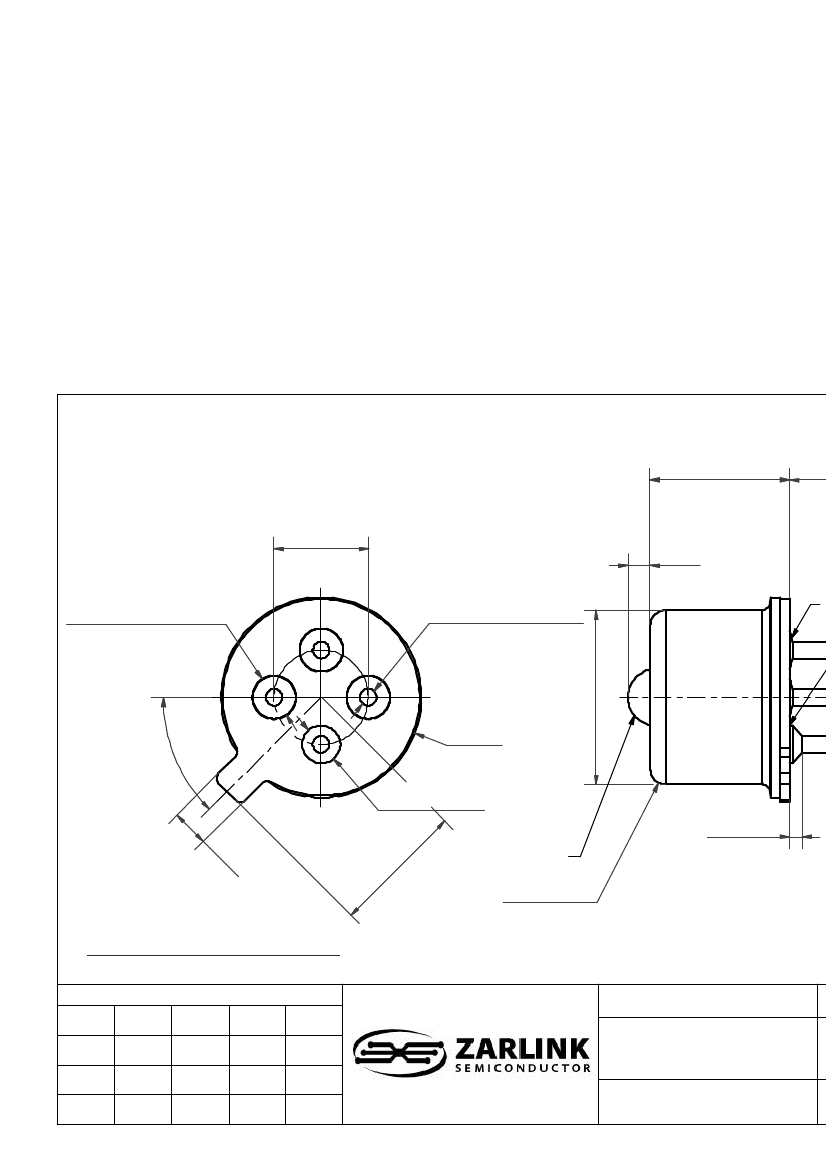

BOTTOM VIEW ( 10 : 1 )
3,8
SID
2,54
n
1,17 + 0,05 (3x)
-
n
0,45 + 0,04 (4x)
-
0,6
0,03
0
*
R2,7
45°
n
1,02 max
n
4,7
3,
6
1,
02
0,33 max
Lens
n
1.5
`
0.05
R0,4 max
NOTES:-
*
0,25 max glass overmould (3x)
© Zarlink Semiconductor 2002. All rights reserved.
1. All dimensions in mm.
2. General tol. ISO-2768-
3. Coating: Case: Ni 1
Header: Ni m
P
Previous package codes
ISSUE
ACN
DATE
1
JS0 04078R1A
D
P
22-MAR-03
T
APPRD. TD/BE
