59S2DU-40MT5-B datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> 59S2DU-40MT5-B

Preview

59S2DU-40MT5-B: DescriptionRF Connectors / Coaxial Connectors Plug PC-Board SMD Right Angle B White; CategoryThe connector; File Size413KB，3 Pages; ManufacturerRosenberger; Websitehttps://www.rosenberger.com/

Download Datasheet Parametric Compare View All

59S2DU-40MT5-B Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	59S2DU-40MT5-B	-	-	View	Buy Now

59S2DU-40MT5-B Overview

RF Connectors / Coaxial Connectors Plug PC-Board SMD Right Angle B White

59S2DU-40MT5-B Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Rosenberger
Product Category	RF Connectors / Coaxial Connectors
Product	PCB Connectors
RF Series	FAKRA
Gender	Plug
Impedance	50 Ohms
Maximum Frequency	6 GHz
Termination Style	PCB - Through Hole
Orientation	Right Angle
Mounting Type	PCB
Body Style	Right Angle
Contact Plating	Gold
Contact Termination	-
Contact Type	Pin (Male)
Voltage Rating	335 V
Contact Material	Brass
Insulation Resistance	1000 MOhms
Mating Cycles	25
Maximum Operating Temperature	+ 105 C
Minimum Operating Temperature	- 40 C
Factory Pack Quantity	300

Preview

Download Datasheet

View All

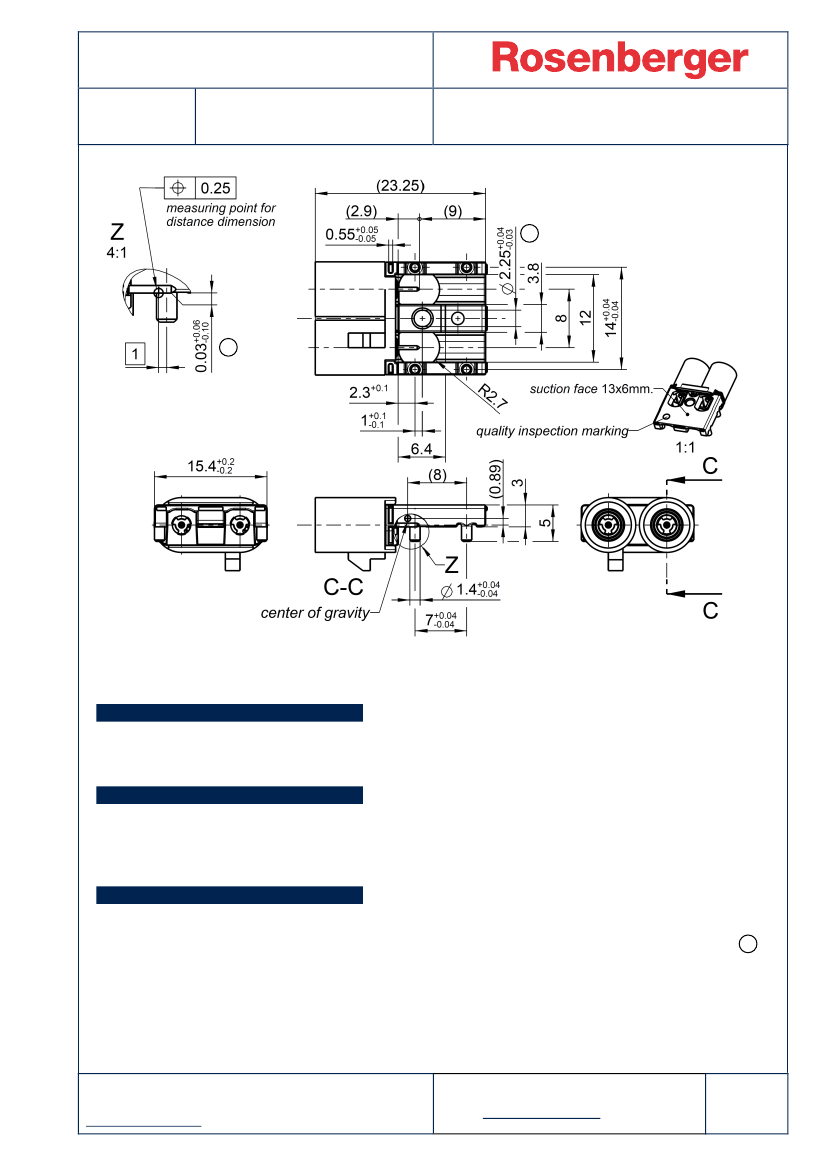

Technical Data Sheet

FAKRA-HF

PLUG FOR PCB

59S2DU-40MT5-Y

d

Dieses Dokument ist urheberrechtlich geschützt ● This document is protected by copyright ● Rosenberger Hochfrequenztechnik GmbH & Co. KG

d

All dimensions are in mm; tolerances according to ISO 2768 m-H

Interface

According to

DIN 72594-1

Documents

Assembly instruction

PCB layout

Tape & reel packaging

MA_59V048

MB_182

VG118.30000

Material and plating

Connector parts

Center contact

Outer contact

Dielectric

Housing

Material

Brass

Zinc alloy

PA 6T/66

Plating

AuroDur®, gold plated

Tin, 2 µm min., over Nickel 1 µm min.

d

RF_35/09.14/6.2

Rosenberger Hochfrequenztechnik GmbH & Co. KG

P.O.Box 1260

D-84526 Tittmoning

Germany

www.rosenberger.de

Tel. : +49 8684 18-0

Email : info@rosenberger.de

Page

1/3

59S2DU-40MT5-B Related Products

	59S2DU-40MT5-B	59S2DU-40MT5-H	59S2DU-40MT5-Z	59S2DU-40MT5-A	59S2DU-40MT5-I	59S2DU-40MT5-F	59S2DU-40MT5-D	59S2DU-40MT5-E	59S2DU-40MT5-C
Description	RF Connectors / Coaxial Connectors Plug PC-Board SMD Right Angle B White	RF Connectors / Coaxial Connectors Plug PC-Board SMD Right Angle H Violet	RF Connectors / Coaxial Connectors Plug PC-Board SMD Right AngleZWatrBlue	RF Connectors / Coaxial Connectors Plug PC-Board SMD Right Angle A Black	RF Connector/Coaxial Connector Plug PC-Board SMD Right Angle I Beige	RF Connector/Coaxial Connector Plug PC-Board SMD Right Angle F Brown	RF Connector/Coaxial Connector Plug PC-Board SMD Right AngleD BViolet	RF Connector/Coaxial Connector Plug PC-Board SMD Right Angle E Green	RF Connector/Coaxial Connector Plug PC-Board SMD Right Angle C Blue
Product Category	RF Connectors / Coaxial Connectors	RF Connectors / Coaxial Connectors	RF Connectors / Coaxial Connectors	RF Connectors / Coaxial Connectors	RF Connector/Coaxial Connector	RF Connector/Coaxial Connector	RF Connector/Coaxial Connector	RF Connector/Coaxial Connector	RF Connector/Coaxial Connector
Maker	-	-	-	-	Rosenberger	Rosenberger	Rosenberger	Rosenberger	Rosenberger
Shipping restrictions	-	-	-	-	Mouser does not currently sell this product.	Mouser does not currently sell this product.	Mouser does not currently sell this product.	Mouser does not currently sell this product.	Mouser does not currently sell this product.
product	-	-	-	-	PCB Connectors	PCB Connectors	PCB Connectors	PCB Connectors	PCB Connectors
RF series	-	-	-	-	FAKRA	FAKRA	FAKRA	FAKRA	FAKRA
Type	-	-	-	-	Plug	Plug	Plug	Plug	Plug
impedance	-	-	-	-	50 Ohms	50 Ohms	50 Ohms	50 Ohms	50 Ohms
maximum frequency	-	-	-	-	6 GHz	6 GHz	6 GHz	6 GHz	6 GHz
Termination type	-	-	-	-	PCB - Through Hole	PCB - Through Hole	PCB - Through Hole	PCB - Through Hole	PCB - Through Hole
direction	-	-	-	-	Right Angle	Right Angle	Right Angle	Right Angle	Right Angle
Installation type	-	-	-	-	PCB Mount	PCB Mount	PCB Mount	PCB Mount	PCB Mount
Subject type	-	-	-	-	Right Angle	Right Angle	Right Angle	Right Angle	Right Angle
Contact plating	-	-	-	-	Gold	Gold	Gold	Gold	Gold
Contact type	-	-	-	-	Pin (Male)	Pin (Male)	Pin (Male)	Pin (Male)	Pin (Male)
series	-	-	-	-	FAKRA	FAKRA	FAKRA	FAKRA	FAKRA
Voltage rating	-	-	-	-	335 V	335 V	335 V	335 V	335 V
Contact material	-	-	-	-	Brass	Brass	Brass	Brass	Brass
Insulation resistance	-	-	-	-	1000 MOhms	1000 MOhms	1000 MOhms	1000 MOhms	1000 MOhms
Operation cycle	-	-	-	-	25	25	25	25	25
Maximum operating temperature	-	-	-	-	+ 105 C	+ 105 C	+ 105 C	+ 105 C	+ 105 C
Minimum operating temperature	-	-	-	-	- 40 C	- 40 C	- 40 C	- 40 C	- 40 C
Factory packaging quantity	-	-	-	-	300	300	300	300	300
