Note:
* Important Dimension.
QC
* Waterproof Rate: IP67.
* Housing: Nylon+GF, Black.
* Male Pin: Copper Alloy, Gold Plated.
* Screw Nut: Nylon+GF, Black.
* O-Ring: EPDM, Black.
* For Panel Thickness Max 3.0mm.
Connector
3
1
4
2
8.1
Recommended
Panel Cut-Out
TITLE
B
Pin Assignment
Front View
A
UNIT:mm
TOLERANCE
.X
# 0.25
.XX
# 0.1
.XXX
# 0.05
ANGLES
# 1 $

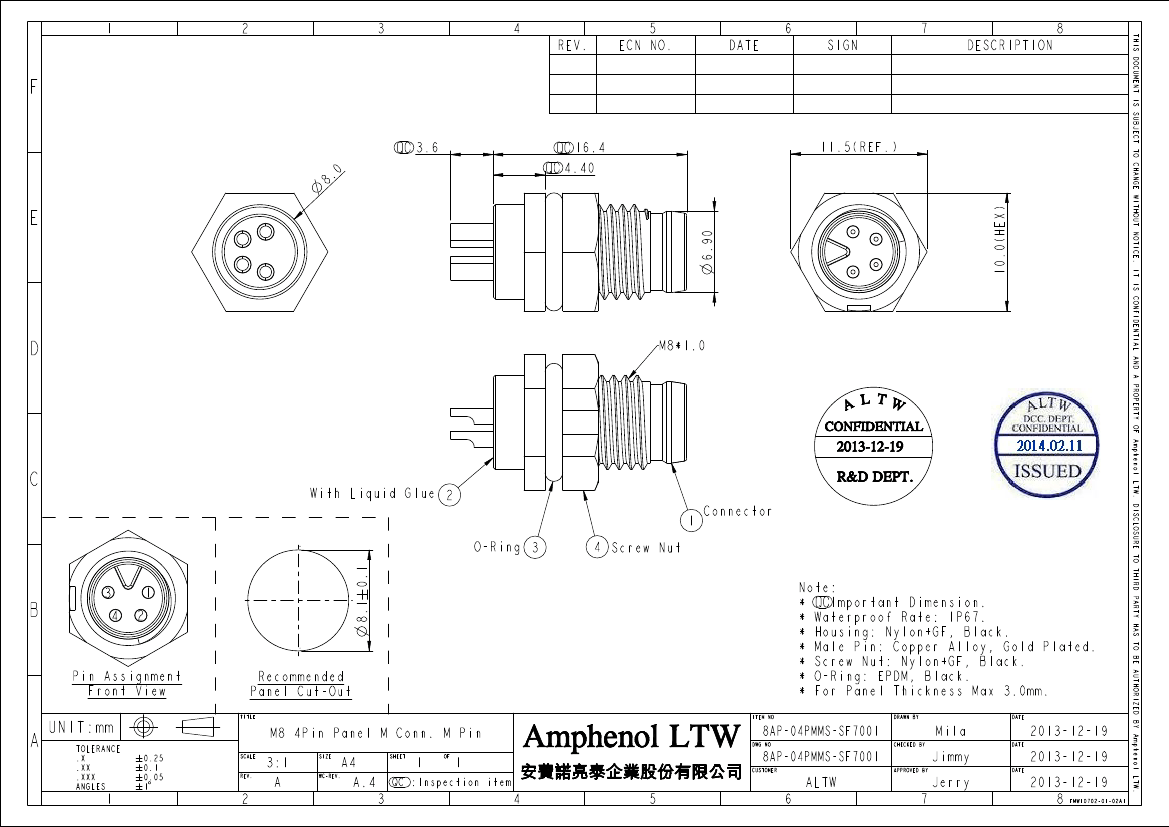

M8 4Pin Panel M Conn. M Pin
SCALE
3:1
A
SIZE
A4
A.4
3
SHEET
1
OF
Amphenol LTW
4
5
ITEM NO
DRAWN BY
DATE
8AP-04PMMS-SF7001
DWG NO
CHECKED BY
Mila
DATE
2013-12-19
2013-12-19
DATE
Amphenol LTW.
1
8AP-04PMMS-SF7001
CUSTOMER
APPROVED BY
Jimmy
Jerry
7
REV.
WC-REV.
QC :Inspection item
ALTW
6
1
2
2013-12-19
8
FMW10702-01-02A1
