15-04-5203: DescriptionBoard Connector, 20 Contact(s), 1 Row(s), Female,; CategoryThe connector The connector; File Size177KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

15-04-5203 Overview

Board Connector, 20 Contact(s), 1 Row(s), Female,

15-04-5203 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
Other features	SL
Connector type	BOARD CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE
Number of rows loaded	1
Options	GENERAL PURPOSE
Total number of contacts	20
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

FEATURES AND SPECIFICATIONS

Features and Beneﬁts

s

Sizes 4 to 25 circuits

s

Positive latch retains clip to panel mount or 180˚ pocket

headers

s

Anti-entanglement/overstress ribs prevent discrete wires

from catching under latch during harness manufacturing

and storage

s

Stacks 70066/70400D assemblies end-to-end to form a

larger single row connector

Reference Information

UL File No.: E29179

CSA File No.: LR19980

Mates With: 70104, 70563, 70565, 70573 and

70575

Designed In: Inches

Physical

Housing: Black glass-ﬁlled polyester, UL 94V-0

Operating Temperature: -40 to +105˚C

2.54mm (.100") Pitch

SL

™

Interim Clip

70004

Single Row

Modular Branch

C

2.54mm (.100") Pitch

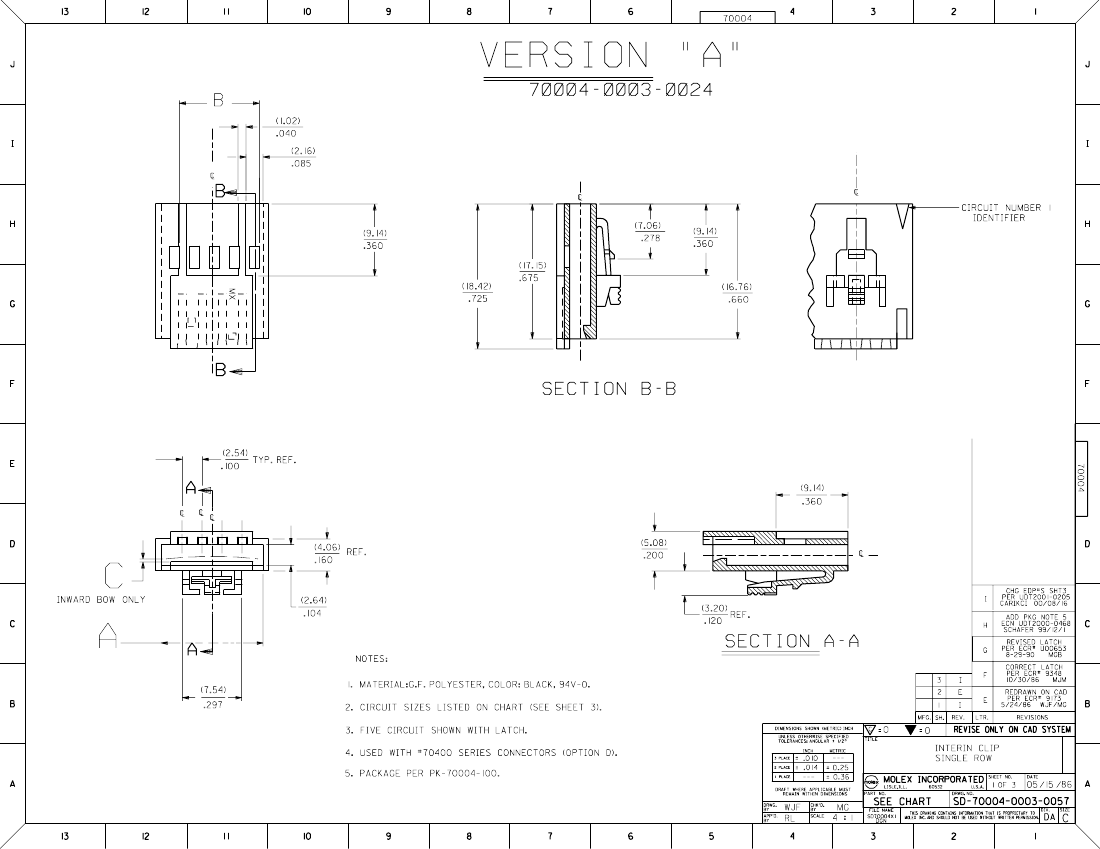

CATALOG DRAWING (FOR REFERENCE ONLY)

Not For Use With Molex C-Grid III

™

Components

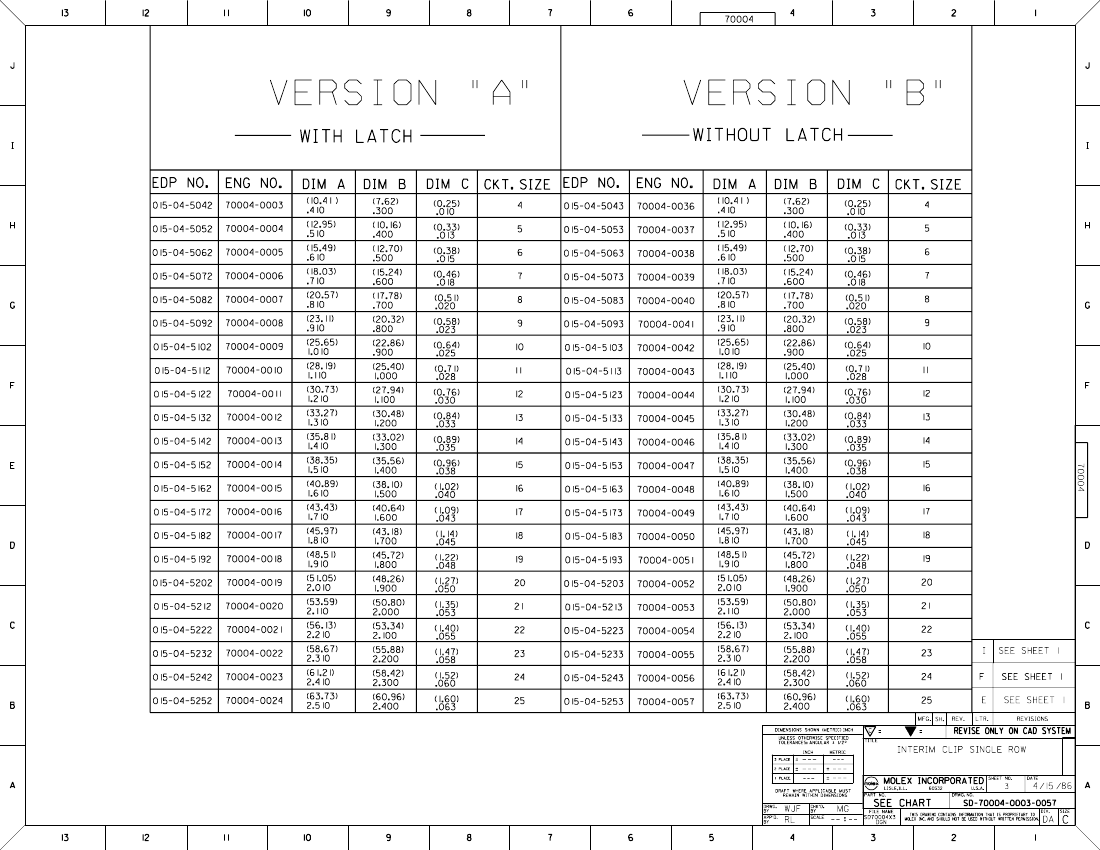

ORDERING INFORMATION AND DIMENSIONS

Circuits

4

5

6

7

8

9

10

11

12

13

14

Order No.

• 15-04-5042

• 15-04-5052

• 15-04-5062

• 15-04-5072

• 15-04-5082

• 15-04-5092

• 15-04-5102

• 15-04-5112

• 15-04-5122

• 15-04-5132

• 15-04-5142

Dimension

A

11.83 (.466)

14.37 (.566)

16.91 (.666)

19.45 (.766)

21.99 (.866)

24.53 (.966)

27.07 (1.066)

29.61 (1.166)

32.15 (1.266)

34.69 (1.366)

37.23 (1.466)

Circuits

15

16

17

18

19

20

21

22

23

24

25

Order No.

• 15-04-5152

• 15-04-5162

• 15-04-5172

• 15-04-5182

• 15-04-5192

• 15-04-5202

• 15-04-5212

• 15-04-5222

• 15-04-5232

• 15-04-5242

• 15-04-5252

Dimension

A

39.77 (1.566)

42.31 (1.666)

44.85 (1.766)

47.39 (1.866)

49.93 (1.966)

52.47 (2.066)

55.01 (2.166)

57.55 (2.266)

60.09 (2.366)

62.63 (2.466)

65.17 (2.566)

• US Standard Product, available through Molex franchised distributors

MX01
