1.5KE300CAHR0 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> 1.5KE300CAHR0

1.5KE300CAHR0: DescriptionESD Suppressors / TVS Diodes 1.5KW, 300V, 5% Bidirectional, TVS; CategoryDiscrete semiconductor diode; File Size193KB，6 Pages; ManufacturerTaiwan Semiconductor; Websitehttp://www.taiwansemi.com/; Environmental Compliance

Download Datasheet Parametric View All

1.5KE300CAHR0 Overview

ESD Suppressors / TVS Diodes 1.5KW, 300V, 5% Bidirectional, TVS

1.5KE300CAHR0 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Taiwan Semiconductor
package instruction	O-PALF-W2
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	EXCELLENT CLAMPING CAPABILITY, UL RECOGNIZED
Maximum breakdown voltage	315 V
Minimum breakdown voltage	285 V
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE
JEDEC-95 code	DO-201
JESD-30 code	O-PALF-W2
JESD-609 code	e3
Maximum non-repetitive peak reverse power dissipation	1500 W
Number of components	1
Number of terminals	2
Maximum operating temperature	175 °C
Minimum operating temperature	-55 °C
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	LONG FORM
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
polarity	BIDIRECTIONAL
Maximum power dissipation	5 W
Guideline	AEC-Q101
Maximum repetitive peak reverse voltage	256 V
surface mount	NO
technology	AVALANCHE
Terminal surface	MATTE TIN
Terminal form	WIRE
Terminal location	AXIAL
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

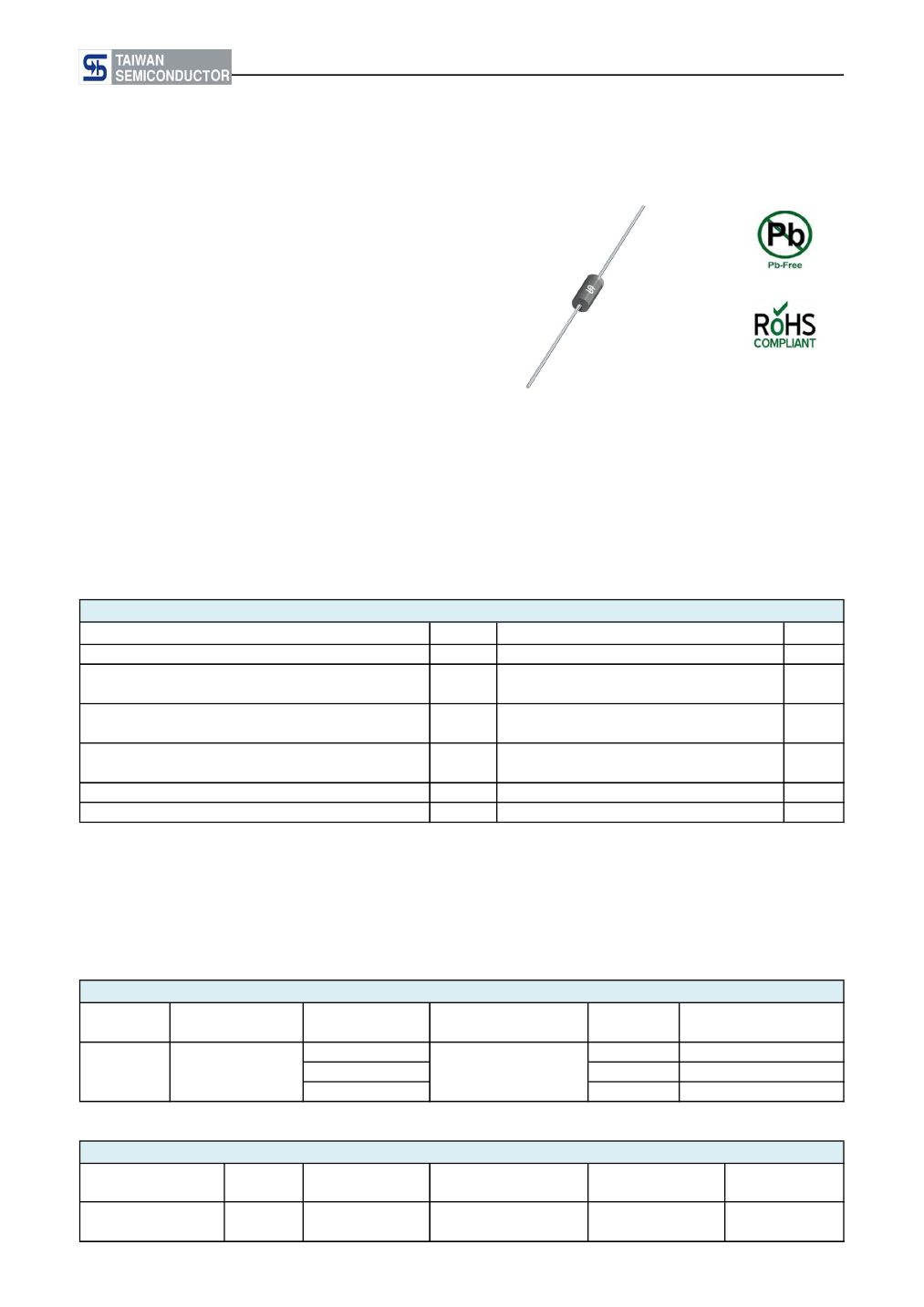

1.5KE SERIES

Taiwan Semiconductor

CREAT BY ART

1500W, 6.8V - 440V Transient Voltage Suppressor

FEATURES

- Excellent clamping capability

- Low dynamic impedance

- 1500W surge capability at 10 / 1000

μs

waveform

- Fast response time: Typically less than

1.0ps from 0 volt to V

for unidirectional

and 5.0ns for bidirectional

- Typical I

less than 1μA above 10V

- UL recognized file # E-326243

- Compliant to RoHS Directive 2011/65/EU and

in accordance to WEEE 2002/96/EC

- Halogen-free according to IEC 61249-2-21

DO-201

MECHANICAL DATA

Case:

DO-201

Molding compound: UL flammability classification rating 94V-0

Part No. with suffix "H" means AEC-Q101 qualified

Packing code with suffix "G" means green compound (halogen-free)

Terminal:

Pure tin plated leads, solderable per JESD22-B102

Meet JESD 201 class 2 whisker test

Weight:

0.94g (approximately)

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

=25°C unless otherwise noted)

PARAMETER

Peak power dissipation at T

=25°C, Tp=1ms (Note 1)

Steady state power dissipation at T

=75°C

lead lengths .375", 9.5mm (Note 2)

Peak forward surge current, 8.3 ms single half sine-wave

superimposed on rated load

Maximum Instantaneous Forward Voltage at 50 A for

Unidirectional Only (Note 3)

Operating junction temperature range

Storage temperature range

SYMBOL

FSM

STG

VALUE

1500

200

3.5 / 5.0

- 55 to +175

UNIT

°C

Note 1: Non-repetitive current pulse per fig. 3 and derated above T

=25°C per fig. 2

Note 2: Mounted on copper pad area of 0.6" x 0.6" (16mm x 16mm)

Note 3: V

=3.5V for devices of V

≦200V

and V

=5.0V max. for devices V

>200V

Devices for Bipolar Applications

1. For bidirectional use C or CA suffix for types 1.5KE6.8 - types 1.5KE440

2. Electrical characteristics apply in both directions

ORDERING INFORMATION

PART NO.

1.5KExxxx

(Note 1)

PART NO.

SUFFIX

PACKING CODE

SUFFIX

PACKAGE

DO-201

PACKING

500 / Ammo box

1,250 / 13" Paper reel

500 / Bulk packing

Note 1: "xxxx" defines voltage from 6.8V (1.5KE6.8) to 440V (1.5KE440)

EXAMPLE

PART NO.

1.5KE100AHR0G

PART NO.

1.5KE100A

PART NO.

SUFFIX

PACKING CODE

SUFFIX

DESCRIPTION

AEC-Q101 qualified

Green compound

Version: N1602
