Lead-free
BAT54TW /ADW /CDW /SDW
/BRW
SURFACE MOUNT SCHOTTKY BARRIER DIODE ARRAYS
SOT-363
A
NEW PRODUCT

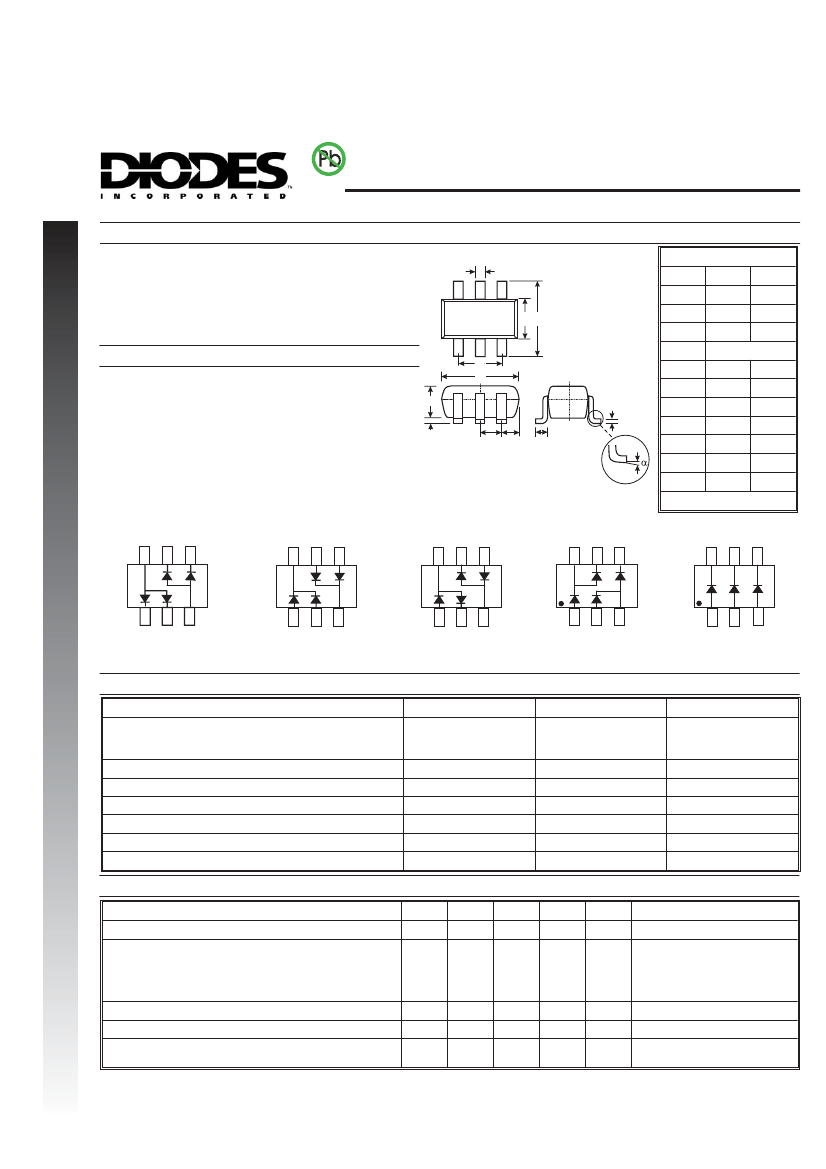

Features
·
·
·
·
·
·
·
·
·
·
·
·
·
Low Forward Voltage Drop
Fast Switching
Ultra-Small Surface Mount Package
PN Junction Guard Ring for Transient and
ESD Protection
Lead Free/RoHS Compliant (Note 3)
G
H
K
M
TOP VIEW
B C
Dim
A
B
C
D
F
H
J
K
L
M
a
Min
0.10
1.15
2.00
0.30
1.80
¾
0.90
0.25
0.10
0°
Max
0.30
1.35
2.20
0.40
2.20
0.10
1.00
0.40
0.25
8°
Mechanical Data
Case: SOT-363
Case Material: Molded Plastic. UL Flammability
Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020C
Terminals: Solderable per MIL-STD-202, Method 208
Lead Free Plating (Matte Tin Finish annealed over Alloy 42
leadframe). Please See Ordering Information, Note 5, on
Page 2
Orientation: See Diagrams Below
Weight: 0.006 grams (approx.)
Marking: See Diagrams Below & Page 2
A
1
0.65 Nominal
J
D
F
L
All Dimensions in mm
C
2
C
2
C
1
A
2
A
2
AC
1
C
2
A
2
AC
1
C
1
C
2
C
1
C
2
C
3
C
1
C
1
A
2
A
1
A
1
C
2
A
1
C
1
AC
2
A
1
A
2
AC
2
A
1
A
2
A
3
BAT54ADW*
BAT54CDW*
Marking: KL6
Marking: KL7
*Symmetrical configuration, no orientation indicator.
BAT54SDW*
Marking: KL8
BAT54BRW
Marking: KLB
BAT54TW
Marking: KLA
Maximum Ratings
@ T
A
= 25°C unless otherwise specified
Characteristic
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
Forward Continuous Current (Note 1)
Repetitive Peak Forward Current (Note 1)
Forward Surge Current (Note 1)
Power Dissipation (Note 1)
Thermal Resistance, Junction to Ambient Air (Note 1)
Operating and Storage Temperature Range
@ t < 1.0s
Symbol
V
RRM
V
RWM
V
R
I
F
I
FRM
I
FSM
P
d
R
qJA
T
j
, T
STG
Value
30
200
300
600
200
625
-65 to +125
Unit
V
mA
mA
mA
mW
°C/W
°C
Electrical Characteristics
Characteristic
Reverse Breakdown Voltage (Note 2)
@ T
A
= 25°C unless otherwise specified
Symbol
V
(BR)R
Min
30
¾
¾
¾
¾
Typ
¾
¾
¾
¾
¾
Max
¾
240
320
400
500
1000
2.0
10
5.0
Unit
V
Test Condition
I
R
= 100mA
I
F
= 0.1mA
I
F
=
1mA
I
F
= 10mA
I
F
= 30mA
I
F
= 100mA
V
R
= 25V
V
R
= 1.0V, f = 1.0MHz
I
F
= 10mA through I
R
= 10mA
to I
R
= 1.0mA, R
L
= 100W
Forward Voltage (Note 2)
V
F
I
R
C
T
t
rr
mV
Reverse Leakage Current (Note 2)
Total Capacitance
Reverse Recovery Time
mA
pF
ns
Notes: 1. Device mounted on FR-4 PCB, 1 inch x 0.85 inch x 0.062 inch; pad layout as shown on Diodes Inc. suggested pad layout document AP02001, which can be
found on our website at http://www.diodes.com/datasheets/ap02001.pdf.
2. Short duration test pulse used to minimize self-heatin
g effect.
3. No purposefully added lead.
DS30152 Rev. 11 - 2
1 of 3
www.diodes.com
BAT54TW /ADW /CDW /SDW /BRW
ã
Diodes Incorporated
I
F
, INSTANTANEOUS FORWARD CURRENT (A)
1
100
T
A
= 125ºC
NEW PRODUCT
10
0.1
T
A
= 75ºC
1
T
A
= 125ºC
0.01
T
A
= 75ºC
T
A
= 25ºC
T
A
= 0ºC
T
A
= 25ºC
0.1
T
A
= 0ºC
0.001
0.01
T
A
= -40ºC
0.0001
0
0.2
0.4
0.6
0.8
1.0
V
F
, INSTANTANEOUS FORWARD VOLTAGE (V)

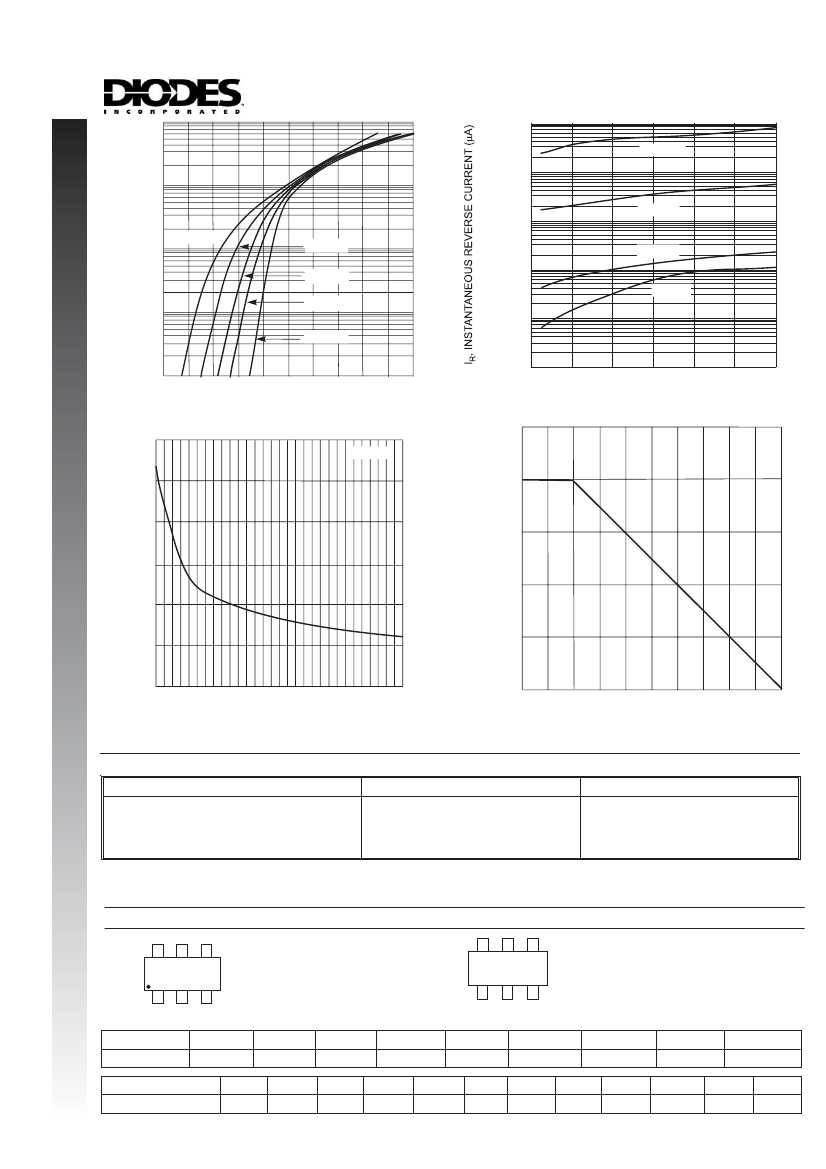

Fig. 1 Forward Characteristics
12
f = 1.0MHz
0.001
0
5
10
15
20
25
30
V
R
, INSTANTANEOUS REVERSE VOLTAGE (V)
Fig. 2 Typical Reverse Characteristics
P
D,
POWER DISSIPATION (mW)
0
5
10
15
20
25
30
10
200
C
T
, TOTAL CAPACITANCE (pF)
8
6
100
4
2
0
0
0
25
50
75
100
125
T
A
, AMBIENT TEMPERATURE (
°
C)
Fig. 4 Power Derating Curve
V
R
, REVERSE VOLTAGE (V)
Fig. 3 Typical Capacitance vs. Reverse Voltage
Ordering Information
(Note 4 and 5)
Device
BAT54ADW-7-F
BAT54CDW-7-F
BAT54SDW-7-F
BAT54BRW-7-F
BAT54TW-7-F
Packaging
Shipping
SOT-363
3000/Tape & Reel
Notes: 4. For Packaging Details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf.
Marking Information
KXX = Product Type Marking Code
(See Page 1)
YM = Date Code Marking
Y = Year ex: N = 2002
M = Month ex: 9 = September
YM
KXX
YM
2004
R
2005
S
May
5
Jun
6
YM
KXX
2006
T
Jul
7
KXX
Date Code Key
Year
Code
Month
Code
2001
M
Jan
1
2002
N
Feb
2
2003
P
March
3
Apr
4
KXX = Product Type Marking Code
(See Page 1)
For Symmetrical Configuration,
No Orientation Indicator
YM = Date Code Marking
Y = Year ex: N = 2002
M = Month ex: 9 = September
2007
U
Aug
8
Sep
9
2008
V
Oct
O
Nov
N
2009
W
Dec
D
DS30152 Rev. 11 - 2
2 of 3
www.diodes.com
