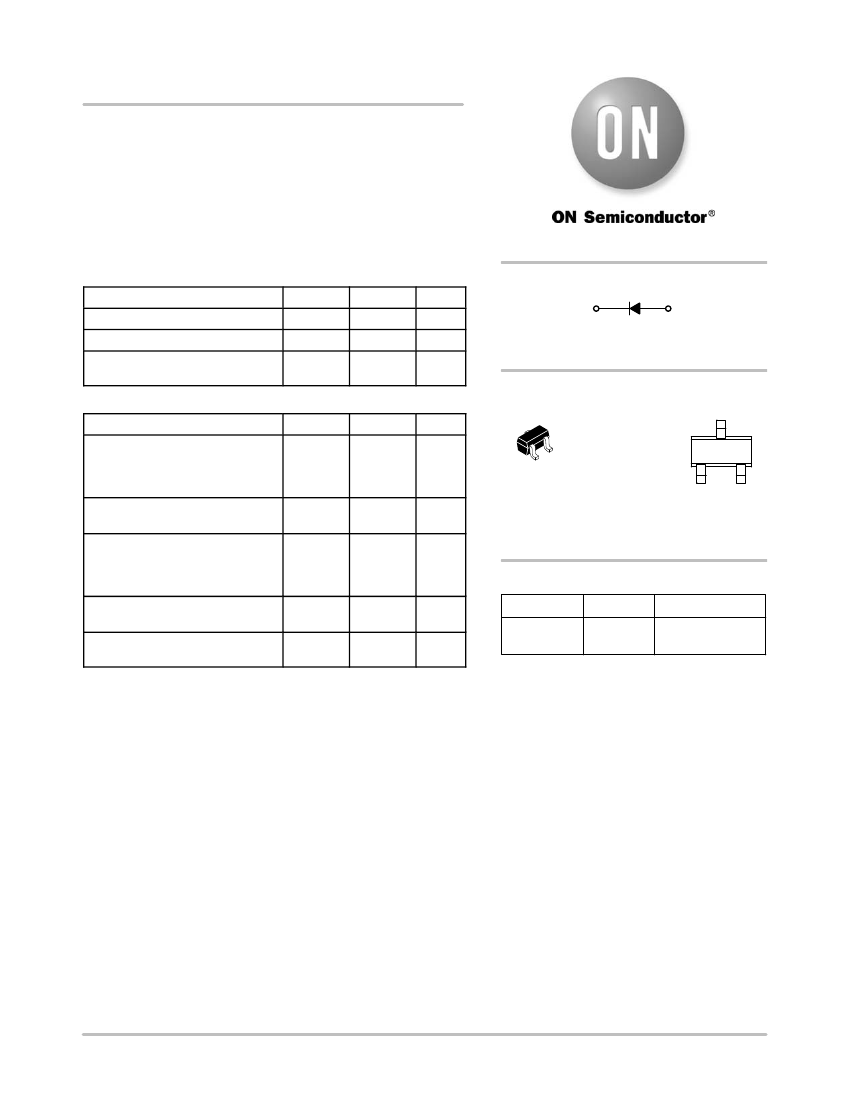

BAS16TT1G
Silicon Switching Diode
Features
•
These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS
Compliant
http://onsemi.com
MAXIMUM RATINGS
(T
A
= 25°C)
Rating
Continuous Reverse Voltage
Recurrent Peak Forward Current
Peak Forward Surge Current
Pulse Width = 10
ms
Symbol
V
R
I
F
I
FM(surge)
Max
100
200
500
Unit
V
mA
mA
3
CATHODE
1
ANODE
THERMAL CHARACTERISTICS
Characteristic
Total Device Dissipation,
FR−4 Board (Note 1)
T
A
= 25°C
Derated above 25°C
Thermal Resistance,
Junction−to−Ambient (Note 1)
Total Device Dissipation,
FR−4 Board (Note 2)
T
A
= 25°C
Derated above 25°C
Thermal Resistance,
Junction−to−Ambient (Note 2)
Junction and Storage
Temperature Range
Symbol
P
D
Max
225
1.8
R
qJA
P
D
555
Unit
mW
mW/°C
°C/W
XX
M
MARKING
DIAGRAM
3
1
2
CASE 463
SOT−416
STYLE 2
1
= Specific Device Code
= Date Code
= Pb−Free Package
A6
M
G
G
G
360
2.9
mW
mW/°C
°C/W
°C
ORDERING INFORMATION
Device
BAS16TT1G
Package
SOT−416
(Pb−Free)
Shipping
†
3000 / Tape & Reel
R
qJA
T
J
, T
stg
345
−55
to
+150
Stresses exceeding Maximum Ratings may damage the device. Maximum
Ratings are stress ratings only. Functional operation above the Recommended
Operating Conditions is not implied. Extended exposure to stresses above the
Recommended Operating Conditions may affect device reliability.
1. FR−4 @ Minimum Pad
2. FR−4 @ 1.0
×
1.0 Inch Pad
†For information on tape and reel specifications,
including part orientation and tape sizes, please
refer to our Tape and Reel Packaging Specifications
Brochure, BRD8011/D.
©
Semiconductor Components Industries, LLC, 2013
May, 2013
−
Rev. 4
1
Publication Order Number:
BAS16TT1/D
BAS16TT1G
100
IF, FORWARD CURRENT (mA)
IR , REVERSE CURRENT (μA)
10
T
A
= 150°C
1.0
T
A
= 125°C
10
T
A
= 85°C
T
A
= 25°C
T
A
= - 40°C
T
A
= 85°C
0.1
T
A
= 55°C
0.01
T
A
= 25°C
1.0
0.1
0.2
0.4
0.6
0.8
1.0
V
F
, FORWARD VOLTAGE (VOLTS)
1.2
0.001
0
10
20
30
40
V
R
, REVERSE VOLTAGE (VOLTS)
50

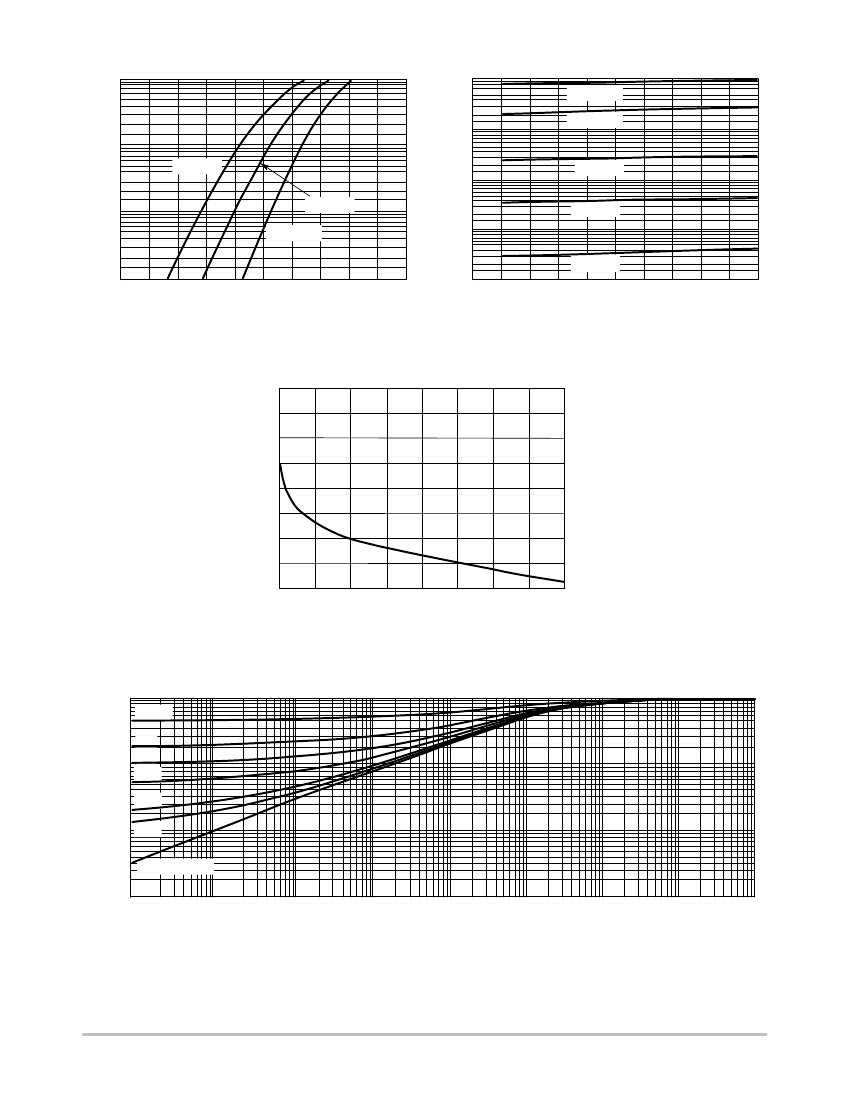

Figure 4. Forward Voltage
Figure 5. Leakage Current
0.68
CD, DIODE CAPACITANCE (pF)
0.64
0.60
0.56
0.52
0
2
4
6
8
V
R
, REVERSE VOLTAGE (VOLTS)
Figure 6. Capacitance
r(t), NORMALIZED TRANSIENT THERMAL RESISTANCE
1.0
D = 0.5
0.2
0.1
0.05
0.02
0.01
0.01
SINGLE PULSE
0.001
0.00001
0.0001
0.001
0.01
0.1
t, TIME (s)
1.0
10
100
1000
0.1
Figure 7. Normalized Thermal Response
http://onsemi.com
4
BAS16TT1G
PACKAGE DIMENSIONS
SC−75/SOT−416
CASE 463−01
ISSUE F
−E−
2
3
NOTES:
1. DIMENSIONING AND TOLERANCING PER ANSI
Y14.5M, 1982.
2. CONTROLLING DIMENSION: MILLIMETER.
e
1
−D−
b
3 PL
0.20 (0.008)
M
D
H
E
0.20 (0.008) E
DIM
A
A1
b
C
D
E
e
L
H
E
MILLIMETERS
MIN
NOM MAX
0.70
0.80
0.90
0.00
0.05
0.10
0.15
0.20
0.30
0.10
0.15
0.25
1.55
1.60
1.65
0.70
0.80
0.90
1.00 BSC
0.10
0.15
0.20
1.50
1.60
1.70
INCHES
NOM MAX
0.031 0.035
0.002 0.004
0.008 0.012
0.006 0.010
0.063 0.067
0.031 0.035
0.04 BSC
0.004 0.006 0.008
0.061 0.063 0.065
MIN
0.027
0.000
0.006
0.004
0.059
0.027
C
A
L
A1
STYLE 2:
PIN 1. ANODE
2. N/C
3. CATHODE
SOLDERING FOOTPRINT*
0.356
0.014
1.803
0.071
0.787
0.031
0.508
0.020
1.000
0.039
SCALE 10:1
mm
inches
*For additional information on our Pb−Free strategy and soldering
details, please download the ON Semiconductor Soldering and
Mounting Techniques Reference Manual, SOLDERRM/D.
ON Semiconductor
and
are registered trademarks of Semiconductor Components Industries, LLC (SCILLC). SCILLC owns the rights to a number of patents, trademarks,
copyrights, trade secrets, and other intellectual property. A listing of SCILLC’s product/patent coverage may be accessed at www.onsemi.com/site/pdf/Patent−Marking.pdf. SCILLC
reserves the right to make changes without further notice to any products herein. SCILLC makes no warranty, representation or guarantee regarding the suitability of its products for any
particular purpose, nor does SCILLC assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without
limitation special, consequential or incidental damages. “Typical” parameters which may be provided in SCILLC data sheets and/or specifications can and do vary in different applications
and actual performance may vary over time. All operating parameters, including “Typicals” must be validated for each customer application by customer’s technical experts. SCILLC
does not convey any license under its patent rights nor the rights of others. SCILLC products are not designed, intended, or authorized for use as components in systems intended for
surgical implant into the body, or other applications intended to support or sustain life, or for any other application in which the failure of the SCILLC product could create a situation where
personal injury or death may occur. Should Buyer purchase or use SCILLC products for any such unintended or unauthorized application, Buyer shall indemnify and hold SCILLC and
its officers, employees, subsidiaries, affiliates, and distributors harmless against all claims, costs, damages, and expenses, and reasonable attorney fees arising out of, directly or indirectly,
any claim of personal injury or death associated with such unintended or unauthorized use, even if such claim alleges that SCILLC was negligent regarding the design or manufacture
of the part. SCILLC is an Equal Opportunity/Affirmative Action Employer. This literature is subject to all applicable copyright laws and is not for resale in any manner.
PUBLICATION ORDERING INFORMATION
LITERATURE FULFILLMENT:
Literature Distribution Center for ON Semiconductor
P.O. Box 5163, Denver, Colorado 80217 USA
Phone:
303−675−2175 or 800−344−3860 Toll Free USA/Canada
Fax:
303−675−2176 or 800−344−3867 Toll Free USA/Canada
Email:
orderlit@onsemi.com
N. American Technical Support:
800−282−9855 Toll Free
USA/Canada
Europe, Middle East and Africa Technical Support:
Phone: 421 33 790 2910
Japan Customer Focus Center
Phone: 81−3−5817−1050
ON Semiconductor Website: www.onsemi.com
Order Literature:
http://www.onsemi.com/orderlit
For additional information, please contact your local
Sales Representative
http://onsemi.com
5
BAS16TT1/D
