REVISIONS
REV
B1
ECO
-
DESCRIPTION
RELEASED DRAWING
DATE
JULY-04-2014
BY
BEN
APPR
TOMMY
15/16-20 UNEF THREAD
MASTER KEYWAY
4-ø3.2
TITLE:
Ø25.3
31.0
24.6

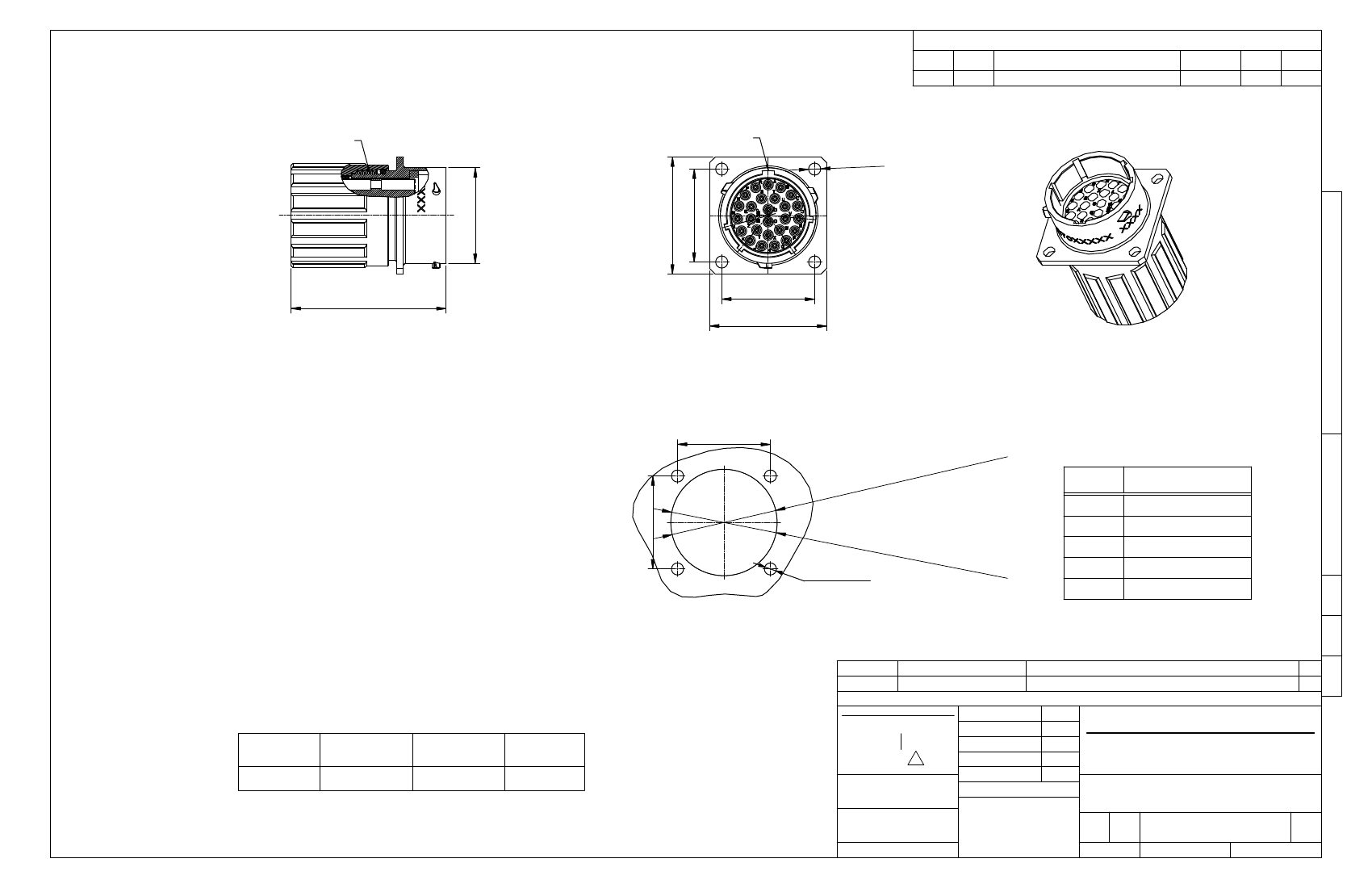

ECO-MATE, RECEPTACLE,SIZE 16,26POS,PIN, END CAP.
41.05 Ref
24.6
31.0
NOTES：(UNLESS OTHERWISE SPECIFIED)
1. MATERIAL：
SHELL：ZINC ALLOY，NICKEL PLATED.
INSERT：THERMOPLASTIC，UL94 V-0.
END CAP：THERMOPLASTIC，UL94 V-0.
SEAL GASKET：NBR.
O-RING : NBR.
WIRE SEAL：SILICONE RUBBER.
PLASTIC BUSHING：THERMOPLASTIC，UL94 V-0.
2. SPECIFICATIONS：
2.1 RATED CURRENT：
2.1.1 STAMPED CONTACT 5A (MAX).
2.1.2 MACHINED CONTACT 7.5A(MAX).
2.2 RATED VOLTAGE：150V（AC/DC）.
2.3 OPERATING TEMPERATURE：-40°C ½+105°C.
2.4 DIELECTRIC WITHSTANDING VOLTAGE：LESS THAN
2 MILLIAMPS CURRENT LEAKAGE@1500 VOLTS AC.
2.5 INSULATION RESISTANCE：5000 MEGOHMS MIN.
2.6 IP--CLASS：IP67.
2.7 MATING CYCLES DURABILITY：500 CYCLES(MIN).
2.8 ROHS COMPLIANT.
3. SUITABLE CONTACTS ：20# CONTACTS.
4. ALL DIMENSIONS ARE FOR REFERENCE USE ONLY.
5. CONTACT SIZE AND REAR SEAL WIRE RANGE：
24.6
an
r on t P
F
+0.2
(For
ø28.1
0
DWG NO:
g)
ountin
el M
KEY POS
N
PART NUMBER
RT0W01626PNHEC
RT0W01626PWHEC
RT0W01626PXHEC
RT0W01626PYHEC
RT0W01626PZHEC
RT0W01626P*HEC
24.6
ø28.2
+0.2
0
(For
Rear P
a
W
4-Ø
3.20
+0.2
0
PANEL CUT OUT
REFERENCE
nel Mo
unting
)
X
Y
Z
REV:
B1
SH:
1
QUANTITY
SEE PART NUMBER
CHART
DESCRIPTION
PART NUMBER
MATERIALS LIST
SIGNATURES
DRAWN:
CHECKED:
ENGINEER:
APPROVAL:
OF:
ITEM
1
UNLESS OTHERWISE SPECIFIED
1)
2)
1
2
3
All dimensions are in metric(mm).
Tolerances are as follows:
PL DEC ±0.30
Fractions ±1/64
PL DEC ±0.15
Angles ±1°
PL DEC ±0.08
X
DATE
BEN
JULY-04-2014
Amphenol
Sine Systems - www.amphenol-sine.com
44724 Morley Drive
Clinton Township, MI 48036
CONTACT SIZE MIN. INSUL O.D. MAX. INSUL O.D. WIRE RANGE
20#
Ø1.6mm
Ø2.6mm
20 - 30AWG
3) Note reference =
MATERIAL SPECIFICATIONS:
CUSTOMER:
PROCESS SPECIFICATIONS:
NEXT ASS'Y:
THIS DRAWING IS SUPPLIED FOR
INFORMATION ONLY. DESIGN FEATURES,
SPECIFICATIONS AND PERFORMANCE DATA SIZE
SHOWN HEREON ARE THE PROPERTY OF
THE AMPHENOL CORPORATION. NO RIGHTS
OF REPRODUCTION ARE IMPLIED. ALL
DIMENSIONS ARE SUBJECT TO NORMAL
SCALE:
MANUFACTURING VARIATIONS.
ECO-MATE, RECEPTACLE,
SIZE 16,26POS,PIN, END CAP.
TYPE
DWG NO:
REVISION
B
C-
RT0W01626P*HEC
SHEET
B1
OF
NONE
1
1
