B84143-B36-R11 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> B84143-B36-R11

B84143-B36-R11: Description300 V, 50/60 HZ, THREE PHASE EMI FILTER; CategoryPassive components; File Size242KB，10 Pages; ManufacturerEPCOS (TDK)

Download Datasheet Parametric Compare View All

B84143-B36-R11 Overview

300 V, 50/60 HZ, THREE PHASE EMI FILTER

B84143-B36-R11 Parametric

Parameter Name	Attribute value
Processing package description	METAL PACKAGE
each_compli	Yes
EU RoHS regulations	Yes
China RoHS regulations	Yes
state	Active
filter type	THREE PHASE EMI FILTER
vals	IEC; EN; VDE
high capacity	2700 V
Maximum leakage current	14 mA
Manufacturer Series	B84143B
Installation type	PANEL MOUNT
erating_frequency__hz_	50/60
Dimensions	L200.0XB50.0XH80.0 (mm)/L7.874XB1.969XH3.15 (inch)
Rated current	16 A
Rated voltage	300 V
terminal coating	NOT SPECIFIED
heigh	80 mm
length	200 mm
width__mm_	50.0

Preview

Download Datasheet

View All

3-Line Filters

for Converters and Power Electronics

Power line filters for three-phase systems

Rated voltage 480/275 and

520/300 V~, 50/60 Hz

Rated current 8 to 200 A

Construction

Three-line filter

Metal case

Book size

B84143-B*-R110

B84143-B*-R112

Features

Very high insertion loss

Low leakage current

Optimized footprint saves space

Litz wires on the load side reduce mounting time

Low weight

Degree of protection: IP 20

Design based on

EN 133 200, UL 1283, CSA 22.2 No.8 1986

Optimized for long motor cables

and operation under full load

UL and CSA approval pending

Applications

Frequency converters for motor drives, e.g.

– elevators

– pumps

– traction systems

– conveyor systems

– HVAC systems (heating, ventilation and air conditioning)

Wind farms

Power supplies

Terminals

Line: Safe-to-touch terminal blocks

Load: Litz wires

Marking

Marking on component:

Manufacturer’s logo, ordering code,

rated voltage, rated current,

rated temperature, date code

Minimum marking on packaging:

Manufacturer’s logo, ordering code

1) In accordance with IEC 60529:1989; EN 60529:1991; DIN VDE 0470-1

246

03/01

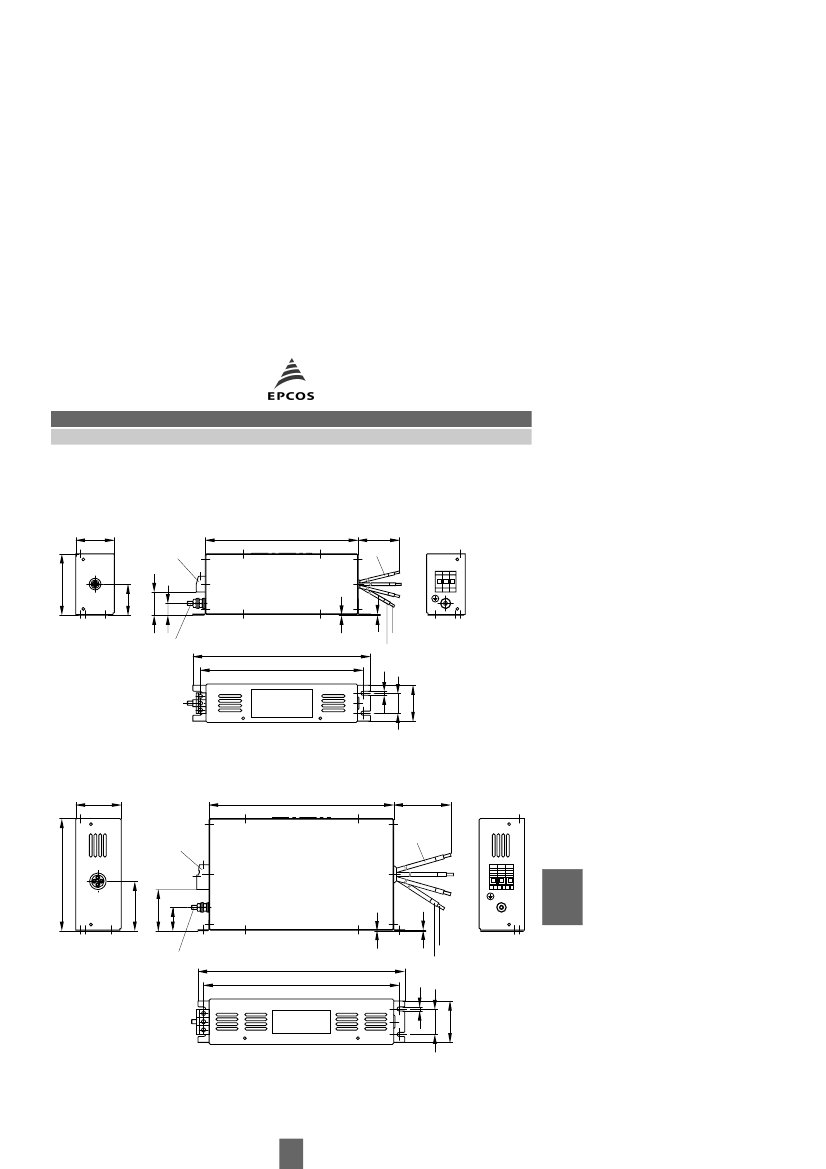

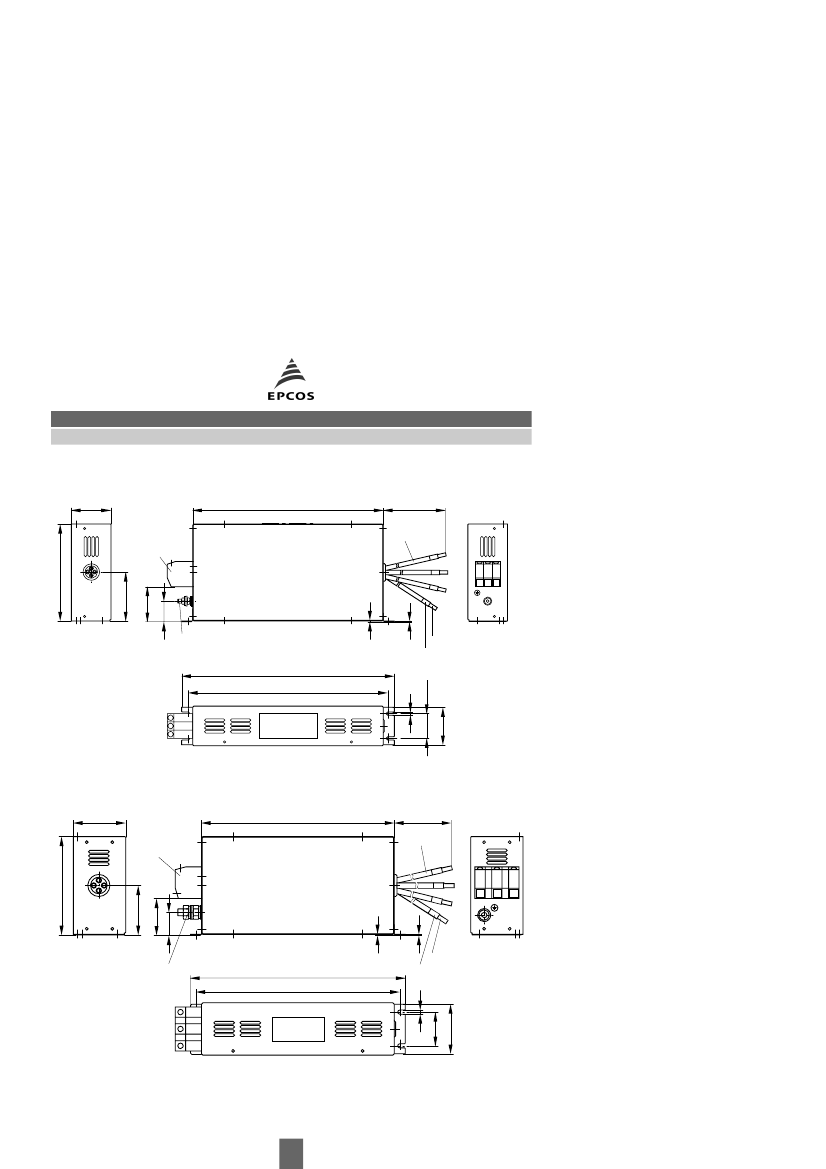

B84143-B36-R11 Related Products

	B84143-B36-R11	B84143-B-R110	B84143-B25-R11	B84143-B90-R11	B84143-B66-R11	B84143-B50-R11	B84143-B200-R11	B84143-B150-R11	B84143-B120-R11
Description	300 V, 50/60 HZ, THREE PHASE EMI FILTER	300 V, 50/60 HZ, THREE PHASE EMI FILTER	300 V, 50/60 HZ, THREE PHASE EMI FILTER	300 V, 50/60 HZ, THREE PHASE EMI FILTER	300 V, 50/60 HZ, THREE PHASE EMI FILTER	300 V, 50/60 HZ, THREE PHASE EMI FILTER	300 V, 50/60 HZ, THREE PHASE EMI FILTER	300 V, 50/60 HZ, THREE PHASE EMI FILTER	300 V, 50/60 HZ, THREE PHASE EMI FILTER
Processing package description	METAL PACKAGE	METAL PACKAGE	METAL PACKAGE	METAL PACKAGE	METAL PACKAGE	METAL PACKAGE	METAL PACKAGE	METAL PACKAGE	METAL PACKAGE
each_compli	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
EU RoHS regulations	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
China RoHS regulations	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
state	Active	Active	Active	Active	Active	Active	Active	Active	Active
filter type	THREE PHASE EMI FILTER	THREE PHASE EMI FILTER	THREE PHASE EMI FILTER	THREE PHASE EMI FILTER	THREE PHASE EMI FILTER	THREE PHASE EMI FILTER	THREE PHASE EMI FILTER	THREE PHASE EMI FILTER	THREE PHASE EMI FILTER
vals	IEC; EN; VDE	IEC; EN; VDE	IEC; EN; VDE	IEC; EN; VDE	IEC; EN; VDE	IEC; EN; VDE	IEC; EN; VDE	IEC; EN; VDE	IEC; EN; VDE
high capacity	2700 V	2700 V	2700 V	2700 V	2700 V	2700 V	2700 V	2700 V	2700 V
Maximum leakage current	14 mA	14 mA	14 mA	14 mA	14 mA	14 mA	14 mA	14 mA	14 mA
Manufacturer Series	B84143B	B84143B	B84143B	B84143B	B84143B	B84143B	B84143B	B84143B	B84143B
Installation type	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT
erating_frequency__hz_	50/60	50/60	50/60	50/60	50/60	50/60	50/60	50/60	50/60
Dimensions	L200.0XB50.0XH80.0 (mm)/L7.874XB1.969XH3.15 (inch)	L200.0XB50.0XH80.0 (mm)/L7.874XB1.969XH3.15 (inch)	L200.0XB50.0XH80.0 (mm)/L7.874XB1.969XH3.15 (inch)	L200.0XB50.0XH80.0 (mm)/L7.874XB1.969XH3.15 (inch)	L200.0XB50.0XH80.0 (mm)/L7.874XB1.969XH3.15 (inch)	L200.0XB50.0XH80.0 (mm)/L7.874XB1.969XH3.15 (inch)	L200.0XB50.0XH80.0 (mm)/L7.874XB1.969XH3.15 (inch)	L200.0XB50.0XH80.0 (mm)/L7.874XB1.969XH3.15 (inch)	L200.0XB50.0XH80.0 (mm)/L7.874XB1.969XH3.15 (inch)
Rated current	16 A	16 A	16 A	16 A	16 A	16 A	16 A	16 A	16 A
Rated voltage	300 V	300 V	300 V	300 V	300 V	300 V	300 V	300 V	300 V
terminal coating	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
heigh	80 mm	80 mm	80 mm	80 mm	80 mm	80 mm	80 mm	80 mm	80 mm
length	200 mm	200 mm	200 mm	200 mm	200 mm	200 mm	200 mm	200 mm	200 mm
width__mm_	50.0	50.0	50.0	50.0	50.0	50.0	50.0	50.0	50.0
