72-Line Filters for Converters in Traction Systems
CategoryAnalog mixed-signal IC    filter
File Size157KB,7 Pages
ManufacturerEPCOS (TDK)
Environmental Compliance
Download Datasheet Parametric Compare View All

B84142-A1000-S2 Overview

72-Line Filters for Converters in Traction Systems

B84142-A1000-S2 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerEPCOS (TDK)
Objectid2006950377
Reach Compliance Codecompli
compound_id65033176
CertificationUL; CSA; EN
filter typeSINGLE PHASE EMI FILTER
high126 mm
high potential4900 V
length350 mm
Manufacturer's serial numberB84142-A1000-S2
Installation typePANEL MOUNT
physical sizeL350XB210XH126 (mm)
Rated current1000 A
Rated voltage750 V

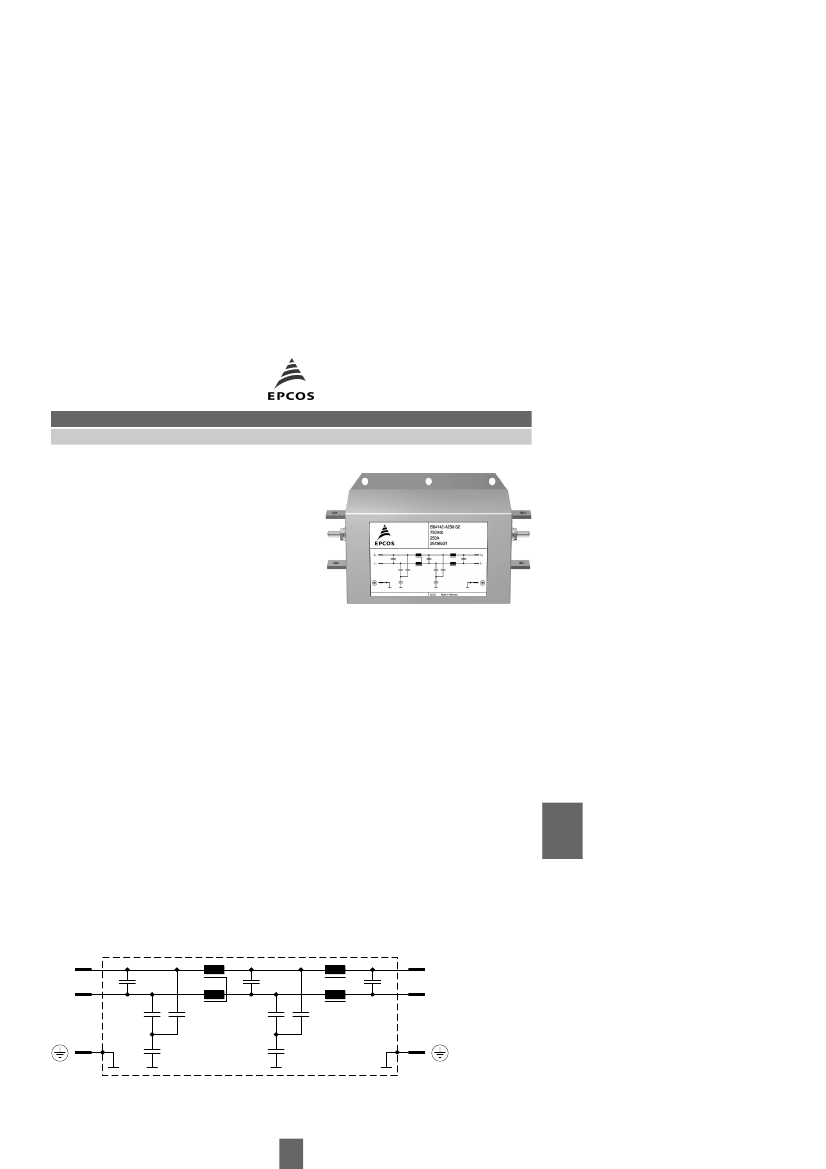

2-Line Filters
for Converters in Traction Systems
Power line filters for dc systems
Rated voltage 750 to 2000 V–
Rated current 250 to 1000 A
Construction
s
Two-line filter
s
Metal case
B84142-A*-S2
... B84142-A*-S18
Features
s
Easy to install
s
Space-saving design
s
Design based on
EN 133 200, UL 1283, CSA 22.2 No.8 1986
s
Optimized for long motor cables and
operation under full load
Applications
s
Trams, light rails
s
Subways
Terminals
s
Busbars, tin-plated
Marking
Marking on component:
Manufacturer’s logo, ordering code,
rated voltage, rated current,
date code
Minimum marking on packaging:
Manufacturer’s logo, ordering code
Typical circuit diagram
L+
L
_
LINE
L+’
L
_
LOAD
Traction side
Bahnseite
Inverter
Umrichter
SSB1309-8
183
03/01

B84142-A1000-S2 Related Products

B84142-A1000-S2 B84142-A500-S3 B84142-A500-S2 B84142-A500-S18 B84142-A250-S3 B84142-A250-S2 B84142-A250-S18 B84142-A1000-S3 B84142-A1000-S18
Description 72-Line Filters for Converters in Traction Systems 72-Line Filters for Converters in Traction Systems 72-Line Filters for Converters in Traction Systems 72-Line Filters for Converters in Traction Systems 72-Line Filters for Converters in Traction Systems 72-Line Filters for Converters in Traction Systems 72-Line Filters for Converters in Traction Systems 72-Line Filters for Converters in Traction Systems 72-Line Filters for Converters in Traction Systems
