Technical Data Sheet
FAKRA -
HF
PLASTIC HOUSING
59Z073-001-Y
Dieses Dokument ist urheberrechtlich geschützt ● This document is protected by copyright ● Rosenberger Hochfrequenztechnik GmbH & Co. KG
All dimensions are in mm; tolerances according to ISO 2768 m-H
Y = Part number has to be accomplished by codification

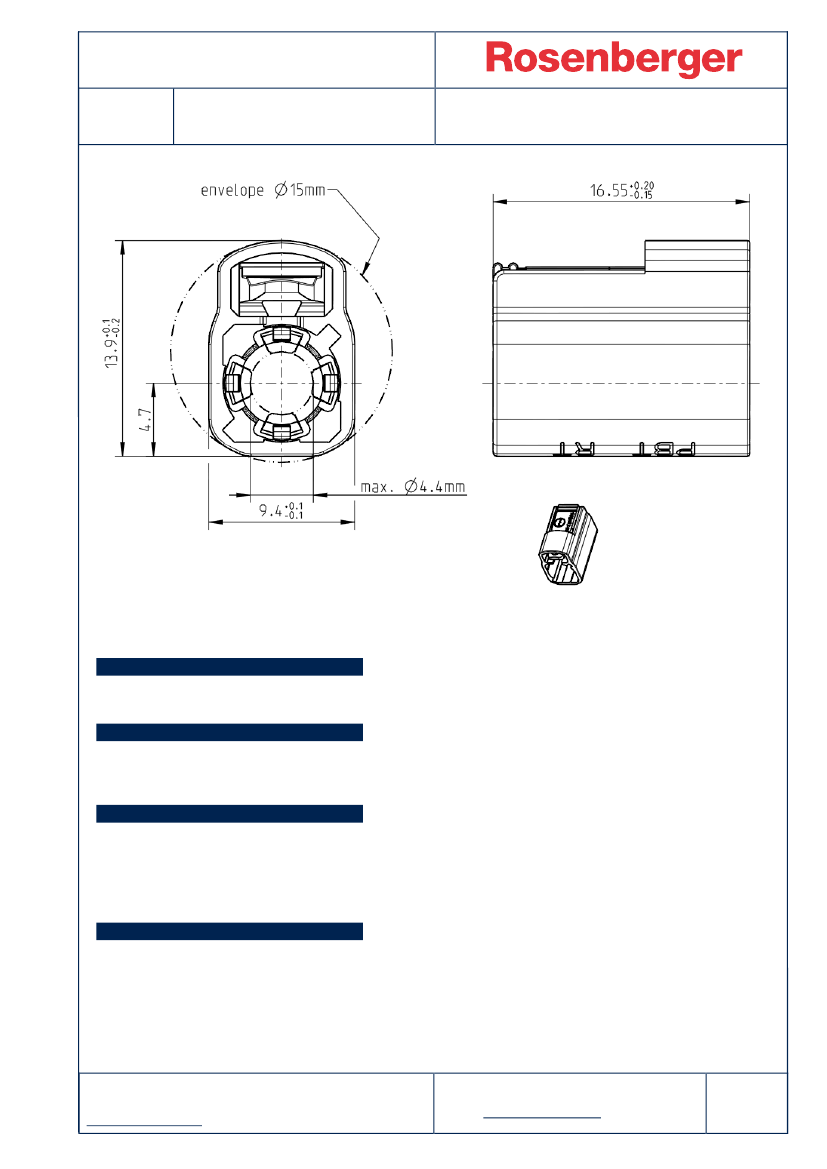

Interface and coding
According to
DIN 72594-1, USCAR 17
Material and plating
Connector parts
Housing
Material
PBT GF23
Mechanical data
Mating cycles
Retention force latch
Retention force primary lock
Coding efficiency
25
110 N
110 N
40 N
Environmental data
Temperature range
Thermal shock
Temperature and humidity
Vibration and mechanical shock
Dry heat
2002/95/EC (RoHS)
-40°C to +105°C
DIN 72594-2 clause 8.2
DIN 72594-2 clause 8.3
DIN 72594-2 clause 8.1
DIN 72594-2 clause 8.4
compliant
RF_35/09.14/6.2
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel. : +49 8684 18-0
Email : info@rosenberger.de
Page
1/2
Technical Data Sheet
FAKRA -
HF
Application
Applicable e.g. for following connectors:
* -xx for all available cable variations
59K13O-1xx*; 59K16A-1xx*; 59K16B-1xx*; 59K17O-1xx *
f
PLASTIC HOUSING
59Z073-001-Y
Packing
Dieses Dokument ist urheberrechtlich geschützt ● This document is protected by copyright ● Rosenberger Hochfrequenztechnik GmbH & Co. KG
Standard
Weight
500 pcs in box
1.23 g/pce
Coding
Part Number has to be accomplished by codification
Coding
A
B
C
D
E
F
G
H
I
K
L
M
N
Z
Color
black
white
blue
bordeauxviolet
green
brown
grey
violet
beige
curry
Carmine red
pastel orange
pastel green
waterblue
RAL
sim. 9005
sim. 9001
sim. 5005
sim. 4004
sim. 6002
sim. 8011
sim. 7031
sim. 4003
sim. 1001
sim. 1027
sim. 3002
sim. 2003
sim. 6019
sim. 5021
Part-Number
59Z073-001_A
59Z073-001_B
59Z073-001_C
59Z073-001_D
59Z073-001_E
59Z073-001_F
59Z073-001_G
59Z073-001_H
59Z073-001_I
59Z073-001_K
59Z073-001_L
59Z073-001_M
59Z073-001_N
59Z073-001_Z
Change History
Rev.
f00
Date
19.08.16
Change
Application for following connector added:59K16B-1xx*
