834-47-002-10-001000 datasheet, PDF

Datasheet> All Categories > The connector> 834-47-002-10-001000

834-47-002-10-001000: DescriptionIC & Component Sockets STANDARD SOCKET HEADER; CategoryThe connector; File Size448KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com

Download Datasheet Parametric Compare View All

834-47-002-10-001000 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	834-47-002-10-001000	-	-	View	Buy Now

834-47-002-10-001000 Overview

IC & Component Sockets STANDARD SOCKET HEADER

834-47-002-10-001000 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Mill-Max
Product Category	IC & Component Sockets
Product	Various Socket Types
Number of Positions	2 Position
Number of Rows	1 Row
Type	Fibre Plug Pass Through Socket
Pitch	2.54 mm
Termination Style	Solder
Contact Plating	Gold
Packaging	Bulk
Current Rating	4.5 A
Housing Material	Polyester (PCT)
Contact Material	Beryllium Copper Alloy
Lead Length	2.03 mm
Mounting Style	Through Hole
Maximum Operating Temperature	+ 125 C
Minimum Operating Temperature	- 55 C
Factory Pack Quantity	1

Preview

Download Datasheet

View All

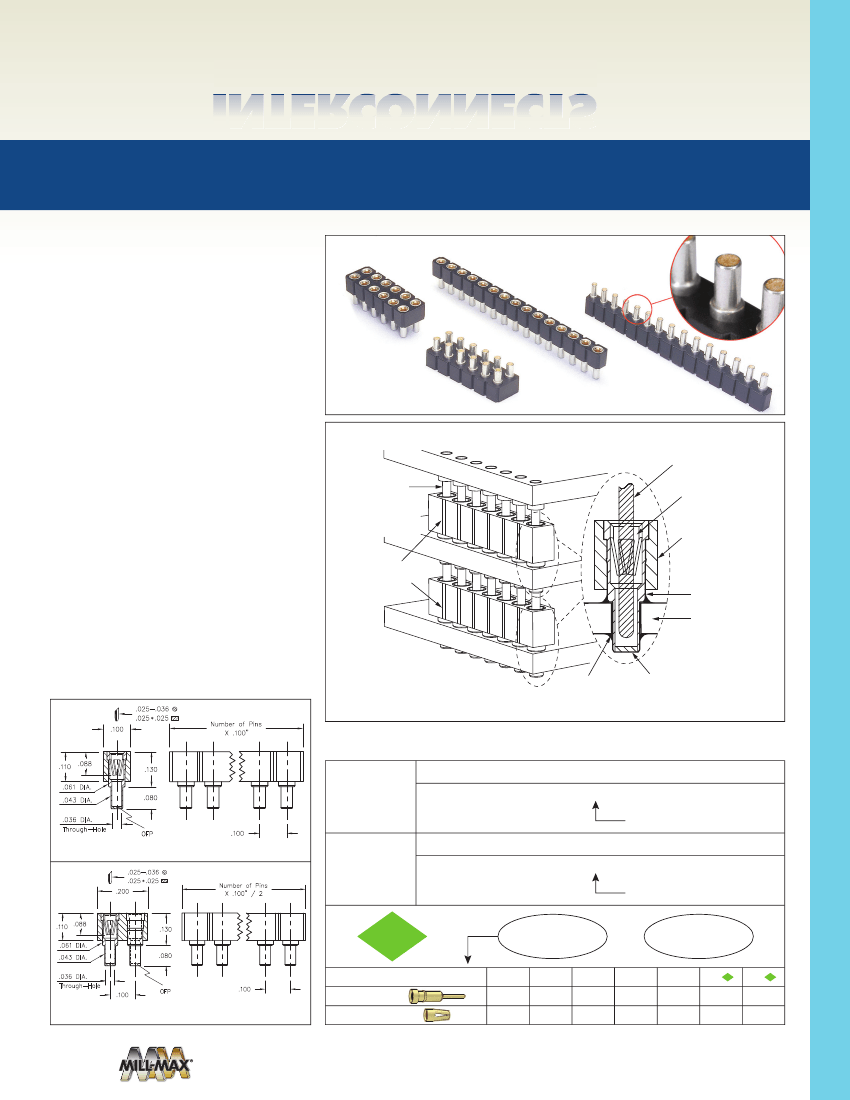

INTERCONNECTS

SERIES 834 & 835 • .100” GRID OFP

PASS-THROUGH SOCKETS

Ø.030”

.025”

PINS• SINGLE AND DOUBLE ROW STRIPS

•

834/835 Series Pass-Through Sockets have a low

•

.130” pro le and will accept Ø.030” round pin,

as well as industry standard .025” square pin

headers.

They are typically used to interconnect two or

more parallel circuit boards.

Sockets are designed for hand, wave or re ow*

soldering. The high temperature insulator is

compatible with all solder processes.

Unique ORGANIC FIBRE PLUG® barriers prevent

solder, paste or ux from contaminating the

internal spring contacts. After soldering, the

OFP® barriers are pushed out of the socket when

the mating header is inserted.

Mill-Max sockets use a receptacle consisting of a

precision-machined brass sleeve with a press- t

beryllium copper “multi- nger” spring contact.

Recommended mounting holes are Ø.046 ±.003”

PTH (1,2 mm drilled prior to plating).

UPPER

CIRCUIT

BOARD

Ø.030" or

.025"

PINS

MIDDLE

CIRCUIT

BOARD

Typical Application

INTERCONNECTION

#47 SPRING

CONTACT

*Intrusive

reflow (also called “pin-in-paste”) is a technique

of using conventional through-hole components in a

reflow soldering process. The pass-through socket is placed

into plated through-holes in the circuit board (solder paste

has previously been screen printed on pads adjacent to the

holes) and the board is reflowed in the same pass as other

SMT components. Solder will fill the plated through-holes

and achieve solder joints as reliable as wave soldering. The

OFP® barrier prevents solder paste from being picked up

inside the contact during assembly.

.025-.036

.025 * .025

.100

SOCKET

INSULATOR

PASS THROUGH

SOCKETS

RECEPTACLE

SLEEVE

CIRCUIT

BOARD

LOWER

CIRCUIT

BOARD

SOLDER

JOINT

PUSHED OUT BY INTERCONNECT

PIN AFTER SOLDERING

ORGANIC FIBER PLUG

US Patent #7,086,870

Number of Pins

X .100"

ORDERING INFORMATION

Series 834...001

Single Row OFP

Pass-Through Socket

834 XX 0 _ _ 10 001000

Specify number of pins

01-64

.110

.088

.130

.061 DIA.

.043 DIA.

.036 DIA.

Through-Hole

.080

FIG. 1

.100

Series 835...001

Double Row OFP

Pass-Through Socket

04-72

For

Electrical, Mechanical

& Enviromental Data,

See page 264

.025-.036

.025 * .025

.200

Number of Pins

X .100" / 2

Specify number of pins

RoHS - 2

.110 .088

.061 DIA.

.043 DIA.

.036 DIA.

Through-Hole

.100

.130

2011/65/EU

.080

XX=Plating Code

See Below

200

µ”

Sn/Pb

SPECIFY PLATING CODE XX=

.100

200

µ”

200

µ”

Au Flash

FIG. 2

Sleeve (Pin)

Contact (Clip)

µ”

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com

PAGE 63 | INTERCONNECTS

FIG. 2

835 XX 0 _ _ 10 001000

834-47-002-10-001000 Related Products

	834-47-002-10-001000	834-47-003-10-001000	834-47-064-10-001000
Description	IC & Component Sockets STANDARD SOCKET HEADER	IC & Component Sockets STANDARD SOCKET HEADER	IC & Component Sockets STANDARD SOCKET HEADER
Product Attribute	Attribute Value	Attribute Value	-
Manufacturer	Mill-Max	Mill-Max	-
Product Category	IC & Component Sockets	IC & Component Sockets	-
Product	Various Socket Types	Various Socket Types	-
Number of Positions	2 Position	3 Position	-
Number of Rows	1 Row	1 Row	-
Type	Fibre Plug Pass Through Socket	Fibre Plug Pass Through Socket	-
Pitch	2.54 mm	2.54 mm	-
Termination Style	Solder	Solder	-
Contact Plating	Gold	Gold	-
Packaging	Bulk	Bulk	-
Current Rating	4.5 A	4.5 A	-
Housing Material	Polyester (PCT)	Polyester (PCT)	-
Contact Material	Beryllium Copper Alloy	Beryllium Copper Alloy	-
Lead Length	2.03 mm	2.03 mm	-
Mounting Style	Through Hole	Through Hole	-
Maximum Operating Temperature	+ 125 C	+ 125 C	-
Minimum Operating Temperature	- 55 C	- 55 C	-
Factory Pack Quantity	1	1	-
