SMT Ferrite Beads

B82482-A3

Rated impedance 60 to 1000

Ω

Rated current 0,05 to 1 A

Construction

Size 0603 (EIA) or 1608 (IEC)

Multilayer technology with ferrite

Features

Small size

Suitable for reflow (IR and vapor phase)

and wave soldering

Applications

Prevention of high-frequency EMI in

computers, printers

VCRs, TVs

cordless phones

mobile phones

Terminals

Tinned

Ni intermediate layer

Marking

No marking on component

Minimum marking on reel:

Manufacturer, part number, ordering code,

value and tolerance of

value,

quantity, date of packing

Delivery mode

8-mm blister tape wound on 180-mm

∅

reel

For details on taping, packing and packing units

see page 224

219

04/00

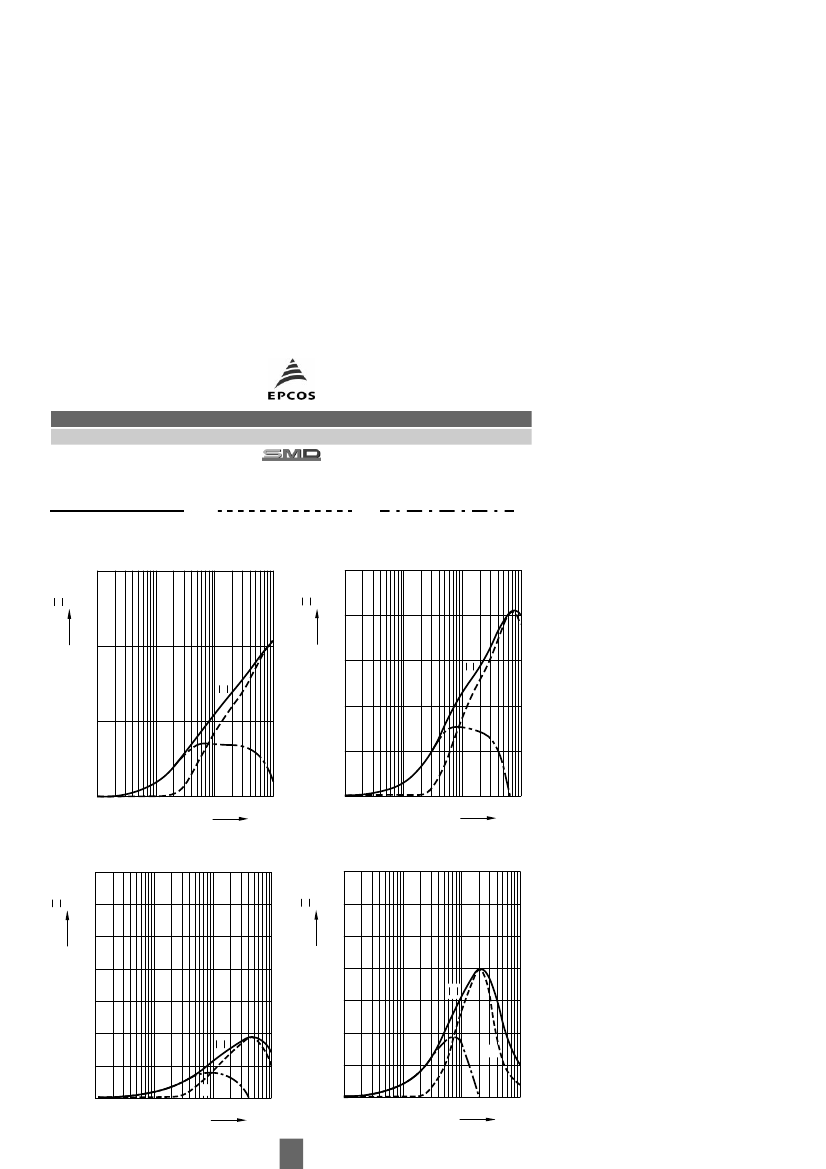

B82482-A3 Related Products

	B82482-A3	B82482-A3600-A	B82482-A3121-A	B82482-A3601-A	B82482-A3102-A	B82482-A3221-A
Description	Rated impedance 60 to 1000 W Rated current 0,05 to 1 A	Rated impedance 60 to 1000 W Rated current 0,05 to 1 A	Rated impedance 60 to 1000 W Rated current 0,05 to 1 A	Rated impedance 60 to 1000 W Rated current 0,05 to 1 A	Rated impedance 60 to 1000 W Rated current 0,05 to 1 A	Rated impedance 60 to 1000 W Rated current 0,05 to 1 A
Maker	-	EPCOS (TDK)	EPCOS (TDK)	EPCOS (TDK)	EPCOS (TDK)	EPCOS (TDK)
Reach Compliance Code	-	unknow	unknow	unknow	unknow	unknow
ECCN code	-	EAR99	EAR99	EAR99	EAR99	EAR99
Certification	-	IEC	IEC	IEC	IEC	IEC
Maximum DC resistance	-	0.07 Ω	0.1 Ω	0.8 Ω	1 Ω	0.3 Ω
filter type	-	FERRITE CHIP	FERRITE CHIP	FERRITE CHIP	FERRITE CHIP	FERRITE CHIP
high	-	0.8 mm	0.8 mm	0.8 mm	0.8 mm	0.8 mm
JESD-609 code	-	e3	e3	e3	e3	e3
length	-	1.6 mm	1.6 mm	1.6 mm	1.6 mm	1.6 mm
Manufacturer's serial number	-	B82482-A3	B82482-A3	B82482-A3	B82482-A3	B82482-A3
Installation type	-	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Number of functions	-	1	1	1	1	1
Output impedance	-	60 OHM Ω	120 OHM Ω	600 OHM Ω	1000 OHM Ω	220 OHM Ω
method of packing	-	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL
physical size	-	L1.6XB0.8XH0.8 (mm)/L0.063XB0.031XH0.031 (inch)	L1.6XB0.8XH0.8 (mm)/L0.063XB0.031XH0.031 (inch)	L1.6XB0.8XH0.8 (mm)/L0.063XB0.031XH0.031 (inch)	L1.6XB0.8XH0.8 (mm)/L0.063XB0.031XH0.031 (inch)	L1.6XB0.8XH0.8 (mm)/L0.063XB0.031XH0.031 (inch)
Rated current	-	1 A	0.5 A	0.1 A	0.05 A	0.2 A
Terminal surface	-	TIN	TIN	TIN	TIN	TIN
