PART NUMBER
ITEM 1
BODY
STAINLESS STEEL
PASSIVATED
ITEM 2
CONTACT
BERYLLIUM COPPER
GOLD PL .00004 MIN
OVER NICKEL PL.00005
MIN OVER COPPER
PL.00005 MIN
ITEM 3
INSULATOR
ULTEM 1000
ITEM 4
NUT
STAINLESS
STEEL
PASSIVATED
ITEM 5
GASKET
SILICONE
REV
ECO
DATE
1
ECO-17-0010
4/10/2017
145-0801-602
ACCEPT
O
.305
u
.025 PIN
2 X
O
.102 +.004
0
1/4-36UNS-2B
O
.165
O
.626
.481
.315 HEX
.004
.065
.224
SPECIFICATION:
.508 REF
ELECTRICAL:
IMPEDANCE: 50 OHMS
FREQUENCY RANGE: 0-40 GHz
VSWR: 1.2 MAX.
WORKING VOLTAGE: 250 VRMS MAX AT SEA LEVEL
DIELECTRIC WITHSTANDING VOLTAGE: 750 VRMS MIN AT SEA LEVEL
INSULATION RESISTANCE: 5000 MEGOHM MIN
CONTACT RESISTANCE:
CENTER CONTACT - INITIAL 3 MILLIOHM MAX, AFTER
ENVIRONMENTAL NOT APPLICABLE
OUTER CONDUCTOR - INITIAL 2 MILLIOHM MAX, AFTER
ENVIRONMENTAL NOT APPLICABLE
RF LEAKAGE: -90dB TYPICAL AT 2.5GHz
MECHANICAL:
ENGAGEMENT/DISENGAGEMENT FORCE: 2 INCH-POUNDS MAX
CONTACT RETENTION: 6 LBS MIN AXIAL FORCE
MATING TORQUE: 7 TO 10 INCH-POUNDS
DURABILITY: 500 CYCLES MIN
ENVIRONMENTAL:
OPERATING TEMPERATUR: -40 TO 85°C
THERMAL SHOCK: MIL-STD-202, METHOD 107, CONDITION B
CORROSION: MIL-STD-202, METHOD 101, CONDITION B
SHOCK: MIL-STD-202, METHOD 213, CONDITION I
VIBRATION: MIL-STD-202, METHOD 204, CONDITION D
MOISTURE RESISTANCE: MIL-STD-202, MEHTOD 106
Material:
Model No.
SEE NOTE
This PROPRIETARY Document
is property of Cinch Connectivity
Solutions. It is confidential in
nature, non-transferable, and
issued with the clear
understanding that it is not
traced or copied without
permission and is returnable
upon demand.
RoHS2
2011/65/EU
UNLESS OTHERWISE SPECIFIED
UNITS: INCH
Cage Code
3RD ANGLE PROJECTION
Title:

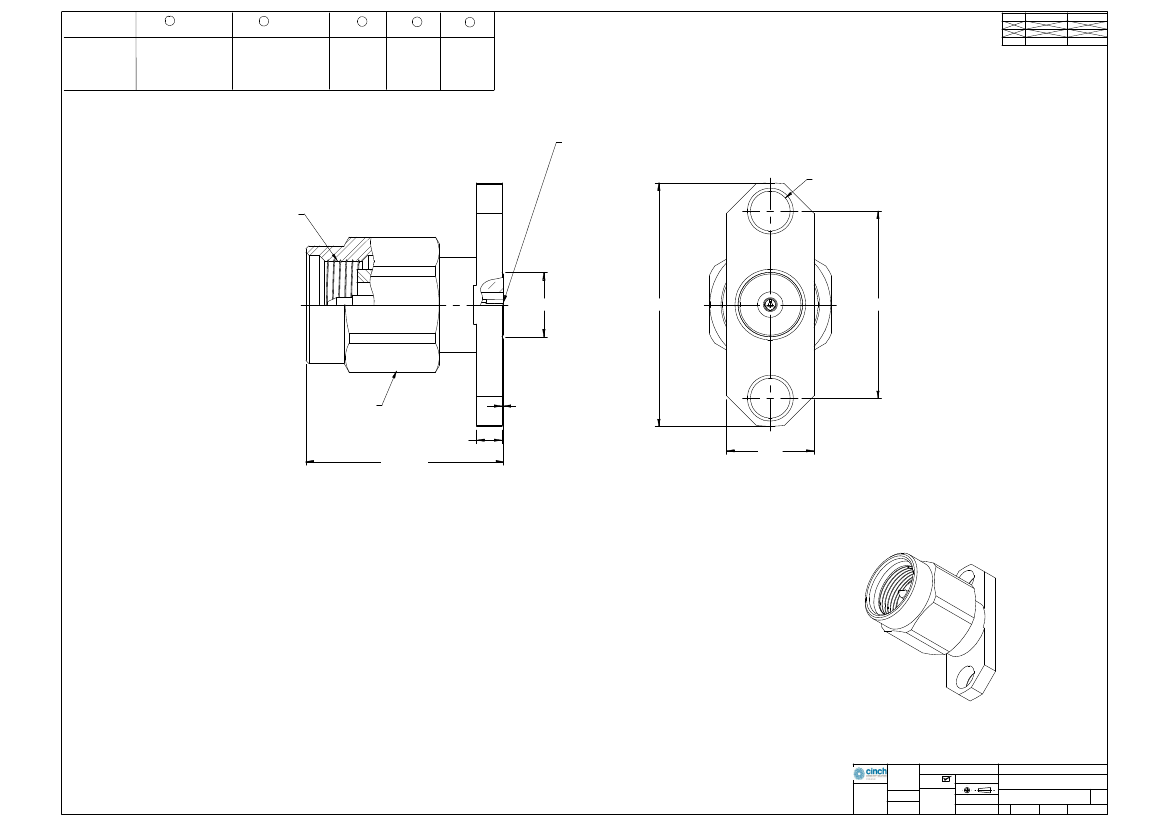

PANEL RECEPTACLE PLUG
2-HOLE FLANGE SMK(2.92mm)
Rev.
Finish:
Drawing No.
Drawn by:
Date:
SEE NOTE
Workmanship Std:
INTERPRET DRAWING IN
ACCORDANCE WITH ASME
Y14.5-2009.
.XX
u
.02
.XXX
u
.005
ANGLES
u
2 DEG
R.SHEN
4/10/17
Size
145-0801-602
C
DO NOT SCALE
DRAWING
1
Sheet 1 of 1
