59S10H-400T5-C datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 59S10H-400T5-C

59S10H-400T5-C: DescriptionRF Connectors / Coaxial Connectors PlugPCBoardSolderPns Straight C Blue; CategoryThe connector The connector; File Size473KB，4 Pages; ManufacturerRosenberger; Websitehttps://www.rosenberger.com/

Download Datasheet Parametric Compare View All

59S10H-400T5-C Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	59S10H-400T5-C	-	-	View	Buy Now

59S10H-400T5-C Overview

RF Connectors / Coaxial Connectors PlugPCBoardSolderPns Straight C Blue

59S10H-400T5-C Parametric

Parameter Name	Attribute value
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Other features	VSWR MAX AT: 1 GHZ
Body/casing type	PLUG
Characteristic impedance	50 Ω
Connector type	RF F CONNECTOR
Contact to complete cooperation	GOLD (6) OVER NICKEL
Contact completed and terminated	GOLD (6) OVER NICKEL
Contact point gender	MALE
Contact material	NOT SPECIFIED
Coupling type	SNAP
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insertion loss	0.24 dB
insulator material	PA6T/PA66
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	59S10H-400T5
Installation method	STRAIGHT
Installation type	BOARD
Maximum operating frequency	6 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
Termination type	SOLDER
voltage standing wave ratio	1.1
Base Number Matches	1

Preview

Download Datasheet

View All

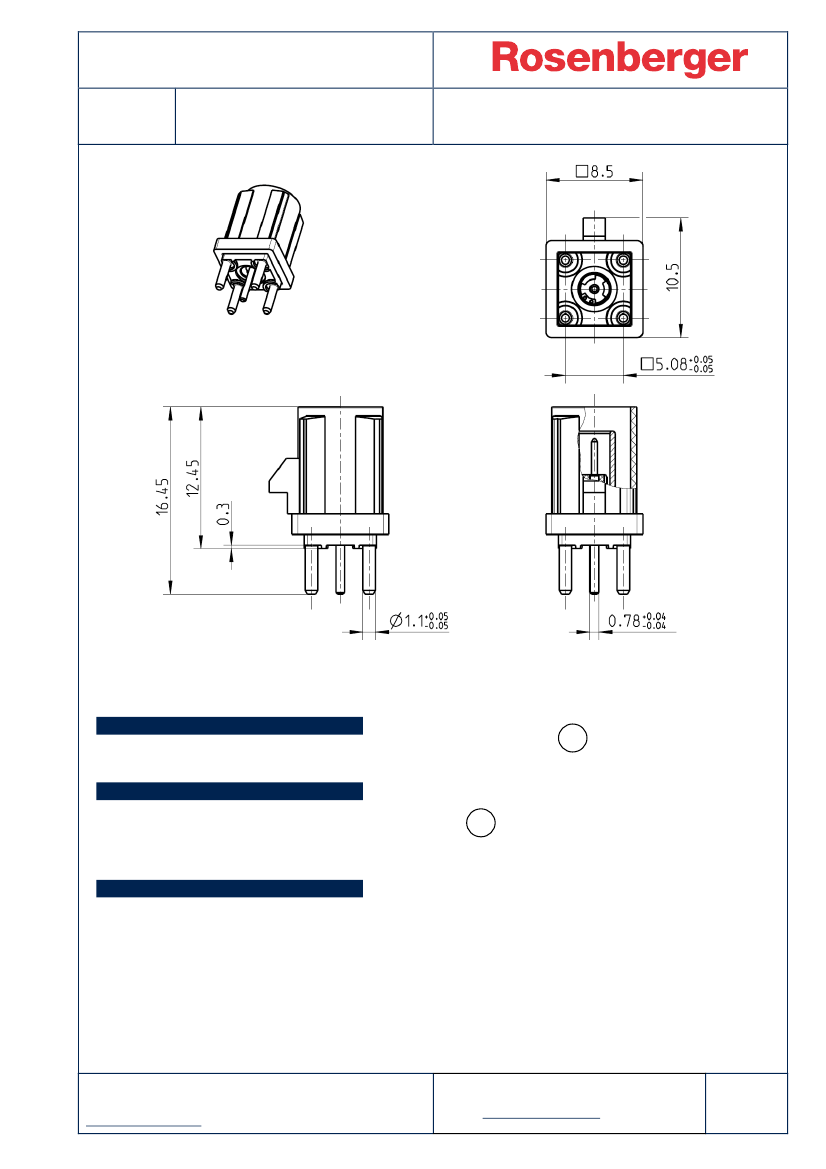

Technical Data Sheet

FAKRA -

STRAIGHT PLUG PCB

59S10H-400T5-Y

Dieses Dokument ist urheberrechtlich geschützt

●

This document is protected by copyright

●

Rosenberger Hochfrequenztechnik GmbH & Co. KG

All dimensions are in mm; tolerances according to ISO 2768 m-H

Interface

According to

DIN 72594-1 ; ISO 20860-1

Documents

PCB layout

Tape & reel packaging

MB_273

VG303.18500

Material and plating

Connector parts

Center contact

Outer contact

Dielectric

Housing

Material

Brass

PA 6T/66

Plating

Gold, min. 0.15 µm, over chemical nickel

Tin, 6-8 µm

RF_35/05.10/6.2

Rosenberger Hochfrequenztechnik GmbH & Co. KG

P.O.Box 1260

D-84526 Tittmoning

Germany

www.rosenberger.de

Tel. : +49 8684 18-0

Email : info@rosenberger.de

Page

1/4

59S10H-400T5-C Related Products

	59S10H-400T5-C	59S10H-400T5-Z	59S10H-400T5-E	59S10H-400T5-A	59S10H-400T5-F	59S10H-400T5-I	59S10H-400T5-G	59S10H-400T5-B
Description	RF Connectors / Coaxial Connectors PlugPCBoardSolderPns Straight C Blue	RF Connectors / Coaxial Connectors FAKRA Straight Plug PCB w/Housing	RF Connectors / Coaxial Connectors FAKRA Straight Plug PCB w/Housing Green	RF Connectors / Coaxial Connectors PlugPCBoardSolderPns Straight A Black	RF Connectors / Coaxial Connectors PlugPCBoardSolderPns Straight F Brown	RF Connector/Coaxial ConnectorPlugPCBoardSolderPns Straight I Beige	RF Connector/Coaxial ConnectorPlugPCBoardSolderPns Straight G Gray	RF Connector/Coaxial ConnectorPlugPCBoardSolderPns Straight B White
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Other features	VSWR MAX AT: 1 GHZ	VSWR MAX AT: 1 GHZ	VSWR MAX AT: 1 GHZ	VSWR MAX AT: 1 GHZ	VSWR MAX AT: 1 GHZ	VSWR MAX AT: 1 GHZ	VSWR MAX AT: 1 GHZ	VSWR MAX AT: 1 GHZ
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω
Connector type	RF F CONNECTOR	RF F CONNECTOR	RF F CONNECTOR	RF F CONNECTOR	RF F CONNECTOR	RF F CONNECTOR	RF F CONNECTOR	RF F CONNECTOR
Contact to complete cooperation	GOLD (6) OVER NICKEL	GOLD (6) OVER NICKEL	GOLD (6) OVER NICKEL	GOLD (6) OVER NICKEL	GOLD (6) OVER NICKEL	GOLD (6) OVER NICKEL	GOLD (6) OVER NICKEL	GOLD (6) OVER NICKEL
Contact completed and terminated	GOLD (6) OVER NICKEL	GOLD (6) OVER NICKEL	GOLD (6) OVER NICKEL	GOLD (6) OVER NICKEL	GOLD (6) OVER NICKEL	GOLD (6) OVER NICKEL	GOLD (6) OVER NICKEL	GOLD (6) OVER NICKEL
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Coupling type	SNAP	SNAP	SNAP	SNAP	SNAP	SNAP	SNAP	SNAP
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO
Insertion loss	0.24 dB	0.24 dB	0.24 dB	0.24 dB	0.24 dB	0.24 dB	0.24 dB	0.24 dB
insulator material	PA6T/PA66	PA6T/PA66	PA6T/PA66	PA6T/PA66	PA6T/PA66	PA6T/PA66	PA6T/PA66	PA6T/PA66
JESD-609 code	e4	e4	e4	e4	e4	e4	e4	e4
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	59S10H-400T5	59S10H-400T5	59S10H-400T5	59S10H-400T5	59S10H-400T5	59S10H-400T5	59S10H-400T5	59S10H-400T5
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Maximum operating frequency	6 GHz	6 GHz	6 GHz	6 GHz	6 GHz	6 GHz	6 GHz	6 GHz
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	NO	NO	NO	NO	NO	NO	NO	NO
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
voltage standing wave ratio	1.1	1.1	1.1	1.1	1.1	1.1	1.1	1.1
Base Number Matches	1	1	1	-	1	1	1	-
