DRC-10520-555S

Description
Digital to Synchro or Resolver, Hybrid, TRIPLE, DIP-32
CategoryAnalog mixed-signal IC    converter
File Size505KB,9 Pages
ManufacturerData Device Corporation
Download Datasheet Parametric View All

DRC-10520-555S Overview

Digital to Synchro or Resolver, Hybrid, TRIPLE, DIP-32

DRC-10520-555S Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
Parts packaging codeMODULE
package instructionTRIPLE, DIP-32
Contacts32
Reach Compliance Codecompli
ECCN codeEAR99
Other featuresBUILT-IN-TEST
Maximum angular accuracy1 arc mi
Converter typeDIGITAL TO SYNCHRO OR RESOLVER
JESD-30 codeR-XDMA-P32
JESD-609 codee0
length44.2 mm
Maximum negative supply voltage-15.75 V
Minimum negative supply voltage-14.25 V
Nominal negative supply voltage-15 V
Number of digits16
Number of functions1
Number of terminals32
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Package body materialUNSPECIFIED
encapsulated codeDIP
Package shapeRECTANGULAR
Package formMICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Certification statusNot Qualified
Filter levelMIL-PRF-38534
Maximum seat height4.45 mm
Signal/output frequency1000 Hz
Maximum supply voltage15.75 V
Minimum supply voltage14.25 V
Nominal supply voltage15 V
surface mountNO
technologyHYBRID
Temperature levelINDUSTRIAL
Terminal surfaceTIN LEAD
Terminal formPIN/PEG
Terminal pitch2.54 mm
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
width22.86 mm
Base Number Matches1
DRC-10520
Make sure the next
Card you purchase
has...
®

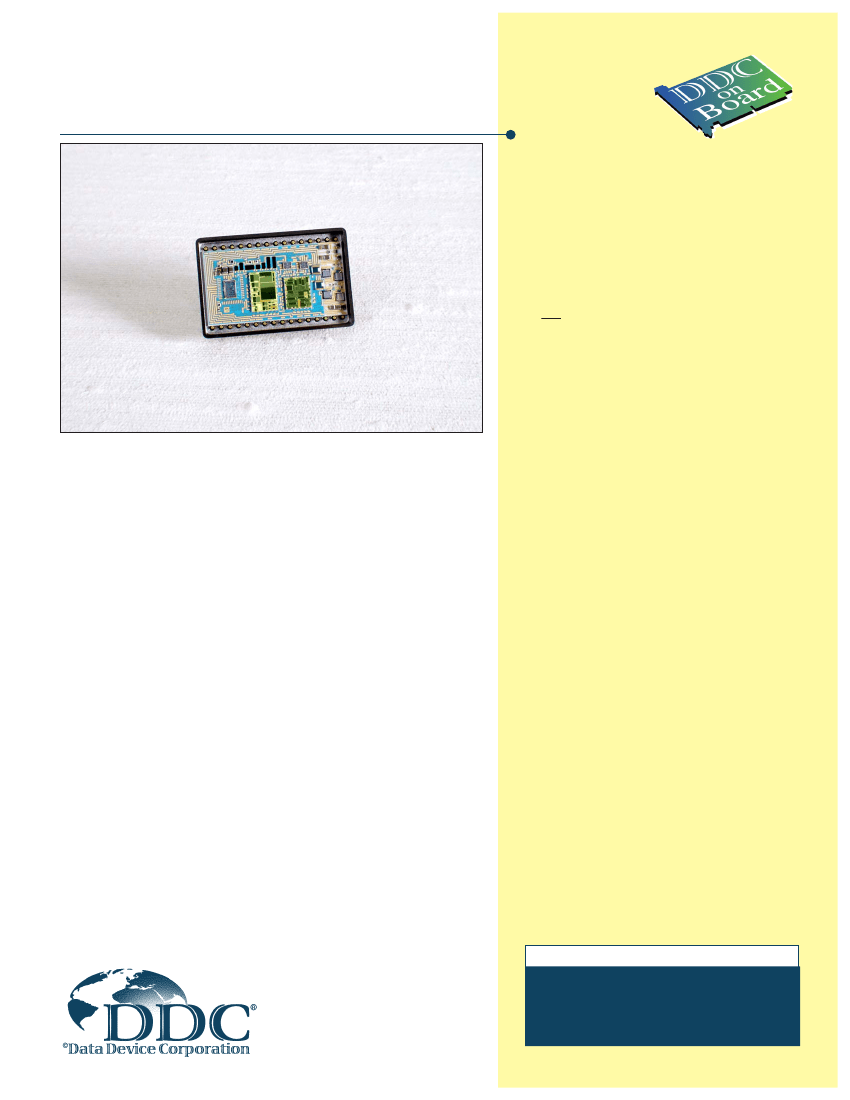

HIGH POWER 16-BIT DIGITAL-TO-
RESOLVER (D/R) CONVERTERS
FEATURES
2 VA Drive Capacity
8-Bit/2-Byte Double Buffered
Transparent Latch
Resolution: 16 Bits
Accuracy: to 1 Minute
Power Amplifier Uses AC Reference
or DC Supplies
BIT
Output
DESCRIPTION
The DRC-10520 is a 16 bit, 32 pin triple DIP Digital-to-Resolver converter
with 2 VA drive capability. It features a power amplifier that may be driven by
a standard ±15 VDC power supply or by the reference source (when used
with the optional power transformer DDC/PN 29306). The DRC-10520 pro-
vides compatibility with microprocessors through its 8-bit 2-byte transparent
input latch. Data input is natural binary angles in TTL compatible parallel
positive logic format.
The DRC-10520 is comprised of a high accuracy Digital-to-Resolver con-
verter and a dual power amplifier stage that has high accuracy and low scale
factor variation. In addition, a standard BIT circuit provides a digital overcur-
rent signal output. A logic “0” BIT output indicates an overcurrent condition in
the sine or cosine outputs. Reference inputs are scalable with external resis-
tors. Loss of the reference signal will not damage the converter.
APPLICATION
The DRC-10520 can be used where digitized shaft angle data must be con-
verted to an analog format for driving control transformers. With its built-in
input latches, the DRC-10520 is especially compatible with a microprocessor-
based system including flight simulators, flight instrumentation, fire control
systems, radar and navigation systems, and air data computers.
