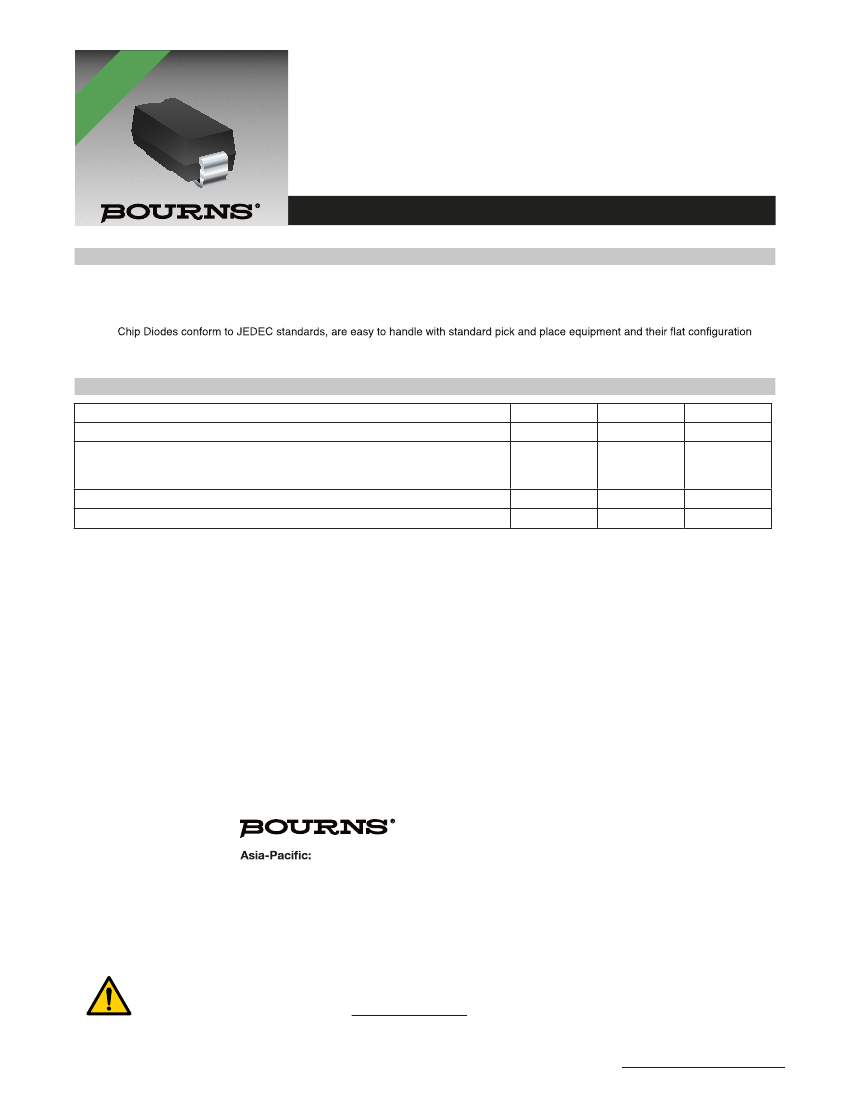

SMCJ-Q Transient Voltage Suppressor Diode Series
General Information
Bourns offers Transient Voltage Suppressor Diodes for surge and ESD protection applications, in compact chip package DO-214AB (SMC)
size format. The Transient Voltage Suppressor series offers a choice of Working Peak Reverse Voltage from 12 V up to 58 V. Typical fast
response times are less than 1.0 picosecond from 0 V to Breakdown Voltage.
Bourns
®
minimizes roll away.
Electrical Characteristics (@ T
A
= 25 °C Unless Otherwise Noted)
Parameter
Minimum Peak Pulse Power Dissipation (TP = 1 ms)
(Note 1,2)
Peak Forward Surge Current
8.3 ms Single Half Sine Wave Superimposed on Rated Load
(JEDEC Method)
(Note 3)
Operating Temperature Range
Storage Temperature Range
1.
2.
3.
Symbol
P
PK
I
FSM
T
J
T
STG
Value
1500
200
-55 to +150
-55 to +150
Unit
Watts
Amps
°C
°C
Non-repetitive current pulse, per Pulse Waveform graph and derated above TA = 25 °C per Pulse Derating Curve.
Mounted on 5.0 mm
2
(0.03 mm thick) copper pads to each terminal.
8.3 ms Single Half-Sine Wave duty cycle = 4 pulses maximum per minute (unidirectional units only).
Tel: +886-2 2562-4117 • Email: asiacus@bourns.com
EMEA:
Tel: +36 88 520 390 • Email: eurocus@bourns.com
The Americas:
Tel: +1-951 781-5500 • Email: americus@bourns.com
www.bourns.com
WARNING Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
*RoHS Directive 2002/95/EC Jan. 27, 2003 including annex and RoHS Recast 2011/65/EU June 8, 2011.
**”Q” part number suffix indicates AEC-Q101 compliance.
Specifications are subject to change without notice. Users should verify actual device performance in their specific applications.
The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at
www.bourns.com/docs/legal/disclaimer.pdf
SMCJ-Q Transient Voltage Suppressor Diode Series
Electrical Characteristics (@ T
A
= 25 °C Unless Otherwise Noted)
Unidirectional Device
Bidirectional Device
Breakdown Voltage
V
BR
(Volts)
Working Peak
Reverse
Voltage
Maximum
Reverse
Leakage
@ V
RWM
Maximum
Reverse
Voltage
@ I
RSM
Maximum
Reverse
Surge
Current
Part No.
SMCJ12A-Q
SMCJ13A-Q
SMCJ14A-Q
SMCJ15A-Q
SMCJ16A-Q
SMCJ17A-Q
SMCJ18A-Q
SMCJ20A-Q
SMCJ22A-Q
SMCJ24A-Q
SMCJ26A-Q
SMCJ28A-Q
SMCJ30A-Q
SMCJ33A-Q
SMCJ36A-Q
SMCJ40A-Q
SMCJ43A-Q
SMCJ45A-Q
SMCJ48A-Q
SMCJ51A-Q
SMCJ54A-Q
SMCJ58A-Q
Notes:
1.
2.
Marking
GEEQ
GEGQ
GEKQ
GEMQ
GEPQ
GERQ
GETQ
GEVQ
GEXQ
GEZQ
GFEQ
GFGQ
GFKQ
GFMQ
GFPQ
GFRQ
GFTQ
GFVQ
GFXQ
GFZQ
GGEQ
GGGQ
Part No.
SMCJ12CA-Q
SMCJ13CA-Q
SMCJ14CA-Q
SMCJ15CA-Q
SMCJ16CA-Q
SMCJ17CA-Q
SMCJ18CA-Q
SMCJ20CA-Q
SMCJ22CA-Q
SMCJ24CA-Q
SMCJ26CA-Q
SMCJ28CA-Q
SMCJ30CA-Q
SMCJ33CA-Q
SMCJ36CA-Q
SMCJ40CA-Q
SMCJ43CA-Q
SMCJ45CA-Q
SMCJ48CA-Q
SMCJ51CA-Q
SMCJ54CA-Q
SMCJ58CA-Q
Marking
BEEQ
BEGQ
BEKQ
BEMQ
BEPQ
BERQ
BETQ
BEVQ
BEXQ
BEZQ
BFEQ
BFGQ
BFKQ
BFMQ
BFPQ
BFRQ
BFTQ
BFVQ
BFXQ
BFZQ
BGEQ
BGGQ
Min.
13.3
14.4
15.6
16.7
17.8
18.9
20.0
22.2
24.4
26.7
28.9
31.1
33.3
36.7
40
44.4
47.8
50
53.3
56.7
60
64.4
Max.
14.7
15.9
17.2
18.5
19.7
20.9
22.1
24.5
26.9
29.5
31.9
34.4
36.8
40.6
44.2
49.1
52.8
55.3
58.9
62.7
66.3
71.2
@ I
T
(mA)
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
V
RWM
(V)
12
13
14
15
16
17
18
20
22
24
26
28
30
33
36
40
43
45
48
51
54
58
I
R
(μA)
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
V
RSM
(V)
19.9
21.5
23.2
24.4
26
27.6
29.2
32.4
35.5
38.9
42.1
45.4
48.4
53.3
58.1
64.5
69.4
72.7
77.4
82.4
87.1
93.6
I
RSM
(A)
75.4
69.8
64.7
61.5
57.7
54.4
51.4
46.3
42.3
38.6
35.7
33.1
31
28.1
25.9
23.3
21.7
20.6
19.4
18.2
17.3
16.1
Specifications are subject to change without notice.
Users should verify actual device performance in their specific applications.
The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at
www.bourns.com/docs/legal/disclaimer.pdf.
3312 - 2
Transient Voltage Suppressor Diode Series
SMCJ-Q
mm SMD Trimming Potentiometer

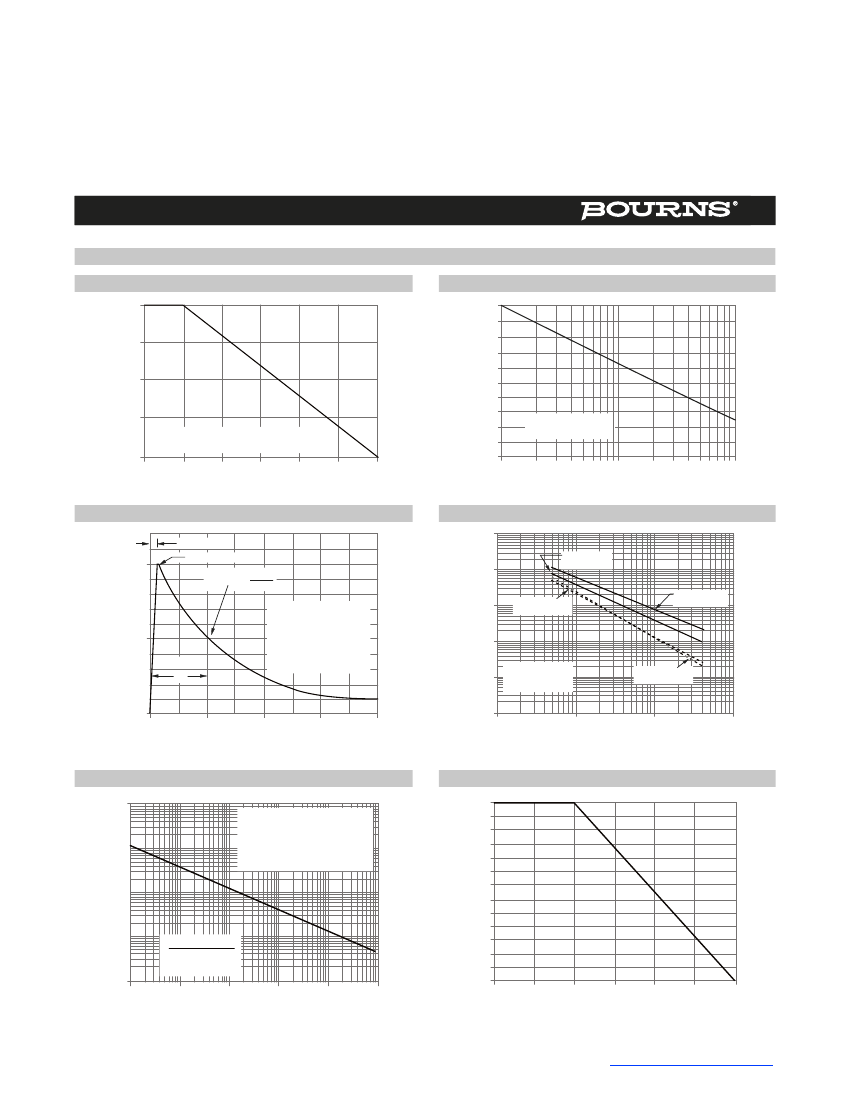

Performance Graphs
Peak Pulse Power Derating Curve
Peak Pulse Power Derating in Percent of
Peak Power or Current
100
Maximum Non-Repetitive Surge Current
IFSM - Peak Forward Surge Current (Amps)
200
180
160
140
120
100
80
60
40
20
0
1
10
Number of Cycles at 60 Hz
100
Pulse Width 8.3 ms
Single Half Sine-Wave
75
50
25
10 x 1000 Waveform as Defined
by R.E.A.
0
0
25
50
75
100
125
150
Ambient Temperature ( °C)
Pulse Waveform
TR=10 µs
IRSM
2
Pulse width (TP)
is defined as that point
where the peak current
decays to 50 % of IPSM.
TA=25 °C
TP
10 x 1000 waveform
as defined by R.E.A.
Typical Junction Capacitance
100000
IP, Peak Pulse Current (%)
Half value=
CJ - Junction Capacitance (pF)
100
Peak value (IRSM)
10000
Bidirectional
v-0v
1000
Unidirectional
@ VR
Unidirectional
v-0v
50
100
TJ = 25 °C
f = 1.0 MHz
Vsig = 50 mVp-p
Bidirectional
@ VR
10
0
0
1.0
2.0
T, Time (ms)
3.0
4.0
1
1
10
100
1000
VBR - Reverse Breakdown Voltage (V)
Pulse Rating Curve
1000
TA = 25 °C
PPPM - Peak Pulse Power (kW)
100
Non-repetitive
Pulse Waveform
Shown in Pulse Waveform Graph
Steady State Power Derating Curve
6.5
6.0
5.5
Steady State Power Dissipation (W)
5.0
4.5
4.0
3.5
3.0
2.5
2.0
1.5
1.0
0.5
0.0
0
25
50
75
100
125
150
TL - Lead Temperature (°C)
10
1
8.0 x 8.0 mm
0.31 x 0.31 inch
Copper Pad Areas
1.0 µs
10 µs
100 µs
1.0 ms
10 ms
0.1
0.1 µs
Td, Pulse Width (Seconds)
Specifications are subject to change without notice.
Users should verify actual device performance in their specific applications.
The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at
www.bourns.com/docs/legal/disclaimer.pdf.
3312 - 2 mm SMD Trimming Potentiometer
SMCJ-Q Transient Voltage Suppressor Diode Series
Product Dimensions
A
Recommended Footprint
A
B
C
B
C
G
Dimension
A (Max.)
H
F
E
D
B (Min.)
C (Min.)
Dimension
A
B
C
D
E
F
G
H
SMC (DO-214AB)
6.60 - 7.11
(0.260 - 0.280)
5.59 - 6.22
(0.220 - 0.245)
2.90 - 3.20
(0.115 - 0.125)
0.15 - 0.31
(0.006 - 0.112)
7.75 - 8.13
(0.305 - 0.320)
0.203
MAX.
(0.008)
2.00 - 2.62
(0.079 - 0.103)
0.76 - 1.52
(0.030 - 0.060)
MM
(INCHES)
SMC (DO-214AB)
4.69
(0.185)
3.07
(0.121)
1.52
(0.060)
MM
(INCHES)
DIMENSIONS:
Case ...........................................Molded plastic per UL Class 94V-0
Polarity....................... Cathode band indicates unidirectional device
No cathode band indicates bidirectional device
How to Order
SMCJ 12 CA - Q
Package
SMCJ-Q = SMC/DO-214AB
Working Peak Reverse Voltage
2 = 12 VRWM (Volts)
A = 5 % Tolerance Unidirectional Device
CA = 5 % Tolerance Bidirectional Device
Q = AEC-Q101 Compliant, 13-inch Reel
QH = AEC-Q101 Compliant, 7-inch Reel
DIMENSIONS:
Typical Part Marking
MANUFACTURER’S
TRADEMARK
DATE CODE:
Y = LAST
DIGIT OF
YEAR
WW = WEEK
NUMBER
YWW
XXX
Moisture Sensitivity Level ................................................................1
............................................................. 3B
DEVICE ID
Specifications are subject to change without notice.
Users should verify actual device performance in their specific applications.
The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at
www.bourns.com/docs/legal/disclaimer.pdf.
CDDFN5-0504N - TVS/Steering Diode Array Series
SMCJ-Q Transient Voltage Suppressor Diode

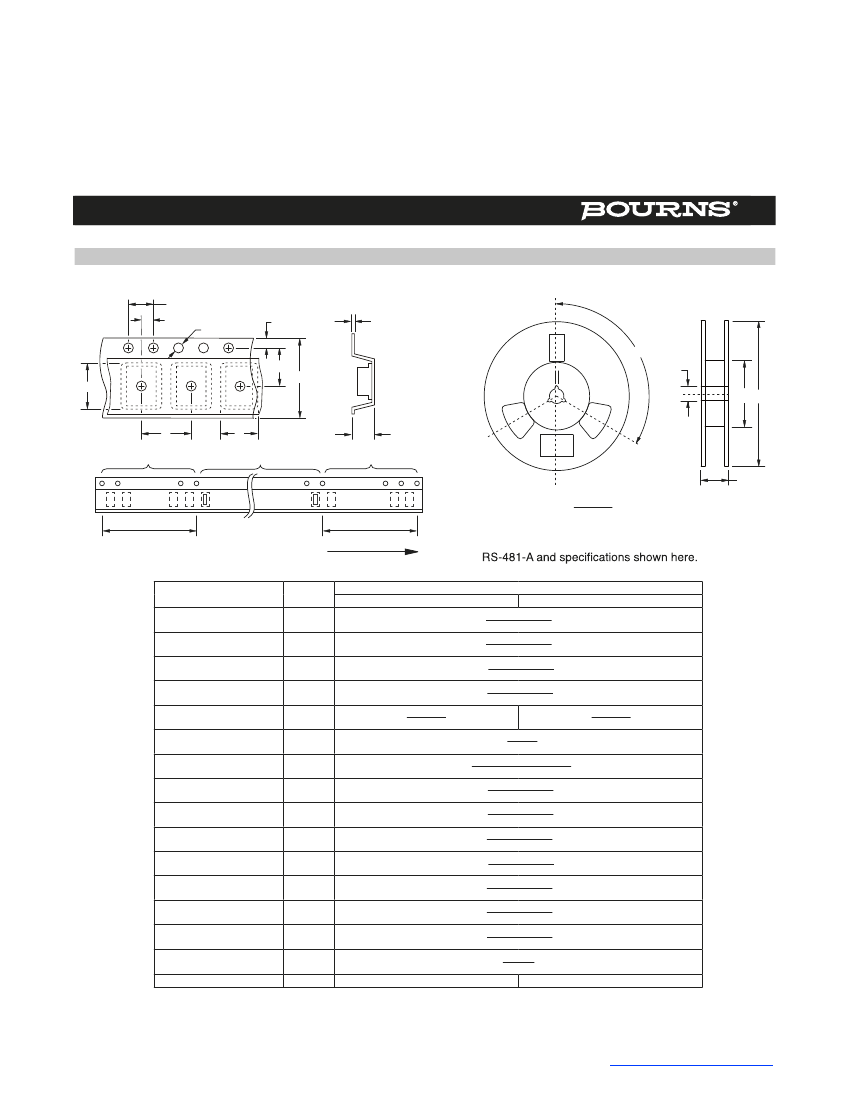

Packaging Information
The product will be dispensed in tape and reel format (see diagram below).
P
0
P
1
d
E
Index Hole
T
120 °
F
W
B
D2
D1 D
P
Trailer
A
Device
C
Leader
End
.......
.......
10 pitches (min.)
.......
.......
.......
.......
.......
.......
10 pitches (min.)
W1
Start
DIMENSIONS:
MM
(INCHES)
Devices are packed in accordance with EIA standard
Direction of Feed
Item
Carrier Width
Carrier Length
Carrier Depth
Sprocket Hole
Reel Outside Diameter
Reel Inner Diameter
Feed Hole Diameter
Sprocket Hole Position
Punch Hole Position
Punch Hole Pitch
Sprocket Hole Pitch
Embossment Center
Overall Tape Thickness
Tape Width
Reel Width
Quantity per Reel
Symbol
A
B
C
d
D
D1
D2
E
F
P
P0
P1
T
W
W1
--
SMC (DO-214AB)
7-Inch Reel
6.0 ± 2.0
(0.236 - 0.079)
8.3 ± 0.20
(0.327 ± 0.008)
2.5 ± 0.20
(0.098 ± 0.008)
1.50 ± 0.10
(0.059 ± 0.004)
178
(7.008)
50.0
MIN.
(1.969)
13.0 +0.50/-0.20
(0.512 +0.020/-0.008)
1.75 ± 0.10
(0.069 ± 0.004)
7.50 ± 0.10
(0.295 ± 0.004)
8.00 ± 0.10
(0.315 ± 0.004)
4.00 ± 0.10
(0.157 ± 0.004)
2.00 ± 0.10
(0.079 ± 0.004)
0.30 ± 0.10
(0.012 ± 0.004)
16.00 ± 0.30
(0.630 ± 0.012)
22.4
MAX.
(0.882)
500
3000
330
(12.992)
13-Inch Reel
REV. 11/18
Specifications are subject to change without notice.
Users should verify actual device performance in their specific applications.
The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at
www.bourns.com/docs/legal/disclaimer.pdf.
