Printview: eCOM pluggable PCB connector with straight solder pins; with gripping plate; 2-pole; Pin spacing
5 mm / 0.197 in - Item No.: 2092-1152/000-1000
.
eCOM pluggable PCB connector with straight solder pins; with
gripping plate; 2-pole; Pin spacing 5 mm / 0.197 in
Item No.: 2092-1152/000-1000
.
eCOM pluggable PCB connector with straight solder pins; with gripping plate; 2-pole; Pin spacing 5 mm / 0.197 in
.
Marking
.
Business data
Supplier
Item no.
GTIN / EAN
Content
Order amount
Customer item number
.
Notes
WAGO
2092-1152/000-1000
4050821357124
1
100
Item description:Universal connection for all conductor typesSimple, push-in termination of solid and ferruled
conductorsEasy-to-use design does not require special toolsAbility to wire while mated or unmatedIntegrated test
ports for testing parallel to conductor entryCustom-installed solder pins
Technical data
Miscellaneous
No. of poles
Pin spacing
Total number of connection points
2
5 mm (0.197 in)
2
WAGO Kontakttechnik GmbH & Co. KG
1
Printview: eCOM pluggable PCB connector with straight solder pins; with gripping plate; 2-pole; Pin spacing
5 mm / 0.197 in - Item No.: 2092-1152/000-1000
Technical data
Total number of potentials
Color
Ratings per
Rated voltage (III / 3) [V]
Rated impulse voltage (III / 3) [kV]
Pollution degree (1)
Rated voltage (III/2) [V]
Rated impulse voltage (III / 2) [kV]
Rated voltage (II / 2) [V]
Rated impulse voltage (II / 2) [kV]
Rated current [A]
Legend for ratings
Number of connection objects
Number of levels
Pull-in time
Connection technology
Number of connection points connector
Actuation type
Solid conductor
Fine-stranded conductor
Fine-stranded conductor with ferrule with plastic collar
2
light gray
IEC/EN 60664-1
250 [V]
4 [kV]
2
320 [V]
4 [kV]
630 [V]
4 [kV]
16 [A]
(III / 2 ) Overvoltage category III /
1
1
0.0
Push-in CAGE CLAMP®
1
Operating lever
0.2 … 2.5 mm² / 24 … 12 AWG
0.2 … 2.5 mm² / 24 … 12 AWG
0.25 … 1.5 mm² / …
Fine-stranded conductor with ferrule without plastic collar 0.25 … 2.5 mm² / …
Strip length
Conductor entry angle to the PCB [°]
Solder pin length [mm]
Solder pin diameter [mm]
Drilled hole diameter (tolerance) [mm]
Material group
Insulating material
Flammability class per UL94
Limit temperature range
Clamping spring material
Contact material
Contact plating
9 … 10 mm / 0.35 … 0.39 Inch
90 [°]
3.6 [mm]
1.4 [mm]
1.6(+ 0.1) [mm]
I
Polyphthalamide (PPA GF)
V0
-60 … 100 °C
Chrome-nickel spring steel (CrNi)
Electrolytic copper (Ecu)
tin-plated
WAGO Kontakttechnik GmbH & Co. KG
2
Printview: eCOM pluggable PCB connector with straight solder pins; with gripping plate; 2-pole; Pin spacing
5 mm / 0.197 in - Item No.: 2092-1152/000-1000
Technical data
Fire load [MJ]
Weight [g]
Width
Height
Depth
0.048 [MJ]
2.369 [g]
10 mm / 0.394 Inch
34 mm / 1.339 Inch
13.4 mm / 0.528 Inch
WAGO Kontakttechnik GmbH & Co. KG
3
Printview: eCOM pluggable PCB connector with straight solder pins; with gripping plate; 2-pole; Pin spacing
5 mm / 0.197 in - Item No.: 2092-1152/000-1000

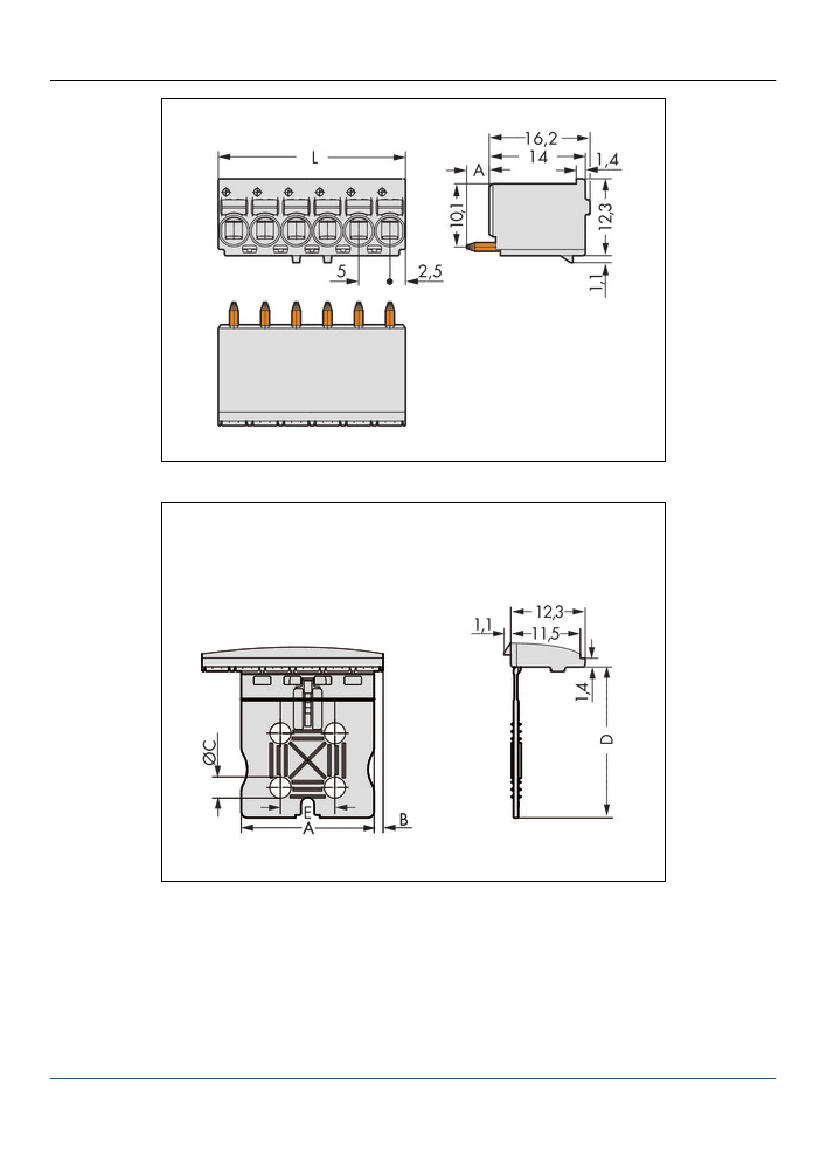

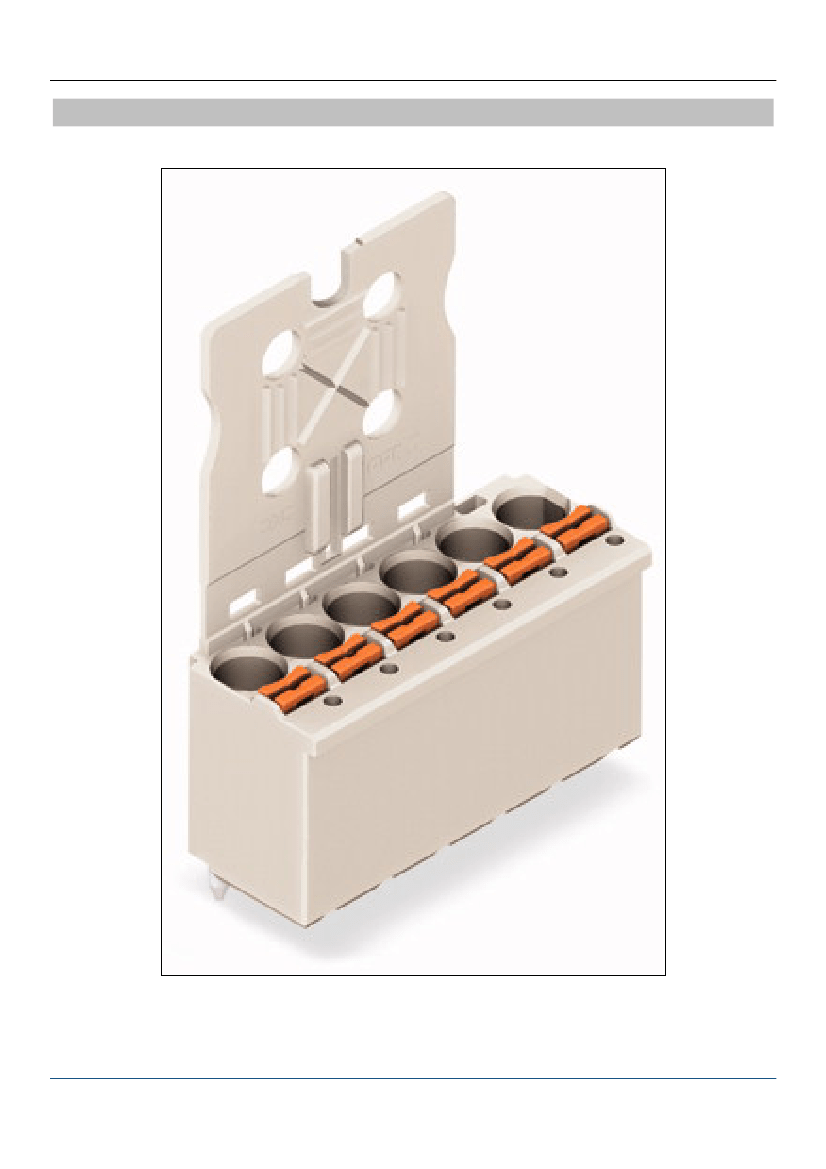

Images & drawings
WAGO Kontakttechnik GmbH & Co. KG
4
Printview: eCOM pluggable PCB connector with straight solder pins; with gripping plate; 2-pole; Pin spacing
5 mm / 0.197 in - Item No.: 2092-1152/000-1000
.
WAGO Kontakttechnik GmbH & Co. KG
5
