NTC thermistors for inrush current limiting
Inrush Current Limiters (ICLs)
Series/Type:
Ordering code:
Date:
Version:
S364/120/M
B57364S0121M000
2016-01-11
d
Content of header bars 1 and 2 of data sheet will be automatically entered in headers and footers! Please fill in the table and then
change the color to "white". This ensures that the table disappears (invisible) for the customer PDF.
Don't change formatting when entering or pasting text in the table and don't add any cell or line in and to it!
Identification/Classification 1
NTC thermistors for inrush current limiting
(header 1 + top left bar):
Identification/Classification 2
Inrush Current Limiters (ICLs)
(header 2 + bottom left header bar):
Ordering code: (top right header bar)
B57364S0121M000
Series/Type: (bottom right header bar)
S364/120/M
Preliminary data (optional):
Data sheet
Department:
PPD VAR PD
Date:
2016-01-11
Version:
d
EPCOS AG 2015. Reproduction, publication and dissemination of this publication, enclosures hereto and the information
contained therein without EPCOS' prior express consent is prohibited.
EPCOS AG is a TDK Group Company.
NTC thermistors for inrush current limiting
Inrush Current Limiters (ICLs)
Data sheet
B57364S0121M000
S364/120/M
Application
•
Inrush current limiting, e.g. in switch-mode power supplies, soft-start motors
Features
•
•
•
•
•
•
•
•
•
Leaded and coated NTC thermistors
Tinned copper wire, kinked
Coating material flame retardant to UL 94 V-0
Manufacturer's logo, NTC and resistance value stamped on
Highly stable electrical characteristics
IEC approval (certification number 101QA12)
VDE approval (certification number 40038223)
CQC approval (certification number CQC09001040539)
RoHS-compatible
PPD VAR PD
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 2 of 12
2016-01-11
NTC thermistors for inrush current limiting
Inrush Current Limiters (ICLs)
Data sheet
B57364S0121M000
S364/120/M

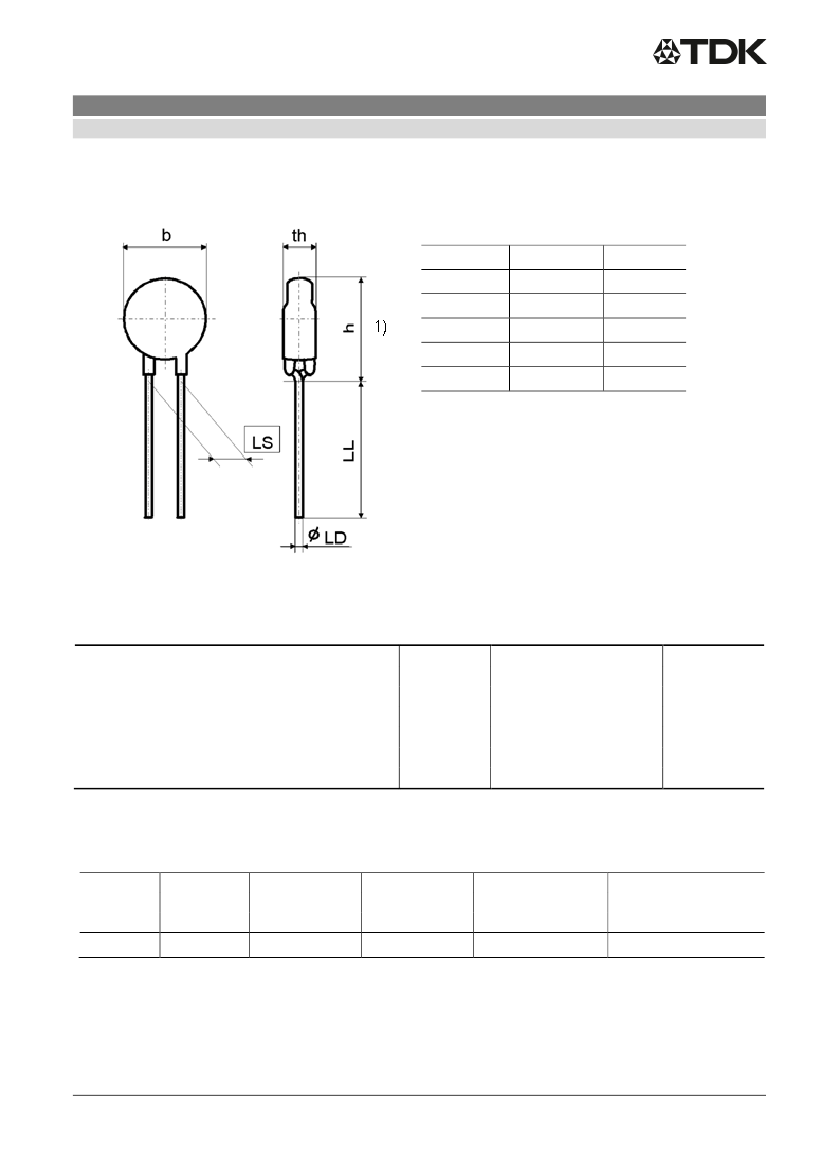

Drawing
b
th
h
LL
LD
LS
21.0 max
7.0 max
28.0 max
25.0 min
1.0 ±0.05
7.5 ±0.8
mm
mm
mm
mm
mm
mm
1) Seating plane to IEC 60717
Approx. weight: 4 g
General technical data
Climatic category
Max. power
Resistance tolerance
Rated temperature
Dissipation factor
Thermal cooling time constant
Heat capacity
(IEC 60068-1)
(at 25 °C)
55/170/21
5.1
±
20
25
approx. 24
approx. 100
approx. 2400
(in air)
(in air)
P
max
∆R
R
/R
R
T
R
δ
th
τ
th
C
th
W
%
°C
mW/K
s
mJ/K
Electrical specification and ordering codes
R
25
Ω
120
I
max
(0...65 °C)
A
3.5
C
test
at 230 V AC
µF
1000
C
test
at 110 V AC
µF
4000
R
min
(at Imax, 25 °C)
Ω
0.427
Ordering code
B57364S0121M000
PPD VAR PD
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 3 of 12
2016-01-11
NTC thermistors for inrush current limiting
Inrush Current Limiters (ICLs)
Data sheet
B57364S0121M000
S364/120/M
Maximum continuous current I
max
The I
max
denotes the maximum permissible continuous current (DC or RMS values for sine-shaped AC) in the
temperature range from 0 to 65 °C.
Load derating (I
/ I
max
)
The power handling capability of an NTC thermistor cannot be fully utilized over the entire temperature range.
For circuit dimensioning the derating curve given below provides information on the extent to which the current
must be reduced at a certain ambient temperature (T
A
).
I / I
max
Percent of I
max
=
1
T
−
65
°
C
100
1
−
A
T
max
−
65
°
C
T
A
= ambient temperature ( T
A
> 65°C )
T
max
= 170°C
Ta
-25
0
65
170
Fig. 1 Maximum current derating (I / I
max
)
Maximum permissible capacitance
The currents during turn-on are much higher than the rated currents during continuous operation. To test the
effects of these current surges EPCOS uses the following standard procedure according to IEC 60539-1:
Thyristor
switch
R
S
V
load
C
test
R
T
V
NTC
V
load
C
test
R
s
V
NTC
Load voltage [V]
Test capacitance [µF]
Series resistance [Rs = 1
Ω]
Voltage drop across the NTC under test [V]
= 180/375 V
(corresponds (110/230 V + dV) x 1.41)
`
TNT0358-L-E
Fig. 2 Maximum switchable capacity measuring circuit
Marking
•
•
•
•
EPCOS – logo
Resistance value
NTC
Date code with 4 digits (year and week of production): 1635 (example for week 35 in year 2016)
2016-01-11
Page 4 of 12
PPD VAR PD
Please read
Cautions and warnings
and
Important notes
at the end of this document.
NTC thermistors for inrush current limiting
Inrush Current Limiters (ICLs)
Data sheet
B57364S0121M000
S364/120/M
Reliability data
Test
Standard
Test conditions
Storage at upper category
temperature
T: 170°C
t: 1 000 h
Temperature of air: 40°C
Relative humidity of air: 93 %
Duration: 21 days
Lower test temperature: -55 °C
t: 30 min
Upper test temperature: 170 °C
t: 30 min
Time to change from lower to
upper temperature: < 30 s
Number of cycles: 10
Ambient temperature: 25
±5
°C
I = Imax
t: 1000 h
Ambient temperature: 25
±5
°C
Cyclic
endurance
IEC
60539-1
I = Imax
On-time = 1 min
Cooling time = 5 min
Number of cycles: 1000
Ambient temperature: 25
±5
°C
Capacitance = C
test
Number of cycles: 1000
< 20 %
No visible
damage
< 20 %
∆R
25
/ R
25
(typical)
Remarks
Storage in dry
heat
IEC
60068-2-2
< 20 %
No visible
damage
Storage in damp
heat, steady
state
IEC
60068-2-78
< 20 %
No visible
damage
Rapid change of
temperature
IEC
60068-2-14
< 20 %
No visible
damage
Endurance with
max. current
IEC
60539-1
No visible
damage
Maximum
permissible
capacitance test
IEC
60539-1
< 20 %
No visible
damage
Note
The self-heating of a thermistor during operation depends on the load applied and the applicable dissipation
factor.
When loaded with maximum allowable current/power and the specified dissipation factor is taken as a basis,
the NTC thermistor may reach a mean temperature of up to 250
°C.
The heat developed during operation will also be dissipated through the lead wires. So the contact areas, too,
may become quite hot at maximum load.
When mounting NTC thermistors you have to ensure that there is an adequate distance between the
thermistor and all parts which are sensitive to heat or combustible.
PPD VAR PD
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 5 of 12
2016-01-11
