5962R0150201QXX datasheet, PDF

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> 5962R0150201QXX

5962R0150201QXX: DescriptionRISC Microprocessor, 32-Bit, 12MHz, CMOS, CQFP132, QFP-132; CategoryThe embedded processor and controller Microcontrollers and processors; File Size692KB，55 Pages; ManufacturerCobham Semiconductor Solutions

Download Datasheet Parametric View All

5962R0150201QXX Overview

RISC Microprocessor, 32-Bit, 12MHz, CMOS, CQFP132, QFP-132

5962R0150201QXX Parametric

Parameter Name	Attribute value
Parts packaging code	QFP
package instruction	QFF,
Contacts	132
Reach Compliance Code	unknow
ECCN code	3A001.A.2.C
Address bus width	16
bit size	32
boundary scan	NO
maximum clock frequency	12 MHz
External data bus width	16
Format	FIXED POINT
Integrated cache	NO
JESD-30 code	S-CQFP-F132
length	24.13 mm
low power mode	YES
Number of terminals	132
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QFF
Package shape	SQUARE
Package form	FLATPACK
Certification status	Not Qualified
Filter level	MIL-PRF-38535 Class Q
Maximum seat height	2.794 mm
speed	12 MHz
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal form	FLAT
Terminal pitch	0.635 mm
Terminal location	QUAD
total dose	100k Rad(Si) V
width	24.13 mm
uPs/uCs/peripheral integrated circuit type	MICROPROCESSOR, RISC
Base Number Matches	1

Preview

Download Datasheet

View All

Standard Products

UT1750AR RadHard RISC Microprocessor

Data Sheet

May 2003

FEATURES

Operates in either RISC (Reduced Instruction Set

Computer) mode or MIL-STD-1750A mode

Supports MIL-STD-1750A 32-bit floating-point

operations and 48-bit extended-precision floating-point

operations on chip

Built-in 9600 baud UART

Supports defined MIL-STD-1750A Console Mode of Operation

Full 64K-word address space. Expandable to 1M words with

optional MMU (operand port)

Registers may be in 16-bit word or 32-bit double-word

configurations

RISC

MEMORY

CONTROL

BUS

ARBITRA-

TION

PROCES-

SOR

STATUS

Built-in multiprocessor bus arbitration and Direct Memory Access

support (DMA)

TTL-compatible I/O

Stable 1.5-micron CMOS technology

Full military operating range, -55°C to +125°C, in accordance

with MIL-PRF-38535 for Class Q and V

Typical radiation performance

Total dose: 1.0E6 rads(Si)

SEL Immune . 100 MeV-cm

/mg

LET

(0.25) = 60 MeV-cm

/mg

Saturated Cross Section (cm

) per bit, 1.2E-7

- 2.3E-11 errors/bit-day, Adams to 90% geosynchronous heavy ion

Standard Military Drawing 5962-01502

UART

TIMCLK

TEST

UARTOUT

UARTIN

BRQ

BGNT

BUSY

BGACK

NUI1

NUI2

M1750

STATE1

MME

NUO3

CONSOLE

OSCOUT

OSCIN SYSCLK

OSCILLATOR

/CLOCK

SHIFT REG

PROCESSOR

CONTROL

LOGIC

RISC MAP

GENERAL

PURPOSE

REGISTERS

BIT REG

TBR

RBR

TEMP DEST

TEMP SRC

I/O

MUX

RISC DATA

RISC

ADDRESS

or O/P DISC

RISC

ADDRESS

SYSFL

BTERR

MPAR

MPROT

PFAIL

IOLINT1

IOLINT0

INT0-5

MRST

IC/ICs

RISC

ADD

MUX

ACC

PIPELINE

A MUX

B MUX

BUS

CONTROL

32-BIT ALU

1750 SP

1750 PC

PS0-3

AS0-3

OPERAND

DATA

OP/IN

DTACK

M/IO

R /W R

OPERAND

ADDRESS

ADDR

MUX

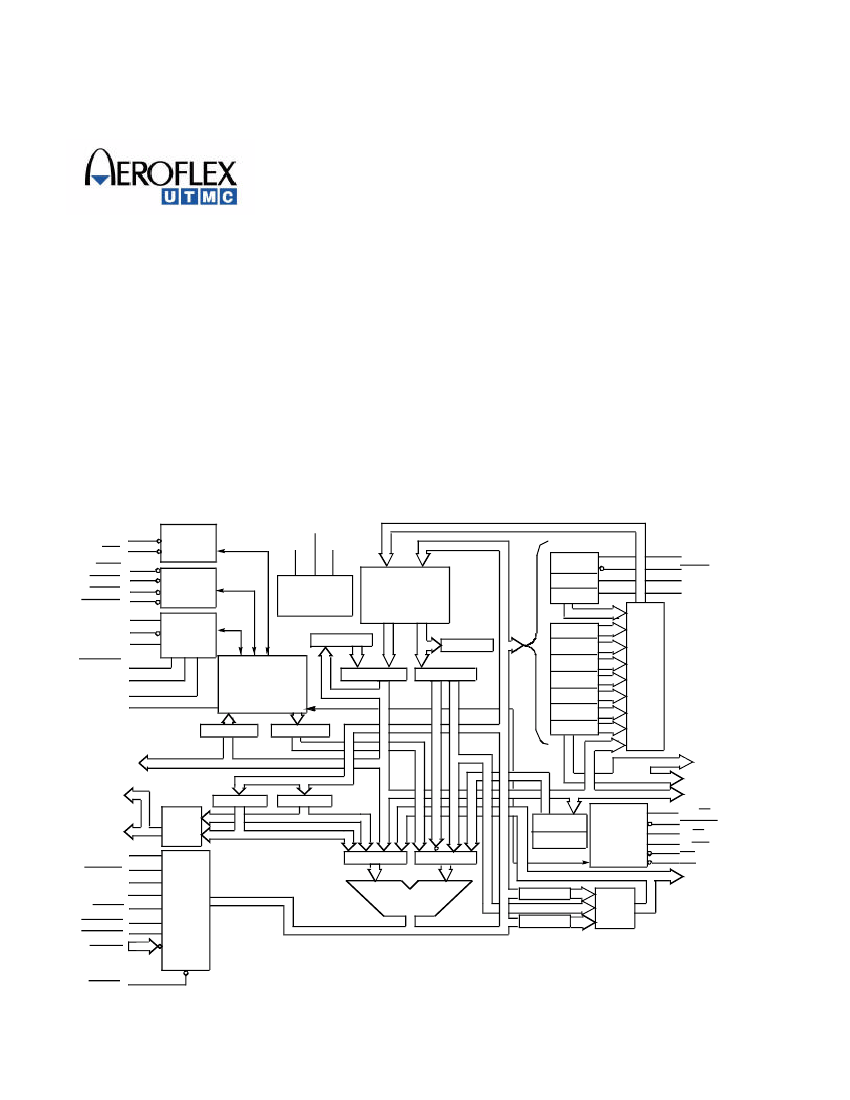

Figure 1. UT1750AR Functional Block Diagram
