DIAMOND
Fiber Optic Connectors

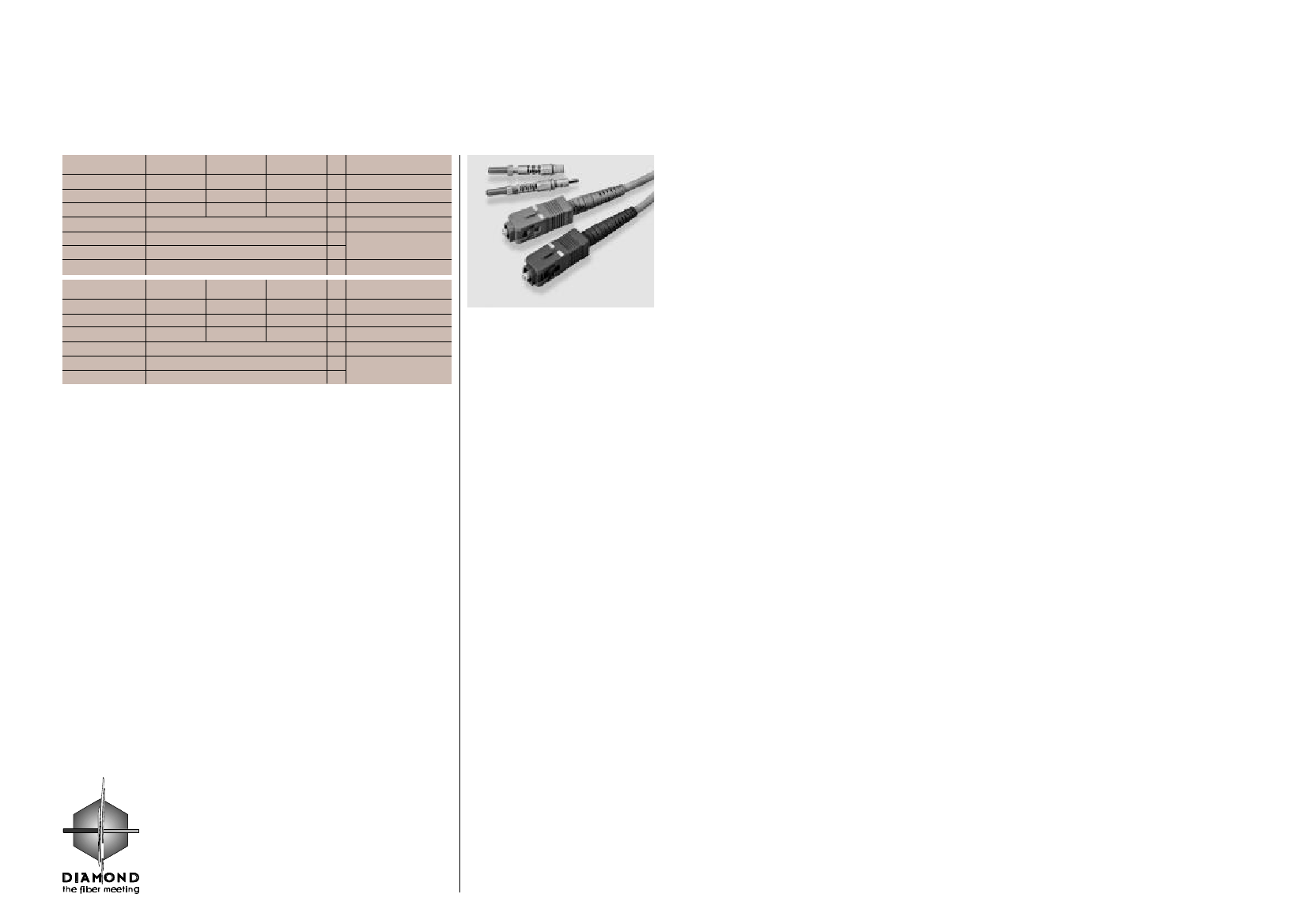

Specifications:
STANDARD
Insertion loss (IL)
Return loss (RL)
Repeatability of IL
Service life
Operating temperature
Storage temperature
Strain relief (cable)
FUSION
Insertion loss (IL)
Return loss (RL)
Repeatability of IL
Service life
Operating temperature
Storage temperature
GI Multimode
typ 0.25 max 0.8
typ -35
max ±0.1
Multimode
Single mode
Single mode 8° APC Units Test conditions
dB IEC 1300-3-6;
λ
= 1300/1550nm
dB Over service life
°C May be further limited
°C by cable specifications
N
Single mode 8° APC Units Test conditions
dB
dB
dB
°C May be further limited
°C by cable specifications
typ 0.15 max 0.5 typ 0.2 max 0.4 typ 0.2 max 0.4 dB IEC 1300-3-4;
λ
= 1300/1550nm
typ 40
max ±0.1
50
max ±0.1
-40 / +85
-40 / +90
> 100
Single mode
1000 mate/demate cycles
min 70*
max ±0.1
SC
ALBERINO-CONNECTOR
HSC-S0.66/86 SM
HSC-M0.66/86 MM
HSC-S8.66/86 SM/APC
typ 0.3 max 0.9 typ 0.3 max 0.9
min 50
max ±0.1
-40 / +85
-40 / +90
min 70*
max ±0.1
1000 mate/demate cycles
* Measured with high resolution reflectometer HP 8504A
APPLICATIONS:
STANDARDS:
DESIGN/MATERIALS:
Telecommunications, CATV, LAN, MAN, WAN, Test &
Measurement, Industry, Medical, Sensors
SC-PC:
NTT-SC and CECC 86 260, IEC 1754-4
SC-APC:
IEC 1754-4
Fiber alignment:
Active Core Alignment via
patented two-step
crimping process
MM:
Via patented crimping
process
SC-PC: Convex
SC-APC: 8° angled convex (PC)
∅
2.5 mm zirconia ceramic with
extending copper-nickel alloy insert
(Pilzferrule), spring loaded (10 N),
anti-rotation keyed
Floating zirconia resilient sleeve in
plastic housing
Plastic, with push-pull latching
mechanism
Decoupled from ferrule on cable
∅ ≤
3.5 mm
SM:
Polish:
Ferrule:
Adaptor:
External parts:
Cable retention:
AVAILABLE AS:
- Unterminated connector standard or fusion
- Terminated patchcord or pigtail
See ordering information on reverse
TERMINATION TOOLS
AND EQUIPMENT:
See section on tools and equipment
DIAMOND SA
Via dei Patrizi 5
CH-6616 LOSONE
Tel. ++41-91/785 45 45
Fax ++41-91/785 45 00
e-mail: diamond@diamond-fo.com
Specifications subject to change
without notice
002-037-203P004080

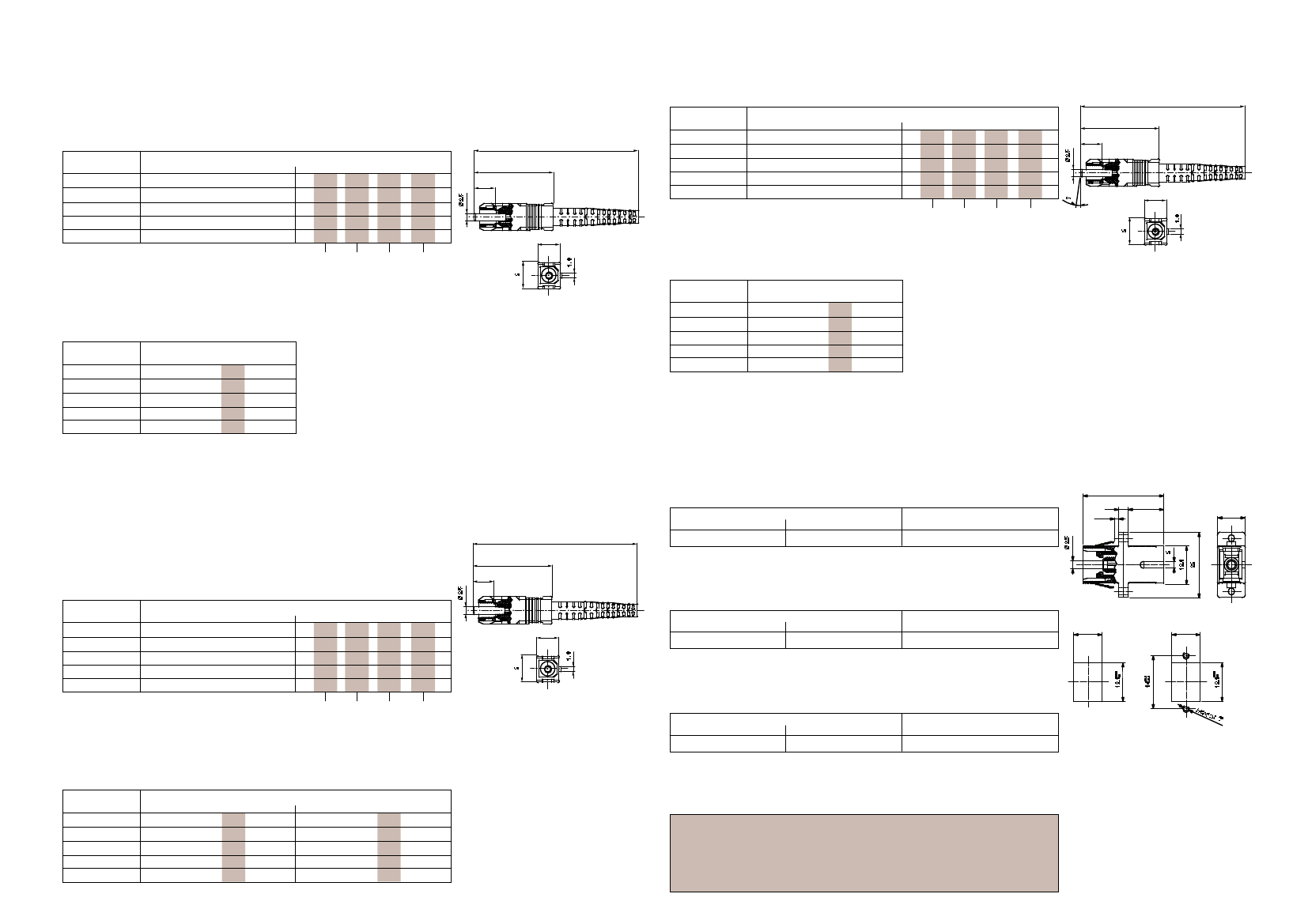

Order numbers:
SINGLE MODE APC CONVEX
Type designation:
Ferrule material:
External parts:
Polish geometry:
Dimensions
Fiber/Cable
9/125/900
55.5
CONNECTORS
SINGLE MODE PC CONVEX
Type designation:
Ferrule material:
External parts:
Polish geometry:
Dimensions
Fiber/Cable
9/125/900
9/125/900/2100
9/125/900/2500
9/125/900/3000
9/125/900/3500
HSC-S0.66
Zirconia/copper-nickel alloy insert (Pilzferrule)
Plastic, blue
Convex (PC)
Order Number
Unterminated connector
153 - 000 - 001 L 000
153 - 000 - 002 L 000
153 - 000 - 003 L 000
153 - 000 - 004 L 000
153 - 000 - 005 L 000
Terminated assembly
153 - xxx - 001 L xxx
153 - xxx - 002 L xxx
153 - xxx - 003 L xxx
153 - xxx - 004 L xxx
153 - xxx - 005 L xxx
1
2
3
4
7.25
+0.25
0
26.8
HSC-S8.66
Zirconia/copper-nickel alloy insert (Pilzferrule)
Plastic, green
8° angled convex (APC)
Order Number
Unterminated connector
155 - 000 - 001 L 000
155 - 000 - 002 L 000
155 - 000 - 003 L 000
155 - 000 - 004 L 000
155 - 000 - 005 L 000
Terminated assembly
155 - xxx - 001 L xxx
155 - xxx - 002 L xxx
155 - xxx - 003 L xxx
155 - xxx - 004 L xxx
155 - xxx - 005 L xxx
1
2
3
4
55.5
26.8
7.25
+0.25
0
9/125/900/2100
9/125/900/2500
9/125/900/3000
9/125/900/3500
7.4
Connectors for other fiber and cable dimensions available upon request
7.4
Connectors for other fiber and cable dimensions available upon request
FUSION SINGLE MODE APC CONVEX
Type designation:
Dimensions
Fiber/Cable
HSC-S8.86
Order Number
155 - 001 - 001 L 000
155 - 001 - 002 L 000
155 - 001 - 003 L 000
155 - 001 - 004 L 000
155 - 001 - 005 L 000
FUSION SINGLE MODE PC CONVEX
Type designation:
Dimensions
Fiber/Cable
9/125/900
9/125/900/2100
9/125/900/2500
9/125/900/3000
9/125/900/3500
9/125/900
9/125/900/2100
9/125/900/2500
9/125/900/3000
9/125/900/3500
HSC-S0.86
Order Number
153 - 001 - 001 L 000
153 - 001 - 002 L 000
153 - 001 - 003 L 000
153 - 001 - 004 L 000
153 - 001 - 005 L 000
Connectors for other fiber and cable dimensions available upon request
Connectors for other fiber and cable dimensions available upon request
MATING ADAPTERS
SINGLE MODE
Type designation:
Material
27.6
MSC-S0.2
External parts
Plastic, blue
Order Number
112 - 301 - 901 V 001
1.7
+0.3
0
3
12.3
9.3
MULTIMODE
55.5
Mating sleeve
Zirconia
Type designation:
Ferrule material:
External parts:
Polish geometry:
Dimensions
Fiber/Cable
50/125/900
50/125/900/2100
50/125/900/2500
50/125/900/3000
50/125/900/3500
HSC-M0.66
Zirconia/copper-nickel alloy insert (Pilzferrule)
Plastic, blue
Convex (PC)
Order Number
Unterminated connector
154 - 000 - 001 L 000
154 - 000 - 002 L 000
154 - 000 - 003 L 000
154 - 000 - 004 L 000
154 - 000 - 005 L 000
Terminated assembly
154 - xxx - 001 L xxx
154 - xxx - 002 L xxx
154 - xxx - 003 L xxx
154 - xxx - 004 L xxx
154 - xxx - 005 L xxx
1
2
3
4
26.8
7.25
+0.25
0
MULTIMODE
Type designation:
Material
7.4
MSC-M0.2
External parts
Plastic, blue
Order Number
9.5
0
+0.5
Mating sleeve
Zirconia
9.5
0
+0.5
112 - 301 - 908 V 001
SINGLE MODE APC (HRL)
Type designation:
Material
Mating sleeve
Zirconia
External parts
Plastic, green
Connectors for other fiber and cable dimensions available upon request
MSC-S8.2
Order Number
112 - 301 - 901 V 002
FUSION MULTIMODE
Type designation:
Dimensions
Fiber/Cable
50-62.5/125/900
50-62.5/125/900/2100
50-62.5/125/900/2500
50-62.5/125/900/3000
50-62.5/125/900/3500
HSC-M0.86
Order Number
Gl 50/125
154 - 001 - 001 L 000
154 - 001 - 002 L 000
154 - 001 - 003 L 000
154 - 001 - 004 L 000
154 - 001 - 005 L 000
Gl 62.5/125
154 - 001 - 011 L 000
154 - 001 - 012 L 000
154 - 001 - 013 L 000
154 - 001 - 014 L 000
154 - 001 - 015 L 000
Order Number Codes
1
Connector code
2
Connector code for termination on other end of assembly
- For pigtails:
insert 000
- For patch assemblies: insert connector code for other connector
3
Code for fiber or cable
4
Length in meters
See ordering information for additional details
Connectors for other fiber and cable dimensions available upon request
