FFPF20UP20S Ultrafast Recovery Power Rectifier
February 2006
FFPF20UP20S
Ultrafast Recovery Power Rectifier
Features
• Ultrafast with Soft Recovery : < 45ns (@I
F
= 20A)
• High Reverse Voltage : V
RRM
= 200V
• Avalanche Energy Rated
• Planar Construction
Applications
• Output Rectifiers
• Switching Mode Power Supply
• Free-wheeling diode for motor application
• Power switching circuits
1
TO-220F
1. Cathode
2. Anode
C
1
1. Cathode
2
2. Anode
Absolute Maximum Ratings
T
Symbol
V
RRM
V
RWM
V
R
I
F(AV)
I
FSM
T
J,
T
STG
= 25°C unless otherwise noted
Parameter
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
Average Rectified Forward Current
Non-repetitive Peak Surge Current
60Hz Single Half-Sine Wave
Operating Junction and Storage Temperature
@ T
C
= 95°C
Value
200
200
200
20
200
- 65 to +150
Units
V
V
V
A
A
°C
Thermal Characteristics
Symbol
R
θJC
Parameter
Maximum Thermal Resistance, Junction to Case
Max
3.5
Units
°C/W
Package Marking and Ordering Information
Device Marking
F20UP20S
Device
FFPF20UP20STU
Package
TO-220F
Reel Size
-
Tape Width
-
Quantity
50
©2005 Fairchild Semiconductor Corporation
1
www.fairchildsemi.com
FFPF20UP20S Rev. A

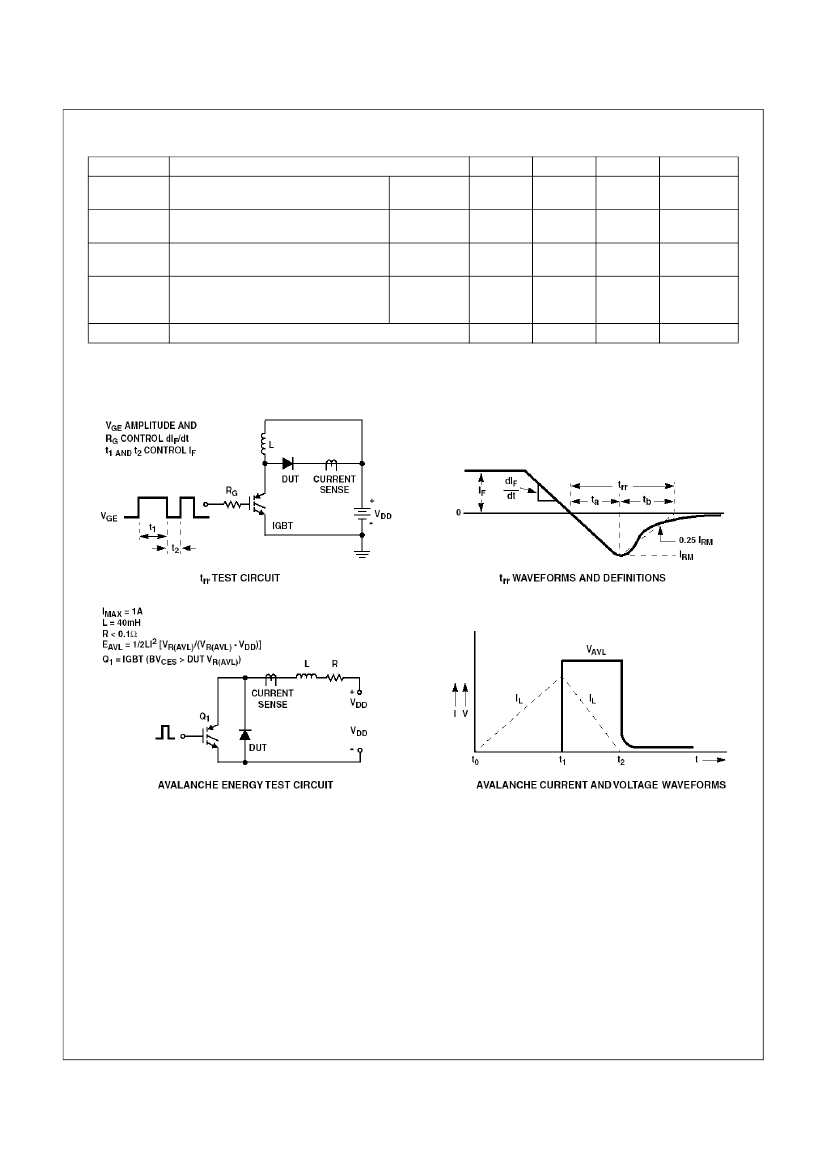

FFPF20UP20S Ultrafast Recovery Power Rectifier

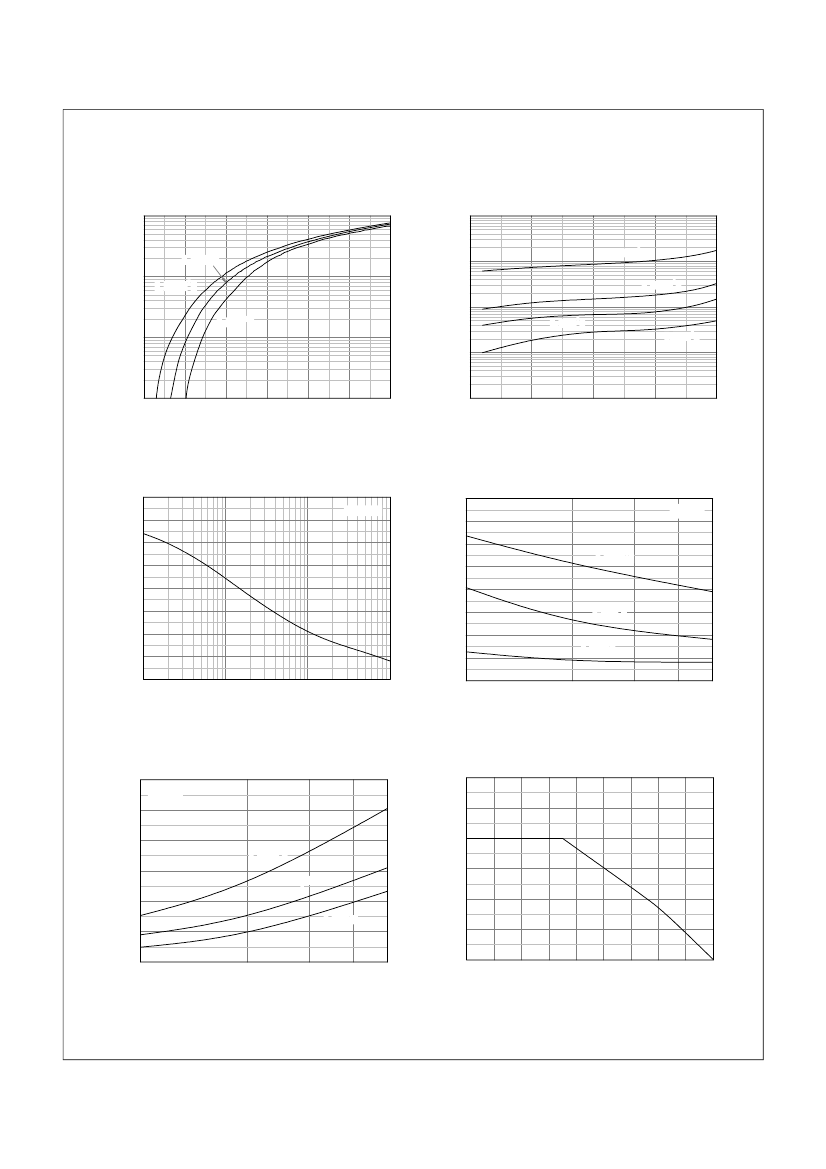

Typical Performance Characteristics
Figure 1. Typical Forward Voltage Drop
100
Figure 2. Typical Reverse Current
10
FORWARD CURRENT, I
F
[A]
REVERSE CURRENT, I
R
[A]
T
C
= 75 C
10
o
1
T
C
= 125 C
o
o
T
C
= 125 C
o
o
T
C
= 100 C
0.1
T
C
= 25 C
1
T
C
= 75 C
0.01
o
T
C
= 25 C
o
0.1
0.4
0.6
0.8
1.0
1.2
1.4
1.6
1E-3
0
50
100
150
200
FORWARD VOLTAGE, V
F
[V]
REVERSE VOLTAGE, V
R
[V]
Figure 3. Typical Junction Capacitance
400
350
300
250
200
150
100
50
0
0.1
Figure 4. Typical Reverse Recovery Time
52
REVERSE RECOVERY TIME, trr [ns]
JUNCTION CAPACITANCE, C
J
[pF]
f = 1MHz
48
44
40
36
32
28
24
20
100
I
F
= 20A
T
C
= 125 C
o
T
C
= 75 C
o
T
C
= 25 C
o
1
10
100
200
300
400
500
REVERSE VOLTAGE, V
R
[V]
di/dt [A/
µ
s]
Figure 5. Typical Reverse Recovery Current
REVERSE RECOVERY CURRENT, Irr [A]
12
Figure 6. Forward Current Deration Curve
AVERAGE FORWARD CURRENT, I
F(AV)
[A]
30
I
F
= 20A
10
25
8
20
T
C
= 125 C
6
o
DC
15
T
C
= 75 C
4
o
10
2
T
C
= 25 C
o
5
0
100
200
300
400
500
0
60
70
80
90
100
110
120
o
130
140
150
di/dt [A/
µ
s]
CASE TEMPERATURE, T
C
[ C]
FFPF20UP20S Rev. A
3
www.fairchildsemi.com
FFPF20UP20S Ultrafast Recovery Power Rectifier
