95002-430HLF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 95002-430HLF

95002-430HLF: DescriptionBoard Connector, 30 Contact(s), 2 Row(s), Male, Straight, Solder/Surface Mount Terminal, LEAD FREE; CategoryThe connector The connector; File Size189KB，3 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

95002-430HLF Overview

Board Connector, 30 Contact(s), 2 Row(s), Male, Straight, Solder/Surface Mount Terminal, LEAD FREE

95002-430HLF Parametric

Parameter Name	Attribute value
Maker	Amphenol
package instruction	LEAD FREE
Reach Compliance Code	compliant
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN (100) OVER NICKEL
Contact completed and terminated	TIN (100) OVER NICKEL
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	95002
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER/SURFACE MOUNT
Total number of contacts	30
UL Flammability Code	94V-0

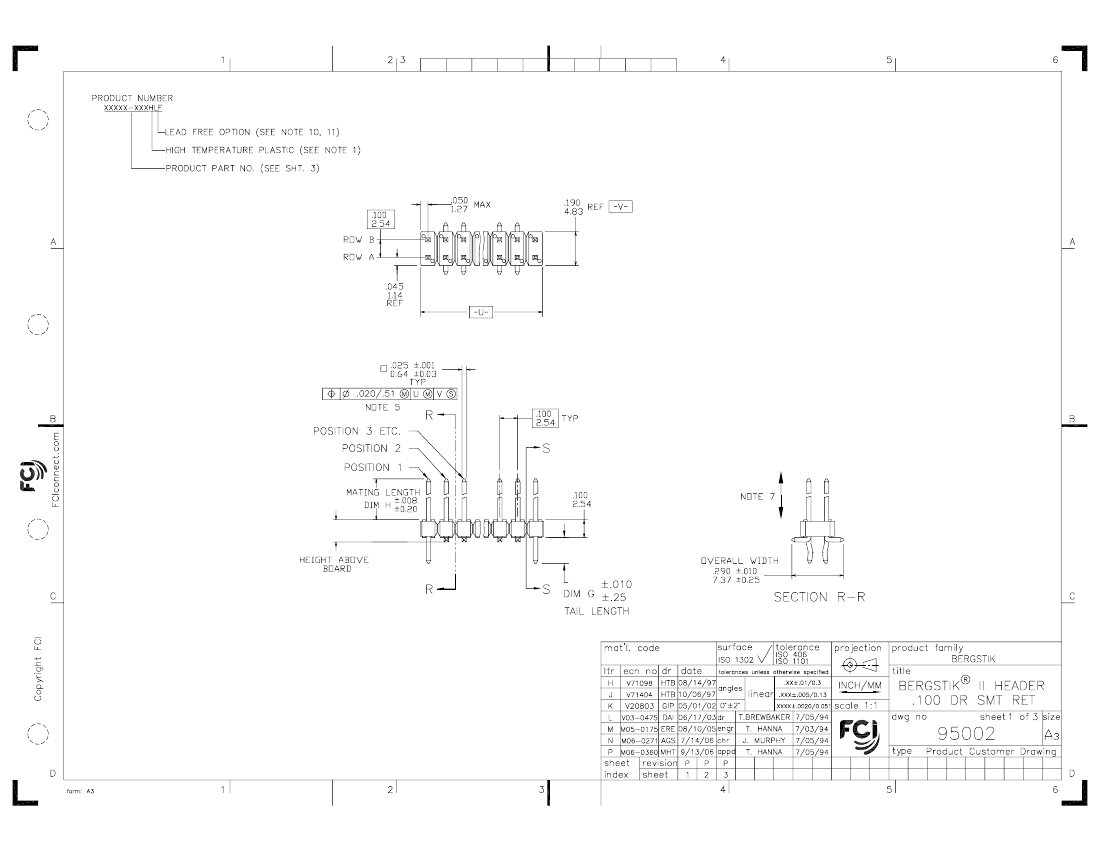

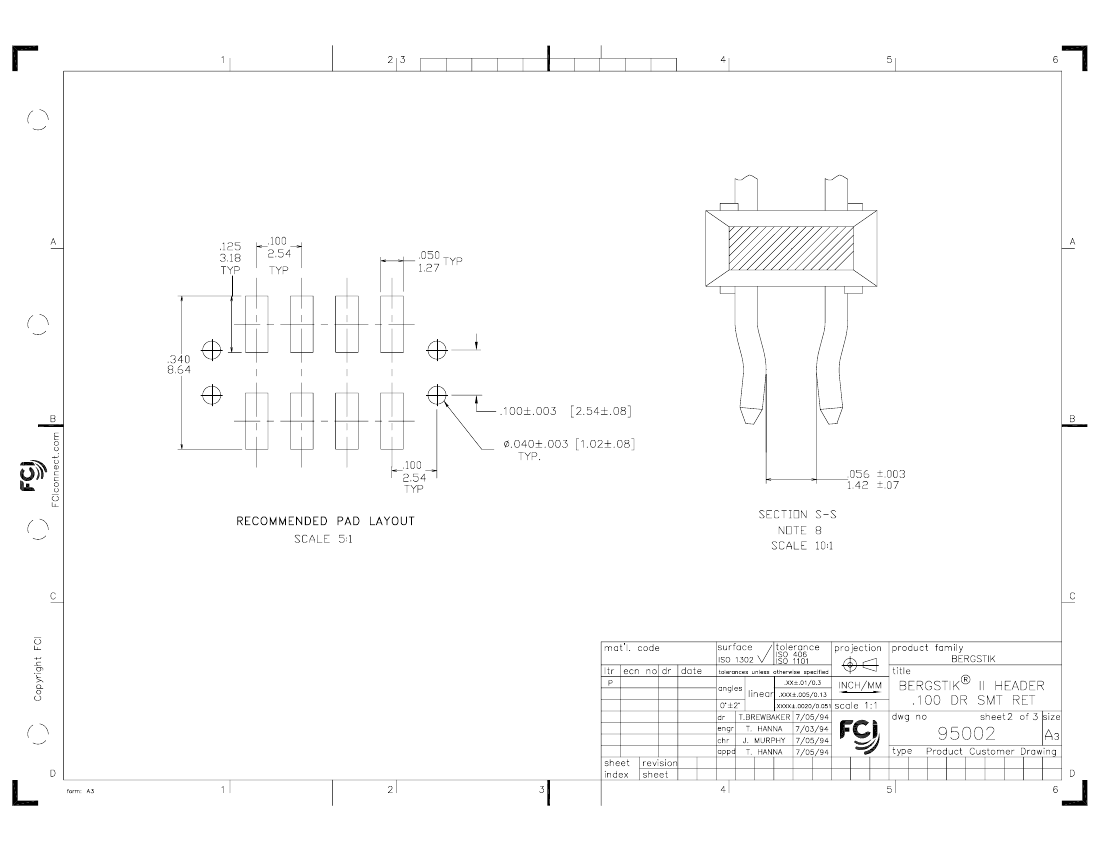

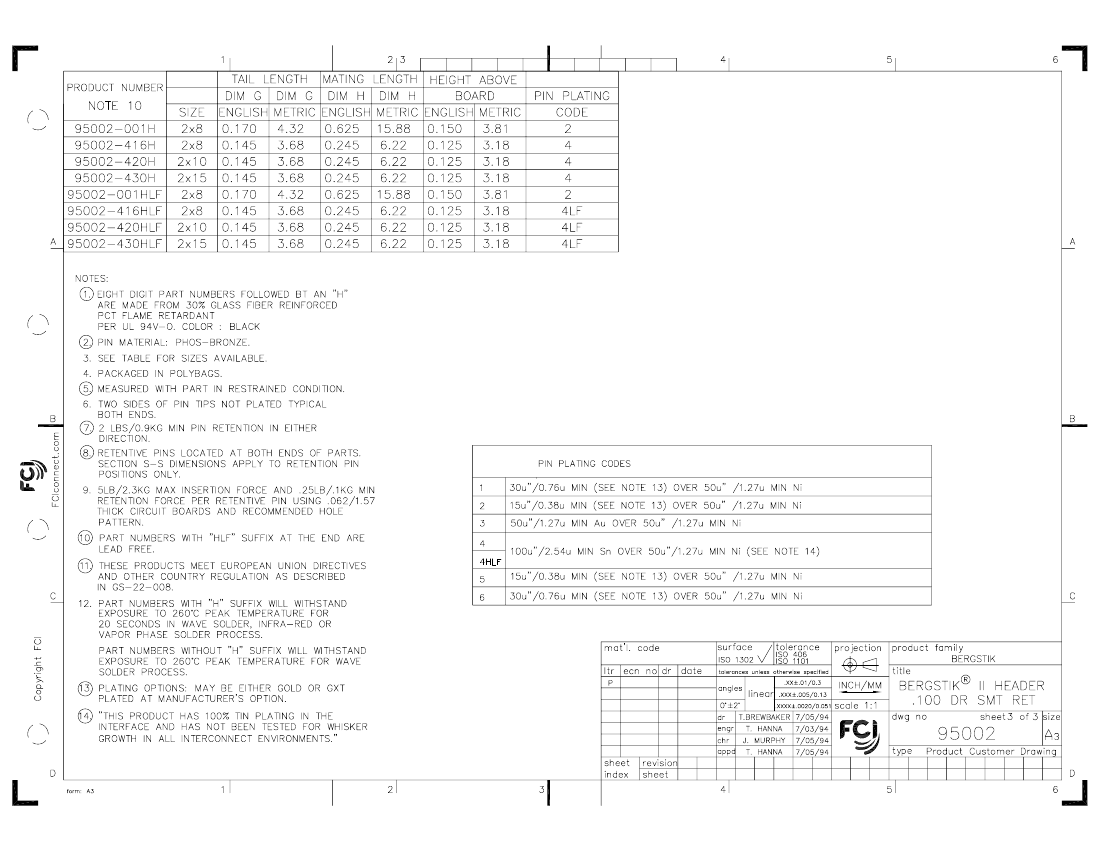

Preview

Download Datasheet

View All

PDM: Rev:P

STATUS:

Released

Printed: Dec 01, 2010

95002-430HLF Related Products

	95002-430HLF	95002-001H	95002-001HLF	95002-416H	95002-416HLF	95002-420H	95002-420HLF	95002-430H
Description	Board Connector, 30 Contact(s), 2 Row(s), Male, Straight, Solder/Surface Mount Terminal, LEAD FREE	Board Connector, 16 Contact(s), 2 Row(s), Male, Straight, Solder/Surface Mount Terminal	Board Connector, 16 Contact(s), 2 Row(s), Male, Straight, Solder/Surface Mount Terminal, LEAD FREE	Board Connector, 16 Contact(s), 2 Row(s), Male, Straight, Solder/Surface Mount Terminal	Board Connector, 16 Contact(s), 2 Row(s), Male, Straight, Solder/Surface Mount Terminal, LEAD FREE	Board Connector, 20 Contact(s), 2 Row(s), Male, Straight, Solder/Surface Mount Terminal	Board Connector, 20 Contact(s), 2 Row(s), Male, Straight, Solder/Surface Mount Terminal, LEAD FREE	Board Connector, 30 Contact(s), 2 Row(s), Male, Straight, Solder/Surface Mount Terminal
Maker	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	TIN (100) OVER NICKEL	GOLD (15) OVER NICKEL	GOLD (15) OVER NICKEL	TIN (100) OVER NICKEL	TIN (100) OVER NICKEL	TIN (100) OVER NICKEL	TIN (100) OVER NICKEL	TIN (100) OVER NICKEL
Contact completed and terminated	TIN (100) OVER NICKEL	GOLD (15) OVER NICKEL	GOLD (15) OVER NICKEL	TIN (100) OVER NICKEL	TIN (100) OVER NICKEL	TIN (100) OVER NICKEL	TIN (100) OVER NICKEL	TIN (100) OVER NICKEL
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO
JESD-609 code	e3	e4	e4	e3	e3	e3	e3	e3
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	95002	95002	95002	95002	95002	95002	95002	95002
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	2	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER/SURFACE MOUNT	SOLDER/SURFACE MOUNT	SOLDER/SURFACE MOUNT	SOLDER/SURFACE MOUNT	SOLDER/SURFACE MOUNT	SOLDER/SURFACE MOUNT	SOLDER/SURFACE MOUNT	SOLDER/SURFACE MOUNT
Total number of contacts	30	16	16	16	16	20	20	30
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
