86566520064LF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 86566520064LF

86566520064LF: DescriptionD-Sub Contacts CRIMP CONT 20/24 AWG SOCKET SIGNAL; CategoryThe connector; File Size493KB，2 Pages; ManufacturerFCI / Amphenol; Environmental Compliance

Download Datasheet Parametric Compare View All

86566520064LF Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	86566520064LF	-	-	View	Buy Now

86566520064LF Overview

D-Sub Contacts CRIMP CONT 20/24 AWG SOCKET SIGNAL

86566520064LF Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	FCI / Amphenol
Product Category	D-Sub Contacts
RoHS	Details
Contact Gender	Socket (Female)
Contact Plating	Gold
Wire Gauge	24-20
Termination Style	Crimp
Packaging	Cut Tape
Packaging	Reel
Current Rating	5 A
Factory Pack Quantity	5000

Preview

Download Datasheet

View All

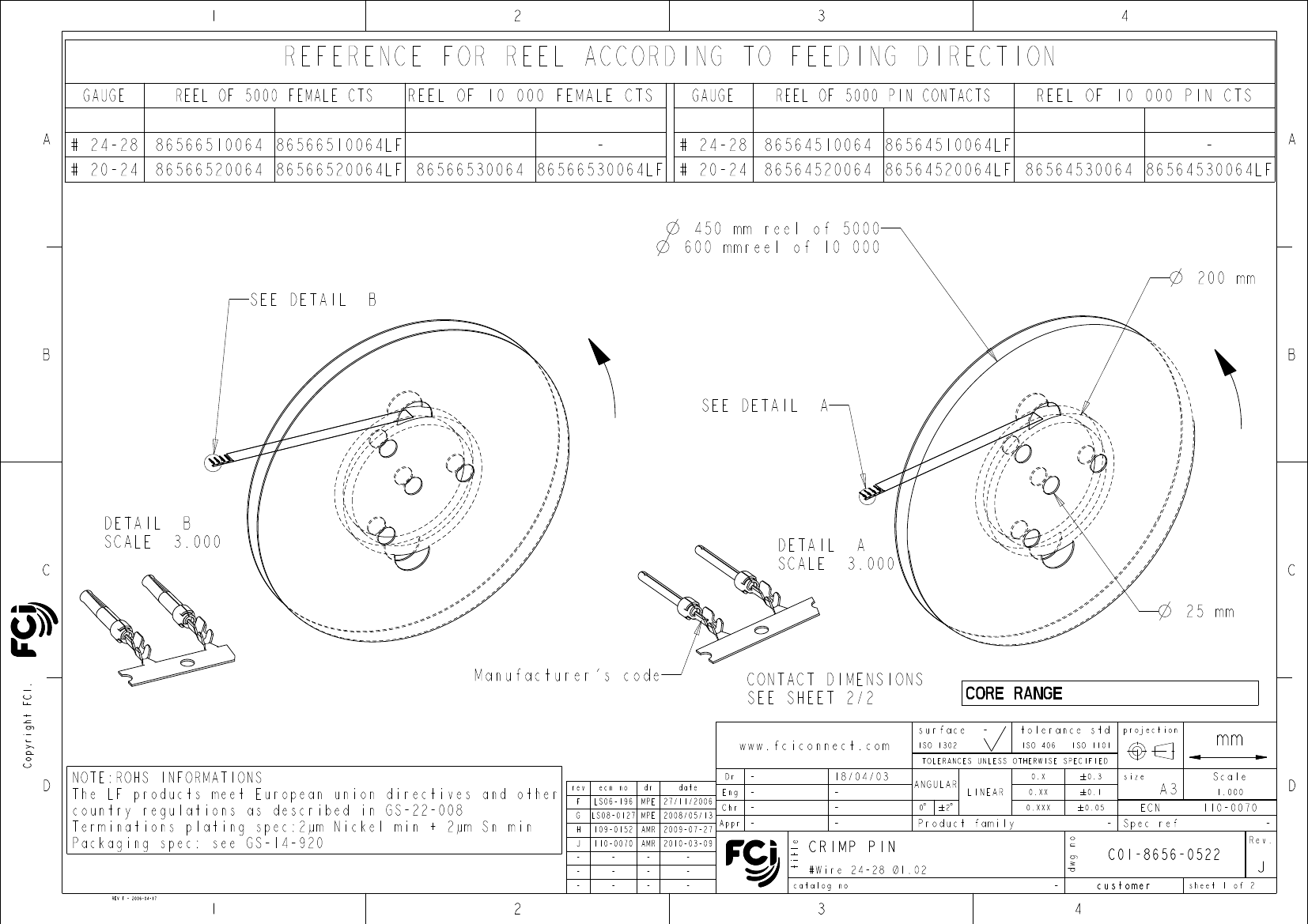

REFERENCE FOR REEL ACCORDING TO FEEDING DIRECTION

GAUGE

REEL OF 5000 FEMALE CTS REEL OF 10 000 FEMALE CTS

86566510064 86566510064LF

GAUGE

# 24-28

# 20-24

REEL OF 5000 PIN CONTACTS

86564510064 86564510064LF

REEL OF 10 000 PIN CTS

# 24-28

# 20-24

86566520064 86566520064LF 86566530064 86566530064LF

86564520064 86564520064LF 86564530064 86564530064LF

450 mm reel of 5000

600 mm reel of 10 000

200 mm

SEE DETAIL

DETAIL B

SCALE 3.000

DETAIL A

SCALE 3.000

25 mm

Manufacturer's code

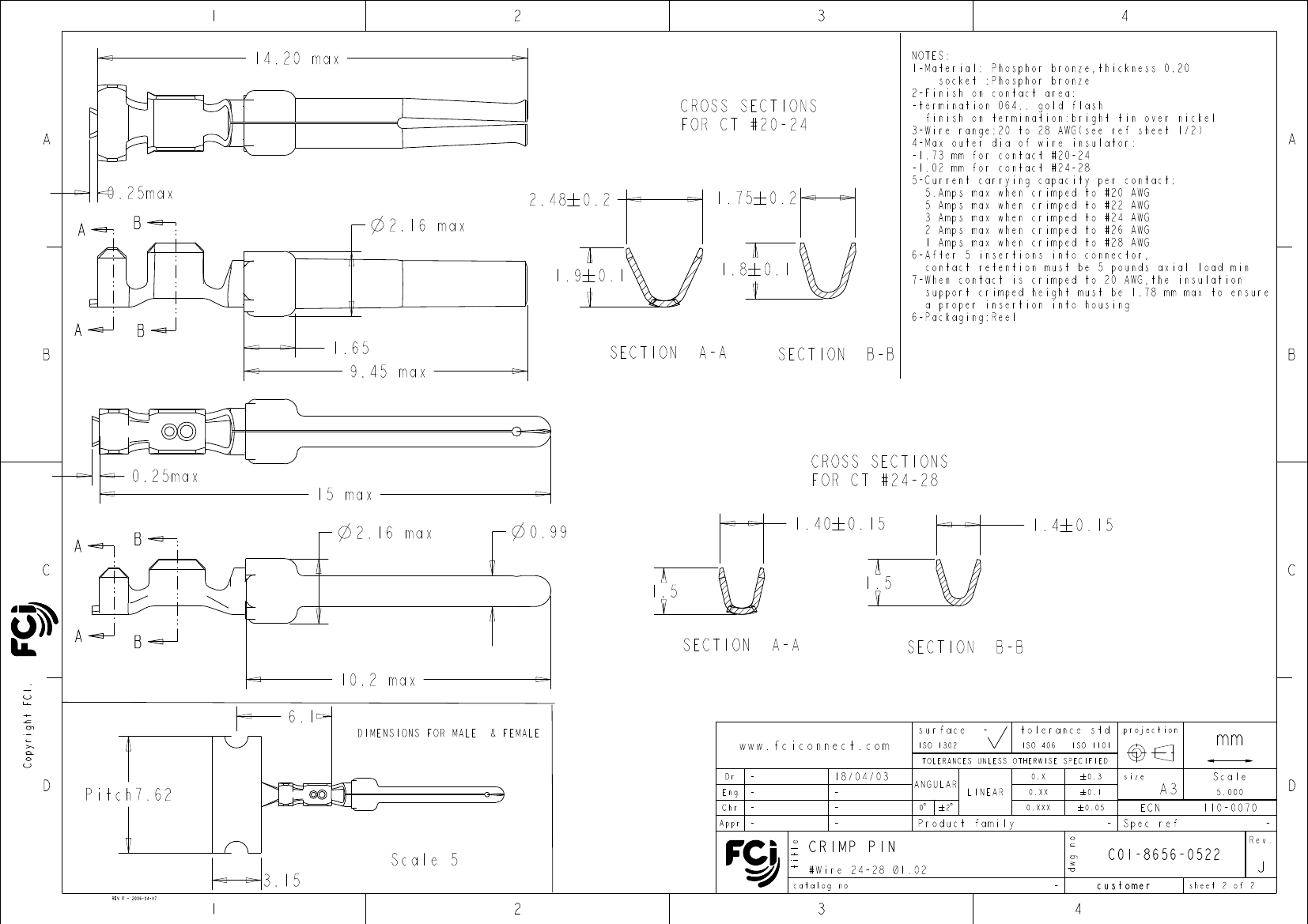

CONTACT DIMENSIONS

SEE SHEET 2/2

surface

CORE RANGE

tolerance std

ISO 406

ISO 1101

projection

www.fciconnect.com

ISO 1302

Scale

1.000

TOLERANCES UNLESS OTHERWISE SPECIFIED

dwg no

title

NOTE:ROHS INFORMATIONS

The LF products meet European union directives and other

country regulations as described in GS-22-008

Terminations plating spec:2µm Nickel min + 2µm Sn min

Packaging spec: see GS-14-920

rev

ecn no

LS06-196

I09-0152

I10-0070

date

Eng

Chr

Appr

MPE 27/11/2006

AMR 2009-07-27

AMR 2010-03-09

18/04/03

ANGULAR

0.X

0.3

0.1

0.05

size

LINEAR

0.XX

0.XXX

ECN

- Spec ref

Rev.

LS08-0127 MPE 2008/05/13

I10-0070

Product family

CRIMP PIN

#Wire 24-28 Ø1.02

C01-8656-0522

customer

sheet

1 of 2

catalog no

REV F - 2006-04-17

PDM: Rev:J

STATUS:

Released

Printed: Apr 24, 2010

86566520064LF Related Products

	86566520064LF	86564520064LF	86566530064LF	86564530064LF	86564510064LF
Description	D-Sub Contacts CRIMP CONT 20/24 AWG SOCKET SIGNAL	D-Sub Contacts CRIMP CONT 20/24 AWG PIN SIGNAL	D-Sub Contacts CRIMP CONT 20/24 AWG SOCKET SIGNAL	D-Sub Contacts CRIMP CONT 20/24 AWG PIN SIGNAL	D-Sub Contacts CRIMP CONT 24/28 AWG PIN SIGNAL
Product Attribute	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value
Manufacturer	FCI / Amphenol	FCI / Amphenol	FCI / Amphenol	FCI / Amphenol	FCI / Amphenol
Product Category	D-Sub Contacts	D-Sub Contacts	D-Sub Contacts	D-Sub Contacts	D-Sub Contacts
RoHS	Details	Details	Details	Details	Details
Contact Gender	Socket (Female)	Pin (Male)	Socket (Female)	Pin (Male)	Pin (Male)
Contact Plating	Gold	Gold	Gold	Gold	Gold
Wire Gauge	24-20	24-20	24-20	24-20	28-24
Termination Style	Crimp	Crimp	Crimp	Crimp	Crimp
Current Rating	5 A	5 A	5 A	5 A	5 A
Factory Pack Quantity	5000	5000	10000	10000	5000
Packaging	Reel	Reel	Reel	Reel	Reel
Contact Type	-	Signal	Signal	-	Signal
Contact Material	-	Copper	Copper	-	Copper
