Tantalum Chip Capacitors
Automotive
Series/Type:
Date:
B45196L, B45198L
July 2006
© KEMET 2006. Reproduction, publication and dissemination of this publication, enclosures hereto and the
information contained therein without KEMET's prior express consent is prohibited.
Tantalum chip capacitors
Automotive
Construction
Polar tantalum capacitors with solid
electrolyte
Conventional TaMnO
2
technology
Flame-retardant plastic case (UL 94 V-0)
Optionally tinned or gold-plated terminals
Features
Meets AEC-Q200 requirements
Ultra-high volumetric efficiency
Excellent solderability
Stable temperature and frequency characteristics
Low leakage current, low dissipation factor
Low self-inductance
High resistance to shock and vibration
B45196L, B45198L
Suitable for use without series resistor
(special operating conditions recommended)
Lead-free and material content compatible with RoHS
Applications
Automotive electronics (e.g. safety applications e.g airbags, ABS, motor management)
Measuring and control engineering (e.g. voltage regulators)
DC/DC converters
Soldering
Suitable for reflow soldering (IR and vapor phase, in compliance with JEDEC J-STD-020 C) and
wave soldering
Delivery mode
Taped and reeled in accordance with IEC 60286-3
Please read
Important notes
and
Cautions and warnings
at the end of this document.
Page 2 of 16
Tantalum chip capacitors
Automotive

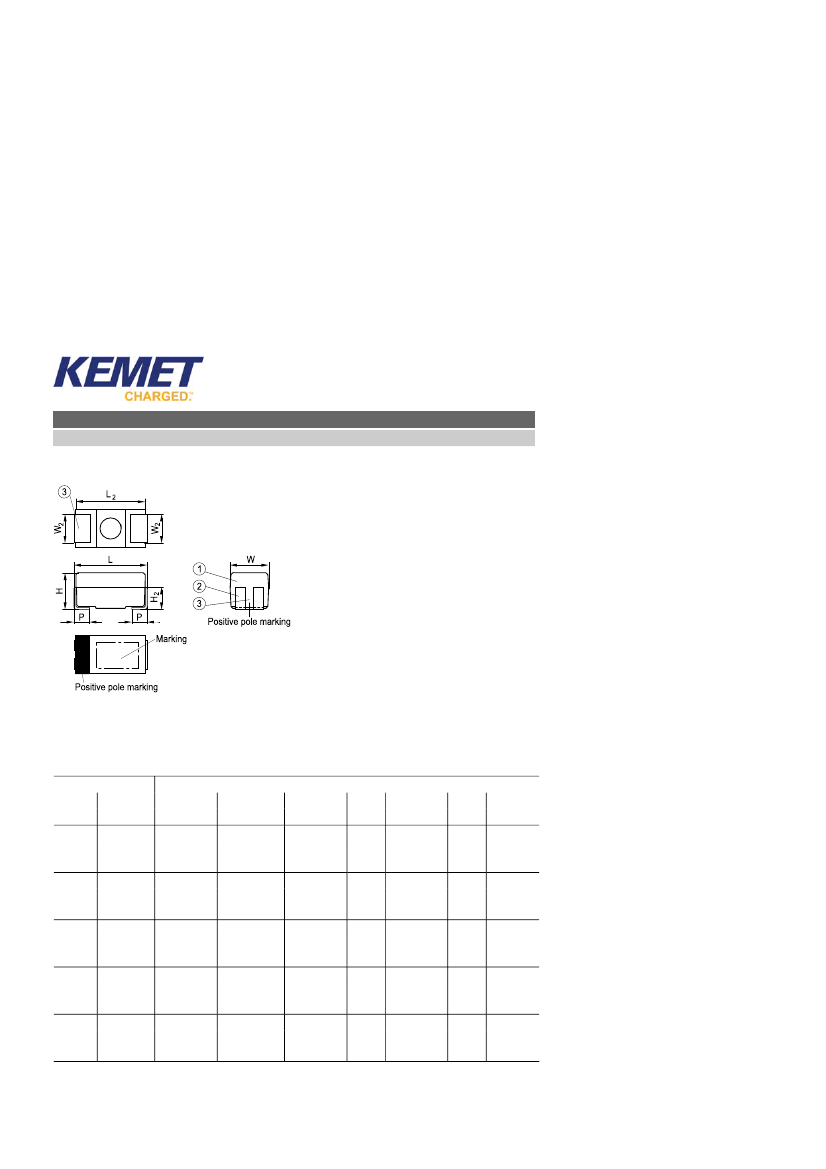

Dimensional drawing
B45196L, B45198L
Encapsulation: molded epoxy resin
NiFe; tinned surface Sn100 or gold-plated
Reduced slot length for case size A
Dimensions
Case size
Dimensions in mm (inches)
EPCOS
EIA/IECQ
L
W
A
3216-18
3.2
±0.2
(.126
±0.008)
3.5
±0.2
(.138
±0.008)
6.0
±0.3
(.236
±0.012)
7.3
±0.3
(.287
±0.012)
7.3
±0.3
(.287
±0.012)
1.6
±0.2
(.063
±0.008)
2.8
±0.2
(.110
±0.008)
3.2
±0.3
(.126
±0.012)
4.3
±0.3
(.169
±0.012)
4.3
±0.3
(.169
±0.012)
H
B
3528-21
C
6032-28
D
7343-31
E
7343-44
1.6
±0.2
(.063
±0.008)
1.9
±0.2
(.075
±0.008)
2.5
±0.3
(.098
±0.012)
2.8
±0.3
(.110
±0.012)
4.1
±0.3
(.161
±0.012)
L
2
typ. W
2
±0.1
H
2
typ. P
±0.3
±(.004)
±(.012)
3.2
1.2
1.3
0.8
(.126) (.047)
(.051) (.031)
3.5
2.2
(.138) (.087)
6.1
2.2
(.240) (.087)
7.3
2.4
(.287) (.094)
7.3
2.4
(.287) (.094)
1.4
0.7
(.055) (.027)
1.8
1.3
(.071) (.051)
1.8
1.3
(.071) (.051)
1.8
1.3
(.071) (.051)
Please read
Important notes
and
Cautions and warnings
at the end of this document.
Page 3 of 16

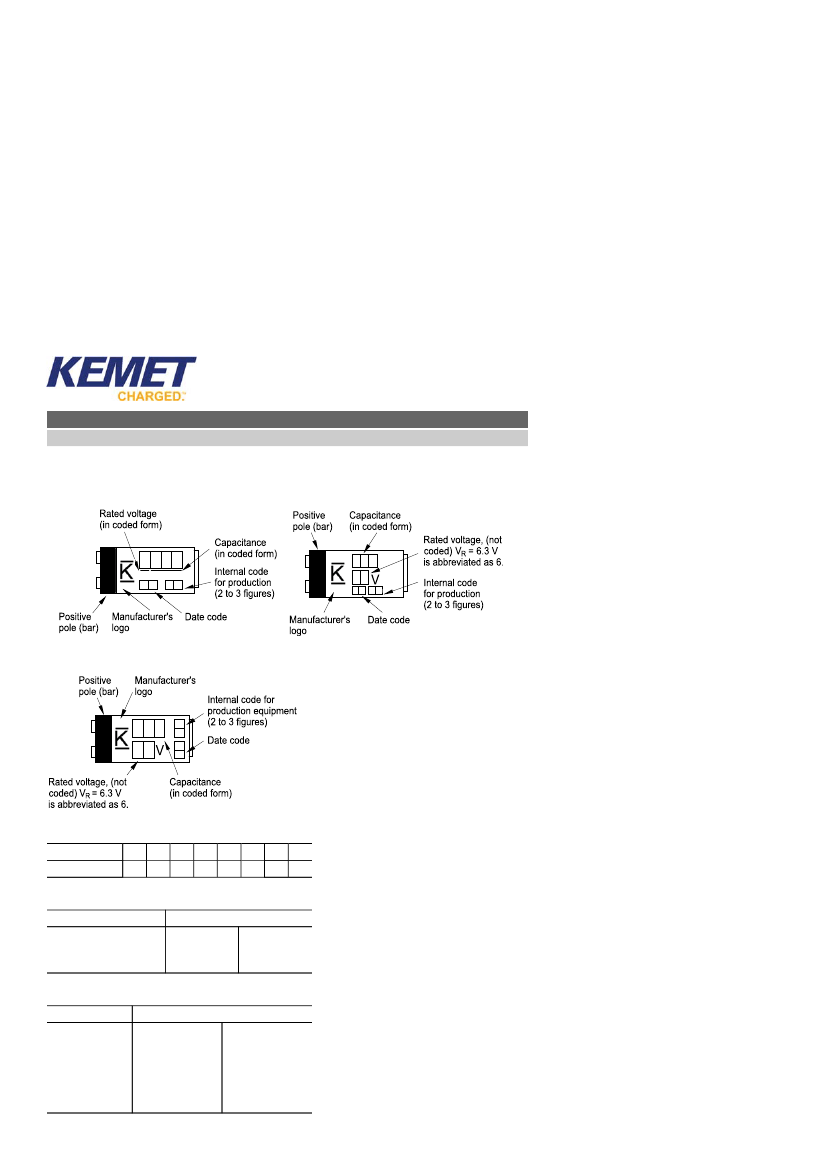

Tantalum chip capacitors
Automotive
Specifications and characteristics in brief
Series
Ordering code
Technology
Terminals
Rated voltage
Rated capacitance
Capacitance tolerance
Maximum impedance
Operating temperature range
Failure rate
(1 fit = 1 10
-9
failures/h)
C
R
V
R
≤
330
µF
V
C
R
V
R
> 330
µF
V
Service life
Leakage current
Detail specification
Climatic category
(to IEC 60068-1)
( 55
°C/+125 °C/56
days damp heat test)
(at 40
°C; ≤
V
R
,
R
S
≥
3
Ω/V)
(20
°C,
100 kHz)
Z
max
T
op
(up to 85
°C)
(20
°C,
120 Hz)
V
R
C
R
Automotive
B45196L
Ta-MnO
2
Tinned
4 ... 50
B45196L, B45198L
B45198L
Ta-MnO
2
Gold-plated
VDC
µF
Ω
°C
fit
0.10 ... 1000
±20%, ±10%
0.6 ... 27
55 ... +125
≤3
or 8
≤10
or 24
(dependent on type)
(V
R
, 5 min, 20
°C)
I
leak
>500000
10
AEC-Q200
55/125/56
h
nA/µC
Please read
Important notes
and
Cautions and warnings
at the end of this document.
Page 5 of 16
