FEATURES AND SPECIFICATIONS
Features and Benefits
s
Sizes 10 to 60 circuits
s
Polarized
s
Stackable side-by-side
s
Selective Gold- and overall Tin-plated versions
s
Lever spring pins—Stainless Steel
Reference
Packaging: Tray
UL File No.: E29179-E
Mates With:
5320-NA
and
5320-NB
Designed In: Millimeters
Electrical
Current: 1.0A
Contact Resistance: 20m
Ω
max.
Dielectric Withstanding Voltage: 500V AC
Insulation Resistance: 1000 M
Ω
min.
Physical
Housing: Black glass-filled polyester, UL 94V-O
Contact: Brass
Contact Pin: 0.635mm (.025") square
Plating: See Table
Operating Temperature -40 to +105˚C
2.54mm (.100") Pitch
QF 50
™
Shrouded Header
5340
Right Angle, Dual Row
With Eject Levers
H
Ribbon Cable Systems

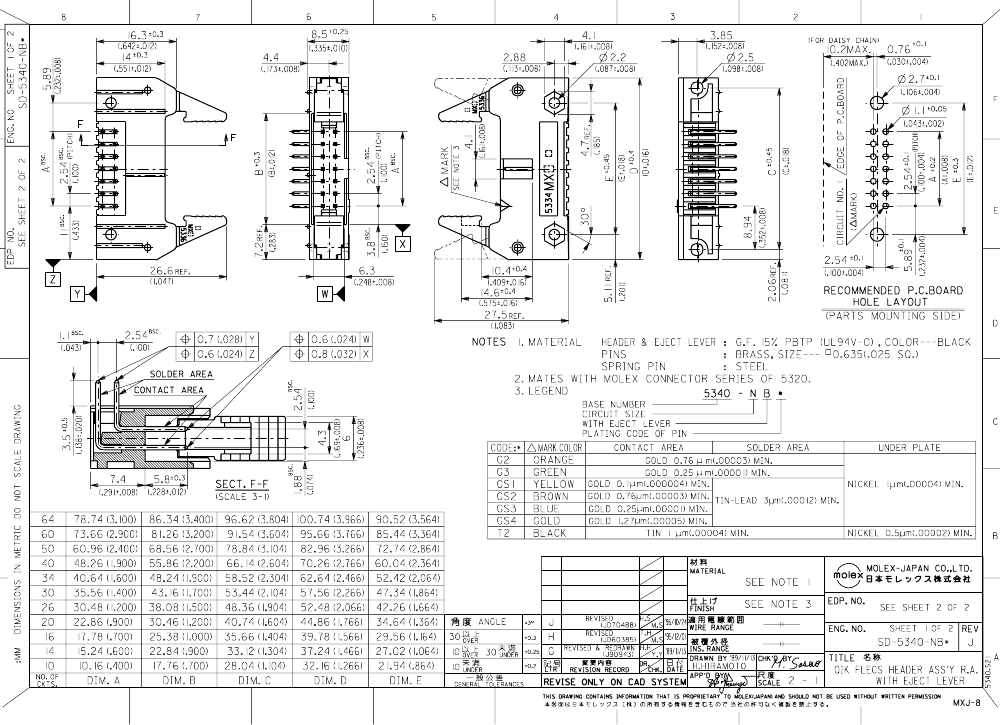

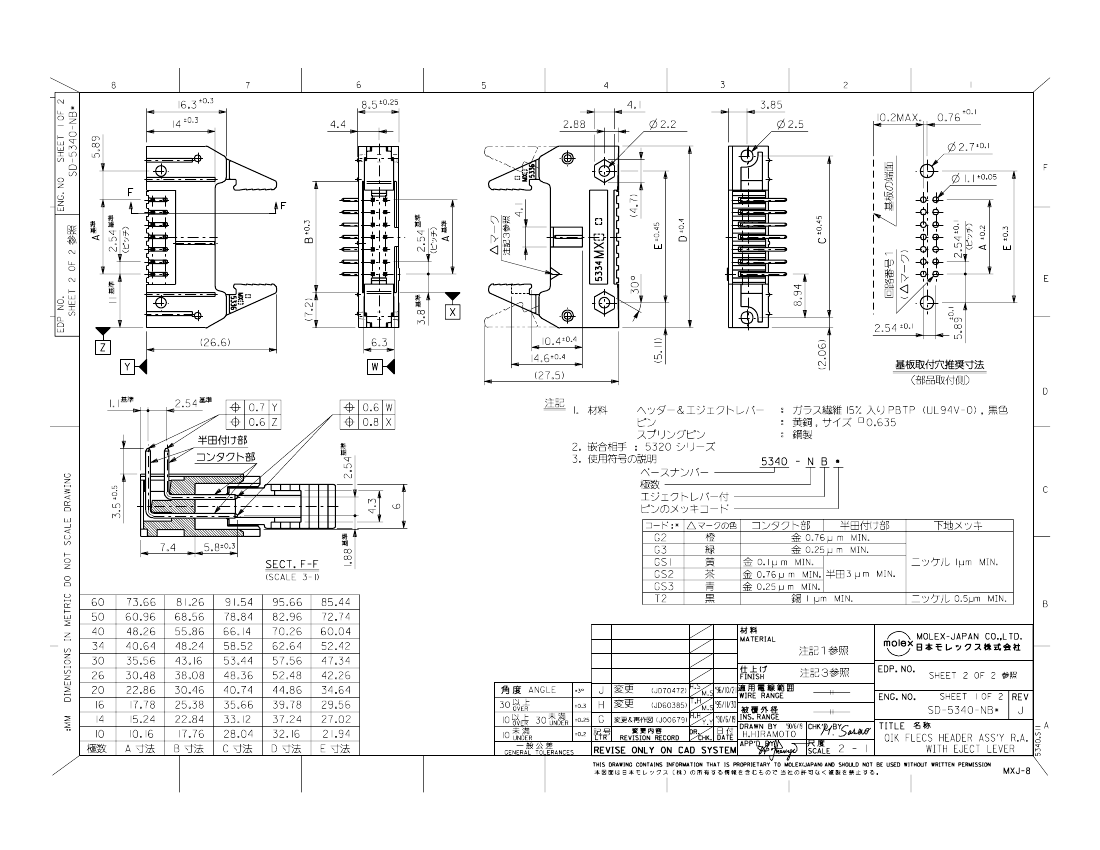

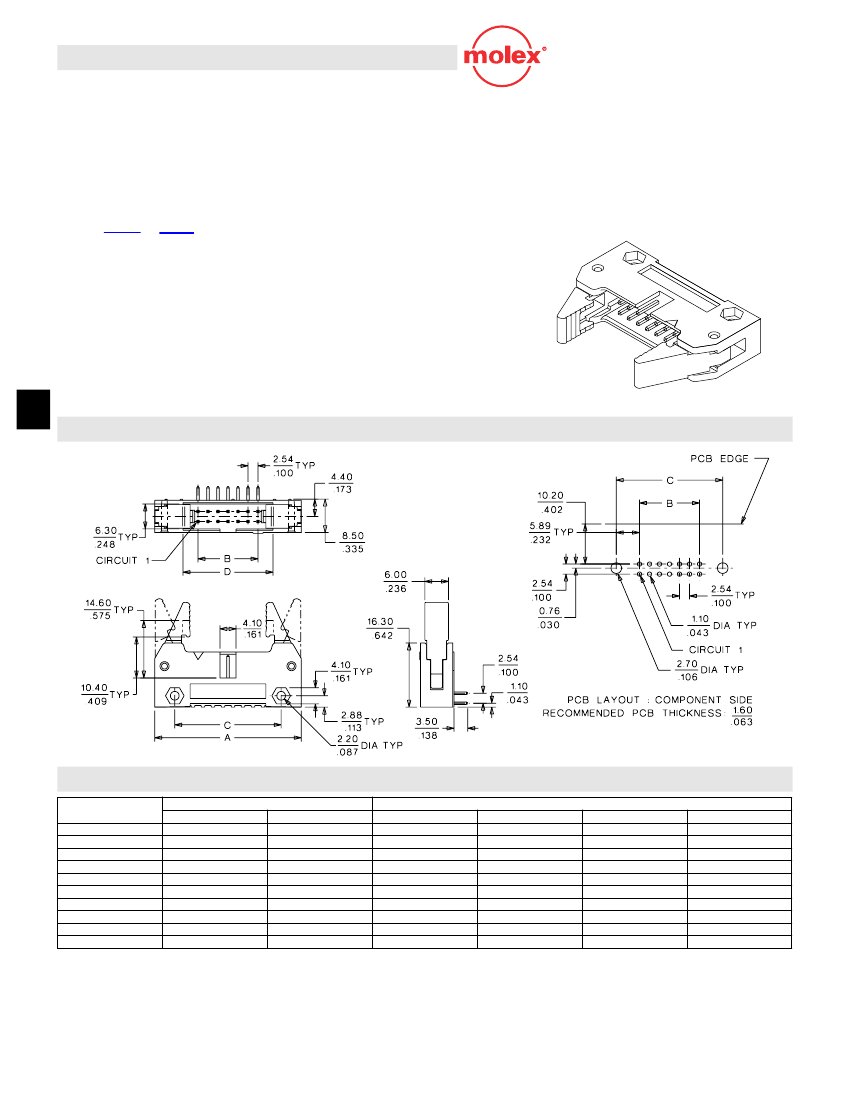

CATALOG DRAWING (FOR REFERENCE ONLY)

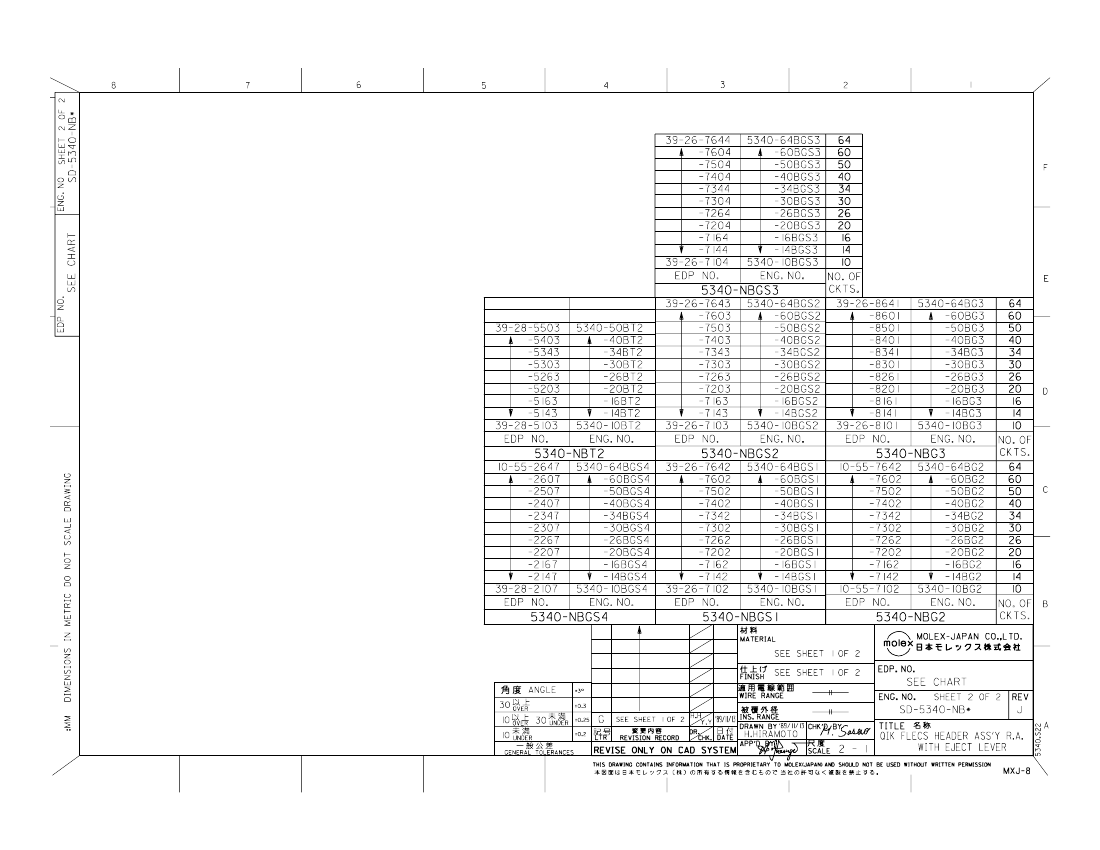

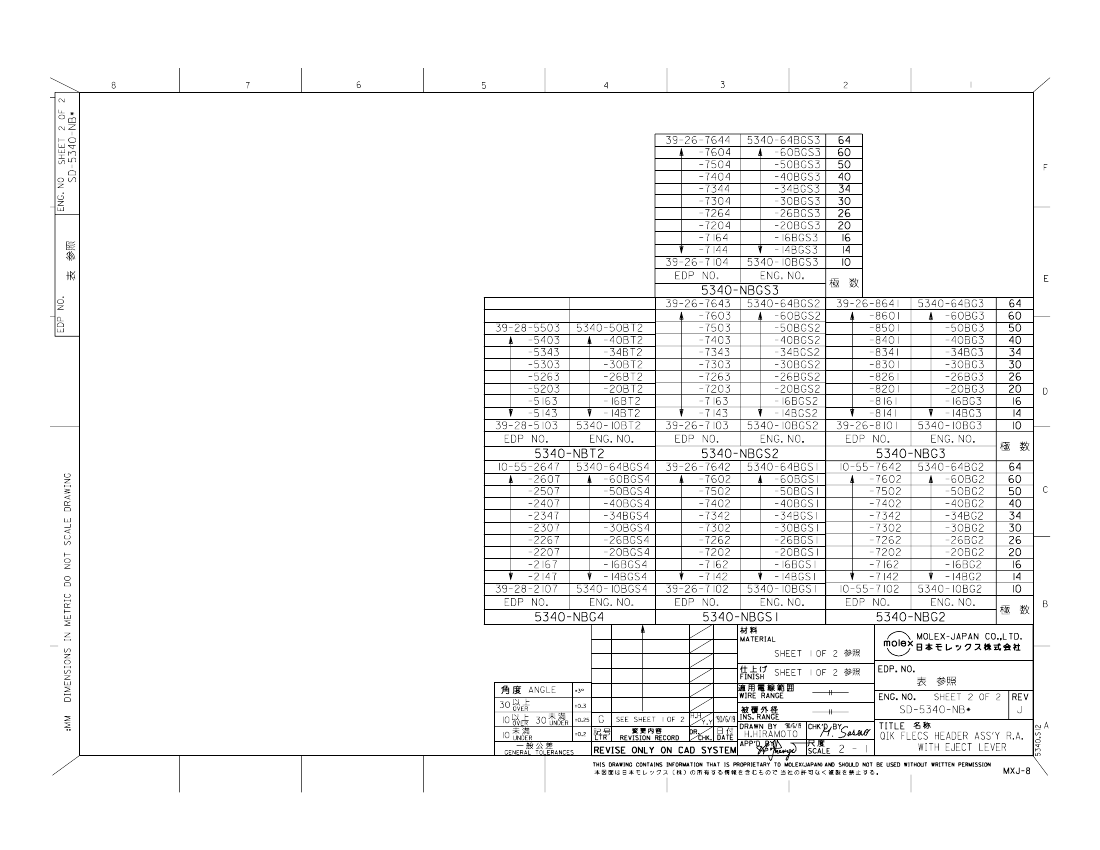

ORDERING INFORMATION AND DIMENSIONS
Circuits
10
14
16
20
26
30
34
40
50
60
Order No.
Plating NBGS1
39-26-7102
39-26-7142
39-26-7162
39-26-7202
39-26-7262
39-26-7302
39-26-7342
39-26-7402
39-26-7502
39-26-7602
Plating NBT2
39-28-5103
39-28-5143
39-28-5163
39-28-5203
39-28-5263
39-28-5303
39-28-5343
39-28-5403
39-28-5503
32.16
37.24
39.78
44.86
52.48
57.56
62.64
70.26
82.96
95.66
A
(1.266)
(1.466)
(1.566)
(1.766)
(2.066)
(2.266)
(2.466)
(2.766)
(3.266)
(3.766)
17.76
22.84
25.38
30.46
38.08
43.16
48.24
55.86
68.56
81.26
B
(.700)
(.900)
(1.000)
(1.200)
(1.500)
(1.700)
(1.900)
(2.200)
(2.700)
(3.200)
Dimension
21.94
27.02
29.56
34.64
42.26
47.34
52.42
60.04
72.74
85.44
C
(.864)
(1.064)
(1.164)
(1.364)
(1.664)
(1.864)
(2.064)
(2.364)
(2.864)
(3.364)
10.16
15.24
17.78
22.86
30.48
35.56
40.64
48.26
60.96
73.66
D
(.400)
(.600)
(.700)
(.900)
(1.200)
(1.400)
(1.600)
(1.900)
(2.400)
(2.900)
Plating NBGS1: 39
µ
" (1
µ
m) min. Nickel underplate. Contact area: 4
µ
" (0.1
µ
m) min. Gold. Solder area: 3
µ
m min. Tin/Lead.
Plating NBT2: 35
µ
" (0.9
µ
m) min. Tin overall
H-22
MX01
Embedded System
