• Special lead wire design to prevent open circuit failure
• Excellent terminal strength to mechanical stress
ELECTRICAL SPECIFICATIONS:
MSL level: 1
FEATURES:
Pb
RoHS/RoHS II compliant
APPLICATIONS:
5.8 x 5.2 x 3.2mm
• OA equipments
• PC and notebook
• LCD TV set
• Power supply
Abracon P/N:
Operating Temperature:
Storage Temperature:
PART NUMBER
ASPI-0503H-2R2
ASPI-0503H-3R3
ASPI-0503H-4R7
ASPI-0503H-6R8
ASPI-0503H-100
ASPI-0503H-120
ASPI-0503H-150
ASPI-0503H-180
ASPI-0503H-220
ASPI-0503H-270
ASPI-0503H-330
ASPI-0503H-390
ASPI-0503H-470
ASPI-0503H-560
ASPI-0503H-680
ASPI-0503H-820
ASPI-0503H-101
ASPI-0503H-121
ASPI-0503H-151
ASPI-0503H-181
ASPI-0503H-221
ASPI-0503H-271
ASPI-0503H-331
ASPI-0503H Series
-40˚C to +125˚C
-10
˚C
to +40˚C
Tolerance
M
M
M
M
M
M
M
M
M
K
K
K
K
K
K
K
K
K
K
K
K
K
K
DCR (Ω) max
0.03
0.05
0.07
0.09
0.12
0.13
0.15
0.18
0.22
0.24
0.30
0.40
0.43
0.50
0.60
0.80
0.90
1.00
1.30
1.50
2.00
2.50
3.20
IDC (A) max
3.50
2.80
2.50
2.20
1.80
1.75
1.70
1.60
1.50
1.40
1.10
1.00
0.90
0.85
0.80
0.65
0.60
0.58
0.43
0.41
0.38
0.35
0.28
Inductance Code
2R2
3R3
4R7
6R8
100
120
150
180
220
270
330
390
470
560
680
820
101
121
151
181
221
271
331
INDUCTANCE (uH)
2.2
3.3
4.7
6.8
10.0
12.0
15.0
18.0
22.0
27.0
33.0
39.0
47.0
56.0
68.0
82.0
100.0
120.0
150.0
180.0
220.0
270.0
330.0
OPTIONS AND PART IDENTIFICATION
Test Conditions
Inductance:
Test Frequency: 100KHz / 1V
Isat:
∆L/L
(initial)
≥
-10% or
ΔT=40°C
(Ta=20°C), whichever is lower.
Test Equipment:
UC1068B
ASPI-0503H-
Inductance Code
Please refer to the table above
-
Tolerance %
K: ± 10%
M: ± 20%
Packaging
T: Tape and Reel (2Kpcs / reel)
ABRACON IS
ISO9001:2008
CE RTIFIED
LLC
2 Faraday, Suite# B
|
Irvine
|
CA 92618
Revised: 11.09.15
Ph. 949.546.8000
|
Fax. 949.546.8001
Visit
www.abracon.com
for Terms and Conditions of Sale
High Current Unshielded, SMD Power Inductors
ASPI-0503H

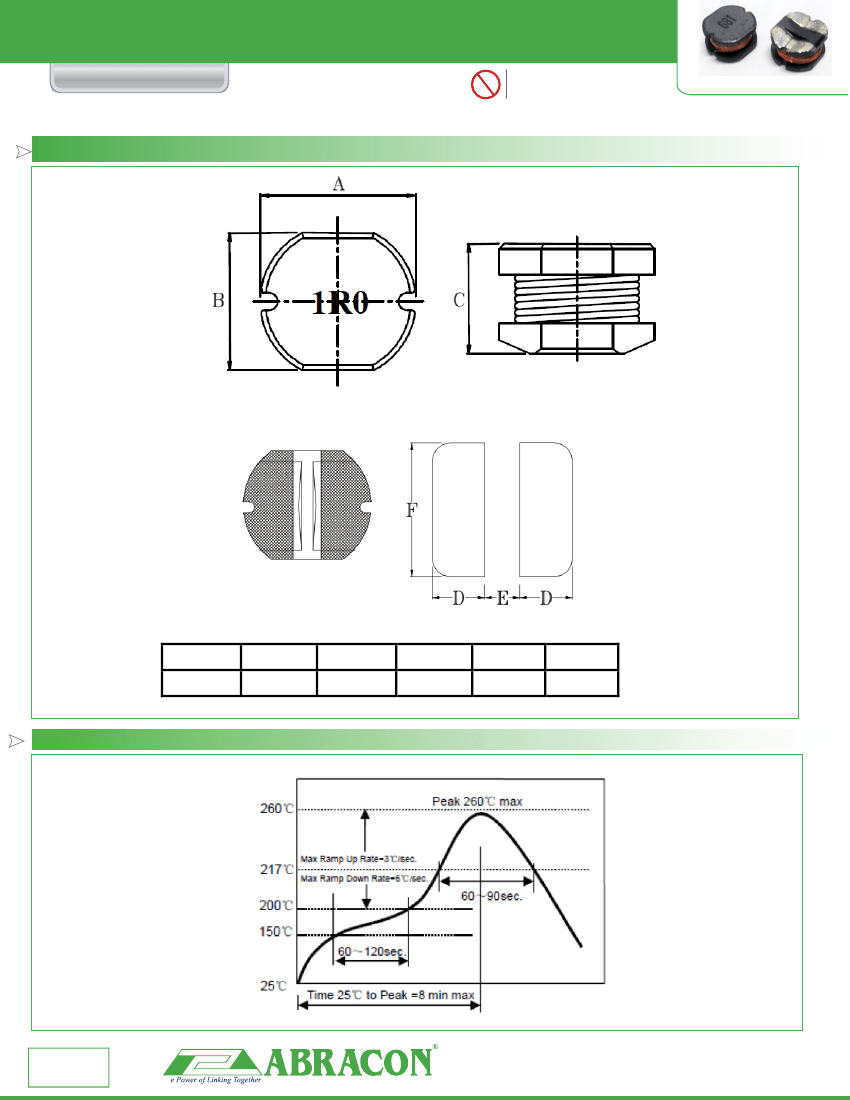

OUTLINE DRAWING:
Pb
RoHS/RoHS II compliant
5.8 x 5.2 x 3.2mm
Recommended Land Pattern
A
5.8±0.3
B
5.2±0.3
C
3.2±0.30
D
1.80
E
1.90
F
5.00
Dimension: mm
REFLOW PROFILE:
ABRACON IS
ISO9001:2008
CE RTIFIED
LLC
2 Faraday, Suite# B
|
Irvine
|
CA 92618
Revised: 11.09.15
Ph. 949.546.8000
|
Fax. 949.546.8001
Visit
www.abracon.com
for Terms and Conditions of Sale
High Current Unshielded, SMD Power Inductors
ASPI-0403H

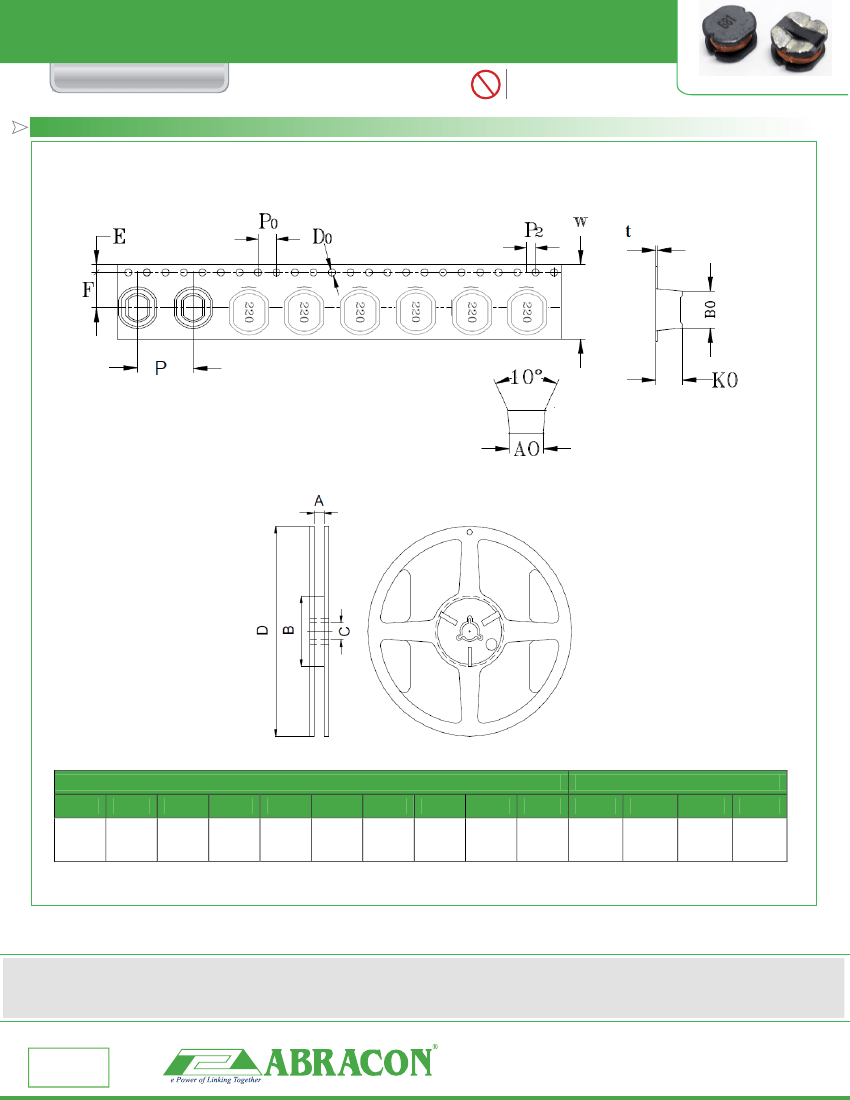

TAPE & REEL:
Packing
Weight:
2,000pcs / tape & reel, 8,000pcs / 4 reels / box
0.4 grams / pcs
Pb
RoHS/RoHS II compliant
5.8 x 5.2 x 3.2mm
Outer carton (optional): 16,000pcs/2 boxes/carton
GW: 16kg/carton
CARRIER TAPE / SIZE (mm)
A0
5.6 ±
0.1
B0
6.2 ±
0.1
K0
3.5 ±
0.1
F
5.5 ±
0.1
E
1.75 ±
0.1
W
12 ±
0.3
P
8±
0.1
Po
4±
0.1
P2
2±
0.1
t
0.35±
0.05
A
12.4 ±
0.2
REEL 13"×24mm
B
100 ±
0.5
C
13.0 ±
0.2
D
330 ±
2.0
Dimension: mm
