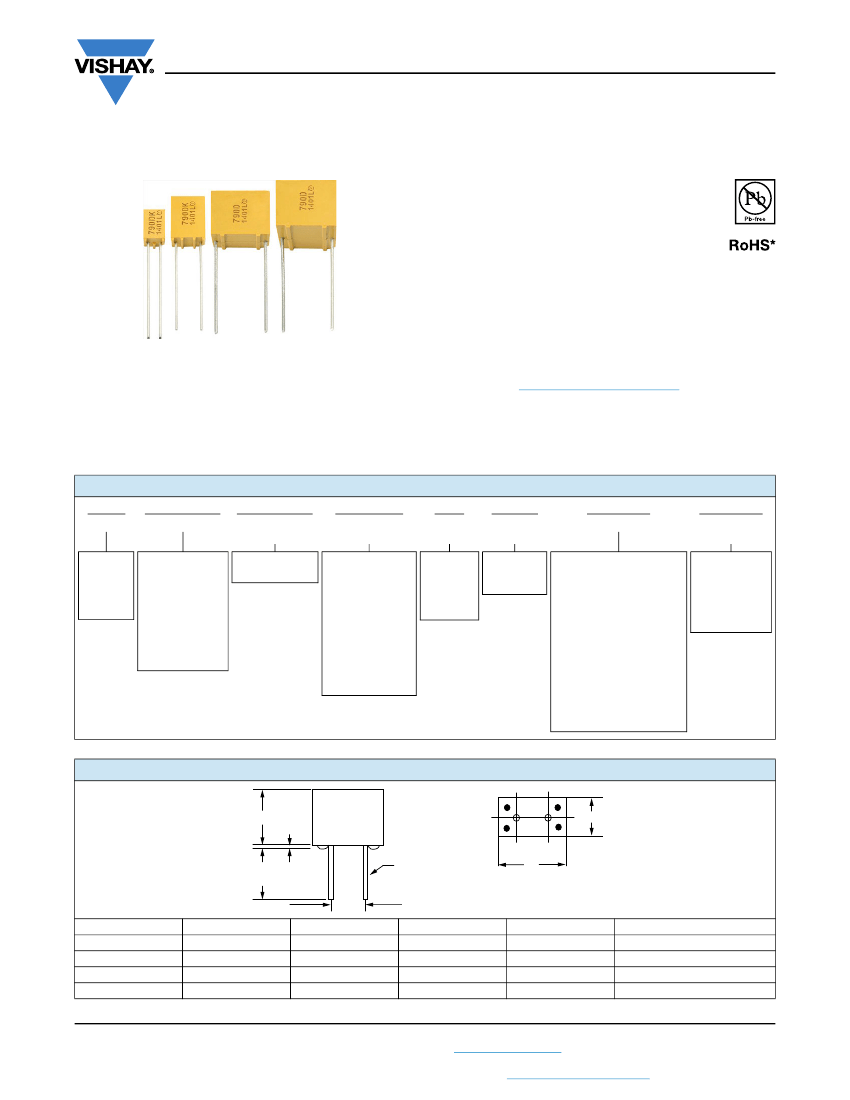

790D
www.vishay.com
Vishay Sprague
Resin-Molded, Radial-Lead
Solid Tantalum Capacitors
FEATURES
• Terminations: tin / lead (SnPb), 100 % tin (Sn)
• Four case sizes precisely molded with a flame
retardant epoxy resin
• Stand off on all case sizes
Available
Available
• Available on tape for automatic insertion equipment (only
A- and B-case, C- and D-case on request)
• Low leakage current
• Low impedance
• Extended value ranges available
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
Note
*
This datasheet provides information about parts that are
RoHS-compliant and / or parts that are non RoHS-compliant. For
example, parts with lead (Pb) terminations are not RoHS-compliant.
Please see the information / tables in this datasheet for details
PERFORMANCE CHARACTERISTICS
Operating Temperature:
-55 °C to +125 °C
(above 85 °C, voltage derating is required)
Capacitance Range:
0.1 μF to 330 μF
Capacitance Tolerance:
± 10 %, ± 20 %
Voltage Rating:
6.3 V
DC
to 50 V
DC
ORDERING INFORMATION
790D
MODEL
790D =
standard
and
extended
range
157
CAPACITANCE
Expressed in
picofarads.
The first two
digits are the
significant
figures. The
third is the
number of
zeros following.
X0
CAPACITANCE
TOLERANCE
X0 = ± 20 %
X9 = ± 10 %
6R3
DC VOLTAGE
RATING
Expressed in
volts. To
complete the
three-digit
block, zeros
precede the
voltage rating.
A decimal
point is indicated
by an “R”
(6R3 = 6.3 V)
C
CASE
CODE
See
Ratings
and Case
Codes
table
2
STYLE
NUMBER
Insulated
case
(standard)
B
PACKAGING
See packing information
B: bulk
G: ammopack
(H = 16.5 mm)
H: ammopack
(H = 18.5 mm)
I: ammopack shouldered
leads (A case)
X: reel pack
(H = 16.5 mm)
Y: reel pack
(H = 18.5 mm)
Z: reel pack shouldered
leads (A case)
E3
RoHS
COMPLIANT
E3 = 100 %
tin termination
(RoHS
compliant)
Blank = SnPb
termination
DIMENSIONS
in inches [millimeters]
H 0.3 mm
MIN.
T
+
Ø
D
12 mm
min.
E
CASE CODE
A
B
C
D
H MAX.
0.287 [7.3]
0.413 [10.5]
0.413 [10.5]
0.413 [10.5]
D MAX.
0.185 [4.7]
0.287 [7.3]
0.484 [12.3]
0.484 [12.3]
T MAX.
0.165 [4.2]
0.189 [4.8]
0.287 [7.3]
0.484 [12.3]
E ± 0.006 [0.15]
0.100 [2.54]
0.200 [5.08]
0.400 [10.16]
0.400 [10.16]
Ø 0.002 [0.05] (+10 %)
0.020 [0.5]
0.020 [0.5]
0.024 [0.6]
0.024 [0.6]
Revision: 19-Jul-17
Document Number: 42072
1
For technical questions, contact:
tantalum@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
790D
www.vishay.com
Vishay Sprague
RATINGS AND CASE CODES
RATED VOLTAGE U
R
AT +85 °C
6.3 V
C
R
(μF)
4.0 V
STD.
0.10
0.15
0.22
0.33
0.47
0.68
1.0
1.5
2.2
3.3
4.7
6.8
10
15
22
33
47
68
100
150
220
330
D
C
C
D
C
C
B
A
B
B
B
C
C
D
C
D
D
A
B
B
B
C
C
A
A
B
B
C
D
A
A
B
B
B
C
B
A
A
A
A
A
A
A
B
B
B
B
B
C
C
C
D
D
A
A
A
A
A/B
B
B
B
B
C
C
C
EXT.
6.3 V
STD.
EXT.
10 V
STD.
EXT.
10 V
16 V
20 V
25 V
35 V
40 V
50 V
CATEGORY VOLTAGE U
C
AT +125 °C
13 V
STD.
EXT.
16 V
STD.
EXT.
23 V
STD.
EXT.
25 V
STD.
A
A
A
EXT.
32 V
STD.
A
A
A
EXT.
STANDARD RATINGS / EXTENDED RATINGS
CAPACITANCE
C
R
(μF)
CASE CODE
PART NUMBER
MAX. DCL
AT +25 °C
(μA)
1.0
1.3
2.9
4.2
9.4
13.8
20.7
MAX. DF
120 Hz, AT +25 °C
(%)
6
6
6
6
6
6
8
MAX. IMPEDANCE
100 kHz, AT +25 °C
(Ω)
4.0
2.1
1.3
1.3
0.6
0.6
0.4
U
R
= 6.3 V
DC
AT +85 °C, SURGE = 8 V; U
C
= 4 V
DC
AT +125 °C, SURGE = 5 V
6.8
22
47
68
150
220
330
A
A
B
B
C
C
D
790D685X(1)6R3A2(2)
790D226X(1)6R3A2(2)
790D476X(1)6R3B2(2)
790D686X(1)6R3B2(2)
790D157X(1)6R3C2(2)
790D227X(1)6R3C2(2)
790D337X(1)6R3D2(2)
Notes
• Part number definitions:
(1) Insert 0 for ± 20 % tolerance or 9 for ± 10 %
(2) See Ordering Information, packaging code
• Extended ratings in bold print
Revision: 19-Jul-17
Document Number: 42072
2
For technical questions, contact:
tantalum@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
790D
www.vishay.com
STANDARD RATINGS / EXTENDED RATINGS
CAPACITANCE
C
R
(μF)
CASE CODE
PART NUMBER
MAX. DCL
AT +25 °C
(μA)
1.0
1.5
3.3
4.7
6.8
10.0
15.0
22.0
1.0
1.0
1.6
2.4
3.5
5.2
7.5
10.8
16.0
16.0
24.0
1.0
1.3
3.0
4.4
9.4
13.6
20.0
1.0
1.1
2.5
3.7
5.5
8.2
11.8
1.2
3.5
11.6
MAX. DF
120 Hz, AT +25 °C
(%)
6
6
6
6
6
6
6
8
6
6
6
6
6
6
6
6
6
6
8
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
MAX. IMPEDANCE
100 kHz, AT +25 °C
(Ω)
4.0
2.5
1.3
1.4
1.3
0.6
0.6
0.4
5.5
4.4
2.7
1.6
1.3
1.6
0.8
0.6
0.7
0.5
0.4
5.5
3.5
1.5
2.1
0.7
0.8
0.7
6.0
4.5
1.6
2.4
2.1
0.8
1.0
6.0
2.6
1.3
Vishay Sprague
U
R
= 10 V
DC
AT +85 °C, SURGE = 13 V; U
C
= 6.3 V
DC
AT +125 °C, SURGE = 8 V
4.7
15
33
47
68
100
150
220
2.2
3.3
10
15
22
33
47
68
100
100
150
2.2
6.8
15
22
47
68
100
1.5
4.7
10
15
22
33
47
3.3
10
33
A
A
B
B
B
C
C
D
A
A
A
B
B
B
C
C
C
D
D
A
A
B
B
C
C
D
A
A
B
B
B
C
D
A
B
C
790D475X(1)010A2(2)
790D156X(1)010A2(2)
790D336X(1)010B2(2)
790D476X(1)010B2(2)
790D686X(1)010B2(2)
790D107X(1)010C2(2)
790D157X(1)010C2(2)
790D227X(1)010D2(2)
790D225X(1)016A2(2)
790D335X(1)016A2(2)
790D106X(1)016A2(2)
790D156X(1)016B2(2)
790D226X(1)016B2(2)
790D336X(1)016B2(2)
790D476X(1)016C2(2)
790D686X(1)016C2(2)
790D107X(1)016C2(2)
790D107X(1)016D2(2)
790D157X(1)016D2(2)
790D225X(1)020A2(2)
790D685X(1)020A2(2)
790D156X(1)020B2(2)
790D226X(1)020B2(2)
790D476X(1)020C2(2)
790D686X(1)020C2(2)
790D107X(1)020D2(2)
790D155X(1)025A2(2)
790D475X(1)025A2(2)
790D106X(1)025B2(2)
790D156X(1)025B2(2)
790D226X(1)025B2(2)
790D336X(1)025C2(2)
790D476X(1)025D2(2)
790D335X(1)035A2(2)
790D106X(1)035B2(2)
790D336X(1)035C2(2)
U
R
= 16 V
DC
AT +85 °C, SURGE = 20 V; U
C
= 10 V
DC
AT +125 °C, SURGE = 13 V
U
R
= 20 V
DC
AT +85 °C, SURGE = 26 V; U
C
= 13 V
DC
AT +125 °C, SURGE = 16 V
U
R
= 25 V
DC
AT +85 °C, SURGE = 32 V; U
C
= 16 V
DC
AT +125 °C, SURGE = 20 V
U
R
= 35 V
DC
AT +85 °C, SURGE = 45 V; U
C
= 23 V
DC
AT +125 °C, SURGE = 29 V
Notes
• Part number definitions:
(1) Insert 0 for ± 20 % tolerance or 9 for ± 10 %
(2) See Ordering Information, packaging code
• Extended ratings in bold print
Revision: 19-Jul-17
Document Number: 42072
3
For technical questions, contact:
tantalum@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
790D
www.vishay.com
STANDARD RATINGS / EXTENDED RATINGS
CAPACITANCE
C
R
(μF)
CASE CODE
PART NUMBER
MAX. DCL
AT +25 °C
(μA)
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.3
1.3
1.8
2.7
4.0
6.0
8.8
13.2
18.8
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.1
1.6
2.3
3.4
5.0
7.5
MAX. DF
120 Hz, AT +25 °C
(%)
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
MAX. IMPEDANCE
100 kHz, AT +25 °C
(Ω)
30.0
24.0
18.0
14.0
11.0
6.5
5.2
4.0
2.8
2.8
2.0
1.6
1.3
1.0
0.8
0.6
0.5
30
24
18
8.0
6.5
6.5
5.2
4.0
2.8
2.0
1.6
1.3
1.0
Vishay Sprague
U
R
= 40 V
DC
AT +85 °C, SURGE = 52 V; U
C
= 25 V
DC
AT +125 °C, SURGE = 32 V
0.10
0.15
0.22
0.33
0.47
1.0
1.5
2.2
3.3
3.3
4.7
6.8
10
15
22
33
47
0.10
0.15
0.22
0.68
1.0
1.0
1.5
2.2
3.3
4.7
6.8
10
15
A
A
A
A
A
A
B
B
A
B
B
B
C
C
C
D
D
A
A
A
A
A
B
B
B
B
B
C
C
C
790D104X(1)040A2(2)
790D154X(1)040A2(2)
790D224X(1)040A2(2)
790D334X(1)040A2(2)
790D474X(1)040A2(2)
790D105X(1)040A2(2)
790D155X(1)040B2(2)
790D225X(1)040B2(2)
790D335X(1)040A2(2)
790D335X(1)040B2(2)
790D475X(1)040B2(2)
790D685X(1)040B2(2)
790D106X(1)040C2(2)
790D156X(1)040C2(2)
790D226X(1)040C2(2)
790D336X(1)040D2(2)
790D476X(1)040D2(2)
790D104X(1)050A2(2)
790D154X(1)050A2(2)
790D224X(1)050A2(2)
790D684X(1)050A2(2)
790D105X(1)050A2(2)
790D105X(1)050B2(2)
790D155X(1)050B2(2)
790D225X(1)050B2(2)
790D335X(1)050B2(2)
790D475X(1)050B2(2)
790D685X(1)050C2(2)
790D106X(1)050C2(2)
790D156X(1)050C2(2)
U
R
= 50 V
DC
AT +85 °C, SURGE = 65 V; U
C
= 32 V
DC
AT +125 °C, SURGE = 41 V
Notes
• Part number definitions:
(1) Insert 0 for ± 20 % tolerance or 9 for ± 10 %
(2) See Ordering Information, packaging code
• Extended ratings in bold print
Revision: 19-Jul-17
Document Number: 42072
4
For technical questions, contact:
tantalum@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
790D
www.vishay.com
Vishay Sprague

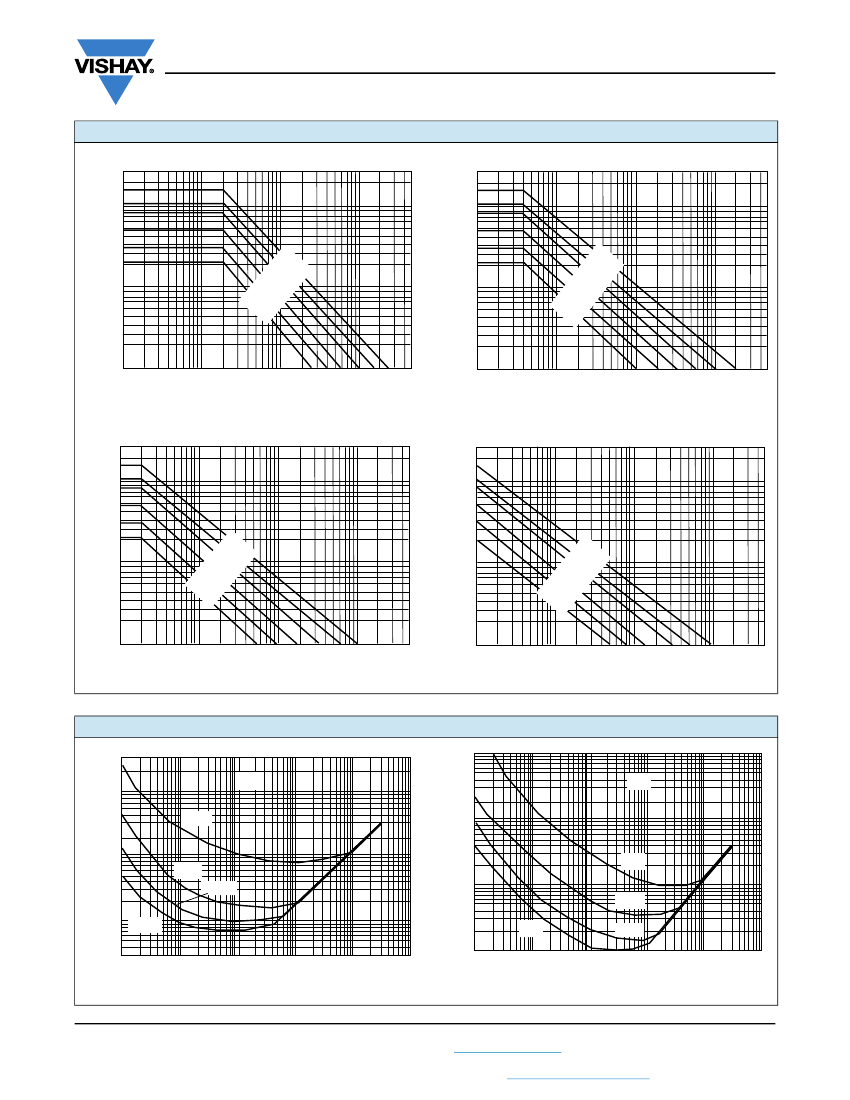

MAXIMUM PERMISSIBLE RIPPLE VOLTAGE AT +25 °C
CASE SIZE “A”
30
20
10
7
5
3
2
1
0.7
0.5
0.3
0.2
0.1
0.1K
0.5
1K
5
10K
50
100K
500
30
20
10
7
5
3
2
1
0.7
0.5
0.3
0.2
0.1
0.1K
0.5
1K
5
10K
50
100K
500
5
35 0 V
/4
2 0V
16 5 V
1 V
6. 0 V
3V
CASE SIZE “B”
35 50
/ V
25 40 V
16 V
10 V
6. V
3V
U
rms
FREQUENCY IN Hz
CASE SIZE “C”
30
20
10
7
5
3
2
1
0.7
0.5
0.3
0.2
0.1
0.1K
0.5
1K
5
10K
50
100K
500
30
20
10
7
5
3
2
1
0.7
0.5
0.3
0.2
0.1
0.1K
0.5
1K
U
rms
FREQUENCY IN Hz
CASE SIZE “D”
5
35 0 V
/4
2 0
16 5 V V
10 V
6. V
3V
U
rms
U
rms
35 50
/ V
25 40
V
16 V
V
10
6. V
3V
5
10K
50
100K
500
FREQUENCY IN Hz
FREQUENCY IN Hz
TYPICAL CURVES OF IMPEDANCE VS FREQUENCY
30
6.3 V
10
6.8 µF
100
35 V
10
Ω
1
47 µF
150 µF
0.1
Ω
1 µF
1
6.8 µF
330 µF
47 µF
0.1
22 µF
1K
10K
100K
1M
10M
100M
1K
10K
100K
1M
10M
100M
FREQUENCY IN Hz
FREQUENCY IN Hz
Revision: 19-Jul-17
Document Number: 42072
5
For technical questions, contact:
tantalum@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
京公网安备 11010802033920号
EEWORLD
