Film capacitors – AC capacitors
B33360 / 61/ 62 / 64
EPCOS Feida Motor Run CapacitorsCBB66 - Single Capacitor P2 Aluminum Can Oval

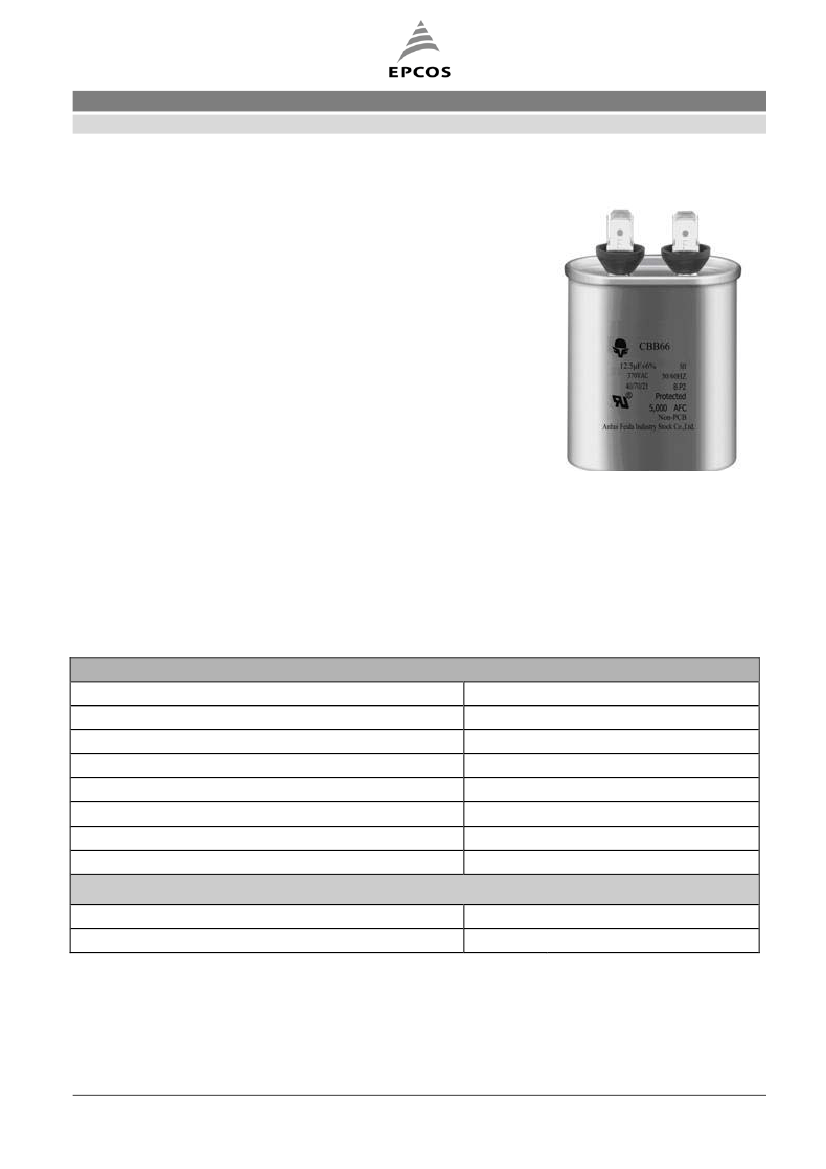

Construction
Dielectric: polypropylene film
Electrode: Metallized film
Aluminum can, metal top
Filling material: Vegetable oil, PCB free
Insulator material as per IEC 60335-1
Features
Self-healing properties
Low dissipation factor
Overpressure disconnection device
Highest safety level P2 to IEC 60252-1 2001-02
High insulation resistance
IEC/EN 60335 compatible
Typical applications
For general sine wave applications,
mainly as motor run capacitor
Terminals
1+1, 2+2, 2+4, 4+4 fast-on terminal #250 style
Technical data and specifications
Reference standards
Safety class to IEC 60252-1 2001-02
Life expectancy to IEC 60252 2001
Life expectancy to EIA 456 A Jan. 89
Rated capacitance C
R
Tolerance
Rated voltage V
R
Rated frequency f
R
Maximum ratings
Maximum permissible voltage V
max
Maximum permissible current I
max
1.1 · V
R
1.3 · I
R
(V
R
= Rated voltage)
(I
R
= Rated current)
UL 810 / IEC 60252-1 / EIA 456 A Jan.89
P2
250 … 450V:
3…..50µF
±5%
other tolerances on request
250 / 370 / 400 / 450VAC
50/60 Hz
10 000h (Class B)
60 000 hours at 95% survival rate
NG FK PE
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 2 of 9
November 2009
Film capacitors – AC capacitors
B33360 / 61/ 62 / 64
EPCOS Feida Motor Run CapacitorsCBB66 - Single Capacitor P2 Aluminum Can Oval
Test data
AC test voltage terminal to terminal V
TT
Insulation voltage terminals to case
Insulation resistance R
ins
or time constant
τ
at 20 °C, rel. Humidity
≤
65%
(minimum as-delivered values)
Dissipation factor tan
δ
at 20 °C
Maximum rate of voltage rise dV/dt
max
Climatic data
Climatic category
Lower category T
min
Upper category T
max
Damp heat test t
test
Ball pressure test to IEC 60309-1 sec. 27.3
UL 94 specification
Glow wire test to IEC60335-1 / IEC 60695-2-1/1
Test temperature 550 °C for I
R
≤
0.5A and 750 °C for
I
R
＞0.5A
Compatibility to RoHS
Compliance to directive 2002/95/EC
40/070/21
-40 °C
+70 °C
21 days
20 N at 125°C
V0 compatible
Self-extinguishing within 2 seconds of
withdrawing glow wire
2.0 · V
R
, 10 s
3000 V AC, 2 s
10000 MΩ‧μF
≤
2.0 · 10
-3
(100 Hz)
10 V/μs
Mechanical and thermal properties of insulation terminal material
Approvals: See table for approved ratings
C
US UL 810 files E241095
250/300/370/400450Vac
Protected up to 5000 AFC
-10,000 AFC under approval
NG FK PE
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 3 of 9
November 2009
Film capacitors – AC capacitors
B33360 / 61/ 62 / 64
EPCOS Feida Motor Run CapacitorsCBB66 - Single Capacitor P2 Aluminum Can Oval

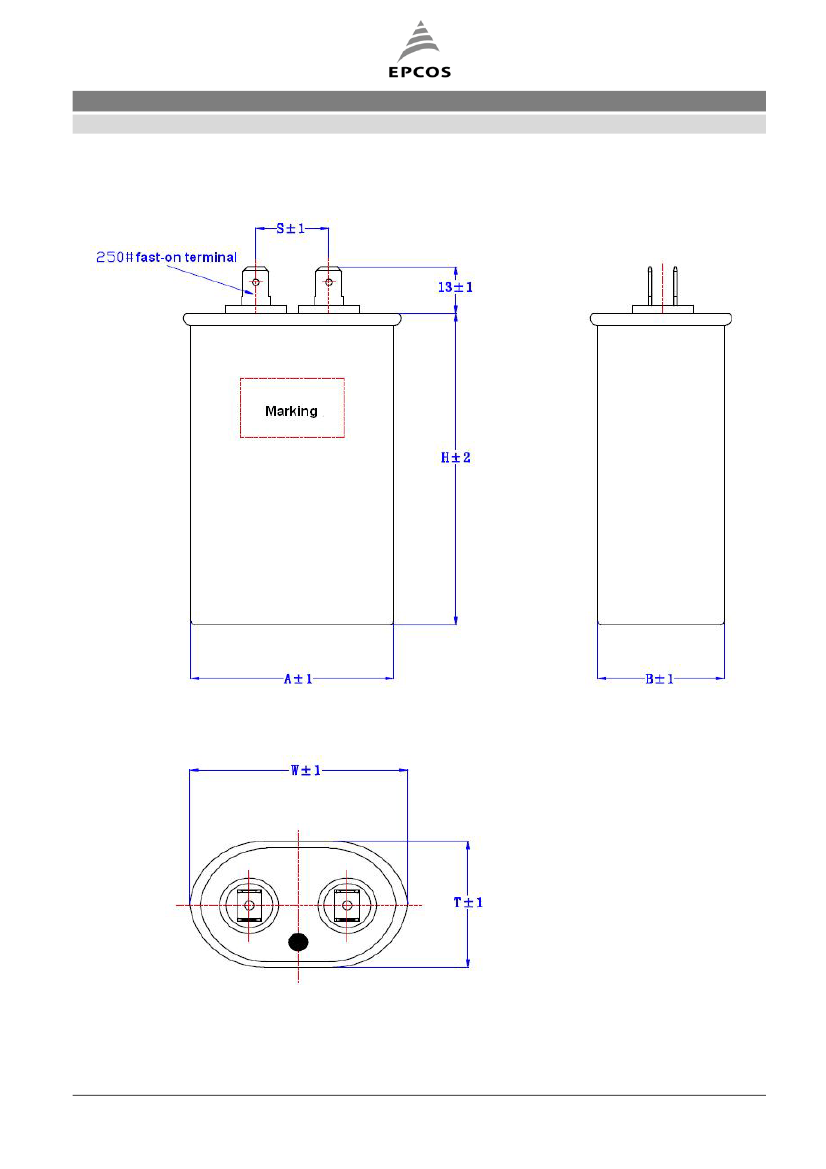

Dimensional drawings CBB 66 (B3336*) series
NG FK PE
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 4 of 9
November 2009
Film capacitors – AC capacitors
B33360 / 61/ 62 / 64
EPCOS Feida Motor Run CapacitorsCBB66 - Single Capacitor P2 Aluminum Can Oval

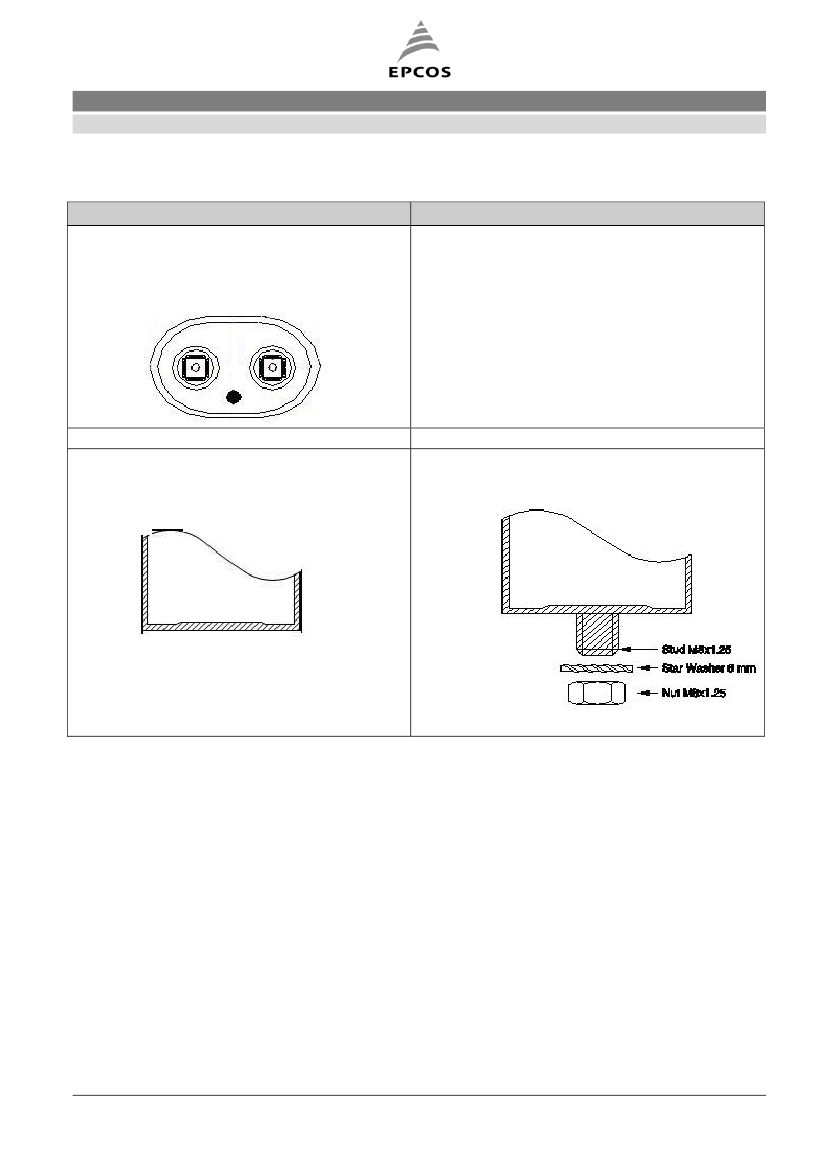

Terminal option
0
1
2
4
1+1 fast-on terminals
2+4 fast-on terminals
2+2 fast-on terminals
4+4 fast-on terminals
50 – Flat Oval Aluminum Can
70 – M8 bolt: Oval Aluminum Can
NG FK PE
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 5 of 9
November 2009
