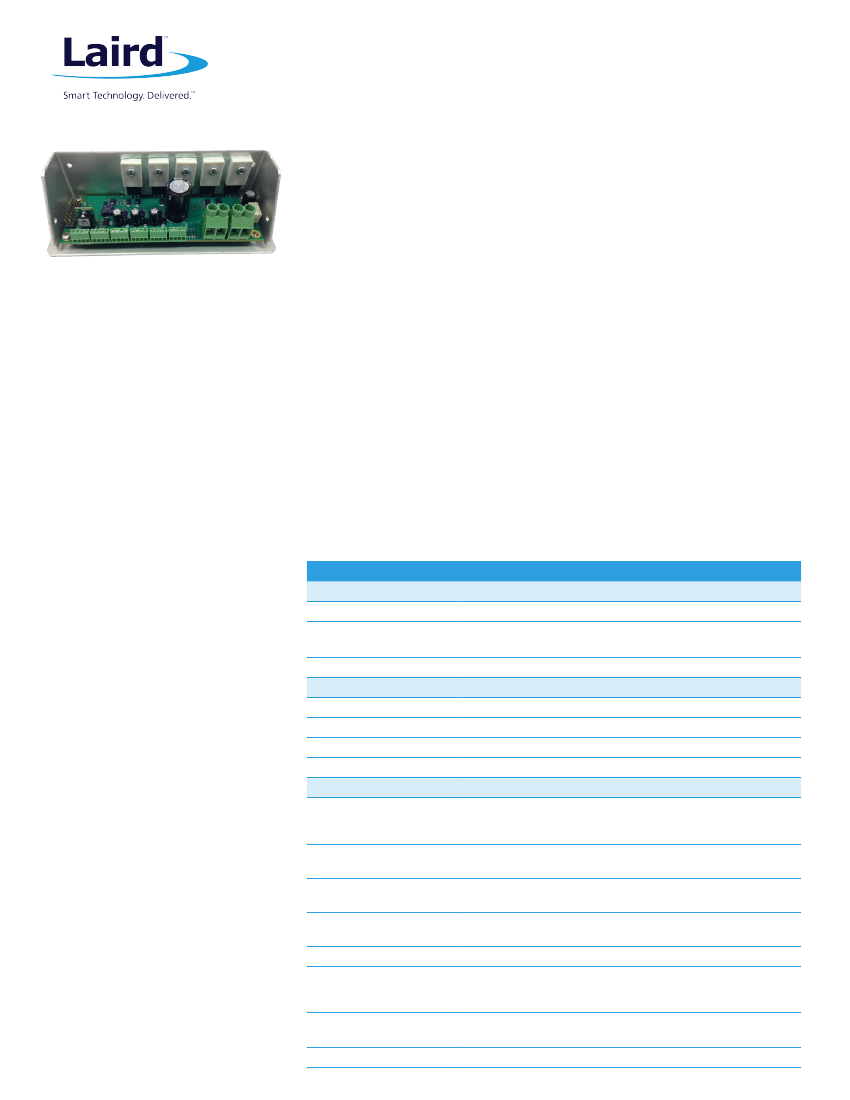

Temperature Controller
The TC-XX-SR-54 temperature controller is a microcontroller based device that can be incorporated
into a thermoelectric assembly (TEA) to add integrated temperature control. The TC-XX-SR-54 is a
bi-polar temperature controller for cooling/heating of thermoelectric assemblies requiring precise
temperature control accuracy. The TC-XX-SR-54 has 3 programmable fan outputs, alarm output relay,
alarm condition LEDs. The parameters will be programmed at the factory according to the customer
requirements. Custom configurations are available, however MOQ applies.
• Operation in cooling and heating modes
• Regulation mode is ON/OFF, PID, Power
• Input power range can accommodate
16 to 60 VDC, nominally 16 to 48 VDC
• Preprogrammed set points
• Contacts are available for fans,
thermoelectric modules, NTC thermistor
sensor, overheating thermostat switch,
alarms; some features sold on custom
configurations only
• USB communication interface
•
•
•
•
TC-XX-SR-54
FEATURES
MARKETS
Battery Backup Cabinets
Medical diagnostics
Analytical instrumentation
Chillers (liquid cooling)
PERFORMANCE
Power
Voltage
Current
Power
Sensors
Temp Sensor
Fan Internal 1 Tachometer
Fan Internal 2 Tachometer
Fan External Tachometer
Outputs
Thermoelectric Module
• Standalone operation
• Control temperature, from -20°C to +100°C
(-4°F to +212°F) with the standard NTC sensor
• Temperature resolution of max 0.13°C (-10°C to
+50°C)
• Use with NTC sensors only
• Pulse width modulation of output: (Base
frequency of 8 kHz)
• Control stability of ±0.13°C (-10° to +50°C)
• Three alarm temperature sensor inputs with
adjustable alarm set points
• Alarm relay output, normally closed (will open
on alarm): 1A at 125VAC/110VDC
• Adjustable fan speed
• Tachometer sensor inputs provided to measure
the speed of one external and two internal fans
• Overheating thermostat switch input available
to sense an over temperature condition that will
turn off power to TEA/fans and microcontroller;
a thermostat is required for operation
• Alarm LED outputs available indicate type of failure
SPECIFICATIONS
BENEFITS
16 to 60 VDC
Max 20A Continuous @ 50°C ambient @ 28VDC
Max 12A Continuous @ 50°C ambient @ 60VDC
560W @ 28VDC MAX, 720W @60VDC Max
NTC thermistor, 3 temperature sensor inputs available
Use with fans w/ an open collector tachometer
Use with fans w/ an open collector tachometer
Use with fans w/ an open collector tachometer
Max 15A Continuous @ 50°C ambient @ 28VDC
Max 10A Continuous @ 50°C ambient @ 60VDC
PWM output at 8KHz
Max 1A Continuous @ 50°C ambient @ 28VDC
Max 0.5A Continuous @ 50°C ambient @ 60VDC
Max 1A Continuous @ 50°C ambient @ 28VDC
Max 0.5A Continuous @ 50°C ambient @ 60VDC
Max 2.5A Continuous @ 50°C ambient @ 28VDC
Max 1.25A Continuous @ 50°C ambient @ 60VDC
15V, 1KHz
Default:
Relay with 3 contacts (NO,NC, COM) Contact max current is
1A at 125VAC/110VDC
Optional:
Optocouple isolated NO/NC: 2 contacts
External Overheating protection thermostat of 15V, 0.5A can be
connected (optional)
Status/Errors
Fan Internal 1
Fan Internal 2
Fan External
PWM output for FANs
Alarm Relay
Americas: +1 919.597.7300
Europe: +46.31.420530
Asia: +86.755.2714.1166
ets.sales@lairdtech.com
www.lairdtech.com
Overheating Thermostat
LED

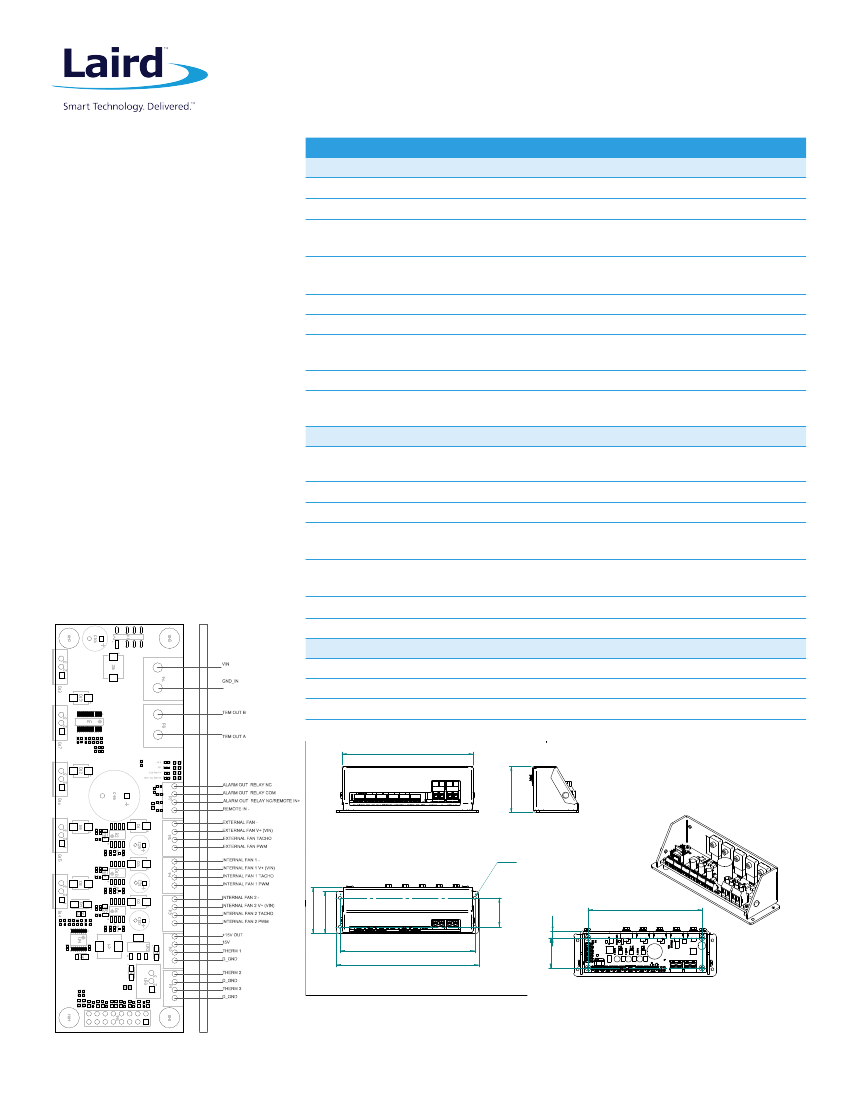

Temperature Controller
PERFORMANCE
Alarms
Low Voltage
High Voltage
Battery Delimiter
Tachometer Int Fan 1 & 2,
Ext Fan
Fan Failure/Missing
Fan Overcurrent
Temperature Sensors 1,2/3
short/open/out of range
TEM Over Current/Missing
Alarms if the input voltage is lower than the programmed minimum level
Alarms if the input voltage is above the programmed maximum level
Turns on the modules and fans only if battery voltage is above DELIM_H
value and turns off everything if battery voltage drops below DELIM_L
If the RPM signal is lower/higher than the programmed minimum/
maximum level, error is indicated and outputs can be turned off
If fan rotor fails, fault is indicated
If fan draws over current, fault is indicated
If the temperature sensors are short/open or out of range,
fault is detected and outputs can be turned off
Fault is indicated and fans outputs can be turned off
TC-XX-SR-54
SPECIFICATIONS
Note: All programming of parameters are conducted by Laird. For any or all of the above fault condition/s, controller can be
programmed to trigger the alarm relay and TEM/ Fan outputs can be programmed to be turned off
Temperature Regulation
ON/OFF mode (dual set
point)
PID mode ( single set point)
PID mode ( Dual set point)
Power mode
Programmable Control
Set Point/s
Temperature resolution
Accuracy
Protection
Over and under voltage
Reverse polarity
Self start up test
Controller switches the TEM output between full power and zero
power at the programmed set point and hysteresis
Controller can be selected to switch between P, PI, PD or PID modes
Controller can be selected to switch between P, PI, PD or PID modes
Depending on the value of external potentiometer the output
can be controlled
Can be programmed at any value between -40°C to +100°C
Max resolution of ± 0.13°C (set point range of -10°C to +50°C)
±0.5°C
Yes
Yes
For testing fans, modules and temperature sensor on start up (optional)
TC-XX-SR-54_050415
