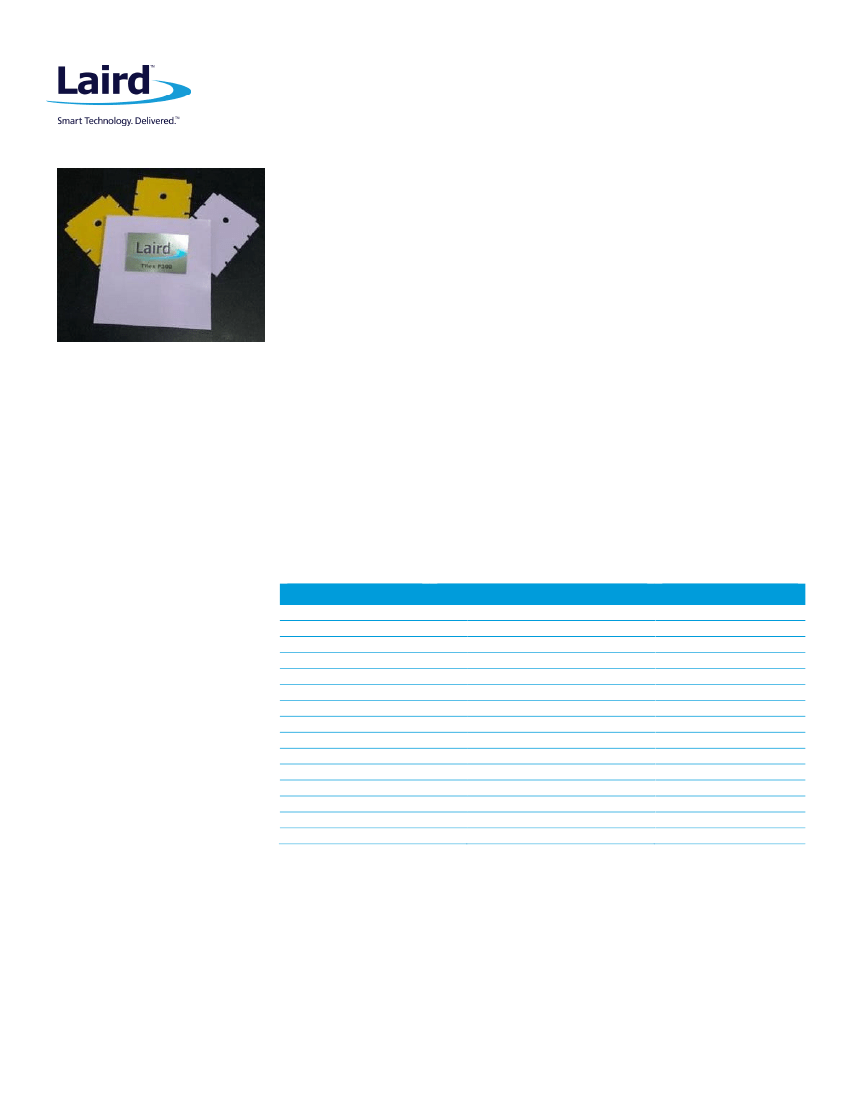

Tflex
TM
P300 Series
Polyimide Lined Gap Filler
Product Description
Laird Tflex® P300 is a soft and compliant gap filler with an integrated polyimide liner. Laird
has leveraged its vast experience and knowledge in the development of thermally conductive
materials to develop a soft and compliant gap filler that minimizes contact resistance and
board level stresses. In conjunction with these key traits Laird understands that not all
applications are the same. As a result, Tflex P300 comes with a unique and integrated polyimide
film on one side. This liner provides numerous application benefits like electrical isolation,
placement ease during assembly, and tear resistance for applications that require shear.
FEATURES AND BENEFITS
•
•
•
•
•
•
•
Compliant nature minimizes contact resistance
Integrated polyimide film provides dielectric strength
Resistance to burrs and mechanical forces
Resistant to shear forces.
Thermal Conductivity of 3 W/mK
Contrasting color allows integration with vision system
Low silicone bleed
SPECIFICATIONS
TYPICAL PROPERTIES
Construction & Composition
Color
Thickness Range
Thickness Tolerance
Thermal Conductivity (W/mK)
Density (g/cc)
Hardness (Shore 00)
Outgassing TML (weight %)
Outgassing CVCM (weight %)
Temperature Range
Rth@ 40 mils, 10 psi
Dielectric Constant @ 1 MHz
UL Flammability Rating
Volume Resistivity
Breakdown Voltage
VALUE
Polyimide lined elastomer
Purple
0.50mm (0.020”) 5.0mm (0.20”)
+/- 10%
3.0
3.10
30
0.2
0.05
-40°C to 125°C
0.592
°C–in2/W
4.6
V-0
2 x 10
^14
ohm-cm
>5KV
TEST METHOD
N/A
Visual
N/A
N/A
ASTM D5470
Helium Pycnometer
ASTM D2240
ASTM E595
ASTM E595
Laird Test Method
ASTM D5470 (Modified)
ASTM D150
UL-94
ASTM D257
ASTM D149
Americas: +1.866.928.8181
Europe: +49.(0).8031.2460.0
Asia: +86.755.2714.1166
www.lairdtech.com
Tflex
TM
P300 Series
Polyimide Lined Gap Filler

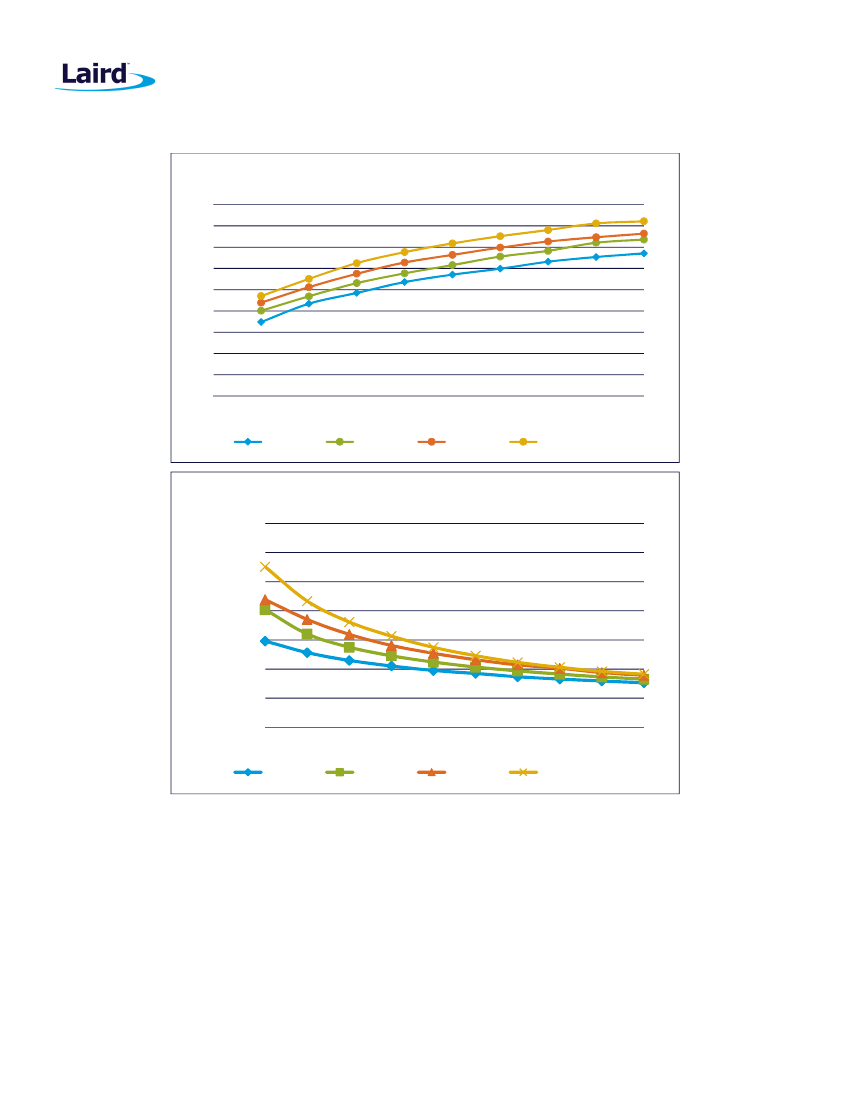

Tflex P300 Deflection vs Pressure
90%
80%
70%
60%
50%
40%
30%
20%
10%
0%
10 psi
20 psi
30 psi
40 psi
50 psi
60 psi
70 psi
80 psi
90 psi 100 psi
Tflex P340
Tflex P360
Tflex P380
Tflex P3100
Tflex P300 Thermal Resistance vs Pressure
1.400 C-in2/W
1.200 C-in2/W
1.000 C-in2/W
0.800 C-in2/W
0.600 C-in2/W
0.400 C-in2/W
0.200 C-in2/W
0.000 C-in2/W
10 psi 20 psi 30 psi 40 psi 50 psi 60 psi 70 psi 80 psi 90 psi 100 psi
Tflex P340
Tflex P360
Tflex P380
Tflex P3100
AVAILABILITY
STANDARD THICKNESSES
•
0.5mm (0.020”) to 5.0mm (0.200”) thick material available in 0.25mm (0.010”) increments
•
Available in standard sheet sizes of 18” x 18” and 9” x 9” or custom die cut parts
PART NUMBER SYSTEM
Tflex™ indicates Laird elastomeric thermal gap filler product line. P3xxx indicates Tflex P300 product line with thickness in mils (0.001”)
EXAMPLES:
•
Tflex™ P340 = 0.040” thick Tflex™ P300 material
A17801-00
Tflex P300 DS 110317
A
ny information furnished by Laird Technologies, Inc. and its agents is believed to be accurate and reliable. All specifications are subject to change without notice. Responsibility for the use and application of Laird Technologies materials rests with the end
user. Laird Technologies makes no warranties as to the fitness, merchantability, suitability or non- infringement of any Laird Technologies materials or products for any specific or general uses. Laird Technologies shall not be liable for incidental or
consequential damages of any kind. All Laird Technologies products are sold pursuant to the Laird Technologies’ Terms and Conditions of sale in effect from time to time, a copy of which will be furnished upon request. © Copyright 2015 Laird Technologies,
Inc. All Rights Reserved. Laird, Laird Technologies, the Laird Technologies Logo, and other marks are trademarks or registered trademarks of Laird Technologies, Inc. or an affiliate company thereof. Other product or service names may be the property of third
parties. Nothing herein provides a license under any Laird Technologies or any third party intellectual property rights.
