BDN153CBA01 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Thermal management products> BDN153CBA01

Preview

BDN153CBA01: DescriptionHeat Sinks IERC Heat Sink 1.51x1.51x0.355; CategoryThermal management products; File Size171KB，1 Pages; ManufacturerTusonix / CTS; Environmental Compliance

Download Datasheet Parametric Compare View All

BDN153CBA01 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BDN153CBA01	-	-	View	Buy Now

BDN153CBA01 Overview

Heat Sinks IERC Heat Sink 1.51x1.51x0.355

BDN153CBA01 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Tusonix / CTS
Product Category	Heat Sinks
RoHS	Details
Product	Heat Sinks
Mounting Style	Adhesive
Heatsink Material	Aluminum
Fin Style	Vertical Fin
Thermal Resistance	15.1 C/W
Length	38.35 mm
Width	38.35 mm
Height	9.02 mm
Designed for	BGA, PGA, PLCC, QFP
Color	Black
Packaging	Bulk
Factory Pack Quantity	1000

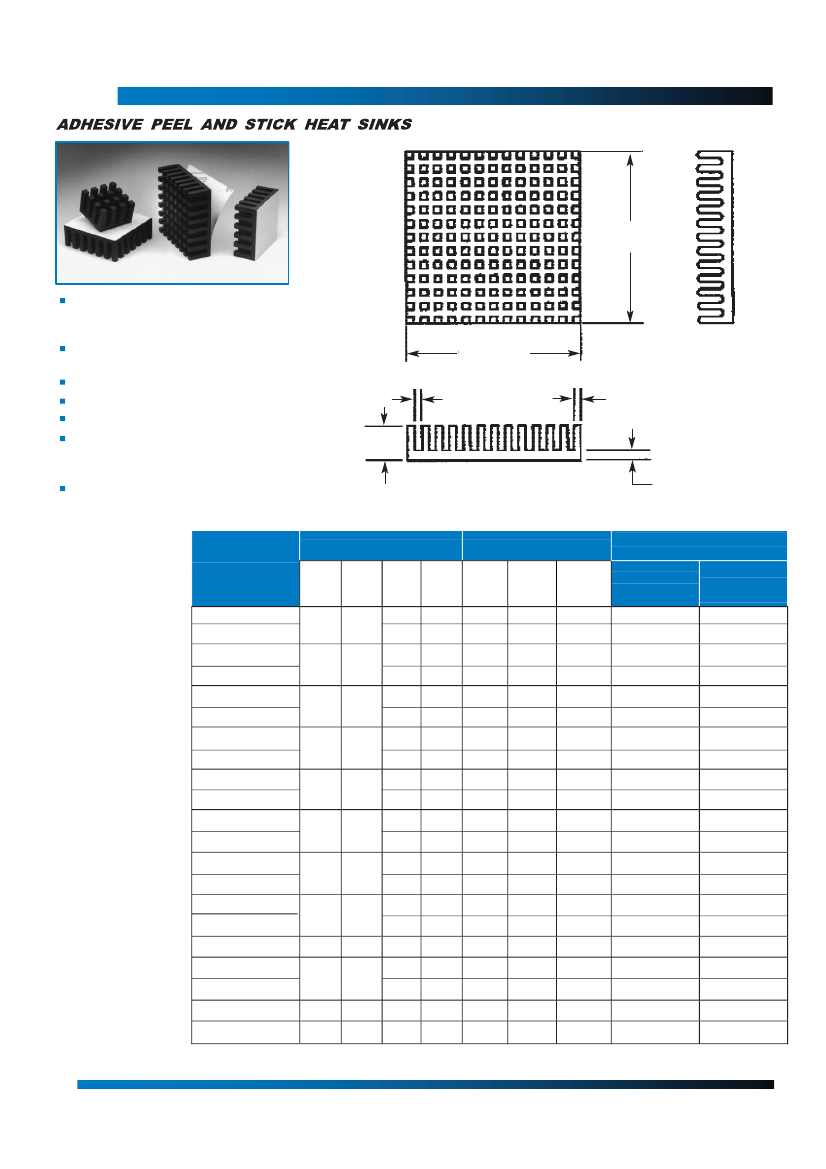

Preview

Download Datasheet

View All

CTS

®

W±0.01

With pre-applied adhesive, just peel

off the release liner and press onto the

component

Reduces assembly costs; no more

messy adhesives or greases required

Excellent mechanical bond

Thermally optimized pin fin

Omnidirectional

Adhesive shear strength at 100°C is

36psi (a one inch square heat sink would

require a 36lb. force to remove heat sink)

Applicable for BGA, PGA, PLCC,

and QFP packages

L±0.01

G±0.01

P±0.01

H±0.015

T±0.01

SIZE

PART NUMBER***

PIN FIN CONFIGURATION

THERMAL RESISTANCE CASE

TO AMBIENT* °C/WATTS

NATURAL

CONVECTION**

26.9

24.5

26.4

20.8

20.9

18.5

19.6

16.5

16.1

14.9

16.2

13.1

15.1

11.9

13.5

10.6

11.5

10.8

8.1

9.9

8.5

FORCED

CONVECTION

@ 400 LFPM

9.6

7.7

8.0

6.3

7.2

5.7

6.8

5.2

6.0

4.7

5.6

4.2

4.5

3.8

4.5

3.5

3.8

3.5

2.8

2.9

2.6

(W)

BDN09-3CB/A01

BDN09-6CB/A01

BDN10-3CB/A01

BDN10-5CB/A01

BDN11-3CB/A01

BDN11-6CB/A01

BDN12-3CB/A01

BDN12-5CB/A01

BDN13-3CB/A01

BDN13-5CB/A01

BDN14-3CB/A01

1.41

1.31

1.21

1.11

1.01

0.91

(L)

0.91

(H)

.355

.605

T

.09

.10

.09

.10

.09

.10

.09

.10

.09

.10

.09

.10

.09

.10

.09

.10

.09

.10

.09

P

.069

.132

.083

.111

.076

.119

.060

.105

.074

.125

.067

.128

.062

.118

.072

.119

.065

.072

.128

.069

.064

G

.072

.128

.072

.114

.072

.128

.081

.114

.081

.114

.081

.128

.081

.114

.081

.128

.072

.114

.072

FIN

MATRIX

7x7

4x4

7x7

5x5

8x8

5x5

9x9

6x6

9x9

6x6

10x10

6x6

11x11

7x7

11x11

7x7

13x13

8x8

14x14

16x16

1.01

.355

.555

1.11

.355

.605

1.21

.355

.555

1.31

.355

.555

1.41

.355

.605

NOTES:

BDN14-6CB/A01

BDN15-3CB/A01

BDN15-5CB/A01

BDN16-3CB/A01

BDN16-6CB/A01

BDN17-3CB/A01

BDN18-3CB/A01

BDN18-6CB/A01

BDN19-3CB/A01

BDN21-3CB/A01

1.91

2.11

1.91

2.11

1.71

1.81

1.71

1.81

1.61

1.51

*

Thermal resistance

of adhesive tape is

included.

.355

.555

.355

.605

.355

.605

.355

**

Thermal resistance

values based on

power density of

3 watts/in

2

***

Part numbers

listed for standard

black anodized

heat sinks with

CTS adhesive

tapes.

6

All dimensions are in inches.

BDN153CBA01 Related Products

	BDN153CBA01	BDN103CBA01	BDN17-3CB/A01	BDN113CBA01	BDN123CBA01	BDN125CBA01	BDN183CBA01	BDN133CBA01	BDN163CBA01
Description	Heat Sinks IERC Heat Sink 1.51x1.51x0.355	Heat Sinks IERC Heat Sink 1.01x1.01x0.355	Heat Sinks BLK ANODIZED HEAT SINK	Heat Sinks IERC Heat Sink 1.11x1.11x0.355	Heat Sinks IERC Heat Sink 1.21x1.21x0.355	Heat Sinks IERC Heat Sink 1.21x1.21x0.555	Heat Sinks IERC Heat Sink 1.81x1.81x0.355	Heat Sinks IERC Heat Sink 1.31x1.31x0.355	Heat Sinks IERC Heat Sink 1.61x1.61x0.355
Product Attribute	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value
Manufacturer	Tusonix / CTS	Tusonix / CTS	Tusonix / CTS	Tusonix / CTS	Tusonix / CTS	Tusonix / CTS	Tusonix / CTS	Tusonix / CTS	Tusonix / CTS
Product Category	Heat Sinks	Heat Sinks	Heat Sinks	Heat Sinks	Heat Sinks	Heat Sinks	Heat Sinks	Heat Sinks	Heat Sinks
Product	Heat Sinks	Heat Sinks	Heat Sinks	Heat Sinks	Heat Sinks	Heat Sinks	Heat Sinks	Heat Sinks	Heat Sinks
Mounting Style	Adhesive	Adhesive	Adhesive	Adhesive	Adhesive	Adhesive	Adhesive	Adhesive	Adhesive
Heatsink Material	Aluminum	Aluminum	Aluminum Alloy	Aluminum	Aluminum	Aluminum	Aluminum	Aluminum	Aluminum
Thermal Resistance	15.1 C/W	26.4 C/W	11.5 C/W	20.9 C/W	19.6 C/W	16.5 C/W	10.8 C/W	16.1 C/W	13.5 C/W
Length	38.35 mm	25.65 mm	43.43 mm	28.19 mm	30.73 mm	30.73 mm	45.97 mm	33.27 mm	40.89 mm
Width	38.35 mm	25.65 mm	43.43 mm	28.19 mm	30.73 mm	30.73 mm	45.97 mm	33.27 mm	40.89 mm
Height	9.02 mm	9.02 mm	9.02 mm	9.02 mm	9.02 mm	14.1 mm	9.02 mm	9.02 mm	9.02 mm
Designed for	BGA, PGA, PLCC, QFP	BGA, PGA, PLCC, QFP	BGA, PGA, PLCC, QFP	BGA, PGA, PLCC, QFP	BGA, PGA, PLCC, QFP	BGA, PGA, PLCC, QFP	BGA, PGA, PLCC, QFP	BGA, PGA, PLCC, QFP	BGA, PGA, PLCC, QFP
Color	Black	Black	Black	Black	Black	Black	Black	Black	Black
Packaging	Bulk	Bulk	Tray	Bulk	Bulk	Tray	Bulk	Tray	Bulk
Factory Pack Quantity	1000	1000	1000	1000	1000	1000	1000	1000	1000
RoHS	Details	Details	-	Details	Details	Details	Details	Details	Details
Fin Style	Vertical Fin	Vertical Fin	-	Vertical Fin	Vertical Fin	Vertical Fin	Vertical Fin	Vertical Fin	Vertical Fin
