OD1238-12HB-VXC datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Thermal management products> OD1238-12HB-VXC

Preview

OD1238-12HB-VXC: DescriptionDC Fans Fan, 120x38mm, 12VDC 226CFM, Ball; CategoryThermal management products; File Size258KB，1 Pages; ManufacturerOrion Fans; Websitehttp://www.orionfans.com; Environmental Compliance

Download Datasheet Parametric Compare View All

OD1238-12HB-VXC Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	OD1238-12HB-VXC	-	-	View	Buy Now

OD1238-12HB-VXC Overview

DC Fans Fan, 120x38mm, 12VDC 226CFM, Ball

OD1238-12HB-VXC Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Orion Fans
Product Category	DC Fans
RoHS	Details
Type	Axial
Operating Supply Voltage	12 VDC
Airflow	226 CFM
Speed	5000 RPM
Pressure Type	1.35 in H2O
Bearing Type	Ball
Noise	65 dBA
Housing Material	Plastic
Termination Style	Wire Leads
Product	DC Fans
Size	120 mm x 38 mm
Current Type	DC
Factory Pack Quantity	1

Preview

Download Datasheet

View All

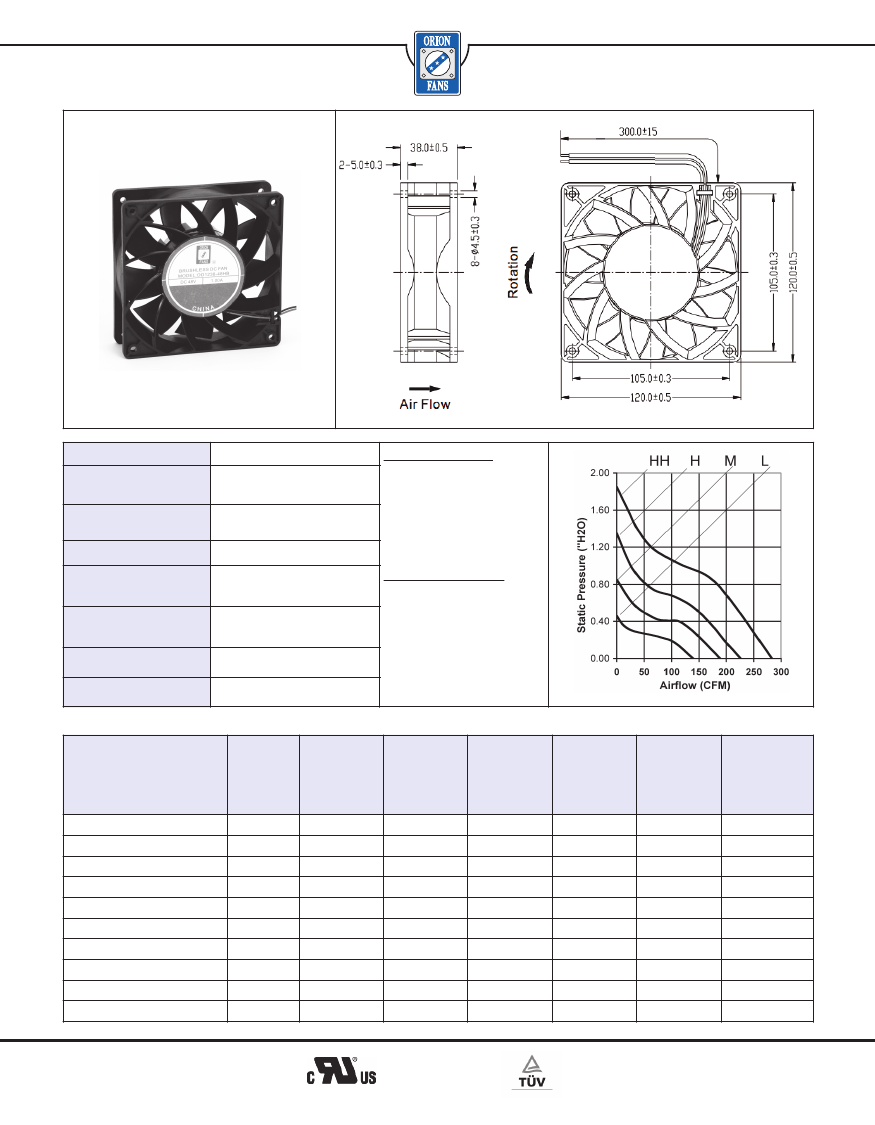

OD1238 VA Series

DC Fan Vane Axial High Pressure

High Performance DC Fan 12, 24, 48V

120x38mm (4.7”x 1.5”)

Frame & Impeller

Connection

Motor

PBT, UL94V-0 plastic

2x Lead wires 24AWG

Bearing System

Insulation Resistance

Dielectric Strength

Temperature Range

Brushless DC, auto restart,

polarity protected

Dual ball bearing

10M ohm between leadwire

and frame (500VDC)

1 minute at 500 VAC, max

leakage < 500 MicroAmp

-20C ~ +75C

-40C ~ +80C

Available Options:

Tachometer

Alarm

Thermal Speed Control

PWM

IP55

Salt Fog

Life Expectancy (L10)

65,000 hours (45C)

Weight: ~0.78 lbs

Storage Temperature

m4

Model Number

OD1238-12HB-VXC

OD1238-12MB-VXC

OD1238-12LB-VXC

OD1238-24HB-VXC

OD1238-24MB-VXC

OD1238-24LB-VXC

OD1238-48HHB-VXC

OD1238-48HB-VXC

OD1238-48MB-VXC

OD1238-48LB-VXC

Knight Electronics, Inc.

10557 Metric Drive

Dallas, Texas 75243

214-340-0265

Speed

(RPM)

5000

4000

3000

5000

4000

3000

6000

5000

4000

3000

Airflow

(CFM)

226

189

140

226

189

140

283

226

189

140

Noise (dB)

65

59

52

65

59

52

70

65

59

52

Volts DC

12

24

48

Voltage

Range

6~14

12~28

24~55

Amps

3.6

2.0

1.5

1.7

1.1

0.6

1.3

1.0

0.6

0.4

Max. Static

Pressure

(“

H2O

)

1.35

0.85

0.46

1.35

0.85

0.46

1.85

1.35

0.85

0.46

RoHS Compliant

83

Information and data is subject to

change without prior notification.

Orion Fans
