TECHNICAL DATA SHEET
SnapN
50
PANEL JACK
53QK40A-500N5

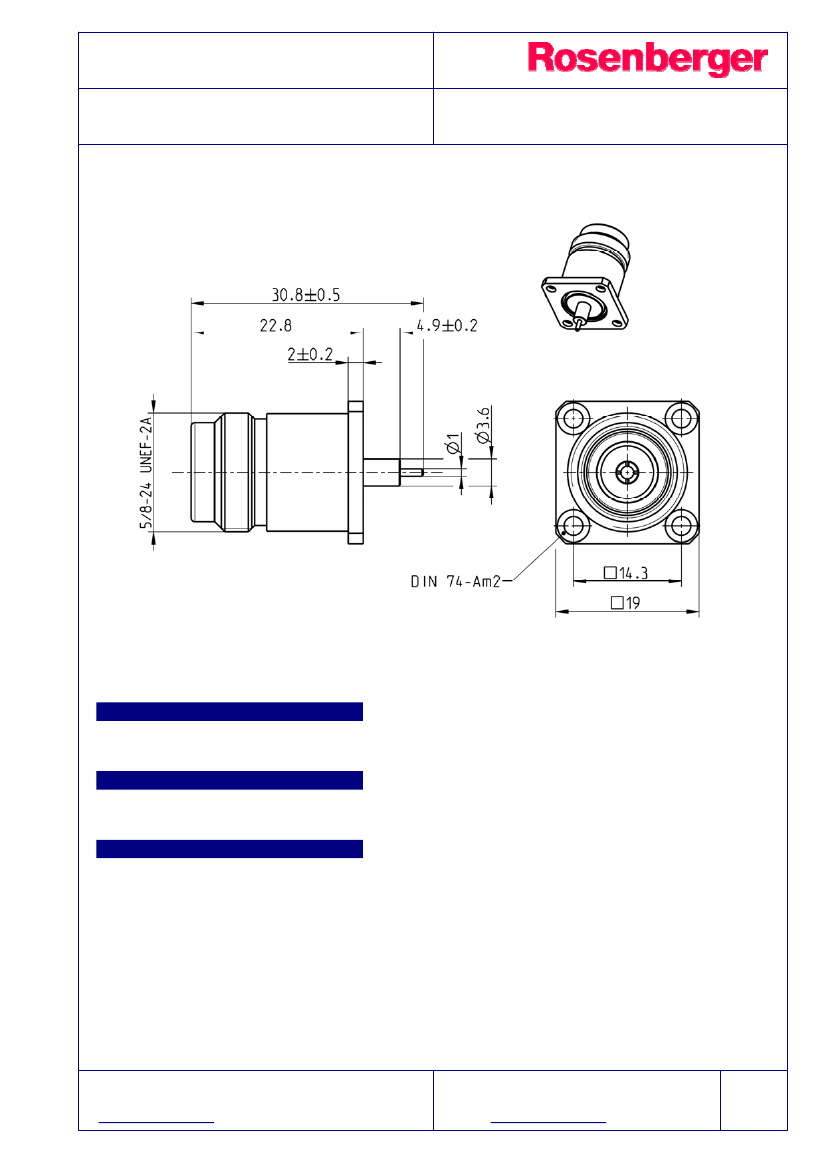

All dimensions are in mm; tolerances according to ISO 2768 m-H
Interface
According to
IEC 60169-16, MIL-PRF-39012, CECC 22210
Documents
Panel piercing
B 108
Material and plating
Connector parts
Center contact
Outer contact
Dielectric
Material
Plating
Beryllium copper AuroDur, gold plated
Brass
White bronze(e.g. Optalloy®)
PTFE
RF_35/11.05/3.1
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
email: info@rosenberger.de
Page
1/2
TECHNICAL DATA SHEET
SnapN
50
Electrical data
Impedance
Frequency
Return loss
Insertion loss
PANEL JACK
50
DC to 11 GHz
30 dB, DC to 2 GHz
20 dB, 2 to 3.5 GHz
0.05 dB x
3
53QK40A-500N5
f [GHz]
Insulation resistance
Center contact resistance
Outer contact resistance
Test voltage
Working voltage
RF-leakage
Intermodulation
(3
rd
order)
5 x10 M
1.0 m
1.0 m
2500 V rms
500 V rms
-90 dB @ 3 GHz
-80 dB @ 6 GHz
-155 dBc @ 1.8 GHz (2 x 43 dBm)
Mechanical data
Mating cycles
Center contact captivation: axial
radial
Engagement force
Disengagement force
min. 200
28 N
3 Ncm
30 N (typ.)
30 N (typ.)
Environmental data
Temperature range
Thermal shock
Corrosion
Vibration
Shock
Moisture resistance
RoHS
-40°C to +125°C
MIL-STD-202, Meth.
MIL-STD-202, Meth.
MIL-STD-202, Meth.
MIL-STD-202, Meth.
MIL-STD-202, Meth.
compliant
107,
101,
204,
213,
106
Cond.
Cond.
Cond.
Cond.
B
B
A
I
Tooling
N/A
Suitable cables
N/A
Weight
Weight
26 g/pce
While the information has been carefully compiled to the best of our knowledge, nothing is intended as representation or warranty on
our part and no statement herein shall be construed as recommendation to infringe existing patents. In the effort to improve our
products, we reserve the right to make changes judged to be necessary.
RF_35/11.05/3.1
Draft
Hauke Schütt
Date
02/02/05
Approved
J_Gramsamer
Date
31.03.15
Rev.
c00
Engineering change number
15-0397
Name
J_Krautenb.
Date
31.03.15
