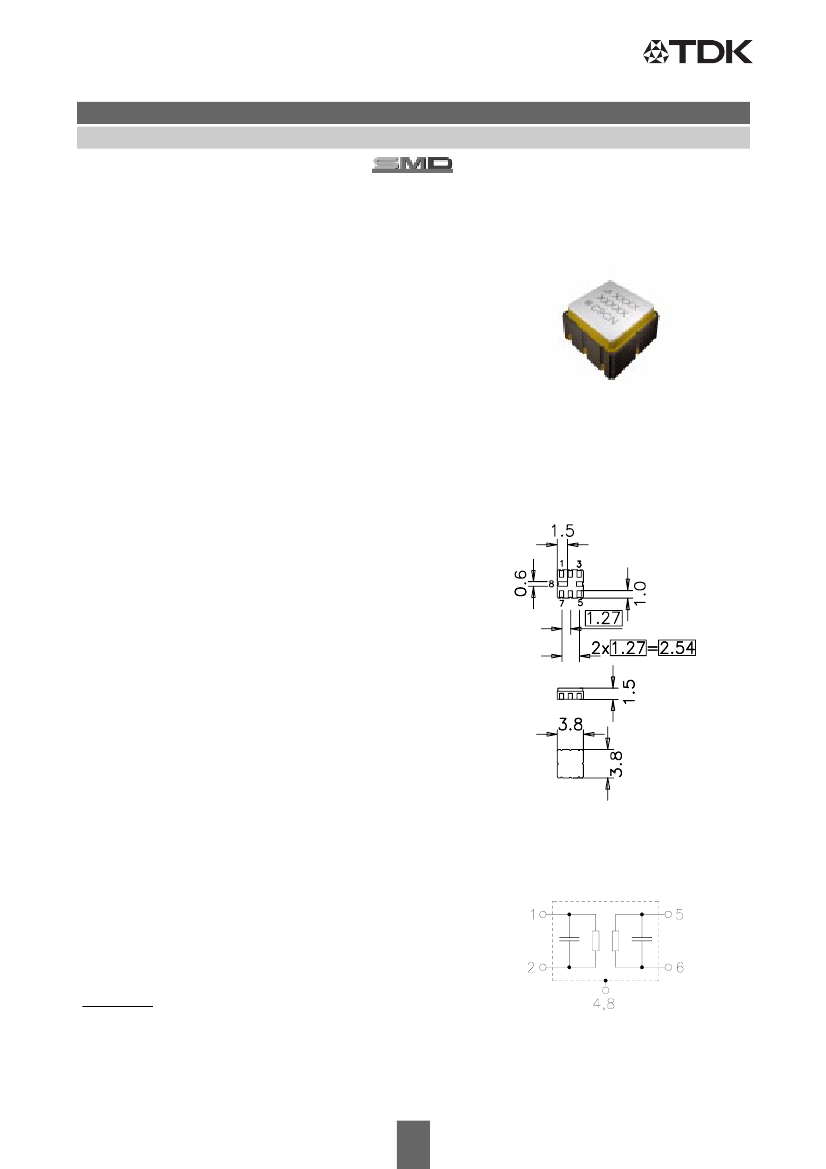

SAW Components
SAW filter
Data sheet
Application
s
Low-loss RF filter for remote control receivers
s
Balanced and unbalanced operation possible
B3774
433.92 MHz
Features
s
s
s
s
s
s
s
s
s
s
Package size 3.8 x 3.8 x 1.5 mm
3
Package code QCC8B
RoHS compatible
Approximate weight 0.07 g
Package for
Surface Mount Technology
(SMT)
Ni, gold-plated terminals
Lead free soldering compatible with J - STD20C
Passivation layer Elpas
AEC-Q200 qualified component family
Electrostatic Sensitive Device
(ESD)
Pin configuration
1)
s
s
s
s
s
s
1
2
5
6
4,8
3,7
Input ground (recommended) or input
Input (recommended) or input ground
Output (recommended) or output ground
Output ground (recommended) or output
Case - ground
To be grounded
1) The recommended pin configuration usually offers best
suppression of electrical crosstalk. The filter characteris-
tics refer to this configuration.
Please read
cautions and warnings and
important notes
at the end of this document.
2
December 20, 2012
SAW Components
SAW filter
Data sheet
Characteristics
Temperature range for specification:
Terminating source impedance:
Terminating load impedance:
T = –45 ˚C to +95 ˚C
Z
S
=
50
Ω
and matching network
Z
L
=
50
Ω
and matching network
min.
Center frequency
Minimum insertion attenuation
incl. loss in matching elements (Q
L
= 47)
excl. loss in matching elements
Pass band (relative to
α
min
)
433.77 ... 434.07 MHz
433.74 ... 434.10 MHz
433.70 ... 434.14 MHz
f
C
α
min
—
—
2.4
1.7
3.1
2.4
—
typ.
@ 25 ˚C
433.92
max.
—
B3774
433.92 MHz
MHz
dB
dB
—
—
—
0.6
0.8
1.2
2.0
3.0
6.0
dB
dB
dB
Relative attenuation (relative to
α
min
)
α
rel
10.00 ... 414.00 MHz
414.00 ... 426.00 MHz
426.00 ... 430.50 MHz
430.50 ... 431.72 MHz
431.72 ... 431.97 MHz
431.97 ... 432.07 MHz
432.07 ... 432.12 MHz
432.12 ... 433.10 MHz
434.92 ... 444.00 MHz
444.00 ... 500.00 MHz
500.00 ... 1600.00 MHz
1600.00 ... 2500.00 MHz
Impedance
for pass band matching
1)
Input: Z
IN
= R
IN
|| C
IN
Output: Z
OUT
= R
OUT
|| C
OUT
1)
53
48
24
30
40
30
25
15
15
40
50
45
57
53
28
35
52
52
52
18
20
45
55
50
—
—
—
—
—
—
—
—
—
—
—
—
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
—
—
240 || 3.0
240 || 3.0
—
—
Ω
|| pF
Ω
|| pF
Impedance for passband matching bases on an ideal, perfect matching of the SAW filter to source- and to load
impedance (here 50 Ohm). After removal of the SAW filter the input impedance of the input and output match-
ing network is calculated. The conjugate complex value of these characteristic impedances are the input and
output impedances for flat passband. For more details we refer to EPCOS application note #4.
Please read
cautions and warnings and
important notes
at the end of this document.
3
December 20, 2012
