A T C 5 5 0 Z S E R I E S U B C
™
C A PA C I T O R S
ATC 550Z Series UBC
™
Ultra-Broadband Capacitor
Features:
• EIA 0201 Case Size
• Capacitance: 10 nF min.
• Operating Frequency:
160 KHz (-3 dB roll-off) to 40+ GHz*
• Insertion Loss: < 0.4 dB typical
• Orientation Insensitive
• One Piece Construction
• Voltage Rating:
10 WVDC**
• RoHS Compliant Terminations
• Gold Terminations Available
ATC’s new 550Z Ultra-Broadband Capacitor is manu-
factured with highest quality materials to provide reli-
able and repeatable Ultra-Broadband performance
from 160 KHz through 40+ GHz. It exhibits ultra-low
insertion loss, flat frequency response and excellent
return loss, and is ideal for D.C. Blocking, Coupling,
Bypassing and Feedback applications requiring Ultra-
Broadband performance.
The 550Z is a one-piece orientation-insensitive 0201 SMT
package, fully compatible with high speed automated
pick-and-place manufacturing. It is designed to meet
the most stringent requirements of Ultra-Broadband
applications.
Advantages:
• Ultra-Broadband
Performance
• Ultra-Low
Insertion Loss
• Flat Frequency Response
• Excellent Return Loss
• Unit-to-Unit Performance
Repeatability
• Rugged
Ceramic Construction
* 25 °C, no bias applied
** Operating temperature
dependent
Applications:
• Optoelectronics/
High Speed Data
• Transimpedance
amplifiers
• ROSA/TOSA†
• SONET††
• Broadband Test
Equipment
• Broadband Microwave/
millimeter-wave
† Receive and Transmit Optical
Sub-Assembly
†† Synchronous Optical Network

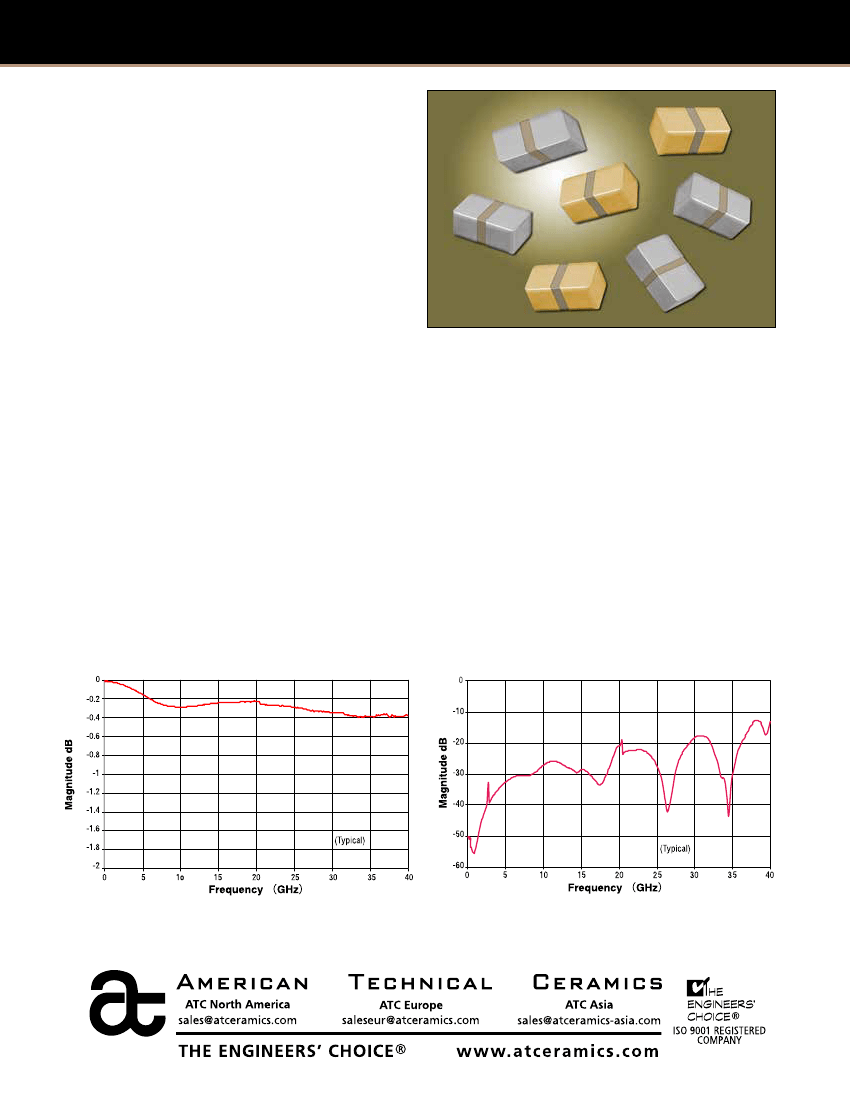

ATC 550Z Series Insertion Loss (S21)
ATC 550Z Series Return Loss (S11)
ATC 550Z Data Sheet Test Condition Description
All testing performed on 10-mil-thick Rogers RO3006 microstrip board, with the device under test subtending a 10 mil gap in a 13.4-mil-wide center trace
(nominal 50-ohm characteristic impedance).
ATC # 001-1086
Rev. G; 12/15
AT C 5 5 0 Z S E R I E S U B C
™
C A PA C I T O R S
Electrical Specifications:
• Capacitance: 10 nF min.
• Rated Voltages:
6.3 WVDC from -55°C to +125°C
10 WVDC from -55°C to +85°C
• Dielectric Withstanding Voltage (DWV):
250% of rated WVDC for 5 secs.
• Operating Temperature Range:
-55°C to +125°C
• Temperature Coefficient of Capacitance (TCC):
±22% (-55°C to +125°C)
±15% (-55°C to +85°C)
• Maximum DF: 5% @ 1KHz
• Insulation Resistance:
10
8
Ω
min. @ +25°C @ rated WVDC
10
7
Ω
min. @ +125°C @ rated WVDC
0.012 in. ± 0.001 in.
(0.3 mm ± 0.03 mm)
0.004 in. ± 0.002 in.
(0.102 mm ± 0.051 mm)
0.023 in. ± 0.001 in.
(0.58 mm ± 0.03 mm)

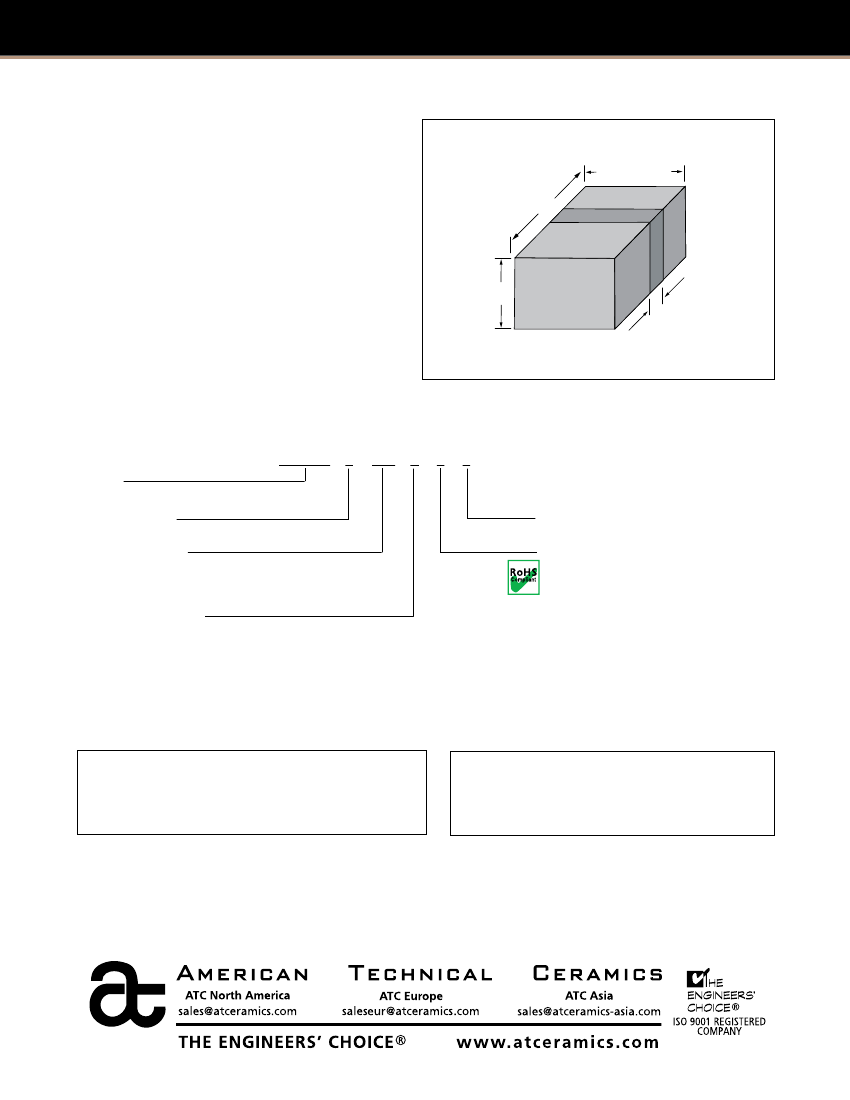

Mechanical Dimensions
0.012 in. ± 0.001 in.
(0.3 mm ± 0.03 mm)
ATC PART NUMBER CODE
ATC 550 Z
Series
Case Size: (0201)
Capacitance Code:
First 2 significant digits for capacitance
R=Decimal Point
Capacitance Tolerance
P = +100%, -0%
Tape and Reel (standard)
*
Termination Code
T = Tin Plated over Nickel Barrier
(Standard)
CA = Gold Plated over Nickel Barrier
103
P
T
T
*
500, 1000, 4000 pieces on 3” reel.
The above part number refers to a 550 Series (case size Z) 10 nF capacitor, P tolerance,
with T termination (Tin Plated over Nickel Barrier), tape and reel packaging.
For other terminations please consult factory.
ATC accepts orders for our parts using designations
with
or
without
the
“ATC” prefix. Both methods of defining the part number are equivalent, i.e.,
part numbers referenced with the “ATC” prefix are interchangeable to parts
referenced without the “ATC” prefix. Customers are free to use either in
specifying or procuring parts from American Technical Ceramics.
For additional information and catalogs contact your ATC
representative or call direct at (+1-631) 622-4700.
Consult factory for additional performance data.
Sales of ATC products are subject to the terms and conditions contained in American Technical Ceramics Corp. Terms and Conditions of Sale (ATC document #001-992 Rev. A 10/03).
Copies of these terms and conditions will be provided upon request. They may also be viewed on ATC's website at www.atceramics.com/productfinder/default.asp. Click on the link
for Terms and Conditions of Sale.
ATC has made every effort to have this information as accurate as possible. However, no responsibility is assumed by ATC for its use, nor for any infringements of rights of third parties
which may result from its use. ATC reserves the right to revise the content or modify its product line without prior notice.
© 2009 American Technical Ceramics Corp. All Rights Reserved.
ATC # 001-1086 Rev. G; 12/15
