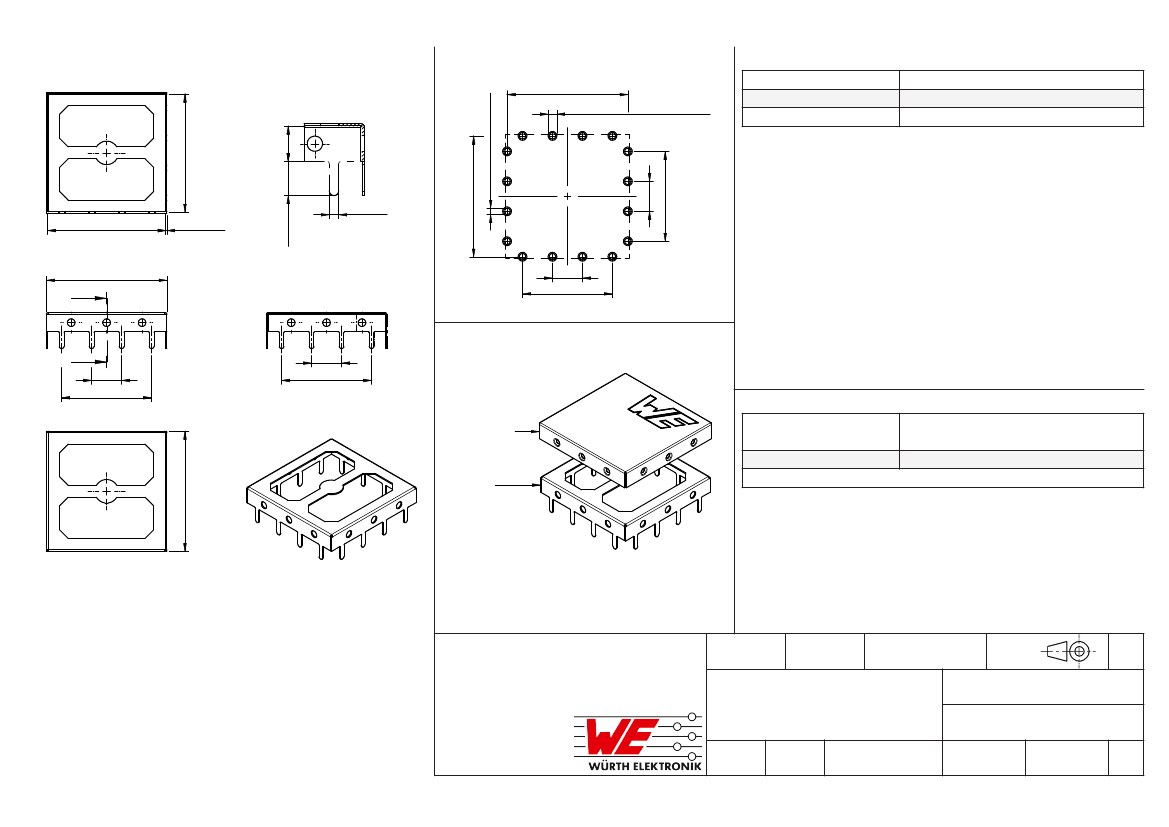

Dimensions: [mm]
detail B
20,0 ±0,1
3,0
Recommended Land Pattern: [mm]
20,5
Material:
Base Material
Plating
Version
Steel
Tin
THT Frame
O
1,10 drill diameter
O
1,5
Recommended P.C.B. layout
2,9 ±0,1
0,8 ref.
20,0 ±0,1
0,2 ±0,05
20,4 ±0,1
sectional drawing A-A
A
5,08
15,24
Assembly with THT Frame:
A
5,08
5,08
15,24
15,24
B
5,08
15,24
20,5
Scale - 1,5:1
General Information:
Top Cover
Storage Temperature (in original
packaging)
Operating Temperature
-20 °C up to +60 °C
-40 °C up to +125 °C
20,4 ±0,1
Frame
Test conditions of Electrical Properties: +20°C, 33% RH if not specified differently
Scale - 1,5:1
Scale - 1,5:1
Würth Elektronik eiSos GmbH & Co. KG
EMC & Inductive Solutions
Max-Eyth-Str. 1
74638 Waldenburg
Germany
Tel. +49 (0) 79 42 945 - 0
www.we-online.com
eiSos@we-online.com
CREATED
CHECKED
GENERAL TOLERANCE
PROJECTION
METHOD
KaS
DESCRIPTION
JoV
DIN ISO 2768-1m
WE-SHC Shielding Cabinet
ORDER CODE
36503205S
REVISION
STATUS
DATE (YYYY-MM-DD)
BUSINESS UNIT
PAGE
001.000
Valid
2017-06-21
eiSos
1/2
