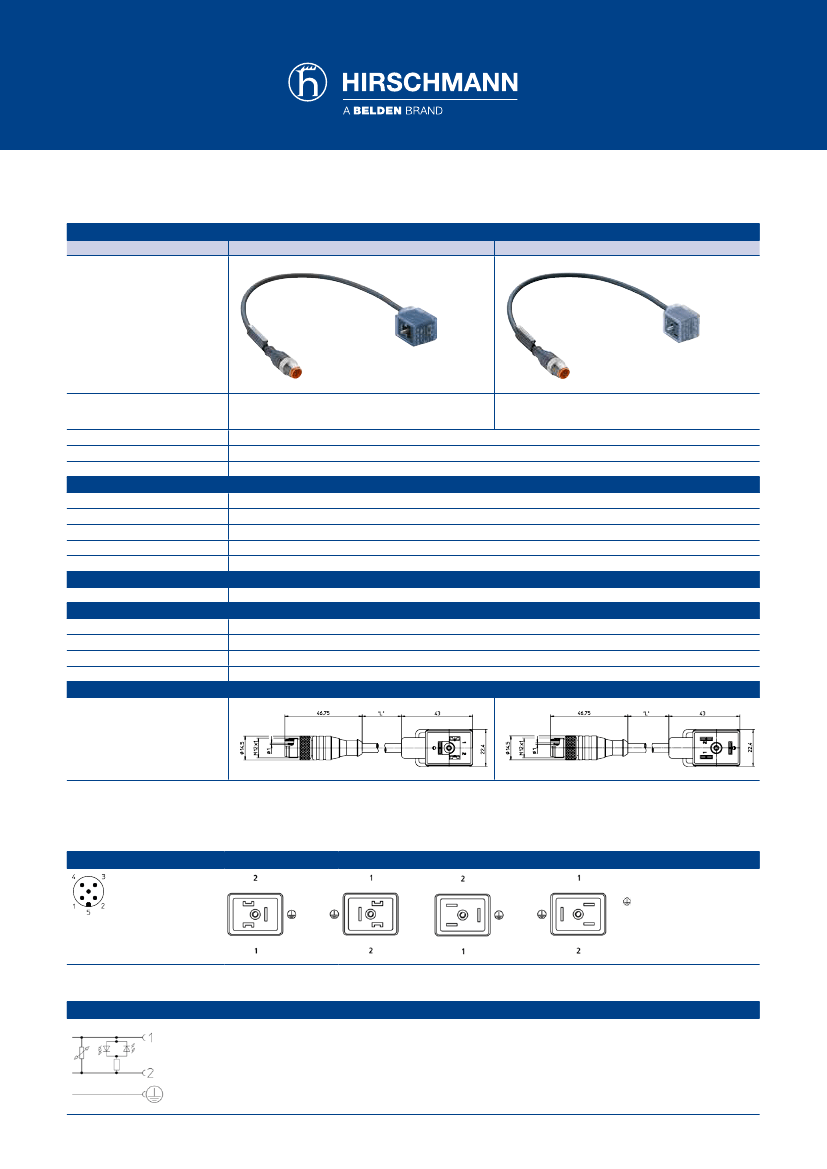

Actuator/Sensor Connectors
Double-ended Overmolded Cordset, M12 to Valve Connectors as per DIN EN 175301-803, Type B
Technical Information
Product Description
Order Designation
RST-VBD
RST-VB
Description
Actuator cordset, with self-locking screw coupling to valve connector
as per DIN EN 175301-803, type B, 3-pin, protection circuit using
varistor (yellow LED)
Yes
IEC 61076-2-101 (M12), DIN EN 175301-803 (valve connector)
–
Actuator cordset, M12 male, with self-locking screw coupling and
valve connector based on DIN EN 175301-803, type B, 3-pin,
protection circuit using varistor (yellow LED)
RoHS-Compliant (2011/65/EU)
(Construction Type) Standard
Approvals
Technical Data
Ambient Temperature
Housing Material/Grip
Contact Holder Material
Contact Material/Surface Finish
Screw Coupling Material
Mechanical Data
Degree of Protection
Electrical Data
Contact Resistance
Rated Voltage
Rated Current
Pollution Degree
Technical Drawing
-25 °C to +80 °C (connectors), mind cable temperature range
TPU
RST: TPU, VBD/VB: PBT
RST: CuZn, nickel underlay and gold-plated, VBD/VB: CuZn, nickel-plated and tin-plated
CuZn, nickel-plated
IP67 (only when mated with Hirschmann/Lumberg counterparts)
≤
5 mΩ
32 V (varistor: 47 V at 0.1 mA)
4A
3
L = Standard length of cable
Pin Assignment
3-pin
1 = n.c.
2 = n.c.
3 = blue
4 = brown
5 = green/yellow
VBD 1A-1-1
VBD 1A-1-2
VB 1A-1-1
VB 1A-1-2
1 = brown
2 = blue
= green/yellow
Circuit Diagram
VBD 1A/VB 1A
Data sheet | 08/23/16
Technical Support:
1-717-217-2289
www.hirschmann.com
Be Certain with Belden
Order Information
Order No.
11965
11966
11967
11968
11969
43829
46908
11970
11971
11104
11973
46909
11985
11986
11987
11988
11989
43831
11103
11990
11991
11992
11993
11102
43804
43805
17686
43806
43807
44564
43812
43813
17685
43814
43815
46907
Order Designation
RST 5-3-VBD 1A-1-1-226/0.3 M
RST 5-3-VBD 1A-1-1-226/0.6 M
RST 5-3-VBD 1A-1-1-226/1 M
RST 5-3-VBD 1A-1-1-226/1.5 M
RST 5-3-VBD 1A-1-1-226/2 M
RST 5-3-VBD 1A-1-1-226/5 M
RST 5-3-VBD 1A-1-1-241/0.3 M
RST 5-3-VBD 1A-1-1-241/0.6 M
RST 5-3-VBD 1A-1-1-241/1 M
RST 5-3-VBD 1A-1-1-241/1.5 M
RST 5-3-VBD 1A-1-1-241/2 M
RST 5-3-VBD 1A-1-1-241/5 M
RST 5-3-VBD 1A-1-2-226/0.3 M
RST 5-3-VBD 1A-1-2-226/0.6 M
RST 5-3-VBD 1A-1-2-226/1 M
RST 5-3-VBD 1A-1-2-226/1.5 M
RST 5-3-VBD 1A-1-2-226/2 M
RST 5-3-VBD 1A-1-2-226/5 M
RST 5-3-VBD 1A-1-2-241/0.3 M
RST 5-3-VBD 1A-1-2-241/0.6 M
RST 5-3-VBD 1A-1-2-241/1 M
RST 5-3-VBD 1A-1-2-241/1.5 M
RST 5-3-VBD 1A-1-2-241/2 M
RST 5-3-VBD 1A-1-2-241/5 M
RST 5-3-VB 1A-1-1-226/0.3 M
RST 5-3-VB 1A-1-1-226/0.6 M
RST 5-3-VB 1A-1-1-226/1 M
RST 5-3-VB 1A-1-1-226/1.5 M
RST 5-3-VB 1A-1-1-226/2 M
RST 5-3-VB 1A-1-1-226/5 M
RST 5-3-VB 1A-1-2-226/0.3 M
RST 5-3-VB 1A-1-2-226/0.6 M
RST 5-3-VB 1A-1-2-226/1 M
RST 5-3-VB 1A-1-2-226/1.5 M
RST 5-3-VB 1A-1-2-226/2 M
RST 5-3-VB 1A-1-2-226/5 M
No. of Pins
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
Jacket
PUR, halogen-free, black
PUR, halogen-free, black
PUR, halogen-free, black
PUR, halogen-free, black
PUR, halogen-free, black
PUR, halogen-free, black
PUR, halogen-free and welding spark proof, orange
PUR, halogen-free and welding spark proof, orange
PUR, halogen-free and welding spark proof, orange
PUR, halogen-free and welding spark proof, orange
PUR, halogen-free and welding spark proof, orange
PUR, halogen-free and welding spark proof, orange
PUR, halogen-free, black
PUR, halogen-free, black
PUR, halogen-free, black
PUR, halogen-free, black
PUR, halogen-free, black
PUR, halogen-free, black
PUR, halogen-free and welding spark proof, orange
PUR, halogen-free and welding spark proof, orange
PUR, halogen-free and welding spark proof, orange
PUR, halogen-free and welding spark proof, orange
PUR, halogen-free and welding spark proof, orange
PUR, halogen-free and welding spark proof, orange
PUR, halogen-free, black
PUR, halogen-free, black
PUR, halogen-free, black
PUR, halogen-free, black
PUR, halogen-free, black
PUR, halogen-free, black
PUR, halogen-free, black
PUR, halogen-free, black
PUR, halogen-free, black
PUR, halogen-free, black
PUR, halogen-free, black
PUR, halogen-free, black
Characteristics
