RKW 30-838/25M: DescriptionSensor Cables / Actuator Cables; CategoryWire/cable; File Size271KB，1 Pages; ManufacturerLumberg Automation; Websitehttp://www.lumberg-automation.com

Download Datasheet Parametric Compare View All

RKW 30-838/25M Overview

Sensor Cables / Actuator Cables

RKW 30-838/25M Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Lumberg Automation
Product Category	Sensor Cables / Actuator Cables
Connector End A	7/8 in Right Angle
Connector End A Pin Count	3 Position
Connector End B	No Connector
Gender	Female
Length	25 m
Current Rating	8 A
Voltage Rating	600 V
Color	Yellow
Description/Function	Single Ended Cordsets
Jacket Material	Polyurethane (PUR)
Factory Pack Quantity	1

Preview

Download Datasheet

View All

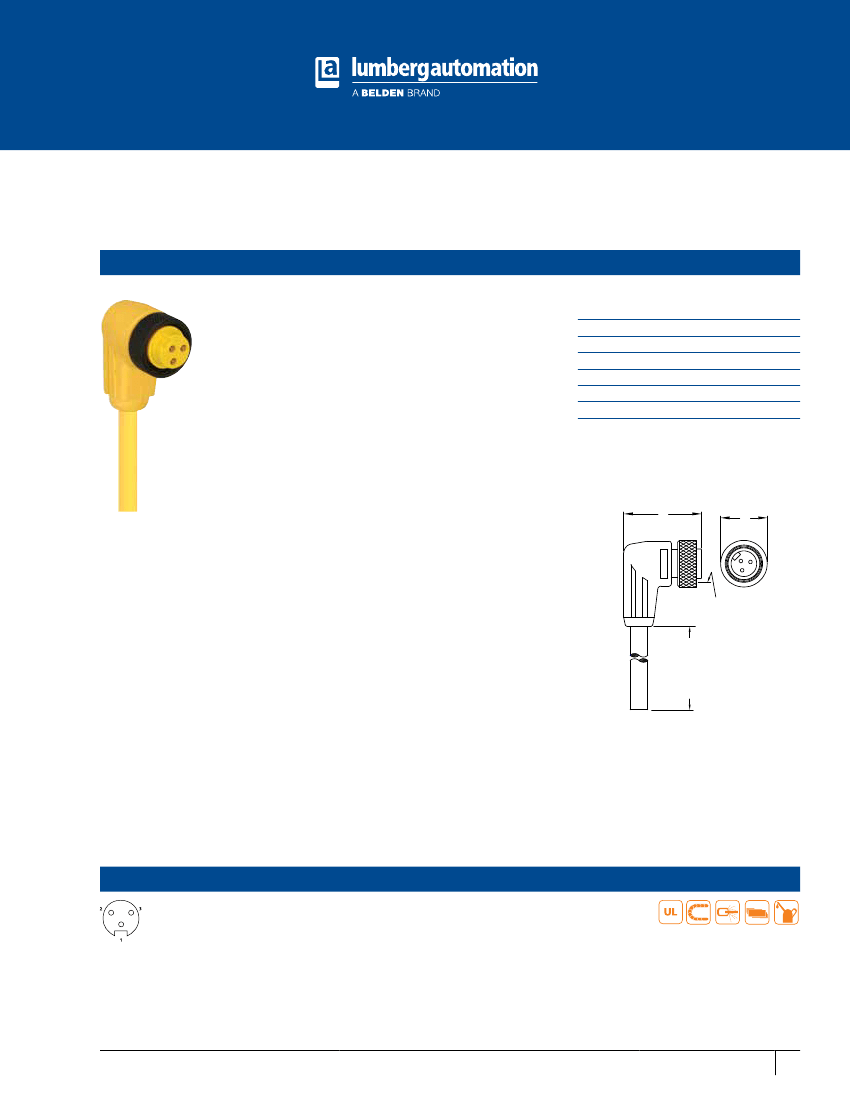

Pin Assignments

RKW 30-838

Face View 7/8”

FACE VIEW FEMALE

1 = green

2 = black

3 = white

SPECIFICATIONS

2

3

7/8-16 UNF-2B

www.lumberg-automationusa.com

1

1 = GREEN

2 = BLACK

3 = WHITE

Mini Single-Ended Cordsets

Mechanical

Temperature

Protection

Description

Material

Molded body

Coupling nut

Contacts

Insert

Electrical

Current rating

Voltage rating

Technical Data

Cable

Jacket

Gauge

UL

Outside diameter

MINI, Single-Ended Cordset, Right Angle,

Female, 3 Pole, 16 AWG, PLTC, Yellow. TPE

Cable, U.S. Color Code, IP 67 and NEMA 6P

Rated.

Phone: 1-800-BELDEN1

Ø26 [1.02]

CONTACT CARRIER MATERIAL /COLOR

CONTACT MATERIAL/PLATING

COUPLING NUT

MOLDED BODY: MATERIAL/COLOR

CONDUCTOR INSULATION MATERIAL

CABLE JACKET: MATERIAL/COLOR

NUMBER OF CONDUCTORS /[AWG]

PROTECTION CLASS

RATED CURRENT [A]

RATED VOLTAGE [V]

TEMPERTURE RANGE

CABLE RATINGS

CABLE DIAMETER- NOMINAL

TPU/YELLOW

CuZn ALLOY/ GOLD OVER Ag PLATED

ALUMINUM /BLACK ANODIZED

TPU/YELLOW

PVC /NYLON

TPE/YELLOW

3/16AWG , STRANDED BARE COPPER

NEMA 6P, IP67

8A

600 V

-30C to 90C

UL :TC-ER, SUNLIGHT RESISTANT

.315 IN

8A

600 V

64.5 [2.54]

"XX" meters

PUR, Yellow

16 AWG

TC-ER

.315”

MILLIMETER [INCH]

SEE SPECIFICATIONS

BAB

____

_____

I1986

10.08.14

Lumberg p/n: RK 30-838/..M

A Belden Brand

_____

-30°C to + 90°C

IP 67, NEMA 6P rated

A

10.08.14

NONE

------

New release

BAB

7/8" Cordset 3 pole FE, Single Ended

_____

TPU, yellow

Aluminum, anodized black

Brass, gold plated

TPE, yellow

A

aCATPD1947

1/2

form fxxx - Issue 1 - August 2014

FACE VIEW FEMALE

2

3

1

1 = GREEN

2 = BLACK

3 = WHITE

Part Number

RKW 30-838/5M

RKW 30-838/3M

RKW 30-838/2M

RKW 30-838/1M

RKW 30-838/20M

RKW 30-838/10M

43.3 [1.71]

7/8-16 UNF-2B

Revison 12, July 1, 2015

"XX" meters

------

FCA NAFTA Project Book

Ø26 [1.02]

19

Lumberg p/n: RKW 30-838/..M

MILLIMETER [INCH]

SEE SPECIFICATIONS

BAB

I1986

10.08.14

A Belden Brand

RKW 30-838/25M Related Products

	RKW 30-838/25M	RKW 30-838/20M	RKW 30-838/30M	RKW 30-838/1M	RKW 30-838/15M	RKW 30-838/10M
Description	Sensor Cables / Actuator Cables	Sensor Cables / Actuator Cables	Sensor Cables / Actuator Cables	Sensor Cables / Actuator Cables	Sensor Cables / Actuator Cables	Sensor Cables / Actuator Cables
Product Attribute	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value
Manufacturer	Lumberg Automation	Lumberg Automation	Lumberg Automation	Lumberg Automation	Lumberg Automation	Lumberg Automation
Product Category	Sensor Cables / Actuator Cables	Sensor Cables / Actuator Cables	Sensor Cables / Actuator Cables	Sensor Cables / Actuator Cables	Sensor Cables / Actuator Cables	Sensor Cables / Actuator Cables
Connector End A	7/8 in Right Angle	7/8 in Right Angle	7/8 in Right Angle	7/8 in Right Angle	7/8 in Right Angle	7/8 in Right Angle
Connector End A Pin Count	3 Position	3 Position	3 Position	3 Position	3 Position	3 Position
Connector End B	No Connector	No Connector	No Connector	No Connector	No Connector	No Connector
Gender	Female	Female	Female	Female	Female	Female
Length	25 m	20 m	30 m	1 m	15 m	10 m
Current Rating	8 A	8 A	8 A	8 A	8 A	8 A
Voltage Rating	600 V	600 V	600 V	600 V	600 V	600 V
Color	Yellow	Yellow	Yellow	Yellow	Yellow	Yellow
Description/Function	Single Ended Cordsets	Single Ended Cordsets	Single Ended Cordsets	Single Ended Cordsets	Single Ended Cordsets	Single Ended Cordsets
Jacket Material	Polyurethane (PUR)	Polyurethane (PUR)	Polyurethane (PUR)	Polyurethane (PUR)	Polyurethane (PUR)	Polyurethane (PUR)
Factory Pack Quantity	1	1	1	1	1	1
