Datasheet> All Categories > The connector> D15P33E6GL00LF

Preview

D15P33E6GL00LF: DescriptionD-Sub Standard Connectors 15P PIN RA SOLDER SHELL SIZE A; CategoryThe connector; File Size93KB，1 Pages; ManufacturerFCI / Amphenol; Environmental Compliance

Download Datasheet Parametric Compare View All

D15P33E6GL00LF Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	D15P33E6GL00LF	-	-	View	Buy Now

D15P33E6GL00LF Overview

D-Sub Standard Connectors 15P PIN RA SOLDER SHELL SIZE A

D15P33E6GL00LF Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	FCI / Amphenol
Product Category	D-Sub Standard Connectors
RoHS	Details
Number of Positions	15 Position
Contact Gender	Pin (Male)
Termination Style	Through Hole
Mounting Angle	Right Angle
Number of Rows	2 Row
Shell Size	2 (A)
Contact Plating	Gold
Packaging	Tray
Current Rating	5 A
Gender	Male
Type	Plug
Voltage Rating	300 V
Pitch	2.84 mm
Shell Plating	Bright Pure Tin over Nickel
Insert Arrangement	A15
Maximum Operating Temperature	+ 125 C
Minimum Operating Temperature	- 55 C
Factory Pack Quantity	25

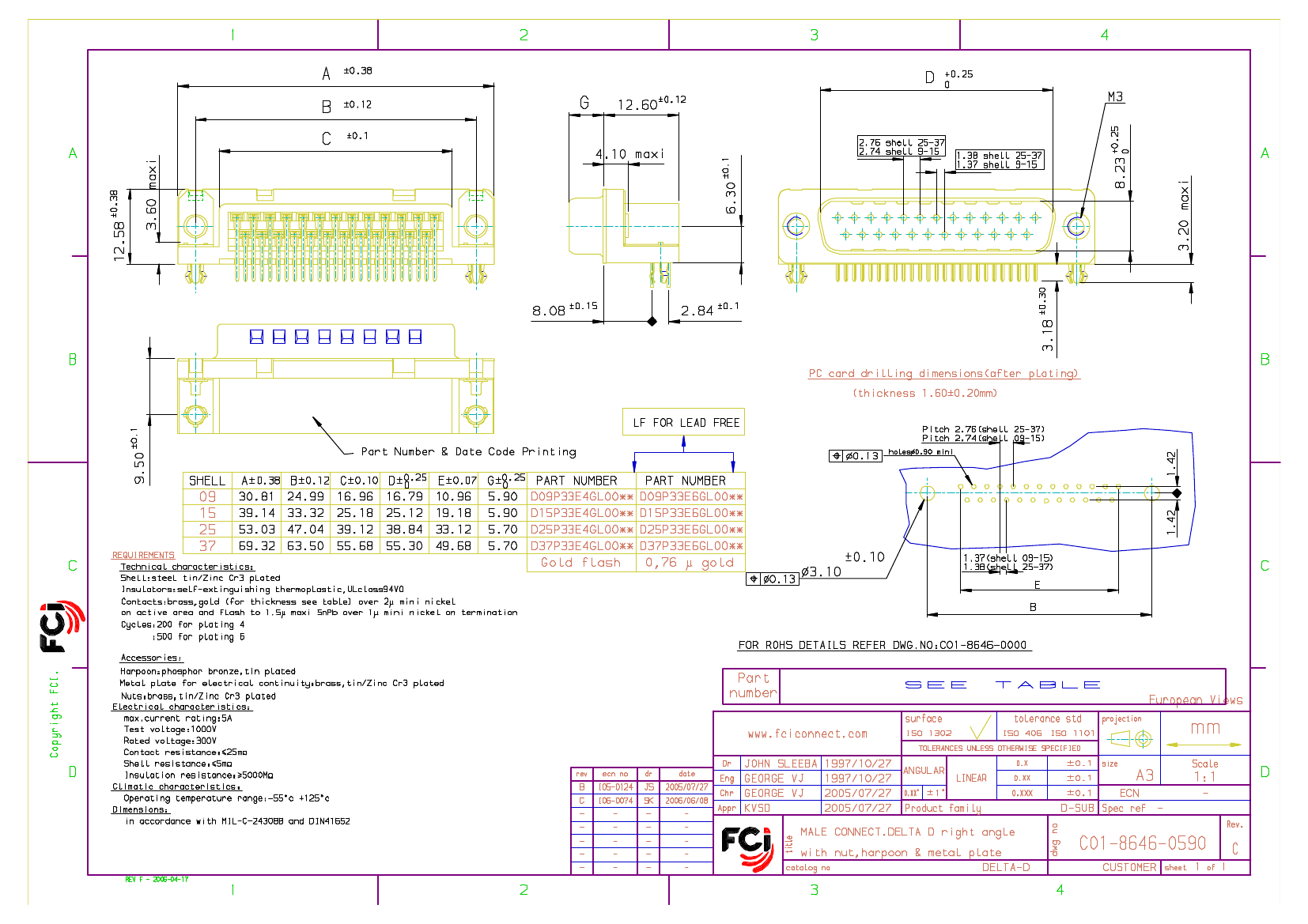

Preview

Download Datasheet

View All

PDM: Rev:C

STATUS:

Released

Printed: Jan 18, 2011

.

D15P33E6GL00LF Related Products

	D15P33E6GL00LF	D15P33E4GL00LF	D09P33E4GL00LF	D09P33E6GL00LF	D37P33E4GL00LF	D25P33E4GL00LF	D37P33E6GL00LF
Description	D-Sub Standard Connectors 15P PIN RA SOLDER SHELL SIZE A	D-Sub Standard Connectors DSUB RA STB 15PIN LF	D-Sub Standard Connectors 9P RA PIN SOLDER SHELL SIZE E	D-Sub Standard Connectors 9P RA PIN SOLDER SHELL SIZE E	D-Sub Standard Connectors 37P SKT RA SOLDER SHELL SIZE C	D-Sub Standard Connectors 25P PIN RA SOLDER SHELL SIZE B	D-Sub Standard Connectors 37P SKT RA SOLDER SHELL SIZE C
Product Attribute	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value
Manufacturer	FCI / Amphenol	FCI / Amphenol	FCI / Amphenol	FCI / Amphenol	FCI / Amphenol	FCI / Amphenol	FCI / Amphenol
Product Category	D-Sub Standard Connectors	D-Sub Standard Connectors	D-Sub Standard Connectors	D-Sub Standard Connectors	D-Sub Standard Connectors	D-Sub Standard Connectors	D-Sub Standard Connectors
RoHS	Details	Details	Details	Details	Details	Details	Details
Number of Positions	15 Position	15 Position	9 Position	9 Position	37 Position	25 Position	37 Position
Contact Gender	Pin (Male)	Pin (Male)	Pin (Male)	Pin (Male)	Pin (Male)	Pin (Male)	Pin (Male)
Termination Style	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Mounting Angle	Right Angle	Right Angle	Right Angle	Right Angle	Right Angle	Right Angle	Right Angle
Number of Rows	2 Row	2 Row	2 Row	2 Row	2 Row	2 Row	2 Row
Shell Size	2 (A)	2 (A)	1 (E)	1 (E)	4 (C)	3 (B)	4 (C)
Contact Plating	Gold	Gold	Gold	Gold	Gold	Gold	Gold
Packaging	Tray	Tray	Tray	Tray	Tray	Tray	Tray
Current Rating	5 A	5 A	5 A	5 A	5 A	5 A	5 A
Gender	Male	Male	Male	Male	Male	Male	Male
Type	Plug	Plug	Plug	Plug	Plug	Plug	Plug
Voltage Rating	300 V	300 V	300 V	300 V	300 V	300 V	300 V
Shell Plating	Bright Pure Tin over Nickel	Bright Pure Tin over Nickel	Bright Pure Tin over Nickel	Bright Pure Tin over Nickel	Bright Pure Tin over Nickel	Bright Pure Tin over Nickel	Bright Pure Tin over Nickel
Insert Arrangement	A15	A15	E09	E09	C37	B25	C37
Maximum Operating Temperature	+ 125 C	+ 125 C	+ 125 C	+ 125 C	+ 125 C	+ 125 C	+ 125 C
Minimum Operating Temperature	- 55 C	- 55 C	- 55 C	- 55 C	- 55 C	- 55 C	- 55 C
Factory Pack Quantity	25	25	30	30	15	20	15
Pitch	2.84 mm	-	2.84 mm	2.84 mm	2.84 mm	2.84 mm	2.84 mm
