Ordering Code
B25355C6527K005
B25355C6337K005
B25355C4727K005
B25355C4477K005
Substitute Product
B25650
B25650
B25650
B25650
Date of
Withdrawal
2001-04-06
2001-04-06
2001-04-06
2001-04-06
Deadline Last
Orders
2001-07-31
2001-07-31
2001-07-31
2001-07-31
Last Shipments
2001-12-31
2001-12-31
2001-12-31
2001-12-31
For further information please contact your nearest EPCOS sales office, which will also support
you in selecting a suitable substitute. The addresses of our worldwide sales network are
presented at www.epcos.com/sales.

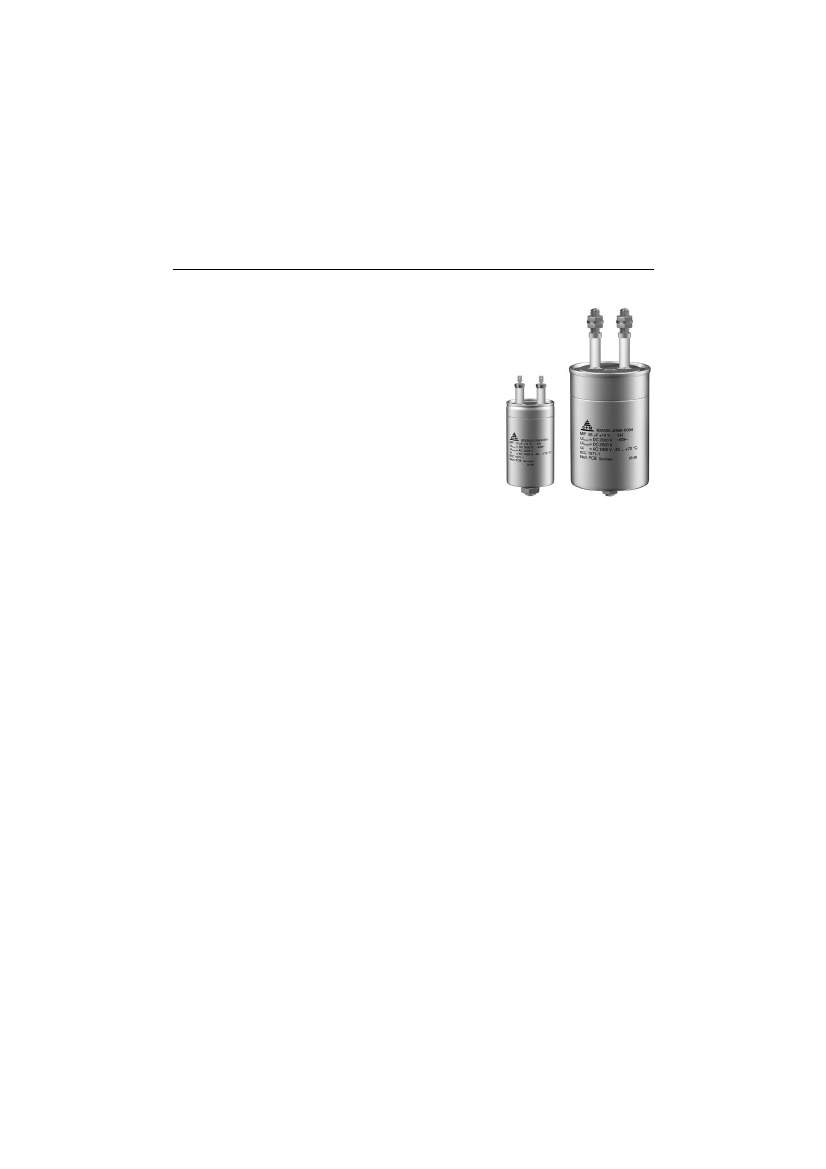

MP DC Capacitors
Smoothing, Supporting, Discharge
B 25 355
High peak-current capability
Wide capacitance and voltage range
Construction
q
Self-healing
q
Paper dielectric
q
Oil and hard-wax-impregnated tubular
q
q
q
q
q
windings (no PCB)
Metal-sprayed end faces ensure
reliable contacting
Tubular aluminum case
1-pole and 2-pole versions
Ceramic or plastic lead-throughs
With mounting bolt
(325 mm high capacitors without mounting bolt)
Terminals
q
Screw terminals M12
q
Screw-clamping terminals
q
Tab connectors 6,3 mm
Mounting parts
q
If the vibration stress is
≤
5
g
and the capacitors are
≤
60 mm
in diameter and
≤
160 mm in height, the bolt is used for mounting.
q
For capacitors without mounting bolt and in case of a vibration
stress > 5
g
as well as for larger-sized capacitors refer to chapter
“Mounting parts”.
Grounding
q
Mounting bolt or grounding strap
for grounding in accordance with VDE 0100
q
Grounding identification in accordance with DIN 40 011
Overpressure disconnector (mechanical)
When the overpressure disconnector responds,
the capacitor extends by up to 8 mm.
So leave sufficient space above the terminals when mounting the capacitor.
Individual data sheets
Individual capacitors of this series are specified in detail
(incl. thermal data)
on pages 78 … 93.
Upon request, these data sheets are available for each capacitor type.
Siemens Matsushita Components
67
B 25 355
Smoothing, Supporting, Discharge
Technical data
Standards
IEC 1071-1/2
EN 61071-1/2
VDE 0560 part 120 and 121
50 · 10
–4
Dielectric dissipation factor
Max. repetitive rate
of voltage rise
Max. non-repetitive rate
of voltage rise
Climatic data:
Min. operating temperature
Max. operating temperature
Average relative humidity
Failure quota
Load duration
Storage temperature limit
IEC climatic category
(IEC 68-1 and 2)
Test A, cold
Test B, dry heat
Test Ca, damp heat, steady state
Values after test Ca:
Capacitance change
tan
δ
0
(du/dt)
max
(du/dt)
s
Θ
min
Θ
max
î
---
-
C
I
S
---
-
C
– 40
°C
+ 70
°C
≤
95 % (screw terminals, tab connectors)
≤
75 % (screw-clamping terminals)
300 failures per 10
9
component hours
3000 failures per 10
9
component hours
100 000 h
10 000 h
– 55/+ 85
°C
(screw terminals, tab connectors)
– 55/+ 70
°C
(screw-clamping terminals)
40/070/56
– 40
°C
+ 70
°C
56 days/40
°C/93
% rel. humidity
α
FQ(co)
α
FQ(sto)
t
LD(co)
t
LD(sto)
Θ
stg
∆
C
/
C
≤
1%
C
N
Insulation resistance
Self-discharge time constant
τ
=
Dissipation factor change
R
is
R
is
·
C
∆tan δ
≤
1
µF
> 1
µF
Screw terminals,
tab connectors
≥
5000 MΩ
≥
5000 s
Screw-clamping
terminals
–
≥
1000 s
≤
10 · 10
–4
68
