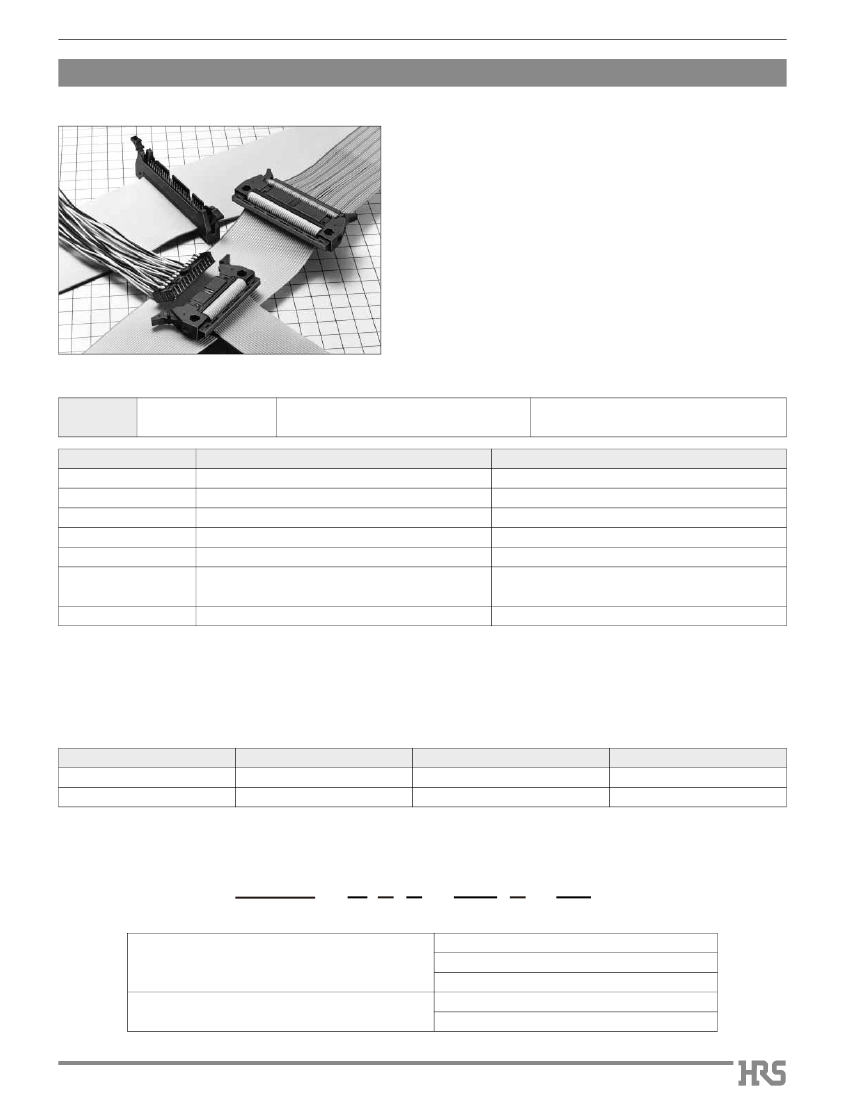

HIF3B Series●Ribbon
Cable connector Compliant with MIL Standard
HIF3B In-line Type Ribbon Cable Connector
■Features
1. In-line Type
This connector can be used for internal wiring cable to cable within
equipment.
2. Compatibility
Jun.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
This connector is compatible with HIF3A series as well as HIF3B
series socket.
3. Applicable Cable
The applicable cable is UL2651 AWG#28 flat cable
(7 pcs./6.127mm, jacket diameter: 0.8
to
1.0mm).
■Product
Specifications
Rating
Current rating : 1A
Operating Temperature Range :
–55 to +85ç
(Note 1) Storage Temperature Range :
–10 to +60ç
(Note 2)
Storage Humidity Range : 40
to
70% (Note 2)
Condition
500V DC
650V AC/1 minute
0.1A
Voltage rating : 200V AC Operating Moisture Range : 40
to
80%
Item
1. Insulation Resistance
2. Withstanding voltage
3. Contact Resistance
4. Vibration
1000M
ohms
min.
Specification
No flashover or insulation breakdown.
15m
ohms
max.
No electrical discontinuity of 1μs or more
Frequency: 10 to 55 Hz, single amplitude of 0.75 mm, 2 hours in each of the 3 directions.
96 hours at temperature of 40ç and humidity of 90% to 95%
(-65ç: 30 minutes
➝
15
to
35ç: 5 minutes max.
125ç: 30 minutes
➝
15
to
35ç: 5 minutes max.) 5 cycles
500 cycles
5.
Humidity (Steady state)
Insulation resistance: 1000M
ohms
min.
6. Temperature Cycle
No damage, cracks, or parts looseness.
7. Durability (Mating/un-mating) Contact resistance: 15m
ohms
max.
Note 1: Includes temperature rise caused by current flow.
Note 2: The term "storage" refers to products stored for long period of time prior to mounting and use. Operating Temperature Range and
Humidity range covers non conducting condition of installed connectors in storage, shipment or during transportation.
Note 3: Information contained in this catalog represents general requirements for this Series. Contact us for the drawings and specifications for a
specific part number shown.
■Material
Part
Insulator
Plug Contact
Material
PBT
Beryllium copper
Finish
Black
Gold plated over nickel underplated
Remarks
UL94V-0
––––––
■Ordering
Information
HIF3BA -
*
P D - 2.54 R - MC
q
q
Series Name
w
e
r
t
y
u
: HIF3BB (50, 60, 64 contacts only)
e
P : Plug
HIF3BD (10 contacts only)
HIF3BAE (60 contacts only)
w
Number of Contacts : 10, 16, 20, 26, 30, 34, 40, 50, 60
and 64
r
D : contact alignment : D : Double
t
Contact Pitch
y
Connection type
u
MC
: 2.54mm
: Ribbon cable
: Mold clamp
B41
HIF3B Series●Ribbon Cable connector Compliant with MIL Standard

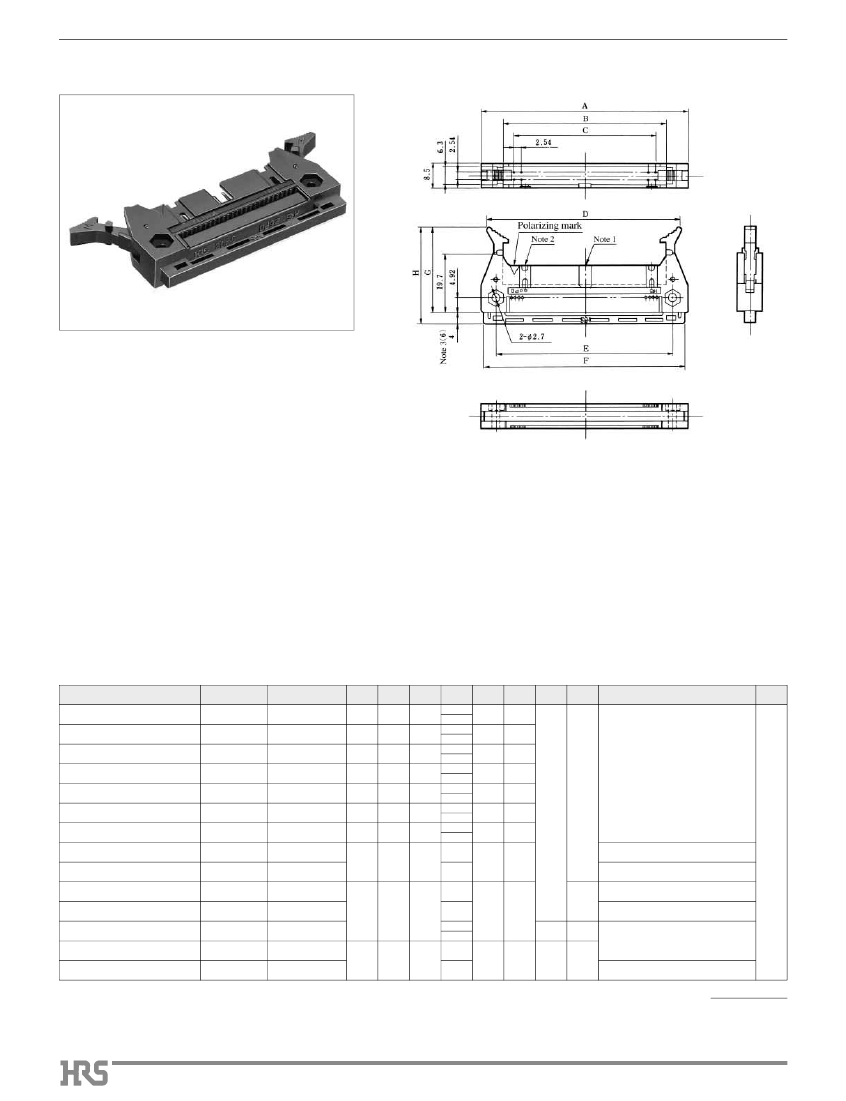

■Plug
Jun.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Note 1, Note 2: The number of polarizing slot and key installed positions changes according to products.
The 10 contact connector only has no position for polarizing key insulation.
Note 3: The number indicated in parentheses are sizes for 60 and 64 contact connectors.
Note 4: The HIF3BAE-60PD-2.54R-MC product partially differs in a locking form, and the mating member is
applicable for HIF3A only.
Unit:mm
Part Number
CL No.
Number of Contacts
10
16
20
26
30
34
40
50
50
60
60
60
64
64
100.56 86.06 78.74
MAX119.7
A
B
C
D
28.14
MAX51.1
35.74
MAX58.7
40.84
MAX63.8
48.44
MAX71.4
53.54
MAX76.5
58.64
MAX81.6
66.24
MAX89.2
78.94
E
F
G
H
Polarizing slot
RoHS
HIF3BDE-10PD-2.54R-MC 611-0031-7
HIF3BAE-16PD-2.54R-MC 611-0032-0
HIF3BAE-20PD-2.54R-MC 611-0033-2
HIF3BAE-26PD-2.54R-MC 611-0034-5
HIF3BAE-30PD-2.54R-MC 611-0035-8
HIF3BAE-34PD-2.54R-MC 611-0036-0
HIF3BAE-40PD-2.54R-MC 611-0037-3
HIF3BAE-50PD-2.54R-MC 611-0038-6
HIF3BBE-50PD-2.54R-MC 611-0041-0
HIF3BAE-60PD-2.54R-MC 611-0039-9
HIF3BBE-60PD-2.54R-MC 611-0042-3
HIF3BAE-60PD-2.54R-MC 611-0059-6
HIF3BAE-64PD-2.54R-MC 611-0040-8
HIF3BBE-64PD-2.54R-MC 611-0045-1
31.98 17.48 10.16
39.60 25.10 17.78
44.68 30.18 22.86
52.30 37.80 30.48
57.38 42.88 35.56
62.46 47.96 40.64
70.08 55.58 48.26
82.78 68.28 60.96
21.88 30.13
29.50 37.75
34.58 42.83
42.20 50.45
47.28 55.53
52.36 60.61 29.2
59.98 68.23
72.68 80.93
One on right and left sides, resp.
One at center
35.2
31.2 37.2
One on right and left sides, resp.
90.46 98.71 29.2 35.2
One at center
*D
size
locking size
unlocking size
One on right and left sides, resp.
One at center
YES
33.2
One at center
MAX101.9
91.64
95.48 80.98 73.66
MAX114.6
91.7
MAX121.3
96.74
85.38 93.63
B42
HIF3B Series●Ribbon Cable connector Compliant with MIL Standard

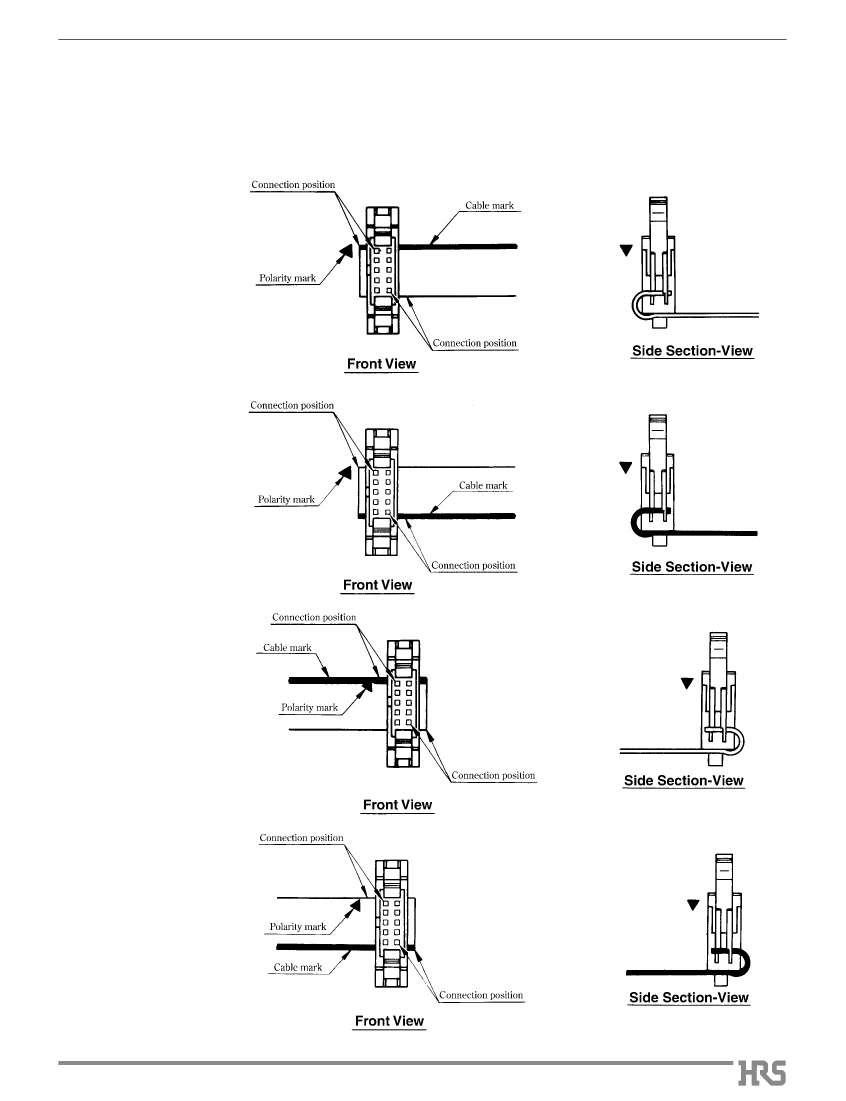

BConnection
Procedures
Note1: Cable length tolerance Less than 500
+10
(mm)
+00
More than 500
+3
(mm)
+0
Note2: When a cable such as a twist cable
or a slit (like a roller screen) cable is
used, the cable pitch will change
according to cable manufacturers.
If connection failure has occurred,
please contact Hirose sales.
Jun.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Type AO
Type BO
Type CO
Type DO
B43
